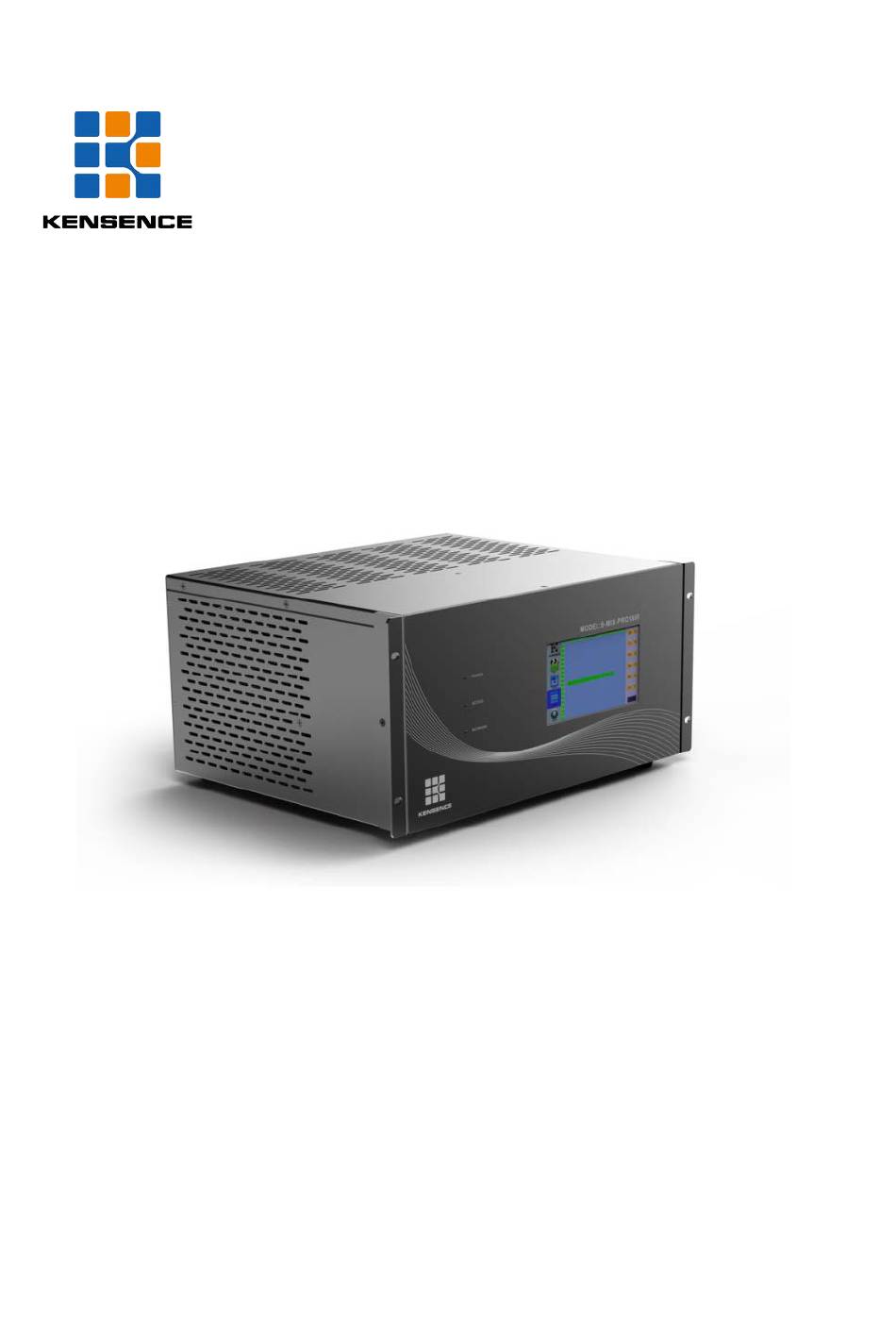

- Page 1 S-MIX-PRO1600 Customized Input Output Hybrid Matrix Switch Operation Manual Version ： V1.01.01 2018-3 Kensence (shenzhen) Technology Development CO.,LTD...
-
Page 2: Table Of Contents
S-MIX-PRO1600 Contents Operation Manual ..........................1 1. Brief Introduction ........................... 1 2. Product Features ..........................1 3. Connection and operation ......................1 4.Standard Packing list ........................2 5.Specification ........................... 3 6. Equipment operation and function ....................4 6.1 Panel introduction ........................ 4 6.2 Touch screen control instructions .................. - Page 3 S-MIX-PRO1600 Safety Reminder To protect the device and operating personnel from electrostatic discharge, you need to check and ensure that the device is grounding good before the device is powered on. Please observe the following when you install, use, maintain this equipment.
-
Page 4: Operation Manual
S-MIX-PRO1600 1. Brief Introduction The S-MIX-PRO1600 is a new, single-card, single signal port, high-definition seamless hybrid matrix that supports a total of 16 high-definition video. Among them, 16 channels can be customized as input/output mode, which can automatically detect the card type and support the asymmetrical configuration of input/output channels. -
Page 5: Standard Packing List
MIN to MAX until the signal is displayed normally. A 24 Hz vertical refresh rate may work better than 60 Hz or higher. The following diagram is S-Mix-Pro1600 matrix switching system application: 4.Standard Packing list... -
Page 6: Specification
Matrix enclosure AC Power cable Certification Warranty Card User manual 5.Specification Model S-MIX-PRO1600 S-Mix-Pro1600 HD seamless switch hybrid matrix Name Slot 16 way，customized input and output Support CVBS、YPbPr、VGA、HDMI、DVI、AUDIO、3GSDI、HDBaseT、H.264、 Input/output module Fiber、IP streaming Human body discharge mode: ± 8kV (air gap discharge) ±... -
Page 7: Equipment Operation And Function
S-MIX-PRO1600 Control RS-232 (baud rate :115200 data bit :8bit stop bit:1 NO parity bit) protocol Serial port control connector 9 pin D-sub(DE9F)socket 2=TX、3=RX 5=GND Control TCP/IP Network IP protocol Connector RJ45 connector 10/100Base-T EhernetEthernet Color space Support RGB444, YUV444, YUV422 color space, support x.v.Color extended color... -
Page 8: Touch Screen Control Instructions
S-MIX-PRO1600 Figure6.1.3 Product picture Explanation： 1. POWER：power indicator ，Constant light when power is on； ACTIVE：data transmission indicator； Network: network connection status indicator； 2. 7-inch touch screen，matrix can be controlled through the touch screen； 3. RS232 port and LAN port used to control the matrix；... - Page 9 S-MIX-PRO1600 6.2 Touch screen control instructions The matrix can be controlled by the front panel high-definition touch screen. The touch interface includes four operating options: display, switching, scene, and setting. As shown in Figure 6.2.1, the display interface, real-time display matrix switching status, horizontal The value indicates the output port and the vertical indicates the input port.
- Page 10 S-MIX-PRO1600 Figure6.2.2 Switch interface 2.Scene save and recall: As shown in Figure 6.2.3, the interface can easily recall the saved scene. Select the scene to be called in 01~13. After the selection, the configuration of the current scene will be displayed.
- Page 11 S-MIX-PRO1600 Figure6.2.6 Matrix setting interface Buzzer switch: Click the white bar next to “Buzzer” to pop up the numeric keypad, enter on/off, click “ENTER” and then click “Save” to close or open the buzzer, as shown in the following figure: Video backup switch: The operation is similar to that of the buzzer.
-
Page 12: Pc Control Software Operation Instructions
S-MIX-PRO1600 IP address change: Click the white bar on the right side of “IPaddr1” to pop up the numeric keypad, enter the new IP address, click “ENTER”, and then click “Save” to save it, as shown in the following figure: 6.3 PC control software operation instructions... - Page 13 S-MIX-PRO1600 Figure6.3.0 Computer IP change Network connection: Use a network cable to connect the computer and matrix, 1 ） double-click to open the control software, click the "SETUP" button, if you control the matrix through the network port, you need to set the IP of the computer and the IP of the matrix in the same network segment, in the online port of the network port Select the computer's IP address (click the "SETUP"...
- Page 14 S-MIX-PRO1600 Figure6.3.1 Network connection 2 ） Serial connection : Use a direct serial cable to connect the computer and matrix, double-click to open the control software, click the "SETUP" button, select the serial port connected to the matrix, for example, "COM2", then select at the serial device "COM2", click "serial connection", when all the buttons in the lower right corner show green, the connection is successful.
-
Page 15: Switching Operation
S-MIX-PRO1600 enter the IP to be changed at the network address in the configuration bar, and click Save to change the IP. Turn on/off the buzzer : 4 ） After ensuring that the matrix is connected to the computer, click on the “On”... - Page 16 S-MIX-PRO1600 In the "Video Control" column, you can adjust the brightness and contrast of the input board, reset the board, etc. In the "Name" column, you can rename the name of the signal. Figure6.3.4 Input board central control, video control, naming operation interface 2) Output card: After you double-click any output signal on the “SWITCH”...
-
Page 17: Scene Save Operation
S-MIX-PRO1600 6.3-3 Scene save operation Click the "VIEW" button to pop up the interface as shown in Figure 6.3.6. On the right side of the interface, click on the scenes you want to save in numbers 1 to 12. Press the "SAVE" key to move the current matrix. -
Page 18: External Serial Port Commands
S-MIX-PRO1600 Figure6.3.7 scene recall 6.3-5 External serial port commands The external serial port command is sent in the following format (black characters are fixed, "parameter" in the red character indicates the string command to be sent, "param length" indicates the length of the string command, and "packet length"... -
Page 19: Tv Wall Splicing
S-MIX-PRO1600 （ 2BYTE ） ） ） ） 61 62 63 64 55 55 00 13 00 00 07 01 00 07 32 33 34 6.3-6 TV Wall Splicing The TV wall currently supports up to 15 channels of splicing. Let's set up the 4 splicing as an example. - Page 20 S-MIX-PRO1600 Figure6.3.9 Set the input and output relations of each area Figure6.3.10 Use mouse drag to splicing...
-
Page 21: Device Update
S-MIX-PRO1600 Figure6.3.12 Successful splicing 6.3-7 Device update Select the upgrade button, click the drop-down button to select the serial port of the connection matrix and the device to be upgraded, then double-click the upgrade file to select the software to be upgraded, and then click to start the upgrade. -
Page 22: Add Plugin
S-MIX-PRO1600 Figure6.3.14 update successed 6.3-8 Add plugin Users can add common tools by themselves; first, the user needs to put the tools you want to add into the root directory of the Plugins folder, then open the sys_config.ini file and add the path after... -
Page 23: Distributed Matrix Function
S-MIX-PRO1600 6.3-9 Distributed matrix function Connect the unit to the encoder and decoder to the switch. Refresh the list to view the IP of the encoder and decoder. To switch, select the encoder and decoder IP and click “Switch”. Figure 6.3.16 Figure6.3.16 encoder decoder switching... -
Page 24: Communication Protocol And Control Instruction Code
S-MIX-PRO1600 7.Communication protocol and control instruction code Communication protocol: (baud rate 115200, data bit 8, stop bit 1, check digit none) Type Control command Function description aXb.take. Switch the input of a road to the output of b road aX1-b.take. -
Page 25: Version And Production Information
