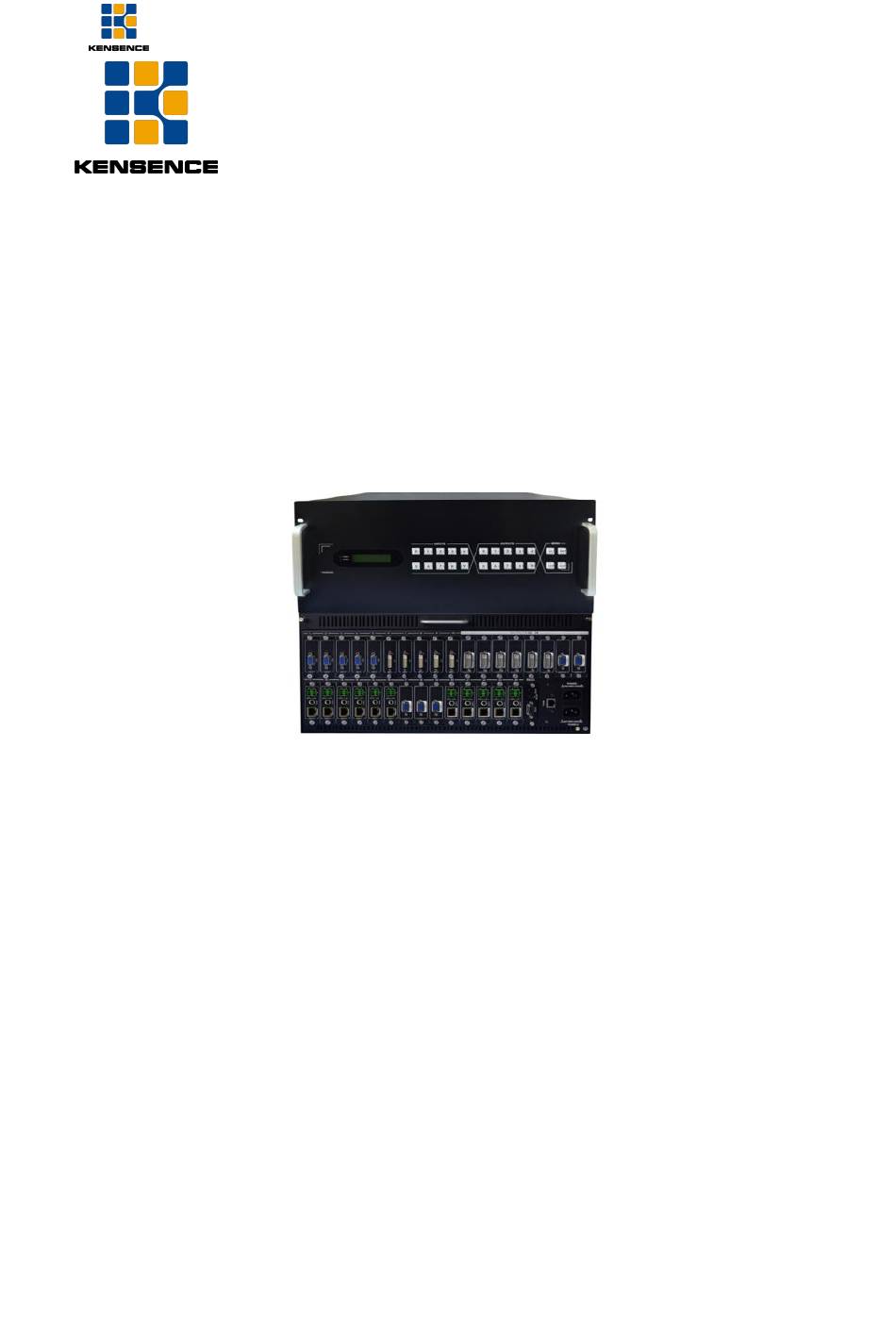

  • Page 1 Flexible Matrix Switcher Operation manual Kensence (Shenzhen) Technology Development CO.,LTD Version：V1.01.01 2016-4...

  • Page 2: Table Of Contents

    Content 1.Introduction..................- 1 - 2.Features..................... - 1 - 3.System connection................- 1 - 4.Standard configuration..............- 2 - 5.Specification..................- 3 - 6.Device panel description..............- 4 - 7.Card introduction................- 6 - 8.Matrix control operation introduction...........- 13 - 8.1Panel control................
  • Page 3 Safety Reminder To protect the device and operating personnel from electrostatic discharge, you need to check and ensure that the device is grounding good before the device is powered on. Please observe the following when you install, use, maintain this equipment. Make sure the device ground connection.
  • Page 4 overtemperature.  Do not place the device in very cold or very hot places. Do not sprinkle any corrosive chemicals or liquid on or around the device.  To avoid accident or any further damage ,non-professionals please do not dismantle or maintain the device without permission.

  • Page 5: Introduction

    1.Introduction FMX16/FMX32 is a new type of HD seamless modular matrix of one card one single , which supports a total of 16/32 HD video. The 12 / 24 channels can be customized input / output mode, of which 4/8 channel is fixed output. It can automatically detect of card type and support different input and output channel number.The system support HDMI, DVI, VGA, SDI, YPBPR, CVBS, HDBaseT, HDCI and other signals, can customize the output resolution, the highest is 1920*1200@60Hz.

  • Page 6: System Connection

    3.System connection 1.Connect signal source such as blu-ray player、game controller、A/V receiver、cables、 satellite receiver etc. to input port,when plug in and out of the card, please be careful to operate in case of damaging the circuit when the matrix is power on. 2.Connect the output port to HD display such as HDTV or HD projector.

  • Page 7: Standard Configuration

    Standard configuration Please check the outer package before using this product. Please contact us if the product is faulted or not intact. We will sincerely serve you according to relevant provisions. Name Quantity Unit Matrix Host Dryer 50g AC power adapter Certification Warranty card User manual...

  • Page 8: Specification

    5.1 Specification Model FMX16 Description 16 card enhanced HD modular matrix Card slot 16 card of 12 arbitrary combination and 4 fixed output Input module Support CVBS, YPbPr, VGA, HDMI, DVI, AUDIO, 3GSDI, HDCI, HDBase T Output Support CVBS, YPbPr, VGA, HDMI, DVI, AUDIO, 3GSDI, HDCI, HDBase T Module Bandwidth 10.2 Gbps...
  • Page 9 5.2 Specification Model FMX32 Description 32 card enhanced HD modular matrix Card slot 32 card of 24 arbitrary combination and 8 fixed output Input module Support CVBS, YPbPr, VGA, HDMI, DVI, AUDIO, 3GSDI, HDCI, HDBase T Output Support CVBS, YPbPr, VGA, HDMI, DVI, AUDIO, 3GSDI, HDCI, HDBase T Module Bandwidth 10.2 Gbps...

  • Page 10: Device Panel Description

    6.Device panel description Fig 6.1.1 FMX32 front panel 1.Micro USB interface: through the interface to upgrade the firmware; 2.Power indicator, when switch on it's always bright; 3.LCD screen: display real-time operating status; 4.INPUT and OUTPUT Key area; 5.function key area: including "ALL" select button. " EDID" button." CLEAR" button,"ENTER"...
  • Page 11 1 audio and video card channel 1~10 and 11~24: according to the need to customize input and output card, the system will automatically recognize the input card or the output card; 2.Signal output card 25~32:this eight card slots are fixed outputs, can only receive the output signal card;...

  • Page 12: Card Introduction

    7.Card introduction 1.FMX-HDMI-4K-IN/OUT（4Kx2K signal input and output card） FMX-HDMI-4K-IN FMX-HDMI-4K-OUT Support HDMI1.3 standard, compatible with HDCP1.2 standard and DVI signal;  HDMI 1 port, Sound Analog 1 port  Maximum resolution support 4Kx2k;  Support PCM Sound System  Bandwidth 6.75 Gbps ...
  • Page 13 Signal name Signal name TMDS Data 2+ SHELL TMDS Data 2 Shield Hot Plug Detect TMDS Data 2- +5V Power TMDS Data 1+ Ground TMDS Data 1 Shield DDC Data TMDS Data 1- DDC Clock TMDS Data 0+ No Connect TMDS Data 0 Shield TMDS Data 0- TMDS Clock-...
  • Page 14 2、FMX-HSDA-IN/OUT(Universal signal input and output card) FMX-HSDA-IN FMX-HSDA-OUT Compatible with HDMI1.3 and HDCP1.4 standards;  The input and output ports are supported by DVI, HDMI, VGA, YPbPr and C-VIDEO  format signals; Automatic identification of input signal format, no need to set manually; ...
  • Page 15 T.M.D.S. Data 4+ T.M.D.S. Data 0－ DDC Clock T.M.D.S. Data 0+ DDC Data T.M.D.S. Data 0/5 Shield No Connect T.M.D.S.Data5－ T.M.D.S.Data1- T.M.D.S.Data5＋ T.M.D.S.Data1+ T.M.D.S. Clock Shield T.M.D.S.Data1/3 T.M.D. S. Clock + Shield T.M.D.S.Data3- T.M.D.S .Clock－ Analog Red Analog Green Analog Blue Horizontal Sync Analog Analog Ground（analog R，G，B return）...
  • Page 16 DVI to C-VIDEO Signal name YELLOW The remaining pins are empty...
  • Page 17 DVI-I Signal DVI-I Signal name name DVI to VGA HSync VSync GREE BLUE The remaining pins are empty 3、FMX-HDBT-IN/OUT（HDBT remote signal input and output card） FMX-HDBT-IN FMX-HDBT-OUT Accord with HDBT1.0 standards, compatible with HDCP1.4; EDID; ...
  • Page 18 Accord with HDMI 1.3, DVI 1.0 standards.  Support 1080P(1920x1080) 3D signal, maximum resolution support 4Kx2K;  Support PCM Sound system  Signal Switch Speed 100 ns  HDBT (RJ 45) 1 port, Sound analog 1 port  HDBT ports to be used with a remote transmitter / receiver; ...
  • Page 19 TIA/EIA 568A TIA/EIA 568B Wire color Wire color Green and Orange and white white Green Orange Orange and Green and white white Blue Blue Blue and Blue and white white Orange Green Brown and Brown and white white Brown Brown Each color corresponds to the half white form a pair...
  • Page 20 4、FMX-3GSDI-IN/OUT(SDI signal input and output card) FMX-3GSDI-IN FMX-3GSDI-OUT Each input signal with one SDI loop out;  Support HD-SDI, SDI, 3G-SDI signal;  Input resolution can be automatic recognition;  Upscaling function,the low input resolution was upscaled to 1080P output by default; ...
  • Page 21 5、FMX-HDCI-IN/OUT(POLYCOM video conference special card) Input card connect to Polycom EagleEye cameras,which can be powered by  matrix host. Output card connect to Polycom conference terminal (such as: HXD 7000 HD)  Compatible with YPbPr,maximum resolution support 1080P  FMX-HDCI-IN FMX-HDCI-OUT HDCI 60P parent pin description: Signal...

  • Page 22: Matrix Control Operation Introduction

    Connect the HDCI connector, do not insert joint oppsite so as not to burn the HDCI card. 8.Matrix control operation introduction 8.1Panel control Switching operation First select the input port, then select the output port and then press the "ENTER", select the input and output port using combination forms.

  • Page 23: Rs232 Control

    8.2 RS232 Control Preparation before control Connect the computer serial communication port and the matrix RS232 communication port through straight line RS232 . After application software is installed, you can use the computer to control the matrix. Here take SSCOM32 as an example to explain. Software installation method: copy control software to normal connection control device.
  • Page 24 Fig8.2.2 software interface Fill in the correct serial number,communication protocol, baud rate, data bits, stop bits, parity bit in the parameter configuration area,can input command in command input area to control the local or remote receiver. RS232 control command Communication protocol: baud rate: 9600 data bits: 8 stop bit: 1: no parity bit RS232 Command Function description Return code...
  • Page 25 Message Return. Cancels the previous operation and Undo. Undo returns to the state of the previous switch. Set the system to work in Demo mode. Demo Mode In this mode, each input and output will AV: 01->001 be switched in turn, each interval is 2 Demo.
  • Page 26 V: 01->001 Query signal input status of all output A: 01->001 Status. channel … … Save the current state to [Y] group, [Y] is Save[Y]. Save To F8 0-9 numeric keys Recall From F8 Call the input and output switching state V: 01->001 Recall[Y].
  • Page 27 Update the built-in EDID data, support 6 kinds of built-in EDID, after receiving the instruction, the machine will prompt to send EDID files, the file format is .Bin, reserve 10S timeout, y is the EDID representative value: 1 ~ 6: UpgradeIntEDID[y].
  • Page 28 USER/I/[x]:0649%; VGA input card: close channel [x] audio 0649% USER/I/[x]:0684%; VGA input card: set input channel [x] color space to YCBCR 0684% USER/I/[x]:0685%; VGA input card: set input channel[x] color space to RGB 0685% USER/I/[x]:0622%; VGA input card: set input channel [x] signal source to VGA 0622% USER/I/[x]:0623%;...
  • Page 29 VGA/DVI/HDMI/SDI input card:Software upgrade (upgrade USER/I/[x]:0698%; 0698% program named MERGE) DVI/HDMI/SDI input card:set the input channel [x] image USER/I/[x]:02xx%; 02xx% brightness values xx（00～99） DVI/HDMI/SDI input card:set the input channel [x ]image USER/I/[x]:03xx%; 03xx% contrast value xx（00～99） DVI/HDMI/SDI input card:set the input channel [x ]image USER/I/[x]:04xx%;...
  • Page 30 1280x720P Resolution DVI/HDMI output card:set output channel [x] signal resolution to USER/O/[x]:0813%; Out03 1920x1080P @60Hz 1920x1080P Resolution DVI/HDMI output card:set output channel [x] signal resolution to USER/O/[x]:0824%; Out03 1024x768 @60Hz 1024x768 Resolution DVI/HDMI output card:set output channel [x] signal resolution to USER/O/[x]:0826%;...

  • Page 31: Tcp/Ip Communication Port Control

    output the color space can be YCBCR,RGB; set to DVI the color space only supports RGB; 5. [x1], [x2], [x] in instructions is the effective range of input or output channel number, if beyond the scope, it can seen as command input error; 6.
  • Page 32 Second: select IPV4, click on "property" to enter the interface as shown in figure B: Third:choose" using the following IP address", change the IP gateway to the same as matrix host: 192.168.0.178; Fouth:Click OK, IP change completed 8.3.2 Loading and use of GUI software First: connect matrix host to a computer with same IP through twisted pair, open browser, enter the default IP:192.168.10.2 (IP is changeable,for example: matrix host IP change to 192.168.0.112.
  • Page 33 Fig 8.3.3 GUI main interface Output card resolution setting Enter the GUI main interface, select "Settings" option, as shown in Fig 8.3.3, and then select the "resolution settings" option, then select one output card, the resolution can be set. For example, to set the "27" output card resolution, click on drop-down arrow of channel "27"...
  • Page 34 Fig 8.3.4Port setting interface Video switching operation In GUI main interface, click on "video switch" button, pop-up switch interface, as shown in figure 8.3.5, first select the input port, for example select input "3", and then select the output port, such as select output "1" and "5", and click "OK" button, then the input end "3" signal is switched to the output terminal "1"...
  • Page 35 Fig 8.3.5 Switching interface Scene save and call Click on "video switch" option,pop-up switch interface, as shown in figure 8.3.6.Save scene in "Scene" , for example, select the number "5", click on the save, the current configuration state of the matrix is saved to scene "5". When calling scene in "Scene"...
  • Page 36 login password or lock or unlock the front panel, lock the front panel can not operable, after the completion click "Save" can be ok. Fig8.3.7 User interface Input / output port name change Click the "interface" option, pop-up as shown in figure 8.3.8 interface, double-click the name you want to change of the input or output port, enter the name you want to change, and then click "save".
  • Page 37 HDCP compatible settings Click "HDCP" option, pop up as shown in figure 8.3.9 interface, select the open or close the output side of the HDCP compatible function.(valid to ADM-HSDA-OUT、 ADM-HDBT-OUT、ADM-HDMI-OUT card) Fig 8.3.9 HDCP compatible setting interface EDID learning function Click "EDID"...
  • Page 38 Fig 8.3.10 EDID learning interface Change matrix IP Click the "network" option, pop up as shown in figure 8.3.11 interface, select "DHCP" or " Static IP" option, and then enter the changed IP address, click "save". ("DHCP" is LAN control mode, the use of LAN can control a number of matrix, figure 8.3.12 is LAN control diagram) Fig 8.3.11 Matrix IP address change interface...
  • Page 39 Fig 8.3.12 LAN control diagram...

  • Page 40: Usb Firmware Upgrade

    9.USB firmware upgrade When firmware update, repair or function change, support for program updates, provides front panel USB port upgrade, upgrading the system program through the front panel "firmware" port, the latest upgrade program can contact our company technical and sales personnel.

  • Page 41: Common Faults And Maintenance

    Note: if you upgrade to half, the progress bar stops, at this point, the instrument must be power down after the restart, and then USB upgrade. 10.Common faults and maintenance Failure phenomena Cause analysis Elimination method “POWER” is not bright Power input not in good Check whether the power input is loose contact...
  • Page 42 Signal source with HDCP, Send instruction HDCP ON to open HDCP while the system is set to protocol HDCP is not compatible Control terminal Carefully check whether the communication communication port serial port loose or damaged Control terminal can not damage control the machine Communication protocol...

  • Page 43: After-Sales Service

    11.After-sales service (1) If appears abnormal situation when using the product, in warranty period and in normal use, due to failure caused by the quality of the product itself and not being overhaul, the company will be responsible for giving free maintenance. (2) We provide a three-year warranty service, warranty start date: product ex factory date;if the above date not proved, will according to production date in the SN Company Code .
  • Page 44 Contact Us Kensence (Shenzhen) Technology Development CO.,LTD Address ：19F,Building A, NO.196 Tangtou blvd,Shixin community,Shiyan Town , Baoan District ,Shenzhen China 518108 Fax：86-0755-29459442 Website：http://www.kensence.net/...
