The CANbus system
The CANbus system comprises two control panels (main and auxiliary) an LCD monitor and a number of control nodes. The system controls and monitors all
sweeper functions and maintains a log of various operating parameters such as operating hours and any fault conditions that might occur.
Switches: The various types of switch function are grouped in two ways. Firstly they are colour coded as follows:
Amber
= Electrical functions such as lighting.
Red
= Critical functions (e.g. Engage Hydrostatic Drive).
Green
= Sweeping functions.
Blue
= Water Spray functions.

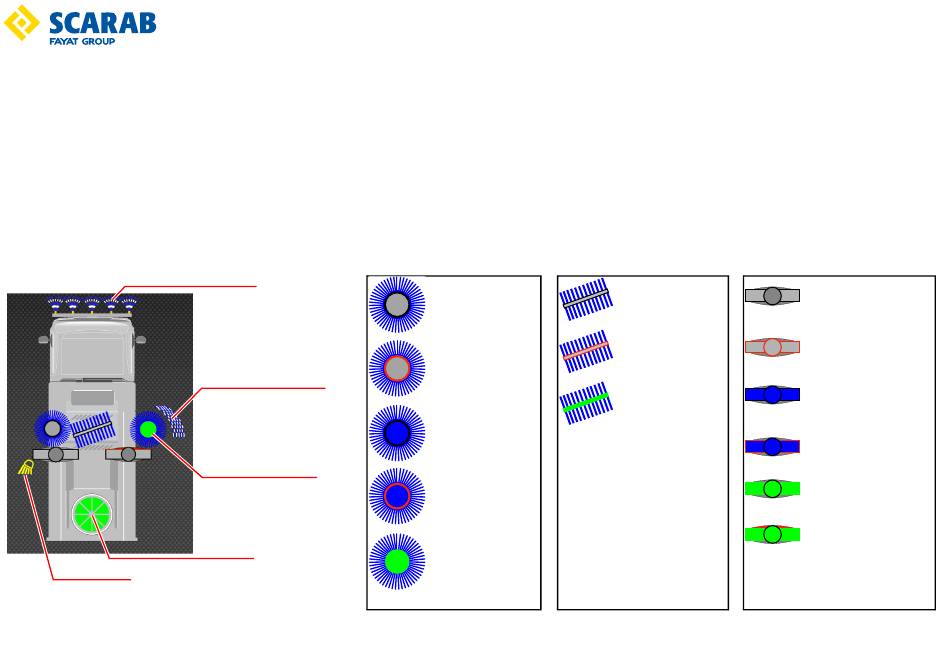

Each switch illuminates a function-related symbol on the LCD monitor (only installed equipment will be displayed). Each symbol is greyed-out until its switch
is activated. When a switch is activated the appropriate symbol will illuminate according to system status as illustrated.
Central brush water ON
Suction fan ON (2000rpm)
Work light ON
Part No. SCAZ037886 8.6.00
Side brush and suction
nozzle water ON
Side brush shown in
the working position
Operating Instructions
Not selected
Pre-selected
Water pre-selected
Brush and water
pre-selected
Equipment working
10
Merlin and Magnum Hydrostatic
Not selected
Pre-selected
Equipment working
Not selected
Pre-selected
Additional water
selected
Nozzle and additional
water pre-selected
Equipment working.
Centre blue when
additional water active
Nozzle tilt selected
