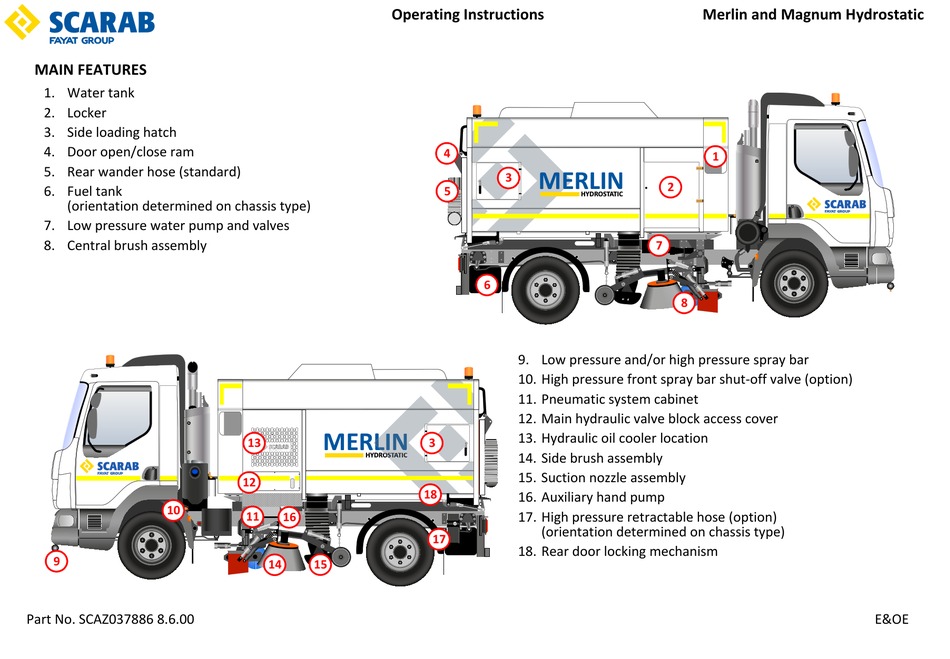

MAIN FEATURES
1. Water tank
2. Locker
3. Side loading hatch
4. Door open/close ram
5. Rear wander hose (standard)
6. Fuel tank
(orientation determined on chassis type)
7. Low pressure water pump and valves
8. Central brush assembly
10
9
Part No. SCAZ037886 8.6.00
Operating Instructions
MERLIN LIN
13
HYDROSTATIC OSTATIC
12
11 16
15
14
4
MERLIN
3
5
HYDROSTATIC
6
9. Low pressure and/or high pressure spray bar
10. High pressure front spray bar shut-off valve (option)
11. Pneumatic system cabinet
12. Main hydraulic valve block access cover
13. Hydraulic oil cooler location
3
14. Side brush assembly
15. Suction nozzle assembly
18
16. Auxiliary hand pump
17. High pressure retractable hose (option)
(orientation determined on chassis type)
17
18. Rear door locking mechanism
Merlin and Magnum Hydrostatic
1
2
7
8
E&OE
