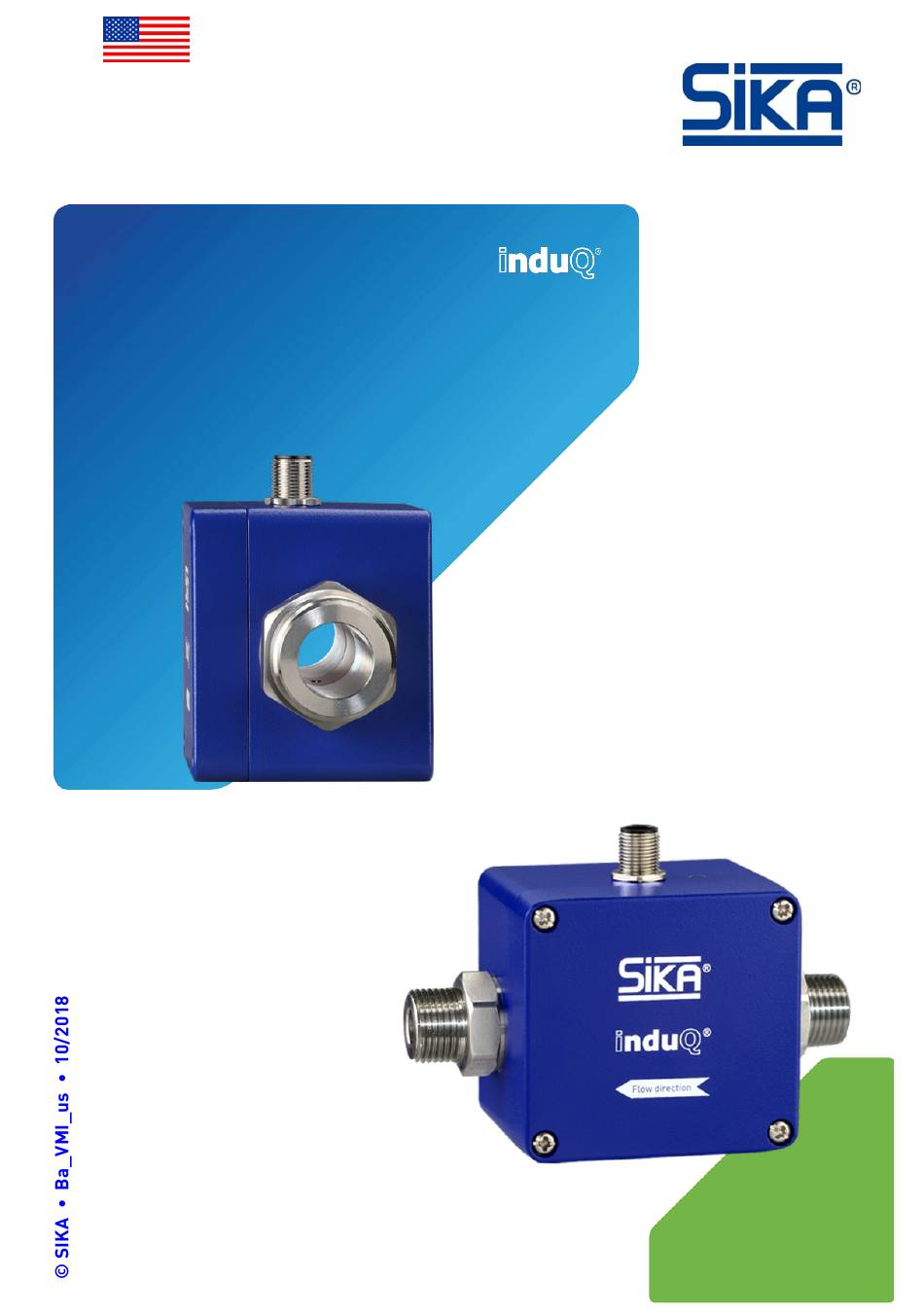

Operating manual
Operating manual .................................................... page 1 - 20
Magnetic inductive flow sensor
Series VMI
Types VMI 07 • VMI 10 • VMI 20
Please keep this operating manual for future reference.
If the device is resold, please provide the operating manual along with it.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIKA INDUQ VMI 07
Summary of Contents for SIKA INDUQ VMI 07
- Page 1 Operating manual Operating manual ............ page 1 - 20 Magnetic inductive flow sensor Series VMI Types VMI 07 • VMI 10 • VMI 20 Please keep this operating manual for future reference. If the device is resold, please provide the operating manual along with it.
-
Page 2: Table Of Contents
Dimensions ........................ 19 ® induQ is a registered trademark of SIKA Dr. Siebert & Kühn GmbH & Co. KG Copyright notice: The reproduction, distribution and utilization of this operating manual as well as the communication of its contents to others without express authorization is prohibited. Offenders will be held liable for the payment of damages. -
Page 3: About This Operating Manual
Thoroughly read and understand the information in the section "Safety instructions". If you have any problems or questions, please contact your supplier or contact us directly SIKA USA Inc. 1500 S. Sylvania Ave. • Suite 111 Sturtevant • WI 53177 ... -
Page 4: Device Description
Device description ® induQ of the VMI series from SIKA is a flow sensor without moving parts. The meas- urement is performed using magnetic induction. The VMI is used for measuring or metering water and electrically conductive fluids. The com- pact design and independence from the intake and discharge sections allows the VMI to be used under a variety of conditions. -
Page 5: Intended Use
® induQ — Series VMI Device description Accessories: Connection cable with molded M12x1 coupling socket. M12x1 coupling socket as component. 1.2 Intended use The magnetic inductive flow sensor VMI must only be used for measuring and metering liq- uids with a minimum conductivity of 50 μS/cm. -
Page 6: Safety Instructions
In order to guarantee that the device operates safely, the operator must act competently and be conscious of safety issues. SIKA provides support for the use of its products either personally or via relevant literature. The customer verifies that our product is fit for purpose based on our technical information. -
Page 7: Construction And Function
® induQ — Series VMI Construction and function Construction and function Components: Housing: The housing consists of aluminum die cast- ing and has the IP65 degree of protection. Electrical connection: The electrical connection is made via 5-pin plug M12x1. ... -
Page 8: Installation Of Vmi
Ensure that no external magnetic fields are present at the in- stallation site of the VMI. • The VMI can always be installed anywhere along the pipeline. Straight sections of piping are preferable, however. - 8 - © SIKA • Ba_VMI_us • 10/2018... -
Page 9: Mounting
® induQ — Series VMI Installation of VMI • Installation can occur in horizontal and vertical pipes. The flow sensor is only suitable for application in completely filled pipe systems. • As a matter of principle magnetic inductive flow sensors are widely independent from the flow profile. -
Page 10: Electrical Connection
Connecting cable: Suitable connection cables with molded coupling socket are available in various lengths in- cluded in the range of SIKA accessories. The shielding is already connected with the knurled nut. The maximum length of the connecting cable is 30 m. -
Page 11: Wirings
® induQ — Series VMI Electrical connection 5.1 Wirings Pinout: The pinout differs according to the chosen configuration of the device. Possible pinout: Pin 1: +U Pin 2: n. c. (not connected) / Analog U/I Pin 3: GND Pin 4: Frequency Pin 5: n. -
Page 12: Commissioning And Measuring Mode
The VMI provides according to the version a flow pro- portional NPN, PNP or Push-Pull square wave signal. The frequency of the pulse output changes according to the flow ( Fig.). - 12 - © SIKA • Ba_VMI_us • 10/2018... - Page 13 ® induQ — Series VMI Commissioning and measuring mode VMI with analog output: According to the configuration of the VMI, the analog output provides a voltage or current signal. This signal is proportional to the measured flow. Technical changes reserved - 13 -...
-
Page 14: Maintenance And Cleaning
Due to legal requirements placed on environmental protection and occupational safety and health and to maintain the health and safety of our employees, all units returned to SIKA for repair must be free of toxins and hazardous substances. That also applies to cavities in the devices. -
Page 15: Disassembly And Disposal
The VMI consists of various different materials. It must not be disposed of with house- hold waste. Take the VMI to your local recycling plant send the VMI back to your supplier or to SIKA. * WEEE reg. no.: DE 25976360 Technical changes reserved... -
Page 16: Technical Data
Electrical connection 5-pin plug M12x1 Degree of protection IP 65 (with attached coupling socket) (EN 60529) *1 Test conditions: Water 73.4 °F at 150 ±100 µS/cm; Standard pulse rate. *2 factory setting. - 16 - © SIKA • Ba_VMI_us • 10/2018... -
Page 17: Materials Table
® induQ — Series VMI Technical data Type VMI 07 VMI 10 VMI20 Process variables Medium to measure: Water and other conductive liquids - Conductivity > 50 μS/cm - Temperature -4…194 °F Ambient temperature 14…T °F ( § 9.3)* Inner diameter 0.39 in narrows to 0.39 in 0.79 in... -
Page 18: Temperature Limits
Frequency output Frequency and analog output Lower limit -10 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 Medium [°F] - 18 - © SIKA • Ba_VMI_us • 10/2018... -
Page 19: Dimensions
® induQ — Series VMI Technical data 9.4 Dimensions VMI 07 and VMI 10: ¾'' NPT only for VMI 10 The cross section of the VMI 10 does not taper to 0.16 in. VMI 20: Technical changes reserved - 19 -... - Page 20 Sensors and Measuring Instruments Flow Measuring Instruments Test and Calibration Instruments SIKA USA Inc. 1500 S. Sylvania Ave. • Suite 111 Sturtevant WI 53177 262 886-2695 262 898-0101 info@sika-usa.com www.sika-usa.com - 20 - © SIKA • Ba_VMI_us • 10/2018...
