Summary of Contents for SIKA induQ Series

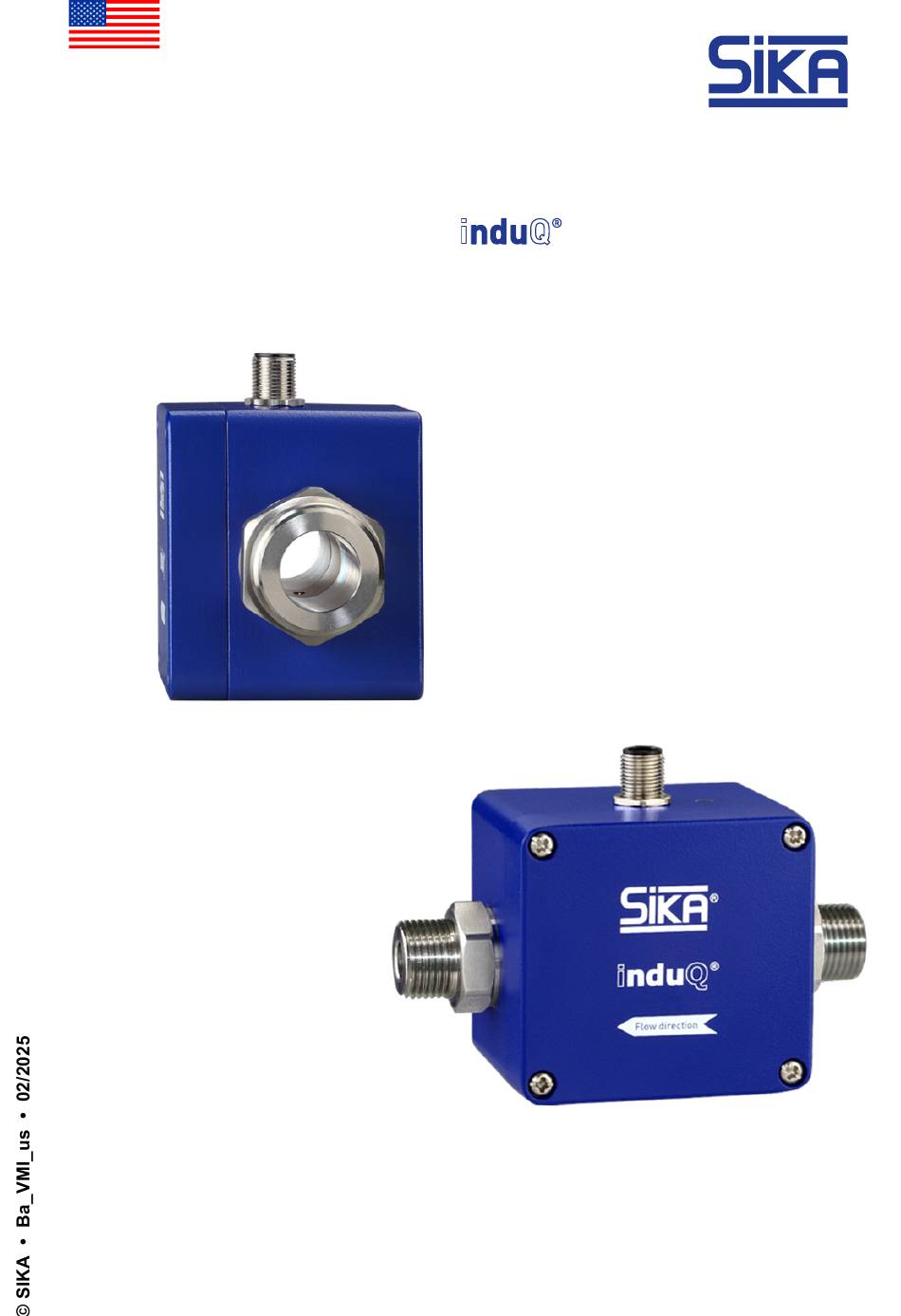

- Page 1 Operating manual ..........page 1 – 20 Magnetic inductive flow sensor series VMI...
-
Page 2: Table Of Contents
8.2 Materials table ....................... 15 8.3 Temperature limits ....................16 8.4 Dimensions ......................17 is a registered trademark of SIKA Dr. Siebert & Kühn GmbH & Co. KG Copyright notice The reproduction, distribution and utilization of this operating manual as well as the communication of its contents to others without express authorization is prohibited. -
Page 3: About This Operating Manual
Failure to do so may result in damage to property and the environment. If you have any problems or questions, please contact your supplier or contact us directly at: SIKA USA Inc. 13203 Globe Drive, Suite 107 Mount Pleasant, WI 53177 ... -
Page 4: Safety Instructions
Only use the device if it is in perfect condition. Damaged or faulty devices must be • checked immediately and, if necessary, replaced. Do not remove or obliterate type plates or other markings on the device, as otherwise, • the warranty is rendered null and void. - 4 - © SIKA • Ba_VMI_us • 02/2025... -
Page 5: Device Description
Device description Device description of the VMI series from SIKA is a flow sensor without moving parts. The meas- urement is performed using magnetic induction. The VMI is used for measuring or metering water and electrically conductive fluids. The com- pact design and independence from the intake and discharge sections allows the VMI to be used under a variety of conditions. -
Page 6: Installation
Ensure that no external magnetic fields are present at the in- stallation site of the VMI. The VMI can always be installed anywhere along the pipeline. Straight sections of piping • are preferable, however. - 6 - © SIKA • Ba_VMI_us • 02/2025... -
Page 7: Mounting
— Series VMI Installation Installation can occur in horizontal and vertical pipes. The flow sensor is only suitable for • application in completely filled pipe systems. As a matter of principle, magnetic inductive flow sensors are widely independent from the •... -
Page 8: Electrical Connection
Connecting cable Suitable connection cables with moulded coupling socket are available in various lengths in- cluded in the range of SIKA accessories. The shielding is already connected with the knurled nut. The maximum length of the connecting cable is 30 m. - Page 9 — Series VMI Electrical connection IMPORTANT Pay attention to the temperature resistance of the connecting cable at high media temperatures. If the temperature resistance is smaller than the medium temperature, the cable may not be directly laid on the pipe. Connection 5-pin plug M12x1 ...
-
Page 10: Wirings
*1: Push-Pull switching outputs of several VMI may not be connected in parallel. *2: Recommendation Pull-Up / Pull-Down resistance R ~5 kΩ Use of frequency and analog output Push-Pull NPN Open Collector PNP Open Collector Recommendation for resistance R ~5 kΩ - 10 - © SIKA • Ba_VMI_us • 02/2025... -
Page 11: Commissioning And Measuring Mode
— Series VMI Commissioning and measuring mode 5 Commissioning and measuring mode Before switching on the VMI for the first time, please follow the instructions in the following section. 5.1 Commissioning Check that the VMI has been installed correctly and that all screw connections are sealed. ... -
Page 12: Maintenance And Return Shipment
When opening the device, critical parts or components can be damage. Never open the device and perform any repair yourself. Return shipment Please observe the instructions for the return procedure on our website (www.sika-usa.com). - 12 - © SIKA • Ba_VMI_us • 02/2025... -
Page 13: Disassembly And Disposal
The device consists of various different materials. It must not be disposed of with household waste. Take the device to your local recycling plant send the device back to your supplier or to SIKA. * WEEE reg. no.: DE 25976360 Technical changes reserved... -
Page 14: Technical Data
0...50 • 0...0.53 0...66 *1 Test conditions: Water 73 °F at 150 ±100 µS/cm; Standard pulse rate. *2 0...50 % of measuring range. *3 50…100 % of measuring range. *4 factory setting. - 14 - © SIKA • Ba_VMI_us • 02/2025... -
Page 15: Materials Table
— Series VMI Technical data Type VMI02 VMI07 VMI10 VMI20 Electrical characteristics Supply voltage 12...24 VDC (±10 %) 24 VDC (±10%) for analog output 0...10 V min. 16 VDC Current consumption ≤ 150 mA Electrical connection 5-pin-plug M12x1 Degree of protection IP 65 and IP67 (with attached coupling socket) (EN 60529) Process variables... -
Page 16: Temperature Limits
Technical data — Series VMI 8.3 Temperature limits The maximum ambient temperature depends on the medium temperature. - 16 - © SIKA • Ba_VMI_us • 02/2025... -
Page 17: Dimensions
— Series VMI Technical data 8.4 Dimensions Dimensions (inch) VMI L1 ±0.02 L2 ±0.0 0.61 ¼ - 14 NPT -/- Ø 0.12 0.07 3.15 2.95 2.56 1.3 1.42 1.02 M12x1 0.55 5.04 0.55 ½ - 14 NPT -/- Ø 0.4 0.16 3.15 2.95 2.56 1.3 1.42 1.02 M12x1 0.55 5.04 0.55 ½... - Page 18 — Series VMI - 18 - © SIKA • Ba_VMI_us • 02/2025...
- Page 19 — Series VMI Technical changes reserved - 19 -...
- Page 20 SIKA USA Inc. 13203 Globe Drive, Suite 107 Mount Pleasant, WI 53177 262 886-2695 262 898-0101 info@sika-usa.com www.sika-usa.com © SIKA • Ba_VMI_us • 02/2025...
