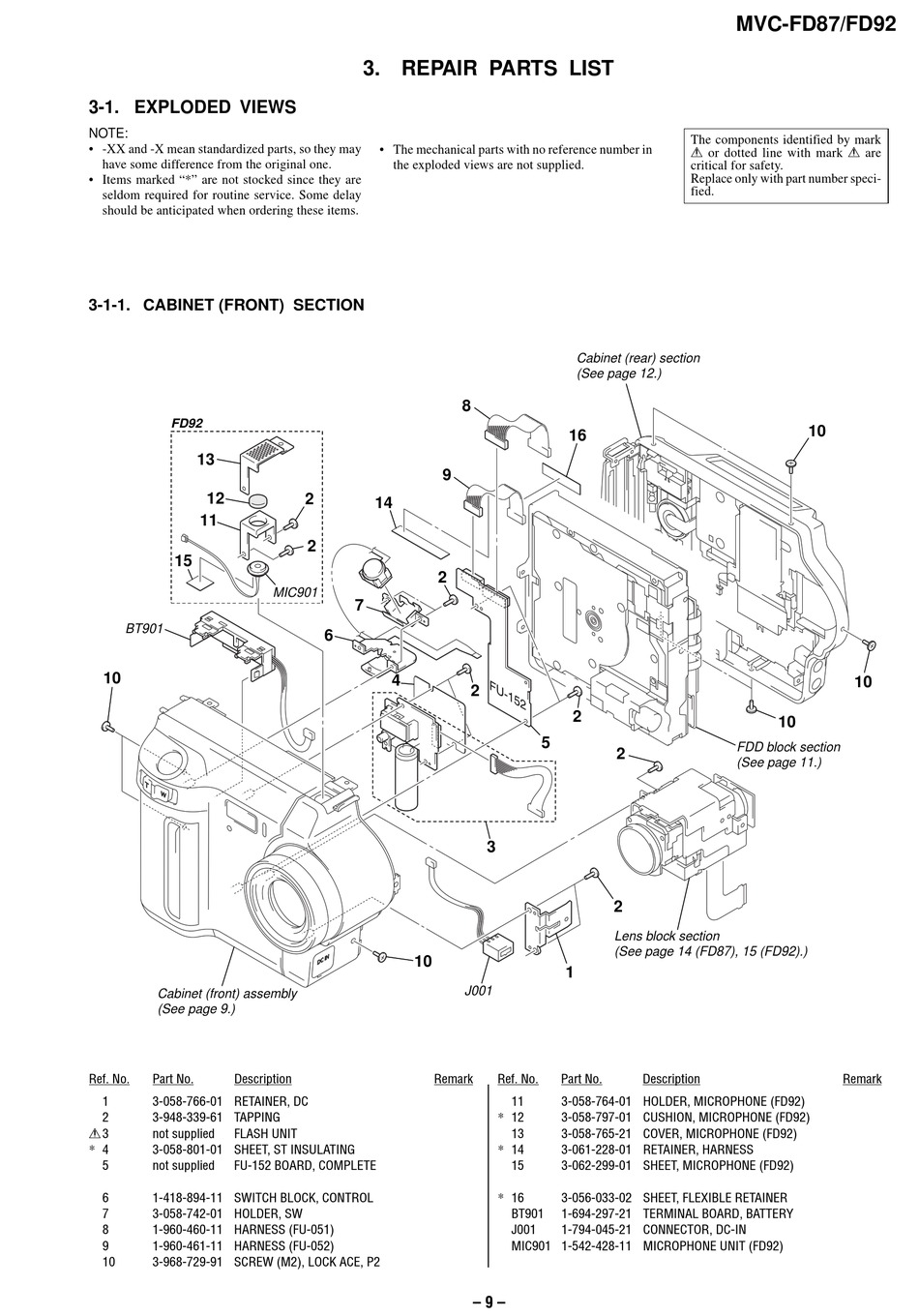

3-1. EXPLODED VIEWS

NOTE:
• -XX and -X mean standardized parts, so they may
have some difference from the original one.
• Items marked "*" are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.

3-1-1. CABINET (FRONT) SECTION

FD92
13
12
11
15
BT901
10
Cabinet (front) assembly
(See page 9.)
Ref. No. Part No. Description
1 3-058-766-01 RETAINER, DC
2 3-948-339-61 TAPPING
0 3 not supplied FLASH UNIT
* 4 3-058-801-01 SHEET, ST INSULATING
5 not supplied FU-152 BOARD, COMPLETE
6 1-418-894-11 SWITCH BLOCK, CONTROL
7 3-058-742-01 HOLDER, SW
8 1-960-460-11 HARNESS (FU-051)
9 1-960-461-11 HARNESS (FU-052)
10 3-968-729-91 SCREW (M2), LOCK ACE, P2

3. REPAIR PARTS LIST

• The mechanical parts with no reference number in
the exploded views are not supplied.
9
2
14
2
2
MIC901
7
6
4
10
Remark
Cabinet (rear) section
(See page 12.)
8
16
2
2
5
2
3
2
Lens block section
(See page 14 (FD87), 15 (FD92).)
1
J001
Ref. No. Part No.
11 3-058-764-01 HOLDER, MICROPHONE (FD92)
* 12 3-058-797-01 CUSHION, MICROPHONE (FD92)
13 3-058-765-21 COVER, MICROPHONE (FD92)
* 14 3-061-228-01 RETAINER, HARNESS
15 3-062-299-01 SHEET, MICROPHONE (FD92)
* 16 3-056-033-02 SHEET, FLEXIBLE RETAINER
BT901 1-694-297-21 TERMINAL BOARD, BATTERY
J001 1-794-045-21 CONNECTOR, DC-IN
MIC901 1-542-428-11 MICROPHONE UNIT (FD92)
– 9 –
MVC-FD87/FD92
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number speci-
fied.
10
10
FDD block section
(See page 11.)
Description
10
Remark
