SERVICE MANUAL
Ver 1.0 1998.09
MICROFILM

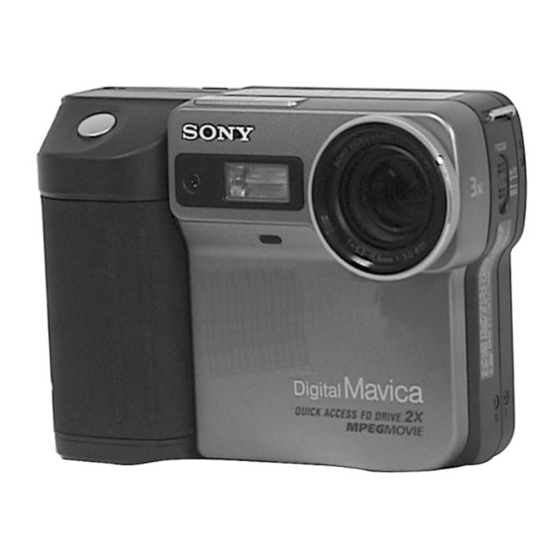

MVC-FD81
SPECIFICATIONS
US Model
Canadian Model
AEP Model
UK Model
Australian Model
Hong Kong Model
Tourist Model
Chinese Model
DIGITAL STILL CAMERA
E Model

Advertisement

Table of Contents
loading

Related Manuals for Sony MVC-FD81

Summary of Contents for Sony MVC-FD81

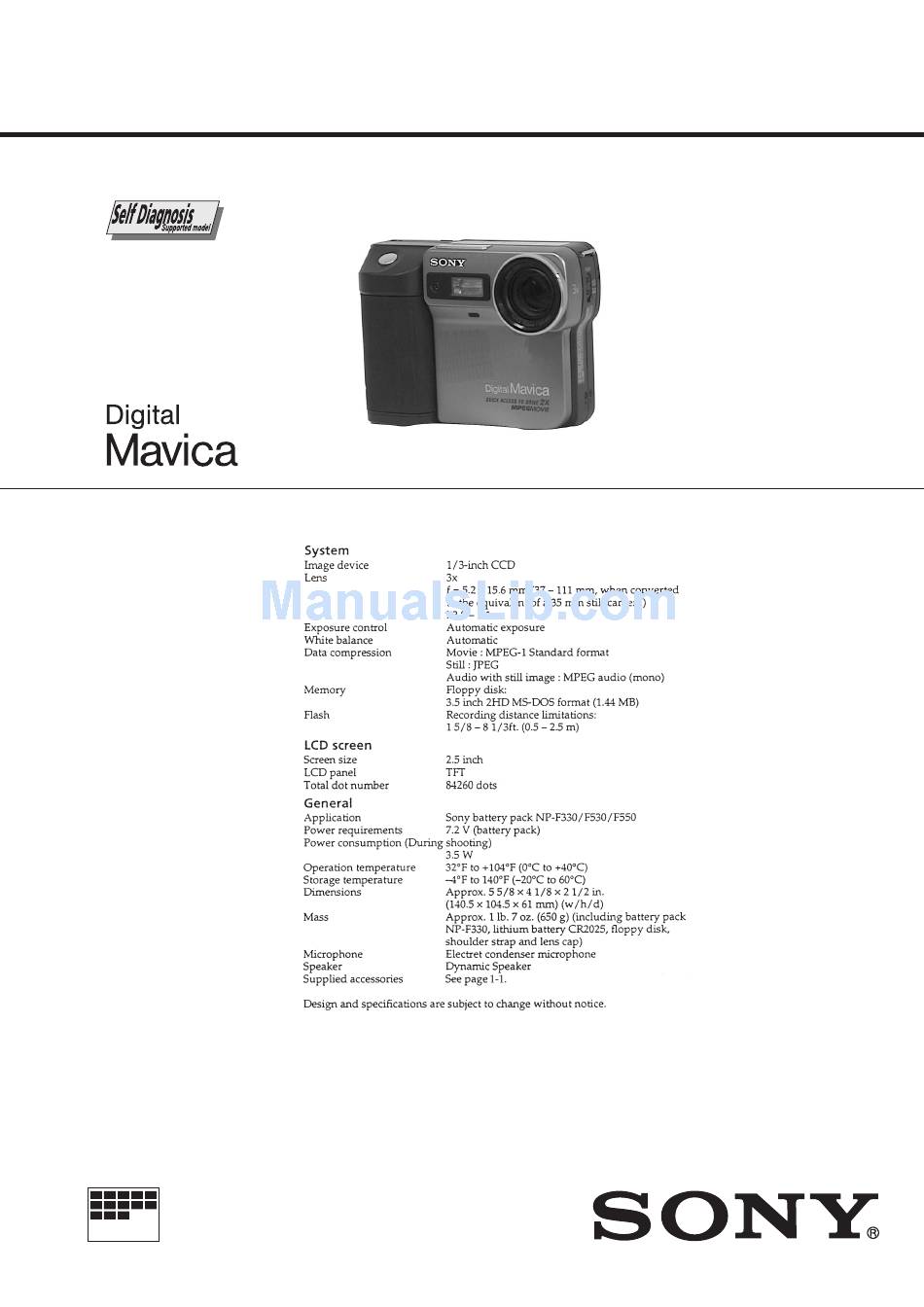

  • Page 1 MVC-FD81 SERVICE MANUAL US Model Canadian Model AEP Model UK Model Ver 1.0 1998.09 E Model Australian Model Hong Kong Model Tourist Model Chinese Model SPECIFICATIONS DIGITAL STILL CAMERA MICROFILM...
  • Page 2 MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SERVICE NOTE • FC-67 (D/A Converter)(4/7) ····································································· 5 Schematic Diagram ........4-25 • FC-67 (Audio D/A.A/D Converter)(5/7) GENERAL Schematic Diagram ........4-29 Before using your camera ............1-1 • FC-67 (FD/System Control)(6/7) Parts identification ..............1-1 Schematic Diagram ........4-31 Basic operations •...
  • Page 4 1-5. System Control System Adjustment ......5-23 Battery End Adjustment (FC-67 board) ......5-23 Alignment Check (FDD Unit) ........5-24 5-2. Service Mode ..............5-25 2-1. Adjustment Remote Commander ........5-25 Using the Adjustment Remote Commander ....5-25 Precautions upon using the adjustment remote commander ..............

  • Page 5: Service Note

    The electric shock is caused by the charged voltage which is kept without discharging when the main power of the MVC-FD81 is simply turned off. Therefore, the remaining voltage must be discharged as described below.
  • Page 6 [How to connect the extension cable] 1. Connection between the FDD unit and PK-44 board. 1) Connection of the extension cable (J-6082-427-A) 3) Connection between the FDD unit and extension cable Conductor side CN013 Conductor side FDD unit Conductor side Extension cable Extension cable (J-6082-427-A)

  • Page 7: Self-Diagnosis Display

    [Description on Self-diagnosis Display] Self-diagnosis display • C: ππ: ππ The contents which can be handled by customer, are displayed. • E: ππ: ππ Note : The “Self-diagnosis” data is backed up by the coin lithium The contents which can be handled battery.The data will be lost and initialized when the coin lithium by engineer, are displayed.
  • Page 8 MVC-FD81 SECTION 1 This section is extracted from GENERAL instruction manual.
  • Page 17 1-10E...

  • Page 18: Disassembly

    MVC-FD81 SECTION 2 DISASSEMBLY NOTE: The following flow chart shows the disassembly procedure. MVC-FD81 MAVICA 2-1. 1 - !¡ Cabinet (front) block assembly 2-1. 2-1. 2-2. Lens block assembly Cabinet (rear) block assembly !™ - !¢ !∞ - !ª DD-119 board 1 - 3 2-5.

  • Page 19: Board, Dd-119 Board, Floppy Disk Drive

    2-2. FC-67 BOARD, DD-119 BOARD, FLOPPY DISK DRIVE 1 - 3 DD-119 board 4 - 5 FC-67 board 6 - !¡ Floppy disk drive !™ , !£ Side lid !º Ground plate (H) !¡ Floppy disk drive 5 FC-67 board !™...

  • Page 20: Board, Flash Unit

    2-4. RL-51 BOARD, FLASH UNIT 1 - 3 MF block (50080) 4 - !º RL-51 board !¡ RL holder !™ Connector 2 Three screws, tapping !™ - !§ FLASH unit (B2 × 5) (From CN1 13P, FLASH unit) !§ FLASH unit !∞...

  • Page 21: Service Position (Routing And Location Of Harnesses)

    2-6. SERVICE POSITION (Routing and location of harnesses) BATTERY FLASH UNIT TERMINAL ST SHIELD PLATE RL-51 BOARD CN001 CUSHION(SP) CN704 CN301 CN702 CN101 IC851 CUSHION(2) IC852 IC103 FC-67 BOARD Procedure 1 Route the harness that comes from CN301 of the DD-119 board, around the corner ( C in the figure) of IC851 (FC-67 board) and the side ( B in the figure) of CN702.

  • Page 22: Service Position (For Voltage Measurement)

    2-7. SERVICE POSITION (For voltage measurement) Firstly, remove the following parts referring to DISASSEMBLY (sections 2-1 to 2-4), and connect parts as shown below. FLASH unit RL-51 board Cabinet (front) assembly DD-119 board Extension cable (J-6082-434-A) FLASH unit FC-67 board charge capacitor PK-44 board Backlight...

  • Page 23: Circuit Boards Location

    2-8. CIRCUIT BOARDS LOCATION FLASH UNIT RL-51 MF BLOCK (50080) (MIC AMP) DD-119 BOARD (DC/DC CONVERTER) CD-206 PK-44 (CCD IMAGER) REC/PB AMP, LCD DRIVE, TIMING GENERATOR, BACK-LIGHT DRIVE, MODE KEY SWITCH FC-67 CAMERA Y/C PROCESS, DRAM CONTROL, LENS MOTOR DRIVE, D/A CONVERTER, AUDIO A/D.D/A CONVERTER, FD/SYSTEM CONTROL, HI CONTROL FP-66...

  • Page 24: Block Diagrams

    MVC-FD81 MVC-FD81 SECTION 3 BLOCK DIAGRAMS 3-1. OVERALL BLOCK DIAGRAM...

  • Page 25: Camera/Fdd Interface Block Diagram

    MVC-FD81 3-2. CAMERA/FDD INTERFACE BLOCK DIAGRAM IC101 2 – !¡ IC103 #§,$∞ CAMERA REC/PB CAMERA REC/PB IC801 *£ 3.1Vp-p 3.8Vp-p IC101 !§ IC101 @§ CAMERA REC 60nsec 60nsec IC431 8 CAMERA REC/PB 16.26MHz 5.0Vp-p 1.8Vp-p 4.0Vp-p 1.8Vp-p 60nsec 78µsec 78µsec IC102 @∞...

  • Page 26: Mode Control Block Diagram

    MVC-FD81 3-3. MODE CONTROL BLOCK DIAGRAM IC702 $º 4.0Vp-p 20MHz IC702 %£ 3.4Vp-p 32.768kHz 3-10...

  • Page 27: Lcd Block Diagram

    MVC-FD81 3-4. LCD BLOCK DIAGRAM IC802 @º IC802 @™ IC802 8 4Vp-p 4Vp-p 156µsec 156µsec 0.16Vp-p 78µsec IC802 9 0.18Vp-p 78µsec IC802 !º 0.1Vp-p 78µsec IC802 @¢ 4Vp-p 156µsec IC902 7 IC903 4 5.6Vp-p 3.3Vp-p 156µsec 78µsec IC903 1 3.3Vp-p 20msec IC901 @§...

  • Page 28: Power Block Diagram

    MVC-FD81 3-5. POWER BLOCK DIAGRAM 3-13 3-14 3-15E...

  • Page 29: Printed Wiring Boards And Schematic Diagrams

    MVC-FD81 SECTION 4 PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 4-1. FRAME SCHEMATIC DIAGRAM FRAME SCHEMATIC DIAGRAM...

  • Page 30: Printed Wiring Boards And Schematic Diagrams

    MVC-FD81 MVC-FD81 CD-206 (CCD IMAGER) PRINTED WIRING BOARD 4-2. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS — Ref. No. CD-206 Board; 2,000 Series — THIS NOTE IS COMMON FOR WIRING BOARDS AND SCHEMATIC DIAGRAMS (In addition to this, the necessary note is printed in each block)

  • Page 31: Ccd Imager

    MVC-FD81 CD-206 BOARD CAMERA REC IC431 1,3 9.5Vp-p 78µsec IC431 2,4 9.5Vp-p 78µsec IC431 8 1.8Vp-p 78µsec IC431 !∞,!§ 4.5Vp-p 60nsec IC431 !¢ 4Vp-p 60nsec CCD IMAGER CD-206...

  • Page 32: Printed Wiring Board

    MVC-FD81 FC-67 (CAMERA Y/C PROCESS, DRAM CONTROL, LENS MOTOR DRIVE, D/A CONVERTER, AUDIO A/D.D/A CONVERTER, FD/SYSTEM CONTROL, HI CONTROL) PRINTED WIRING BOARD — Ref. No. FC-67 Board; 10,000 Series — FC-67 BOARD (SIDE A) C001 C865 R012 R740 C002 C866...
  • Page 33 MVC-FD81 MVC-FD81 FC-67 BOARD (SIDE B) C012 G-13 C607 A-10 L451 D-11 R423 G-11 C013 G-13 C608 A-10 L452 A-11 R424 G-11 C014 G-13 C609 A-10 L601 R425 G-11 C015 G-13 C610 L602 A-10 R426 G-11 C016 G-13 C611 L603...

  • Page 34: Camera Y/C Process

    MVC-FD81 For schematic diagram • Refer to page 4-9 for printed wiring board. FC-67 BOARD (1/7) IC101 2 – !¡ CAMERA REC/PB 3.1Vp-p 60nsec IC101 !§ CAMERA REC/PB 4.0Vp-p 60nsec IC101 @§ CAMERA REC 1.8Vp-p 78µsec IC102 4 CAMERA REC/PB 3.8Vp-p...
  • Page 35 MVC-FD81 MVC-FD81 For schematic diagram • Refer to page 4-9 for printed wiring board. (Note 1) (Note 1) DRAM CONTROL 4-17 4-18 4-19 FC-67 (2/7)
  • Page 36 MVC-FD81 MVC-FD81 For schematic diagram • Refer to page 4-9 for printed wiring board. LENS MOTOR DRIVE 4-23 4-24 FC-67 (3/7)

  • Page 37: D/A Converter

    MVC-FD81 For schematic diagram • Refer to page 4-9 for printed wiring board. FC-67 BOARD (4/7) CAMERA REC/PB !¡ IC601 5 3.8Vp-p 60nsec !™ IC601 !¢ 0.1Vp-p 78µsec !£ IC601 !ª 0.16Vp-p 78µsec !¢ IC601 @£ 0.18Vp-p 78nsec !∞ IC601 #¶...

  • Page 38: Audio D/A.a/D Converter

    MVC-FD81 MVC-FD81 For schematic diagram • Refer to page 4-9 for printed wiring board. AUDIO D/A.A/D CONVERTER 4-29 4-30 FC-67 (5/7)
  • Page 39 MVC-FD81 MVC-FD81 For schematic diagram • Refer to page 4-9 for printed wiring board. FC-67 BOARD (6/7) CAMERA REC/PB IC801 *£ 16.26MHz 5.0Vp-p !º IC851 *º 1.8Vp-p 7.41MHz FD/SYSTEM CONTROL 4-31 4-32 4-33 4-34 FC-67 (6/7)
  • Page 40 MVC-FD81 For schematic diagram • Refer to page 4-9 for printed wiring board. FC-67 BOARD (7/7) CAMERA REC/PB IC702 $º 20MHz 4.0Vp-p IC702 %£ 3.4Vp-p 32.768kHz HI CONTROL 4-35 4-36 4-37 4-38 FC-67 (7/7)

  • Page 41: Rec/Pb Amp

    MVC-FD81 For schematic diagram • Refer to page 4-51 for printed wiring board. PK-44 BOARD (1/5) IC601 $™ CAMERA REC/PB 3.2Vp-p 4.0MHz REC/PB AMP 4-39 4-40 4-41 PK-44 (1/5)

  • Page 42: Lcd Drive

    MVC-FD81 MVC-FD81 For schematic diagram • Refer to page 4-51 for printed wiring board. PK-44 BOARD (2/5) CAMERA REC/PB IC802 8 0.16Vp-p 78µsec IC802 9 0.18Vp-p 78µsec IC802 !º 0.1Vp-p 78µsec IC802 @º 4Vp-p 156µsec IC802 @™ 4Vp-p 156µsec IC802 @¢...

  • Page 43: Timing Generator

    MVC-FD81 MVC-FD81 For schematic diagram • Refer to page 4-51 for printed wiring board. PK-44 BOARD (3/5) CAMERA REC/PB IC903 1 3.3Vp-p 20msec IC903 4 3.3Vp-p 78µsec !º IC901 @§ 4.5Vp-p 150nsec !¡ IC901 #¶ 3.3Vp-p 78µsec !™ IC902 7 5.6Vp-p...

  • Page 44: Back-Light, Mode Switch

    MVC-FD81 For schematic diagram For schematic diagram • Refer to page 4-51 for printed wiring board. • Refer to page 4-51 for printed wiring board. BACK-LIGHT, MODE SWITCH 4-48 4-49 4-50 PK-44 (4/5)(5/5)
  • Page 45 MVC-FD81 PK-44 (REC/PB AMP, LCD DRIVE, TIMING GENERATOR, BACK-LIGHT, MODE SWITCH) PRINTED WIRING BOARD — Ref. No. PK-44 Board; 2,000 Series — PK-44 BOARD BH701 B-2 CN701 B-12 R601 A-19 R823 B-17 R942 CN802 C-1 R602 B-19 R824 A-18 R943...
  • Page 46 MVC-FD81 DD-119 BOARD CAMERA REC/PB IC301 $¢ 0.8Vp-p 2.2µsec IC301 $§ 2.0Vp-p 2.1µsec DC/DC CONVERTER 4-55 4-56 4-57 4-58 DD-119...

  • Page 47: Dc/Dc Converter

    MVC-FD81 MVC-FD81 DD-119 (DC/DC CONVERTER) PRINTED WIRING BOARD — Ref. No. DD-119 Board; 2,000 Series — DD-119 BOARD C302 C357 Q308 R332 C303 C358 Q309 R333 C304 C359 Q310 R334 C305 C360 Q311 R335 C306 C361 Q312 R336 C307 C363...

  • Page 48: Mic Amp

    MVC-FD81 RL-51 (MIC AMP) PRINTED WIRING BOARD — Ref. No. RL-51 Board; 2,000 Series — RL-51 BOARD C001 L001 C002 C003 R001 C004 R002 C005 R003 C006 R004 C007 R005 C009 R006 C010 R007 C011 R008 C012 R009 C013 R010...

  • Page 49: Adjustments

    MVC-FD81 SECTION 5 ADJUSTMENTS 5-1. CAMERA SECTION ADJUSTMENT 1-1. PREPARATIONS BEFORE ADJUSTMENT (CAMERA SECTION) 1-1-1. List of Service Tools • Oscilloscope • Regulated power supply • Digital voltmeter • Frequency counter • AC power adapter Ref. No. Name Parts Code...

  • Page 50: Preparations

    1-1-2. Preparations Note 1: For details of how remove the cabinet and boards, refer to “2. DISASSEMBLY”. Pattern box Note 2: When performing only the adjustments, the lens block and boards need not be disassembled. 1) Connect the equipment for adjustments according to Fig. 5-1- 2) Connect the Adjustment remote commander to PK-44 board About 90 cm CN802 via CPC-9 jig (J-6082-393-B).
  • Page 51 Adjustment remote CPC-9 jig (12P/18P, 0.5mm) commander (J-6082-393-B) 12 pins LANC jack Oscilloscope EXT. TRIG. 18 pins FDD UNIT BACK LIGHT CN851 CN802 LCD UNIT PK-44 board CN601 CN013 CN012 CN901 CN603 CN602 CN011 Extension cable (J-6082-427-A) Extension cable (50P, 0.5mm) (J-6082-434-A) Note 1: When connecting the extension cable, refer to “1.

  • Page 52: Precaution

    1-1-4. Precaution 1. Setting the Switch Unless otherwise specified, set the switches as follows and perform adjustments without loading cassette. PLAY/STILL/MOVIE switch (PK-44board S708,712) ..........STILL FOCUS switch ............MANUAL PROGRAM AE switch (PK-44board S706) ........Auto (No mark indicated on LCD) PICTURE EFFECT switch (PK-44board S703) .....

  • Page 53: Initialization Of F, E

    1-2. INITIALIZATION OF F, E PAGE DATA Address Remark Initial value 1. Initializing the F, E Page Data Fixed data-1 Note: If the F, E page data is initialized, all adjustments must be performed (Initialized data) again. Adjusting page Fixed data-2 Adjusting Address 00 to FF Adjusting page...
  • Page 54 Address Address Remark Remark Initial value Initial value Fixed data-1 Fixed data-1 (Initialized data) (Initialized data) Fixed data-2 Fixed data-1 Fixed data-2 Fixed data-1 Fixed data-2 Fixed data-1 Fixed data-2 Fixed data-1 Flange back adj. Fixed data-1 Flange back adj. Fixed data-2 Fixed data-1...

  • Page 55: E Page Table

    Address Remark Address Remark Initial value Initial value Flange back adj. Fixed data-1 Fixed data-1 (Initialized data) HALL adj. Table. 5-1-1. Fixed data-1 Light level adj. 4. E Page table Note: Fixed data-1 : Initialized data. (Refer to “1. Initializing the F, E Page Data”.) AWB standard data input Fixed data-2 : Modified data.
  • Page 56 Address Remark Address Remark Initial value Initial value Fixed data-1 Fixed data-1 (Initialized data) (Initialized data) Fixed data-2 Fixed data-1 Fixed data-2 Fixed data-1 (Initialized data) Strobe white balance adj. Fixed data-1 (Initialized data) Fixed data-2 Strobe light level adj. Fixed data-1 Fixed data-1 (Initialized data)
  • Page 57 Address Address Remark Remark Initial value Initial value Fixed data-1 CCD defect compensation (Initialized data) Fixed data-1 (Initialized data) CCD defect compensation Table. 5-1-2.

  • Page 58: Camera System Adjustments

    1-3. CAMERA SYSTEM ADJUSTMENTS 1. Picture Frame Setting Check on the oscilloscope Subject Color bar chart standard picture frame 1. Horizontal period (Approx. 90cm from the front of the lens) Pin 9 of CN802 (VG) of PK-44 board Measurement Point External trigger (Horizontal period) : Pin 8 of CN802 (COM) of PK-44 board External trigger (Vertical period) :...

  • Page 59: Hall Adjustment

    2. HALL Adjustment 3. Flange Back Adjustment For detecting the position of the lens iris, adjust the hall AMP gain The inner focus lens flange back adjustment is carried out and offset. automatically. In whichever case, the focus will be deviated during auto focusing/manual focusing.

  • Page 60: Flange Back Check

    4. Flange Back Check 5. Light Level Adjustment Adjust the standard LV value. Subject Siemens star (2.0 m from the front of the lens) Subject Clear chart (Luminance : approx. 200 lux) (Color bar standard picture frame) Measurement Point Check operation on LCD screen Adjustment Page Measuring Instrument Adjustment Address...

  • Page 61: Auto White Balance Standard Data Input

    6. Auto White Balance Standard Data Input 7. Auto White Balance Adjustment Adjust to the proper auto white balance output data. Subject Clear chart If it is not correct, auto white balance and color reproducibility will (Color bar standard picture frame) be poor.

  • Page 62: Color Reproduction Adjustment

    8. Color Reproduction Adjustment Adjust the color separation matrix coefficient so that proper color reproduction is produced. Subject Color bar chart standard picture frame CHX: Pin 1 of CN802 of PK-44 Measurement Point board (PANEL B-Y) CHY: Pin 3 of CN802 of PK-44 board (PANEL R-Y) Measuring Instrument Oscilloscope (X-Y mode)

  • Page 63: White Balance Check

    9. White Balance Check 10. Strobe Light Level Adjustment Adjust the minimum gain when the strobe light flashes. Subject Clear chart (Color bar standard picture frame) Subject Clear chart (Color bar standard picture frame) Filter ND filter 1.0 and 0.3 Measurement Point Display data of page : 1 Measurement Point...

  • Page 64: Strobe White Balance Adjustment

    11. Strobe White Balance Adjustment 12. Strobe Light Level and White Balance Check Adjust the white balance when the strobe light flashes. Check the light level regulation and the white balance when the strobe light flashes. Subject A plate which reflection rate is 18% (1.0m from the front of the lens) Subject A plate which reflection rate is 18%...

  • Page 65: Ccd Defect Compensation

    13. CCD Defect Compensation 14. CCD Defect Compensation Check Subject Clear chart Subject Clear chart (40 cm from the front of the lens) (40 cm from the front of the lens) Adjustment Page Measurement Point Display data of page : 3, address : FF Adjustment Address C2 to D5 Measuring Instrument...

  • Page 66: Lcd System Adjustment

    1-4. LCD SYSTEM ADJUSTMENT 1. LCD Initial Data Input Note 1: The back light (fluorescent tube) is driven by a high voltage AC Mode Playback power supply. Therefore, do not touch the back light holder to Signal Arbitrary avoid electrical shock. Note 2: When replacing the LCD unit, be careful to prevent damages Adjustment Page caused by static electricity.

  • Page 67: Vco Adjustment (Pk-44 Board)

    2. VCO Adjustment (PK-44 board) 3. D range Adjustment (PK-44 board) Set the VCO free-run frequency. If deviated, the LCD screen will Set the D range of the LCD driver to the specified value. If deviated, be blurred. the LCD screen will become blackish or saturated (whitish). Mode Playback Mode...

  • Page 68: Bright Adjustment (Pk-44 Board)

    4. Bright Adjustment (PK-44 board) 5. Contrast Adjustment (PK-44 board) Set the level of the VIDEO signal for driving the LCD to the specified Set the level of the VIDEO signal for driving the LCD to the specified value. If deviated, the screen image will be blackish or saturated value.

  • Page 69: Color Adjustment (Pk-44 Board)

    6. Color Adjustment (PK-44 board) 7. V-COM Level Adjustment (PK-44 board) Set the color saturation to the standard value. If deviated, the color Set the common electrode drive signal level of LCD to the specified will be to dark or light. value.

  • Page 70: V-Com Adjustment (Pk-44 Board)

    8. V-COM Adjustment (PK-44 board) 9. White Balance Adjustment (PK-44 board) Set the DC bias of the common electrode drive signal of LCD to the Correct the white balance. specified value. If deviated, the LCD screen color cannot be reproduced. If deviated, the LCD display will move, producing flicker and Mode Playback...

  • Page 71: System Control System Adjustment

    1-5. SYSTEM CONTROL SYSTEM ADJUSTMENT 1. Battery End Adjustment (FC-67 board) Set the battery end voltage. If the voltage is incorrect, the life of the battery will shorten. The image at the battery end will also be rough. Mode Camera Subject All black (Cover the lens with a black cap)

  • Page 72: Alignment Check (Fdd Unit)

    2. Alignment check (FDD UNIT) Confirm that the FDD alignment is within the specifications. If deviated, reading and writing data from and to the floppy disk become impossible. Or compatibility of the floppy disk with other machines can be lost. Mode Playback Signal...

  • Page 73: Service Mode

    5-2. SERVICE MODE 2-1. ADJUSTMENT REMOTE COMMANDER 2. Precautions upon using the adjustment remote commander The adjustment remote commander is used for changing the calculation coefficient in signal processing, EVR data, etc. The Mishandling of the adjustment remote commander may erase the correct adjustment data at times.

  • Page 74: Data Process

    2-2. DATA PROCESS The calculation of the DDS display and the adjustment remote commander display data (hexadecimal notation) are required for obtaining the adjustment data of some adjustment items. In this case, after converting the hexadecimal notation to decimal notation, calculate and convert the result to hexadecimal notation, and use it as the adjustment data.

  • Page 75: Service Mode

    2-3. SERVICE MODE 1. Setting the Test Mode 3. Switch check (1) Page F Address 10 Page 3 Address 23 Data Function Function When bit value=1 When bit value=0 Normal POWER SW (PK-44 board S702) Forced camera power ON Forced Player power ON XCAM/PB SW (PK-44 board S708) •...

  • Page 76: Switch Check (2)

    4. Switch check (2) Page 3 Address 13 to 17 Using method: 1) Select page:3, address: 13 to 17. 2) By discriminating the display data, the pressed key can be discriminated. Data Address Adout“00” Adout“29” Adout“54” Adout“82” Adout“A6” Adout“E5” Adout“FF” VOLUME + VOLUME - BRIGHT +...

  • Page 77: Repair Parts List

    MVC-FD81 SECTION 6 REPAIR PARTS LIST 6-1. EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may • The mechanical parts with no reference number The components identified by mark ! or have some differences from the original one.

  • Page 78: Cabinet (Rear) Section

    6-1-2. CABINET (REAR) SECTION LCD901 supplied ND901 supplied supplied SP901 supplied supplied - 1 1 (Note) supplied not supplied (Note) The FD block assembly is a mechanical unit which has completely been adjusted in the factory. Ref. No. Part No. Description Remarks Ref.

  • Page 79: Lens Block Section

    6-1-3. LENS BLOCK SECTION IC431 Be sure to read “Note on the CCD imager replacement” on page 4-7 when changing the CCD Imager. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1-671-865-11 FP-66 (CD-FC) FLEXIBLE BOARD 3-957-990-11 ADAPTOR (C), CCD FITTING 3-947-268-11 TITE (2), +B TAPPING (P) * 108...

  • Page 80: Electrical Parts List

    CD-206 DD-119 6-2. ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the • RESISTORS When indicating parts by reference number, parts list may be different from the parts All resistors are in ohms. please include the board name. specified in the diagrams or the components METAL: metal-film resistor The components identified by mark ! or...
  • Page 81 DD-119 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks < CONNECTOR > Q321 8-729-037-52 TRANSISTOR 2SC4738F-Y/GR(TPL3) Q322 8-729-037-53 TRANSISTOR 2SA1832F-Y/GR(TPL3) CN301 1-580-057-11 PIN, CONNECTOR 4P Q323 8-729-037-53 TRANSISTOR 2SA1832F-Y/GR(TPL3) * CN302 1-778-011-42 CONNECTOR, BOARD TO BOARD 50P Q324 8-729-037-53 TRANSISTOR 2SA1832F-Y/GR(TPL3) Q325...
  • Page 82 DD-119 FC-67 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R368 1-216-845-11 METAL CHIP 100K 1/16W C035 1-107-823-11 CERAMIC CHIP 0.47uF R369 1-216-845-11 METAL CHIP 100K 1/16W C037 1-162-970-11 CERAMIC CHIP 0.01uF R370 1-216-845-11 METAL CHIP 100K 1/16W C102...
  • Page 83 1-107-826-11 CERAMIC CHIP 0.1uF D702 8-719-404-49 DIODE MA111-TX D703 8-719-049-09 DIODE 1SS367-T3SONY C713 1-162-970-11 CERAMIC CHIP 0.01uF D706 8-719-061-82 DIODE TLSU1002(TPX1,SONY) C714 1-162-917-11 CERAMIC CHIP 15PF C715 1-162-919-11 CERAMIC CHIP 22PF < FERRITE BEAD > C716 1-107-826-11 CERAMIC CHIP 0.1uF...
  • Page 84 FC-67 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks FB486 1-414-228-11 INDUCTOR CHIP 0UH L401 1-414-078-11 INDUCTOR 10uH FB487 1-414-228-11 INDUCTOR CHIP 0UH L402 1-414-754-11 INDUCTOR 10uH FB488 1-414-228-11 INDUCTOR CHIP 0UH L403 1-414-078-11 INDUCTOR 10uH FB489 1-414-228-11 INDUCTOR CHIP 0UH L451...
  • Page 85 FC-67 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R026 1-216-864-11 METAL CHIP 1/16W R423 1-216-830-11 METAL CHIP 5.6K 1/16W R028 1-216-840-11 METAL CHIP 1/16W R424 1-216-851-11 METAL CHIP 330K 1/16W R029 1-216-833-11 METAL CHIP 1/16W R425 1-218-887-11 RES,CHIP 0.50% 1/16W...
  • Page 86 FC-67 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R728 1-216-833-11 METAL CHIP 1/16W R816 1-216-833-11 METAL CHIP 1/16W R729 1-216-833-11 METAL CHIP 1/16W R817 1-216-833-11 METAL CHIP 1/16W R730 1-216-821-11 METAL CHIP 1/16W R818 1-216-833-11 METAL CHIP 1/16W R731 1-216-833-11 METAL CHIP...
  • Page 87 1-107-826-11 CERAMIC CHIP 0.1uF C802 1-107-826-11 CERAMIC CHIP 0.1uF D601 8-719-404-49 DIODE MA111-TX C803 1-162-970-11 CERAMIC CHIP 0.01uF D701 8-719-061-82 DIODE TLSU1002(TPX1,SONY) C804 1-162-970-11 CERAMIC CHIP 0.01uF D702 8-719-061-81 DIODE TLYU1002(TPX1,SONY) D708 8-719-404-49 DIODE MA111-TX C805 1-162-970-11 CERAMIC CHIP 0.01uF...
  • Page 88 PK-44 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks Q862 8-729-042-59 TRANSISTOR UN9112J-(K8).SO R812 1-216-845-11 METAL CHIP 100K 1/16W Q903 8-729-230-63 TRANSISTOR 2SD1819A-QRS-TX R813 1-216-805-11 METAL CHIP 1/16W Q904 8-729-420-24 TRANSISTOR 2SB1218A-QRS-TX R814 1-216-805-11 METAL CHIP 1/16W Q905 8-729-230-63 TRANSISTOR 2SD1819A-QRS-TX...
  • Page 89 PK-44 RL-51 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R932 1-216-845-11 METAL CHIP 100K 1/16W < VIBRATOR > R933 1-216-845-11 METAL CHIP 100K 1/16W R934 1-216-864-11 METAL CHIP 1/16W X601 1-760-496-21 VIBRATOR, LITHIUM NIOBATE (4MHz) R935 1-216-864-11 METAL CHIP 1/16W...
  • Page 90 Ref. No. Part No. Description Remarks MISCELLANEOUS ************* 1-959-175-11 HARNESS (RL-51) 1-418-071-11 FLASH UNIT (50080) 1-418-072-11 BLOCK (50080), MF 1-759-679-11 DRIVE, FLOPPY DISK (3.5 INCH) 1-958-571-11 HARNESS (SP-151) 1-758-217-11 FILTER BLOCK, OPTICAL 8-848-730-01 DEVICE, LENS LSV-550B(SOC) IC431 A-7030-955-A CCD BLOCK ASSY (CCD IMAGER) J901 1-694-297-31 TERMINAL BOARD, BATTERY LCD901 1-803-036-21 INDICATOR MODULE, LIQUID CRYST...
  • Page 91 Take a copy of CAMERA COLOR REPRODUCTION FRAME and Parts referencesheets with a clear sheet for use. MVC-FD81 〈PARTS REFERENCE SHEET〉 You can find the parts position of location of mount locations applying to FC-67 board of a set. FC-67...
  • Page 92 MVC-FD81 Sony Corporation 98I1670-1 Printed in Japan ©1998.9 Personal A&V Products Company 9-974-116-11 Published by Quality Engineering Dept. — 150 — (Osaki East)
