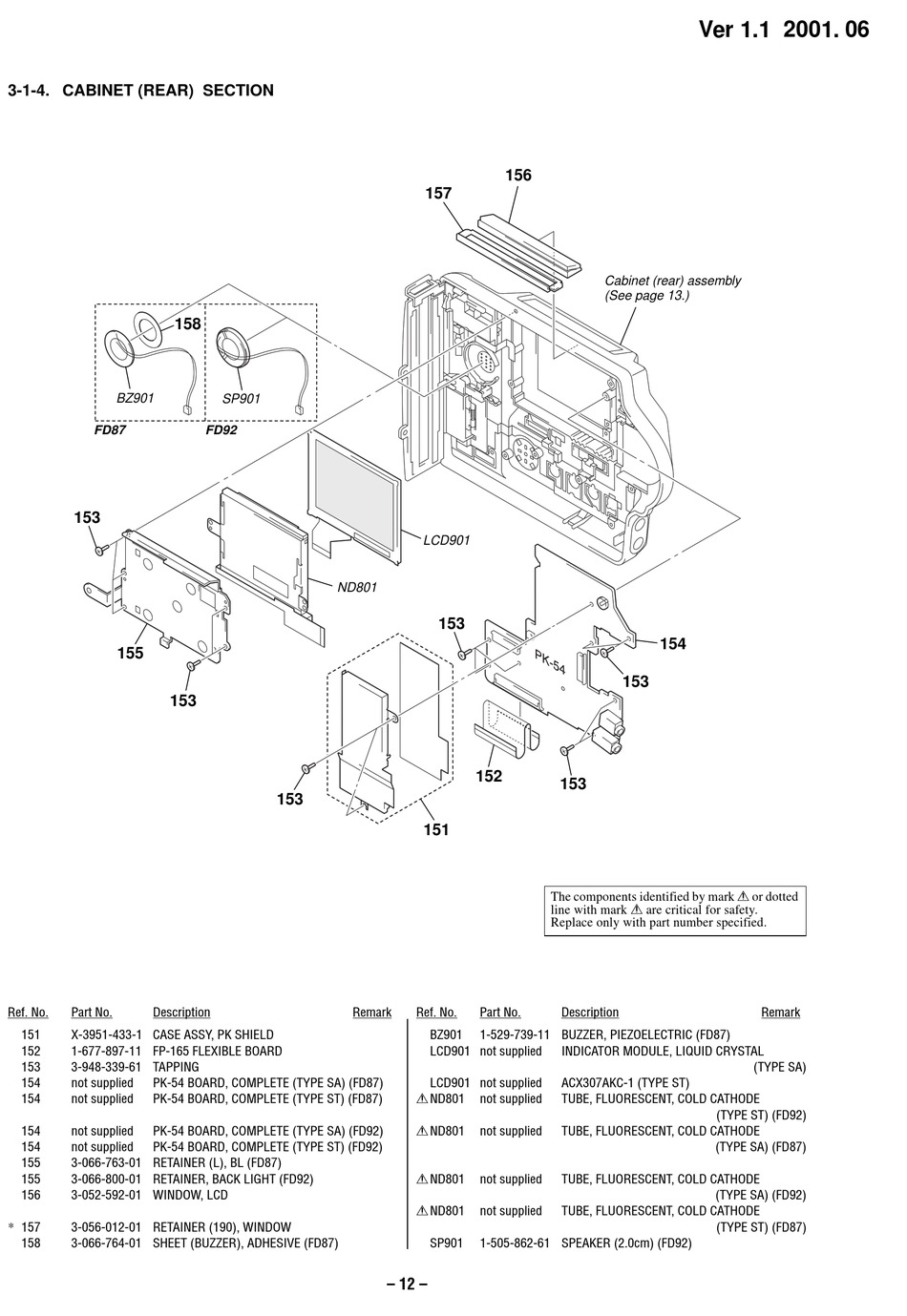

3-1-4. CABINET (REAR) SECTION

BZ901
FD87
153
155
153
Ref. No. Part No. Description
151 X-3951-433-1 CASE ASSY, PK SHIELD
152 1-677-897-11 FP-165 FLEXIBLE BOARD
153 3-948-339-61 TAPPING
154 not supplied PK-54 BOARD, COMPLETE (TYPE SA) (FD87)
154 not supplied PK-54 BOARD, COMPLETE (TYPE ST) (FD87)
154 not supplied PK-54 BOARD, COMPLETE (TYPE SA) (FD92)
154 not supplied PK-54 BOARD, COMPLETE (TYPE ST) (FD92)
155 3-066-763-01 RETAINER (L), BL (FD87)
155 3-066-800-01 RETAINER, BACK LIGHT (FD92)
156 3-052-592-01 WINDOW, LCD
* 157 3-056-012-01 RETAINER (190), WINDOW
158 3-066-764-01 SHEET (BUZZER), ADHESIVE (FD87)
158
SP901
FD92
ND801
153
156
157
LCD901
153
152
151
Remark Ref. No. Part No.
BZ901 1-529-739-11 BUZZER, PIEZOELECTRIC (FD87)
LCD901 not supplied
LCD901 not supplied
0 ND801
not supplied
0 ND801
not supplied
0 ND801
not supplied
0 ND801 not supplied
SP901 1-505-862-61 SPEAKER (2.0cm) (FD92)
– 12 –
Ver 1.1 2001. 06
Cabinet (rear) assembly
(See page 13.)
154
153
153
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
Description
INDICATOR MODULE, LIQUID CRYSTAL
ACX307AKC-1 (TYPE ST)
TUBE, FLUORESCENT, COLD CATHODE
TUBE, FLUORESCENT, COLD CATHODE
(TYPE SA) (FD87)
TUBE, FLUORESCENT, COLD CATHODE
(TYPE SA) (FD92)
TUBE, FLUORESCENT, COLD CATHODE
Remark
(TYPE SA)
(TYPE ST) (FD92)
(TYPE ST) (FD87)
