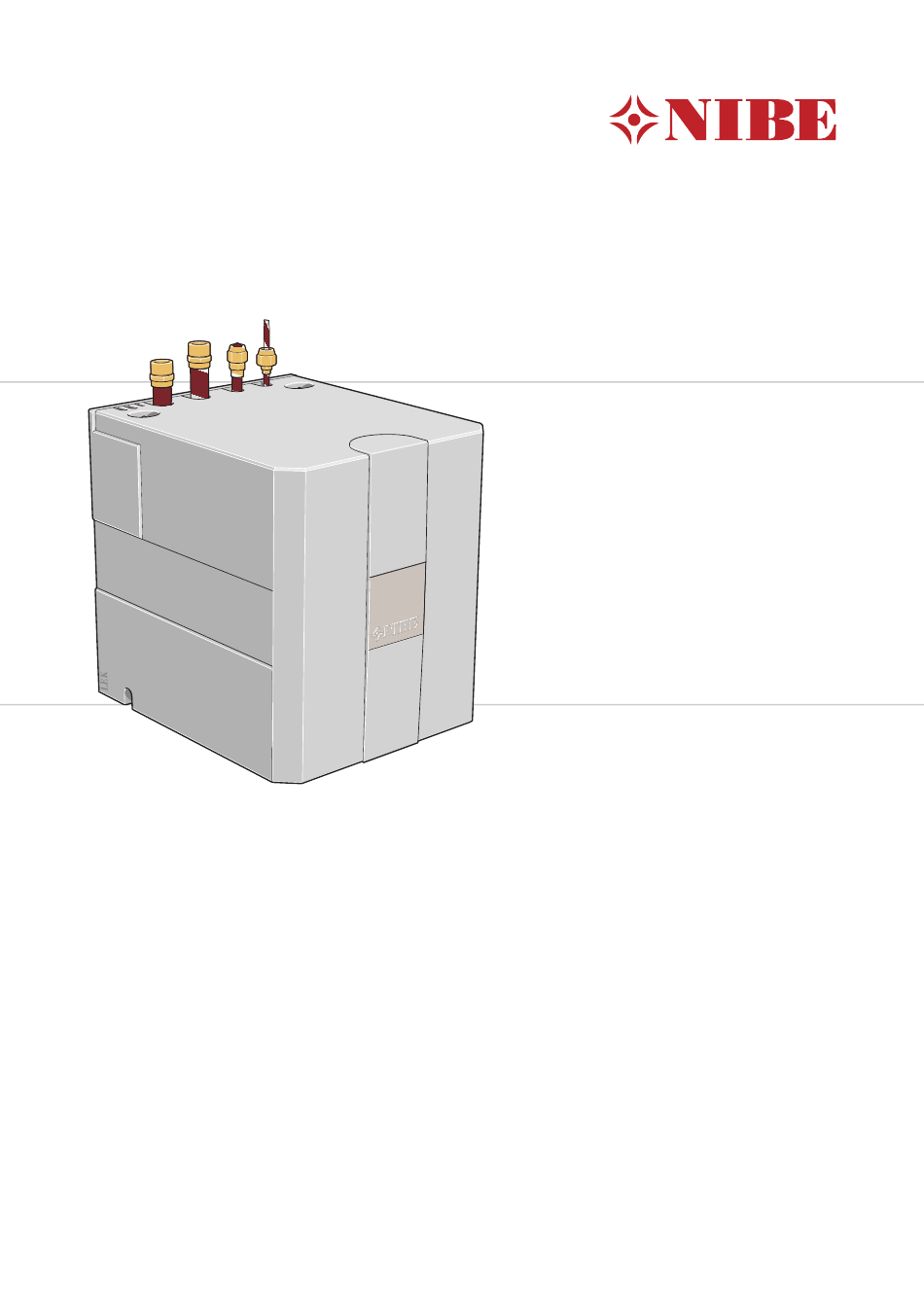

- Page 1 Installer manual HBS 05 HBS 05-6 / 05-12 / 05-16 SPLIT box IHB EN 1746-1 331901...
-
Page 3: Table Of Contents
Table of Contents 1 Important information Adjustment, charge flow System solution 7 Control - Heat pump EB101 Safety information Heat pump menu 5.11.1.1 Serial number Recovery 8 Disturbances in comfort Environmental information Troubleshooting Inspection of the installation Checklist: Checks before commissioning 9 Alarm list 2 Delivery and handling 10 Accessories... -
Page 4: Important Information
Install the unit in a location with good support. Unsuitable installation locations can cause the unit to fall and cause translated without the approval of NIBE. material damage and personal injury. Installation without sufficient support can also cause vibrations and noise. - Page 5 If the power supply is not shut off, there is a risk of electric shocks If soldering near the unit, ensure that solder residue does not and damage due to the rotating fan. damage the drip tray. If solder residue enters the unit during soldering, small holes can Do not run the unit with removed panels or protection.
-
Page 6: Serial Number
Serial number You can find the serial number (PF3) under the cover, both on the front and on top of HBS 05. Caution You need the product's (14 digit) serial number for servicing and support. Recovery Leave the disposal of the packaging to the in- staller who installed the product or to special waste stations. -
Page 7: Inspection Of The Installation
Inspection of the installation Current regulations require the heating installation to be inspected before it is commissioned. The inspection must be carried out by a suitably qualified person. Fill in the page for information about installation data in the User manual. -
Page 8: Checklist: Checks Before Commissioning
Checklist: Checks before commissioning Refrigerant system Notes Checked Pipe length Height difference Pressurization test Leak testing End pressure vacuum Pipe insulation Electrical installation Notes Checked Property's main fuse Group fuse Current limiter/current sensor KVR 10 Cooling Notes Checked Pipe system, condensation insulation Chapter 1 | Important information HBS 05... -
Page 9: Delivery And Handling
2 Delivery and handling Transport and storage HBS 05 should be transported and stored vertically in a dry place. NOTE Ensure that the heat pump cannot fall over during transport. Assembly It is recommended that HBS 05 is installed in a room ■... -
Page 10: Supplied Components
Installation area Supplied components There should be free space on at least one side, for any service to HBS 05 in the future. Ensure that there is also approx. 80 cm free space in front of HBS 05. Placering vägg. Recommendation for positioning on wall Filterball (G1"). -
Page 11: Removing The Covers
Removing the covers HBS 05 HBS 05 Chapter 2 | Delivery and handling... -
Page 12: The Heat Pump Design
3 The heat pump design Component location HBS 05 (EZ102) XL52 XL53 BT12 AA23-X100 AA23 AA23-S3 BT15 AA23-X1 A23-F3 AA23-X4 Chapter 3 | The heat pump design HBS 05... -
Page 13: List Of Components Hbs 05 (Ez102)
List of components HBS 05 (EZ102) Pipe connections Climate system supply Climate system return XL52 Connection, gas line XL53 Connection, liquid line Valves etc. Heat exchanger Drying filter Filterball (supplied) Electrical components AA23 Communication board AA23-F3 Fuse for external heating cable AA23-S3 DIP switch, addressing of outdoor unit AA23-X1... -
Page 14: Electrical Panel
Electrical panel HBS 05 AA23-X100 AA23-X100 AA23-S3 AA23 AA23 AA23-X4 AA23-S3 AA23-X4 AA23-F3 AA23-F3 AA23-X1 AA23-X1 Electrical components HBS 05 AA23 Communication board AA23-F3 Fuse for external heating cable AA23-S3 DIP switch, addressing of outdoor unit AA23-X1 Terminal block, incoming supply, connec- tion of KVR AA23-X4 Terminal block, communication with in-... -
Page 15: Pipe Connections
When docking with HBS 05 free flow in the climate sys- tem is recommended for correct heat transfer. This can be achieved by use of a bypass valve. If free flow cannot be ensured, it is recommended that a buffer tank (NIBE UKV) is installed. HBS 05... -
Page 16: Connecting Refrigerant Pipes (Not Supplied)
Connecting refrigerant pipes Gas pipe Liquid pipe (not supplied) Minimum material 1.0 mm 0.8 mm thickness Install the refrigerant pipes between the outdoor module AMS 10 and HBS 05. Installation must be carried out in accordance with cur- rent norms and directives. Parameters AMS 10 Maximum pipe length, AMS 10 (L): 30 m. -
Page 17: Pipe Connection
Pipe connection Pipe connection, refrigerant pipe Perform pipe installation, on the refrigerant side ■ between outdoor module (AMS 10) and SPLIT box (HBS 05), with the service valves (QM35, QM36) closed. Connect refrigerant pipes between the service valves ■ (QM35 and QM36) on the outdoor module (AMS 10) and the connections (XL52 and XL53) on SPLIT box (HBS 05). -
Page 18: Pressure Test And Leak Test
Pressure test and leak test Filling refrigerant Both HBS 05 and AMS 10 are pressure tested and leak AMS 10 is delivered complete with the refrigerant re- tested at the factory, but the pipe connections between quired for the installation of refrigerant pipes up to 15 the products must be checked after installation. -
Page 19: Pipe Coupling Heating Medium Circuit
Pipe coupling heating medium Pressure drop, heating medium circuit side HBS 05 is intended for combination with NIBE outdoor ■ HBS 05 module (AMS 10) and NIBE indoor module (VVM) or control module (SMO), in accordance with one of the Tryckfall HBS05 Pressure drop HBS 05... - Page 20 Symbol key Symbol Meaning Venting valve Shut-off valve Non-return valve Control valve Safety valve Temperature sensor Expansion vessel Pressure gauge Circulation pump Shunt / shuttle valve Domestic hot water Radiator system Under floor heating systems Chapter 4 | Pipe connections HBS 05...
- Page 21 NOTE This is an outline diagram. Actual installations must be planned according to applicable standards. Explanation EB15 Indoor module (VVM 320) EB101 NIBE SPLIT HBS 05 Pressure sensor, condenser Temperature sensor, heating medium, return BT12 Temperature sensor, condenser, supply BT15...
-
Page 22: Electrical Connections
This means that one of the phases will be loaded with a number of amperes (A) during compressor operation. NOTE Check the maximum load in the table below. If the supply cable is damaged, only NIBE, its Outdoor module Maximum current (A) service representative or similar authorised... - Page 23 Principle diagram, electrical installation Electrical Incoming supply distribution unit Isolator switch Communication cable Power cable *Current sensor HBS 05 NIBE VVM AMS 10 * Only in a 3-phase installation. HBS 05 Chapter 5 | Electrical connections...
-
Page 24: Electrical Components
Electrical components See component location in chapter The heat pump design, Electrical panel on page 14. Accessibility, electrical connection Removing the covers See chapter Removing the covers on page 11. Connection between HBS 05 and AMS 10 The cable between the units must be connected between terminal block AA23-X100:1, X100:2 in HBS 05 and ter- minal block TB:2 and TB:3 in AMS 10. -
Page 25: Connection Between Hbs 05 And Vvm
(AA3-X4:13, 14, 15) in VVM. Stripped length of conductor is 6 mm. NOTE When installing AMS 10-6 / HBS 05-6, the NIBE indoor module must have the correct software version. Please ensure that the indoor module, in this case, has at least software version v8320. -
Page 26: Connection Between Hbs 05 And Smo
Split Box HBS 05 may be connected to terminal block AA23-X4. NOTE When installing AMS 10-6 / HBS 05-6, the NIBE control module must have the correct software AA23-X4 version. Please ensure that the control module, in this case, has at least software version v8320. - Page 27 SMO 40 The cable between the units must be connected between terminal block for communication (AA23-X4:1, 2, 3) in HBS 05 and terminal block for communication (AA5:X4- 1(A), -2 (B), -3 (GND)) in SMO 40. Stripped length of conductor is 6 mm. AA5-X4 -X10 SMO 40 and more HBS 05...
-
Page 28: Connections
*Fitted at the factory. See page 40 for the list of the accessories that can be used with NIBE SPLIT HBS 05. Connect external heating cable (EB14) to terminal block AA23-X1:4–6 according to following image: External HBS 05... -
Page 29: Commissioning And Adjusting
Use the checklist on page 8. The above applies to closed climate systems. Do not replace any part of the system NIBE SPLIT HBS 05 without carrying out new checks. HBS 05... -
Page 30: Readjusting, Heating Medium Side
Readjusting, heating medium side Air is initially released from the hot water and venting may be necessary. If bubbling sounds can be heard from the heat pump, the circulation pump and radiators the entire system will require further venting. When the system is stable (correct pressure and all air eliminated) the automatic heating control system can be set as re- quired. -
Page 31: Control - Heat Pump Eb101
7 Control - Heat pump EB101 Heat pump menu 5.11.1.1 These settings are made on the display on the indoor module / control module (VVM / SMO). Cooling permitted Here you can set whether the cooling function is to be activated for the heat pump. -
Page 32: Disturbances In Comfort
(VVM / SMO). NIBE SPLIT HBS 05 does not communicate Large amount of water below the outdoor module (AMS 10) Check that the addressing of NIBE SPLIT HBS 05 is cor- ■ rect. Check that the water drainage via the condensation pipe (KVR 10) is working. - Page 33 Sensor placement Positioning the temperature sensor Explanation BE1 (CT) Current sensor Temperature sensor, heating medium, return BT12 Temperature sensor, condenser out BT15 Temperature sensor, fluid pipe BT28 (Tho-A) Temperature sensor, outdoor air BP1 (63H1) High pressure pressostat BP2 (LPT) Pressure sensor, low pressure Pressure sensor, high pressure Condenser GQ1 (FM01)
- Page 34 AMS 10-8, -12, -16 and HBS 05-12, HBS 05-16 Outdoor moduleAMS 10-8 / AMS 10-12 BT28 Incoming supply Tho-A SPLIT BOX HBS 05 -12 GQ10 EEV-H EEV-C Outdoor moduleAMS 10-16 BT28 Incoming supply SPLIT BOX HBS 05 -16 GQ10 EEV-H EEV-C Chapter 8 | Disturbances in comfort HBS 05...
- Page 35 Data for sensor in AMS 10-6 Data for sensor in AMS 10-8, -12, -16 Tho-D Tho-D Motstånd Motstånd Resistor Resistor (kΩ) (kΩ) 90 100 110 120 130 140 150 Tho-D Temperatur (°C) Temperature (°C) Tho-D Temperature (°C) Temperatur (°C) Tho-A, R Tho-S, Tho-R1, Tho-R2 Motstånd Resistor...
- Page 36 Data for return temperature sensor (BT3), condenser supply (BT12) and fluid pipe (BT15) Temperature Resistance Voltage (VDC) (°C) (kOhm) 351.0 3.256 251.6 3.240 182.5 3.218 133.8 3.189 99.22 3.150 74.32 3.105 56.20 3.047 42.89 2.976 33.02 2.889 25.61 2.789 20.02 2.673 15.77 2.541...
-
Page 37: Alarm List
9 Alarm list Alarm Alarm text on the dis- Description May be due to play ■ Sensor fault BT3 Sensor fault, Sensor incoming water in Open circuit or short circuit on sensor HBS 05 (BT3). input ■ Sensor does not work (see section "Troubleshooting") ■... - Page 38 Alarm Alarm text on the dis- Description May be due to play ■ Fan alarm Deviations in the fan speed in AMS 10. The fan cannot rotate freely ■ Defective control board in AMS 10 ■ Defective fan motor ■ Control board in AMS 10 dirty ■...
- Page 39 Alarm Alarm text on the dis- Description May be due to play ■ Inverter error Overcurrent, Inverter A/F module Sudden power failure ■ Cold outdoor air Temperature of BT28 (Tho-A) below the Cold weather conditions set value that permits operation ■...
-
Page 40: Accessories
10 Accessories Not all accessories are available on all markets. Indoor module VVM 310 Air/water heat pump Part no. 069 430 AMS 10 AMS 10-6 VVM 310 Part no. 064 205 With integrated EMK 310 AMS 10-8 Part no. 064 033 Part no. -
Page 41: Technical Data
11 Technical data Dimensions SPLIT box HBS 05 XL53 XL52 View from above. Climate system, flow Ø 28 mm Climate system, return Ø 28 mm XL52 Gas line refrigerant, HBS 05-12/16: flare 5/8''. HBS 05-6: 1/2" XL53 Liquid line refrigerant, HBS 05-12/16: flare 3/8''. HBS 05-6: 1/4" HBS 05 Chapter 11 | Technical data... -
Page 42: Technical Specifications
Technical specifications IP 21 NIBE SPLIT HBS 05 (AMS 10 and HBS 05) NIBE SPLIT HBS 05 (AMS 10 and HBS 05) Working range during heating with compressor (ambient temperature) °C -20 – +43 Working range during cooling (ambient temperature) °C... - Page 43 HBS 05 SPLIT box HBS 05-6 HBS 05-12 HBS 05-16 Compatible outdoor module AMS 10-6 AMS 10-8 AMS 10-12 AMS 10-16 Electrical data Electrical connections 230V ~50Hz Recommended fuse rating Heating medium Max pressure, climate system MPa (bar) 0.6 (6) Max pressure, cooling system Min/max system flow, heating op- 0.09 / 0.29...
-
Page 44: Electrical Circuit Diagram
Electrical circuit diagram HBS 05 Chapter 11 | Technical data HBS 05... - Page 45 Designa- Description tion Solenoid for 4-way valve 52X1 Auxiliary relay (for CH) 52X2 Auxiliary relay (for DH) 52X3 Auxiliary relay (for 20S) 52X4 Auxiliary relay (for SV1) 63H1 High pressure pressostat Capacitor Compressor heater Compressor motor CnA~Z Terminal block Current sensor Drain pan heater Diode module Fuse...
-
Page 46: Item Register
12 Item register Item register Accessibility, electrical connection, 24 HBS 05 does not communicate, 32 Accessories, 40 HBS 05 is not operational, 32 Addressing via multi-heat pump operation, 28 Heat pump menu 5.11.1.1, 31 Adjustment, charge flow, 30 High room temperature, 32 Alarm list, 37 Assembly, 9 Important information, 4... - Page 47 Technical Data, 42 Technical Data, 42 The heat pump design, 12 Component location HBS 05 (EZ102), 12 Electrical components HBS 05, 14 Electrical panel, 14 List of components HBS 05 (EZ102), 13 Topping up the climate system, 29 Topping up the refrigerant, 18 Transport and storage, 9 Troubleshooting, 32 Basic actions, 32...
-
Page 51: Contact Information
Tel: +7 831 419 57 06 E-mail: kuzmin@evan.ru www.nibe-evan.ru NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 Markaryd Tel: +46 (0)433 73 000 E-mail: info@nibe.se www.nibe.se For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information. - Page 52 WS name: -Gemensamt WS version: a423 WS release date: 2017-09-25 11:38 Publish date: 2017-11-27 08:02 NIBE AB Sweden Hannabadsvägen 5 Box 14 SE-285 21 Markaryd info@nibe.se www.nibe.eu 331901...
