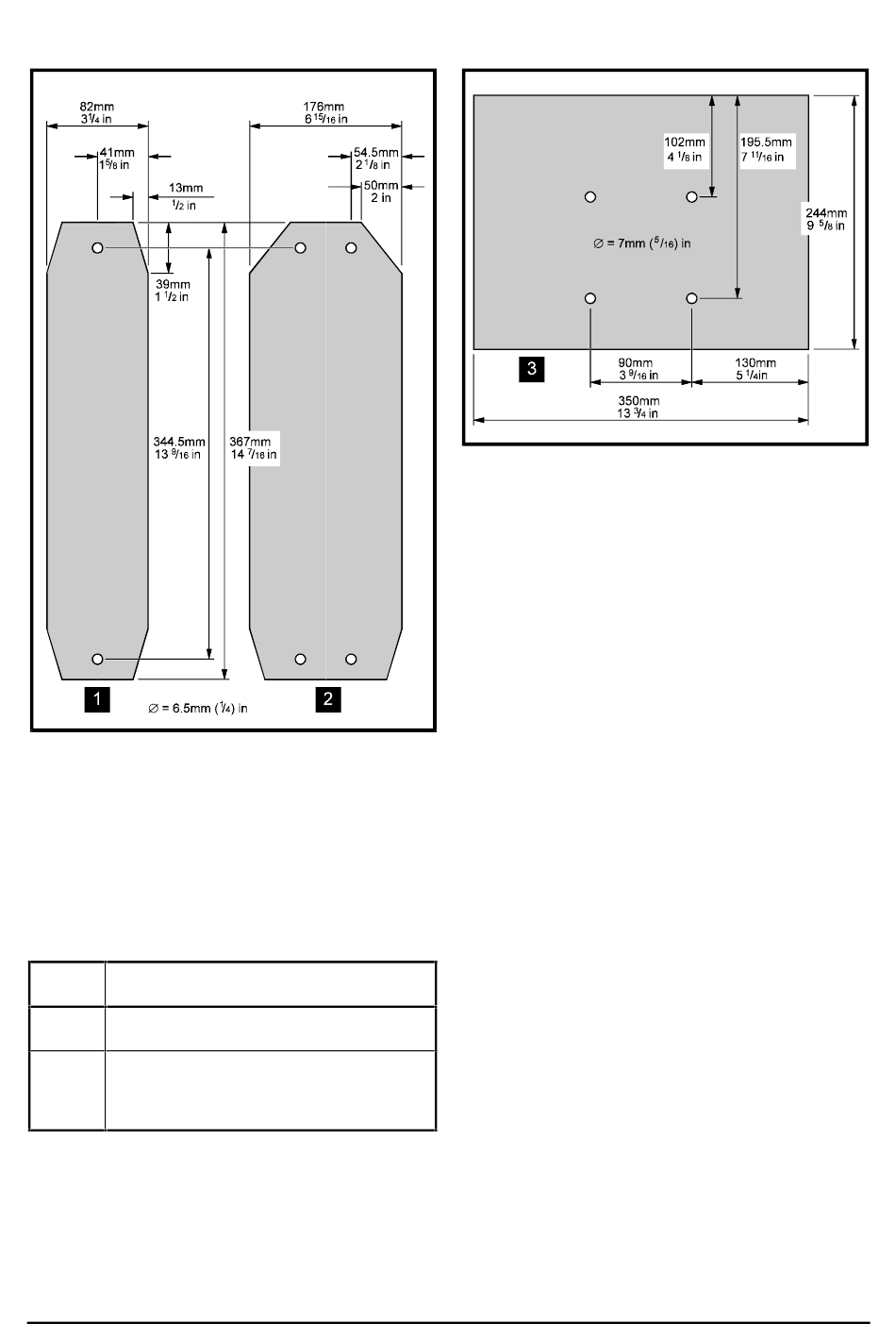

Figure 2–15 Dimensions for the fabrication
of baffle plates for model
sizes 1 and 2
Attaching a fabricated baffle plate to
the heatsink
Table 2–12 Methods of attaching
the baffle plate
Model Method of attachment
size
1 Use the surface mounting brackets.
2
3 Use M6 x 12mm max (or equivalent)
thread-forming screws to screw into the holes
in the heatsink, or tap the holes to a suitable
thread size.
Unidrive LV model sizes 1 to 3 Installation Guide
Issue code: uliu1
Figure 2–16 Dimensions for the fabrication
of baffle plates for model size 3
Installing the Drive 2-23
