Summary of Contents for Proluxe Vantage CS CSD1515PEE

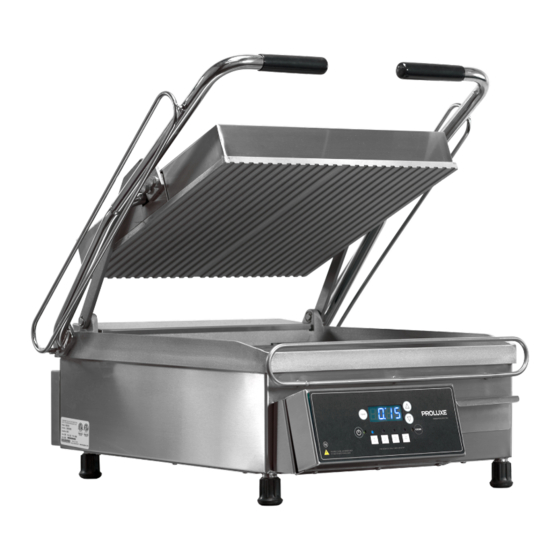

- Page 1 Operations Manual Vantage CS (Panini) - Clamshell Grill Model #: CSD1515PE WWW.PROLUXE.COM Version: 51719...
- Page 2 I N T E R N A T I O N A L S Y M B O L S Symboles internationaux the Vantage CS Clamshell Panini Grill. Proluxe is a leading manufacturer of food preparation and cooking equipment designed for ...
- Page 3 S A F E T Y S U M M A R Y Avertissement Pour une protection continue contre l’incendie et de choc électrique, remplacer avec le même type et calibre du fusible. Mis fusible supplémentaire nominale max 3A, 120 Vac. Warning ...
-
Page 4: Adjusting The Set Temperature
1. Place in location where it will be used To find the temperature of bottom platens: allowing for clearances per the Press and hold the TEMP button and the dimensions indicated. Allow 2” arrow down (↓) button at the same time. minimum clearance between ... -
Page 5: Start Cycle
P R E V E N T A T I V E M A I N T E N A N C E Proluxe machines are relatively maintenance free. For a long lifespan, the following preventative maintenance should be ... - Page 6 Vantage CS (Panini) Troubleshoot Guide - Model #: CSD1515PE Problem Cause Action Ref # Power button on 1. Power cord is not plugged in. 1.
- Page 7 Digital controller is Sensor in one of two zones lost it's Disconnect probe and check for 22 constantly beeping. continuity. Depress TEMP. While continuity (by using Ohm Meter) 46 No heat on either on depressing TEMP depress either up and replace. Do not cut and splice left, right, upper, or ...
- Page 8 Setpoint is reached Offset may need to be calibrated and Call (800) 624-6717 for ---- but slightly off in adjusted. instructions. temperature. Heater platen is 1. The mechanical Relay may be Use an Ohm meter for a 15 overheating. stuck in the closed position (zone 1, continuity check must check at ...
-
Page 9: Strain Relief
Vantage CS (Panini) Part List - Model #: CSD1515PE CSD1515A/ CSD1515CEC/ CSD1515E/ ITEM CSD1515PA CSD1515PCEC CSD1515PE DESCRIPTION 120 V 220V 208 V LOWER WRAP AROUND SHROUD ASSEMBLY 110115501 110115501 110115501... - Page 10 WASHER, SPLIT LOCK 5/16 WL516 WL516 WL516 HANDLE RIGHT ASSEMBLY 110115521 110115521 110115521 HANDLE GRIP 110901168 110901168 110901168 TUBING PAD 110115531 110115531 110115531 SPRING, DETENT 1-1/2 LONG 110115555 110115555 110115555 PLUNGER ASSEMBLY 110115544 110115544 110115544 HANDLE SPRING ADJUSTING COLLAR 110115528 110115528 110115528 SCREW SET KNURLED CUP ...
-
Page 11: Mounting Bracket
WASHER, INTERNAL TOOTH LOCK 5/16 WLIT516 WLIT516 WLIT516 RETAINING RING 11017088867 11017088867 11017088867 MARKER STRIP, #5 MS6015 MS6015 MS6015 SCREW, PAN HEAD PHILLIPS 2-56 X 1/4 SP25614 SP25614 SP25614 WASHER, SAE 3/8 WSAE38 WSAE38 WSAE38 WASHER, INTERNAL TOOTH LOCK #6 WLIT6 WLIT6 WLIT6... - Page 12 STOP, HEX PIN 11018344037 11018344037 11018344037 RTD SENSOR 2000 OHM, BOTTOM 1108881102 1108881102 1108881102 SCREW, SET 3/8-16 X 1-1/2 SST3816112 SST3816112 SST3816112 WASHER, CUT 5/16 WC516 WC516 WC516 LOWER PLATEN INSULATION 110115542 110115542 110115542 COVER, LOWER PLATEN ASSEMBLY 110115506 110115506 110115506 SCREW, SOCKET HEAD ...
-
Page 13: Warranty And Return Policy
E X C L U S I O N S for 60 miles. The warranties provided by Proluxe DO ALL WARRANTY SERVICE CALLS MUST BE NOT apply to the following: APPROVED BY PROLUXE. IF THIS PROCEDURE IS NOT FOLLOWED, ... - Page 14 Special Order Equipment and by Proluxe or its authorized agent it is determined the equipment has not been used Accessories in an appropriate manner, has been modified, Cannot be canceled and are not returnable or has not been properly maintained, or has ...
- Page 15 after 60 days. Purchased parts may not be 9. All orders are subject to acceptance by returned after 30 days. A restocking fee of Proluxe. 20% will be assessed on non-warranty returns. 10. Possession of this price list shall not be ...
