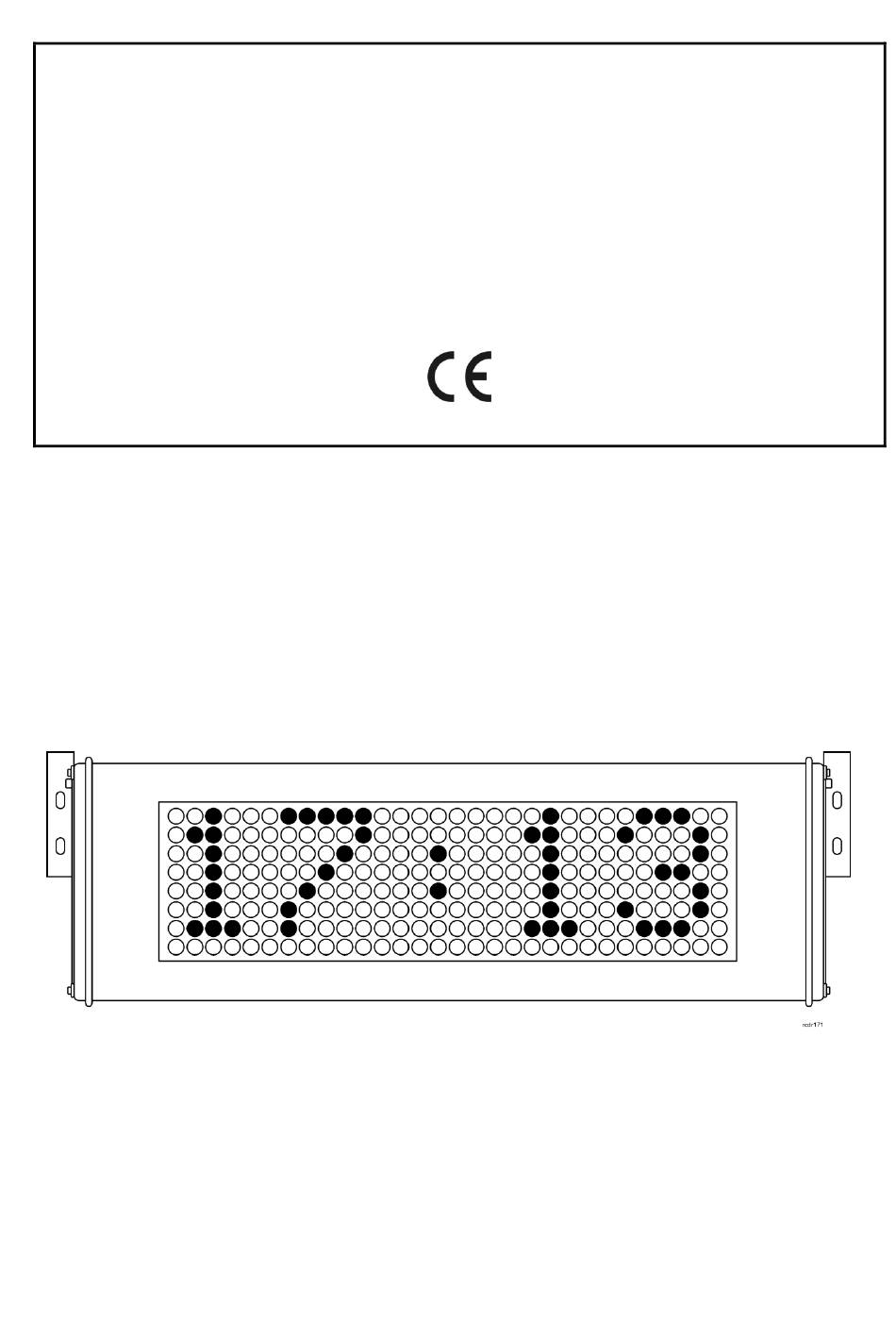

- Page 1 Roger Access Control System ASCD-1 Operating manual Firmware version: 1.1.4.19 Hardware version: 1.1 Document version: Rev. C...

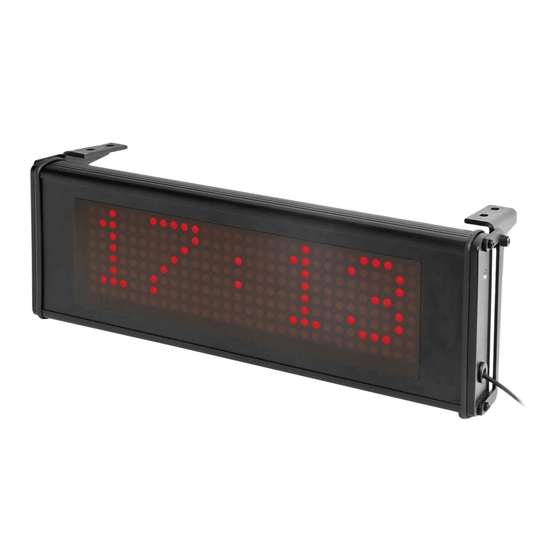

- Page 2 1. D ESCRIPTION AND SPECIFICATION ASCD-1 is five segment LED matrix display. In RACS 4, the device can display system time in 24h format while in RACS 5 it can additionally display system text messages with maximal length of 32 characters.
- Page 3 2018-02-13 Table 2. ASCD-1 terminals Terminal Description Terminal Description +12V +12 VDC power supply RS485 communication bus Ground Ground RS485 communication bus Fig. 2 Example of ASCD-1 connection in RACS 4 Fig. 3 Example of ASCD-1 connection in RACS 5...
- Page 4 The enclosure of ASCD-1 is opened by means of driver with T10 (torx) bit and the inclination of ASCD-1 is adjusted by means of driver with hex bit no.3.
- Page 5 (torx) bit and pull out the board. Connect the device to RUD-1 interface according to fig 4 and the RUD-1 interface to computer’s USB port. Press S1 and S2 buttons on ASCD-1 board for a few seconds till –CFG- text is displayed. ASCD-1 v1.1 ...
- Page 6 (torx) bit and pull out the board. Connect the device to RUD-1 interface according to fig 4 and the RUD-1 interface to computer’s USB port. Press S1 and S2 buttons on ASCD-1 board for a few seconds till –CFG- text is displayed. ASCD-1 v1.1 ...
- Page 7 Maximal number of characters can be limited and scrolling speed configured with RogerVDM software and RUD-1 interface. The ASCD-1 can be used to display text only if in LCD mode and with jumper placed on JP10 pins (fig. 1). The device is ready for operation when it displays Terminal text.
- Page 8 ASCD-1 Operating Manual.doc 2018-02-13 3.6 Configuration error When started, the ASCD-1 reads its settings from memory. In case of error (CfgEr text) make low level configuration or memory reset to restore the device. Fig. 5 Configuration error 4. O RDERING INFORMATION Table 3.
