5.6 Removing from the DIN Rail

The DIN rail clip is suitable for a DIN rail according to EN 60715 standard only. The default
position of metal rail clip, which is used for mounting the router on a DIN rail, is shown in
the following figure. Its position can be changed on some models (back or bottom). When
changing the position of the DIN rail clip, tighten the screws with max. 0.4 Nm torque.

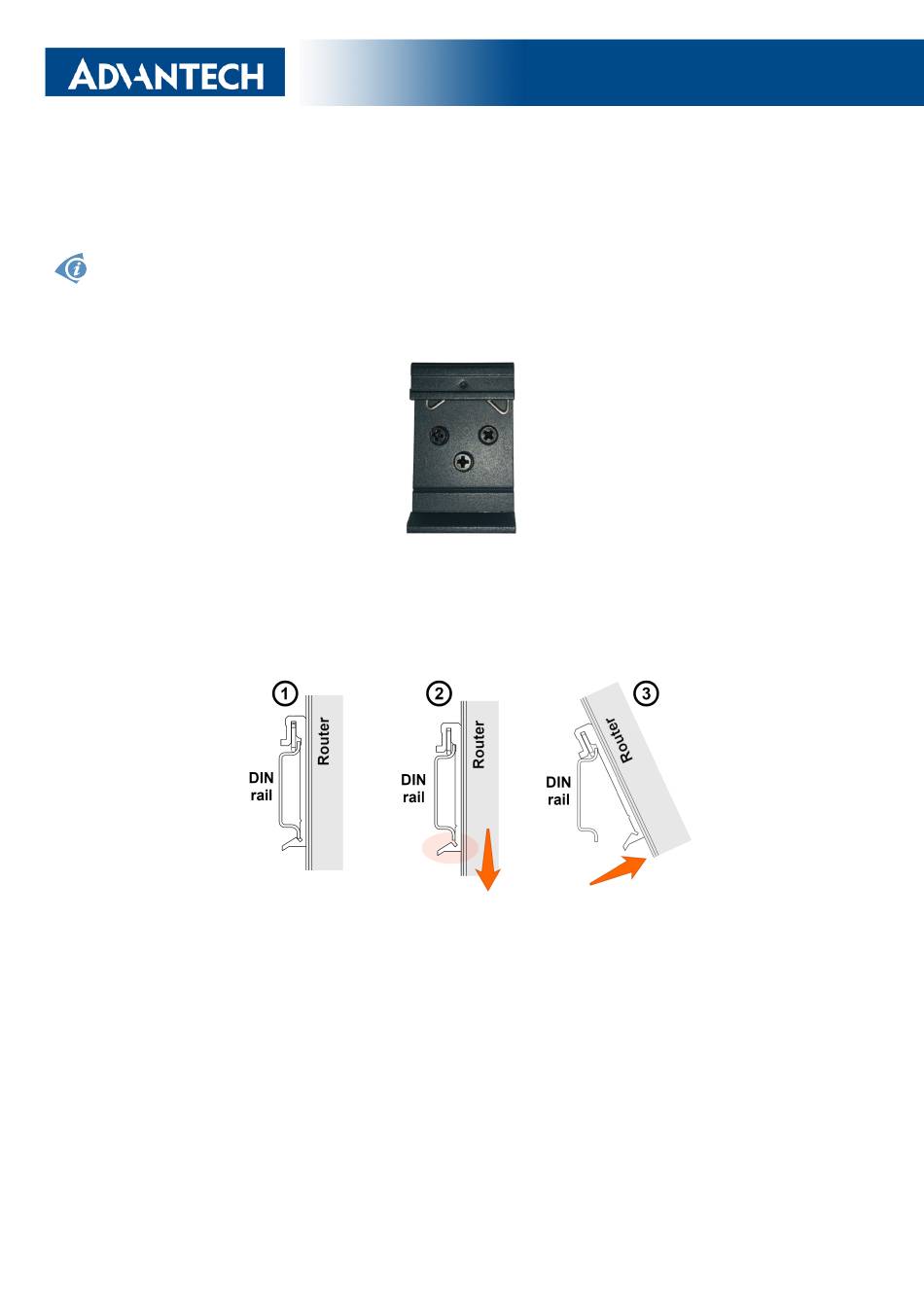

Figure 10: Default position of DIN rail clip
For removing from the DIN rail it is necessary to lightly push down the router so that the
bottom part of the DIN rail clip hitched to the DIN rail get out of this rail and then fold out the
bottom part of the router away from the DIN rail.
Figure 11: Removing from the DIN rail
