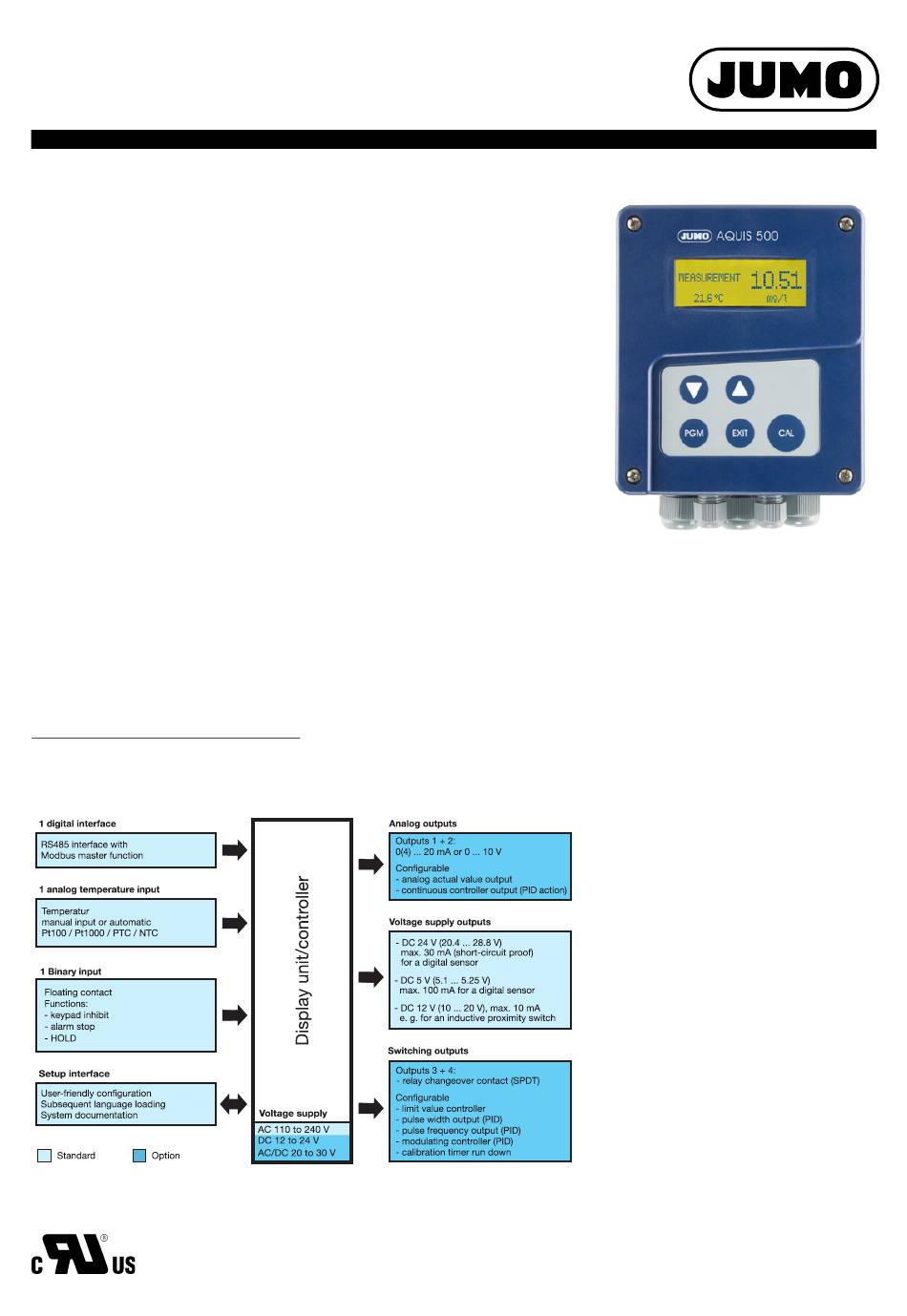

JUMO AQUIS 500 RS
Display unit/controller for digital sensors with
Modbus protocol
Brief description
The device has 1 digital interface, 1 analog temperature input, and 1 binary interface. The digital
interface is suitable for connecting sensors with a Modbus RS485 interface. If the connected
sensor does not have an integrated temperature sensor, an RTD temperature probe Pt100,
Pt1000, or NTC/PTC (up to 4 kΩ) can be connected to the analog temperature input. The volt-
age supply for the digital sensor is integrated into the device.
The LCD graphic display allows input signals to be displayed as digits or as a bar graph. Dis-
playing parameters in plain text ensures that operation is easily understandable and safe.
Two optional relay changeover contacts are used to implement simple switching or alarm func-
tions as well as demanding control tasks with P, PI, PD, and PID behavior. Upon request, the
device can also be supplied with 2 analog outputs (0 to 10 V or 0(4) to 20 mA) that can be freely
parameterized and scaled.
The device is suitable for tasks such as display, measurement, and control of:
• Dissolved oxygen in conjunction with sensors acc. to data sheet 202613
• Free Chlorine in conjunction with sensors acc. to data sheet 202630
• Total Chlorine in conjunction with sensors acc. to data sheet 202631
• Ozone in conjunction with sensors acc. to data sheet 202634
• Hydrogen Peroxide and Peracetic Acid in conjunction with sensors
1
acc. to data sheet 202636
• Turbidity in conjunction with sensors acc. to data sheet 202670
1
Available as of 1st quarter 2016
Block diagram
Approvals/Approval marks
V2.00/EN/00598860
JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: +44 1279 635533
Fax:
+44 1279 635262
Email:
sales@jumo.co.uk
Internet: www.jumo.co.uk
1
1
1
(see Technical data
JUMO Process Control, Inc.
6733 Myers Road
East Syracuse, NY 13057, USA
Phone: 315-437-5866
1-800-554-5866
Fax:
315-437-5860
Email:
info.us@jumo.net
Internet: www.jumousa.com
Data sheet 202569
Special features
• Display: mg/l, ppm, % SAT, %, ‰, g/l,
ppb, µg/l, NTU, FNU, etc.
Others possible with use of the setup pro-
gram
• Large LCD graphic display with
backlight
• Display can be selected: large digits, bar
graph, or trend display
• Integrated calibration routines:
depending on sensor: zero point, end
value, and 2-point
• Calib. logfile
• Protection type IP67 for surface mounting
Protection type IP65 for control cabinet
mounting
• User languages (possible to switch):
English, French, German
• Setup program (optional) allows easy pro-
gramming, plant
documentation, and download of addi-
tional user languages
Page 1/13
Type 202569/...

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUIS 500 RS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for JUMO AQUIS 500 RS

  • Page 1 JUMO GmbH & Co. KG JUMO Instrument Co. Ltd. JUMO Process Control, Inc. Delivery address: Mackenrodtstraße 14 JUMO House 6733 Myers Road 36039 Fulda, Germany Temple Bank, Riverway East Syracuse, NY 13057, USA Postal address: 36035 Fulda, Germany Harlow, Essex CM20 2DY, UK...
  • Page 2: Functional Description

    The sampling rate of the and speed at which the measured value is AQUIS 500 RS is fixed at 500 ms when using changing. these sensors. This can be useful for control optimization, for The temperature of the measuring medium example.
  • Page 3 Data sheet 202569 Page 3/13 Analog outputs Relay outputs fer, and the transfer speed (2400 to 38400 Bd) must be set in the JUMO AQUIS 500 RS. Two relay changeover contacts are available maximum analog outputs The sampling rate for the sensor varies in the for the main measurand and/or temperature.
  • Page 4 JUMO GmbH & Co. KG JUMO Instrument Co. Ltd. JUMO Process Control, Inc. Delivery address: Mackenrodtstraße 14 JUMO House 6733 Myers Road 36039 Fulda, Germany Temple Bank, Riverway East Syracuse, NY 13057, USA Postal address: 36035 Fulda, Germany Harlow, Essex CM20 2DY, UK...
  • Page 5: Technical Data

    JUMO GmbH & Co. KG JUMO Instrument Co. Ltd. JUMO Process Control, Inc. Delivery address: Mackenrodtstraße 14 JUMO House 6733 Myers Road 36039 Fulda, Germany Temple Bank, Riverway East Syracuse, NY 13057, USA Postal address: 36035 Fulda, Germany Harlow, Essex CM20 2DY, UK...
  • Page 6 JUMO GmbH & Co. KG JUMO Instrument Co. Ltd. JUMO Process Control, Inc. Delivery address: Mackenrodtstraße 14 JUMO House 6733 Myers Road 36039 Fulda, Germany Temple Bank, Riverway East Syracuse, NY 13057, USA Postal address: 36035 Fulda, Germany Harlow, Essex CM20 2DY, UK...
  • Page 7: Electrical Connection

    JUMO GmbH & Co. KG JUMO Instrument Co. Ltd. JUMO Process Control, Inc. Delivery address: Mackenrodtstraße 14 JUMO House 6733 Myers Road 36039 Fulda, Germany Temple Bank, Riverway East Syracuse, NY 13057, USA Postal address: 36035 Fulda, Germany Harlow, Essex CM20 2DY, UK...
  • Page 8 JUMO GmbH & Co. KG JUMO Instrument Co. Ltd. JUMO Process Control, Inc. Delivery address: Mackenrodtstraße 14 JUMO House 6733 Myers Road 36039 Fulda, Germany Temple Bank, Riverway East Syracuse, NY 13057, USA Postal address: 36035 Fulda, Germany Harlow, Essex CM20 2DY, UK...
  • Page 9 JUMO GmbH & Co. KG JUMO Instrument Co. Ltd. JUMO Process Control, Inc. Delivery address: Mackenrodtstraße 14 JUMO House 6733 Myers Road 36039 Fulda, Germany Temple Bank, Riverway East Syracuse, NY 13057, USA Postal address: 36035 Fulda, Germany Harlow, Essex CM20 2DY, UK...
  • Page 10 Page 10/13 Accessories Support pillar with pedestal, cantilever arm, and chain Part no.: 00398163 Pipe mounting kit for JUMO AQUIS 500 DIN-rail mounting kit for JUMO AQUIS 500 Part no.: 00483664 for installation of the device on a DIN-rail of Protective roof for JUMO AQUIS 500 35 mm x 7.5 mm acc.
  • Page 11: Application Examples

    Optional: Temperature output 0(4) to 20 mA or 0 to 10 V Galvanically isolated Benefits: (1) JUMO AQUIS 500 RS • Large cable lengths can be bridged without (2) JUMO ecoLine O-DO risk of interference (sensor for dissolved oxygen), • Reduced wiring effort as the voltage supply type 202613/...
  • Page 12 • Large cable lengths can be bridged without risk of interference • Reduced wiring effort as the voltage supply (1) JUMO AQUIS 500 RS for the sensor is integrated into the device (2) JUMO ecoLine NTU • Calibration option on device (sensor for turbidity measurements), type 202670/...
  • Page 13: Order Details

    The JUMO AQUIS 500 can be fitted to a pipe (such as a support pillar or rail) with the pipe mounting kit. The JUMO AQUIS 500 can be fitted to a DIN-rail of 35 mm x 7.5 mm (acc. to DIN EN 60715 A.1) with the DIN-rail mounting.
