INSTALLATION: SKID REMOVAL, ADJUSTABLE FRONT TOE-KICK / REMOVABLE FRONT GRILLE

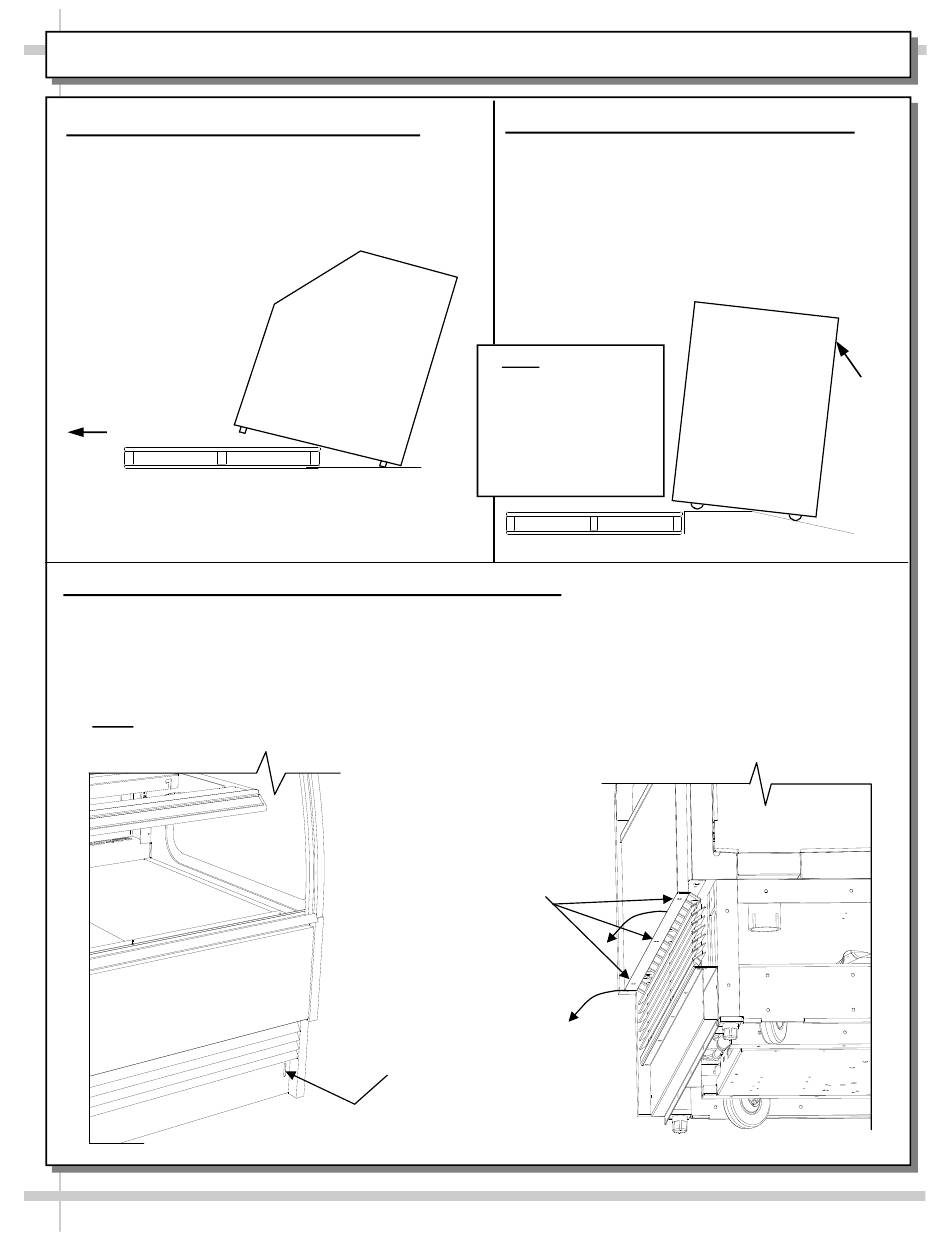

1. Remove Case From Skid (Levelers)
Remove shipping brace that may be
securing case to skid.
Support case to prevent tipping.
Caution! Levelers can be damaged if case
hits floor with heavy force!
Carefully slide unit to
rear of skid and tip
backward off skid.
Illustration may not
reflect every feature
or option of your
particular case.
Slide Skid Out
Case can be repositioned with pallet truck when
front lower panel is removed. Blocking may be
necessary to obtain adequate height.
3. Adjustable Front Toe-Kick / Removable Front Grille
Front toe-kick is adjustable. Simply loosen screws (one at each end) and adjust accordingly.
To remove front grille, remove screws located at underside of front panel. This will allow access to
drain line or refrigeration lines.
Front Grille will fall forward and can be lifted up and away from case.
Replace Front Grille in reverse order it was removed from case.
Note: Illustration below may not reflect every feature or option of your particular case.
2. Remove Case From Skid (Casters)
Remove shipping brackets that may be securing
casters to skid
Note: Illustrations
shown reflect a
general outline of
sample cases and do
not reflect features or
options of your
particular model.
(3) Front Grille
Retainer Screws
Adjustable
Toe-Kick Slot
(at Each End)
5
Place ramp up against skid (to allow case to
smoothly slide off from skid).
Maintain support of case at all times or center
of gravity may cause case to fall.
Unlock Casters. Roll unit to rear of skid.
Roll down ramp
and off from skid.
Ramp
Support
while
rolling
case
down
ramp.
