6. When the upper antenna parts are mounted to the base assembly (see previous installation
instructions), install the Studded Band Clamp on the first element just above the black insulator
with the stud facing the side nearest the tuner connections. Install the 10" long tuner wire on the
studded band clamp using the #10 hardware as shown. The other end of the 10" wire is
connected to the tuner output wing nut connection on the tuner as shown.
The feedline coaxial cable connects from the Antenna Tuner to the Bias-T in the radio room.

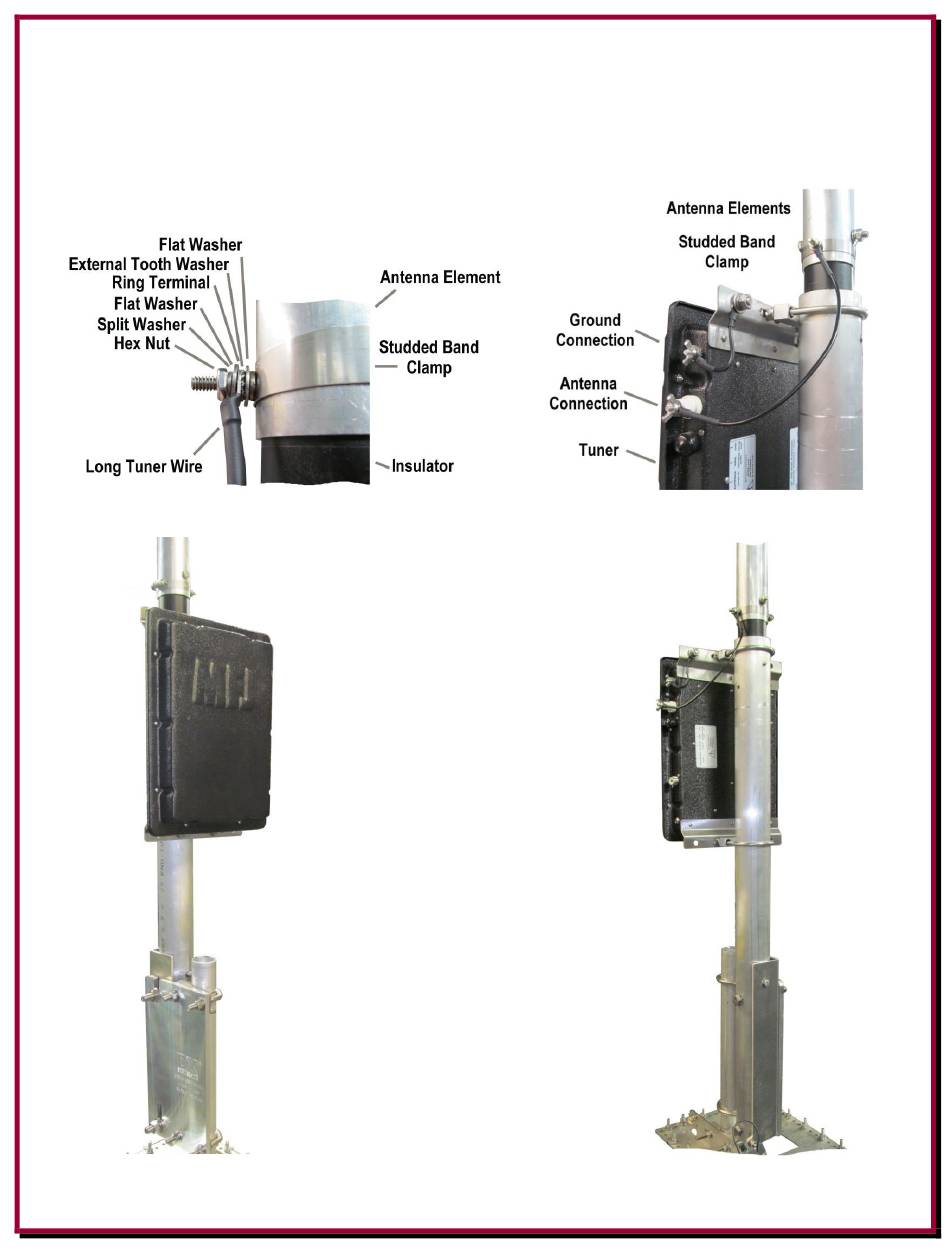

Two views showing the
MFJ-993BRT or MFJ-994BRT
installed on the
DXE-MBVE-5A antenna
- 5 -
