DX Engineering DXE-MBVE-5A Instruction Manual page 5

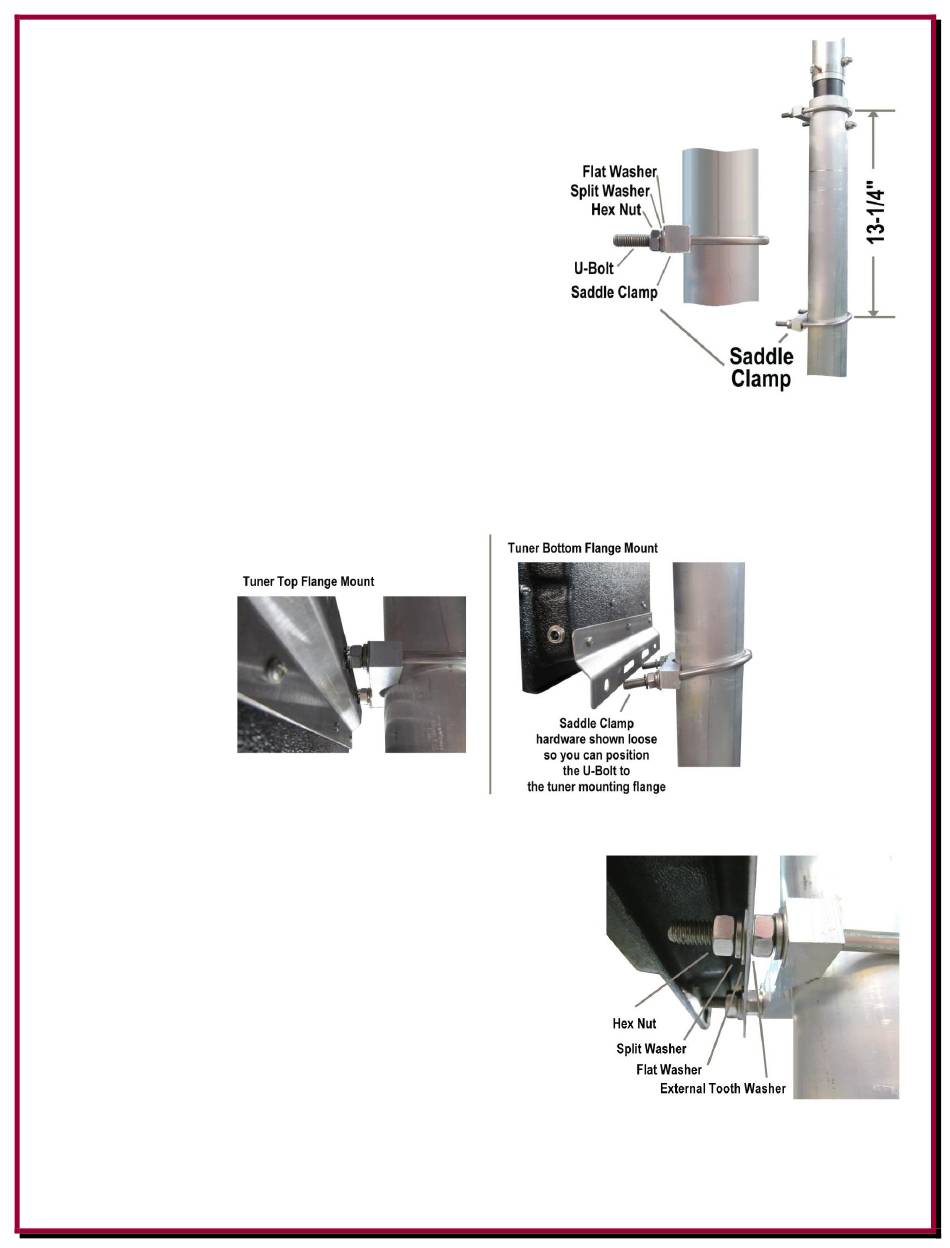

3. Loosely mount the bottom aluminum saddle clamp
assembly approximately 13-1/4" below the previously
(upper) mounted saddle clamp using the same hardware
described for the upper clamp. Ensure both clamps are
facing the same direction.
(This installation method works well since the MFJ
tuner mounting flanges can be in slightly different
positions on the tuners.)
4. Place on 5/16" External Tooth Washer on each leg of the upper saddle clamp U-bolt and then
position the MFJ-993BRT or MFJ-994BRT tuner in place on the upper U-bolt that protrudes
from the saddle clamp. Once in place, loosely install the two 5/16" Flat Washers, two 5/16" Split
Lock Washers and two 5/16"-18 Hex Nuts to hold the tuner in place on the upper clamp as
shown. You want the tuner to be able to move a bit for final positioning.
5. Position the lower saddle clamp (with the external tooth
washers on each leg) so the U-bolt will pass through the
bottom mounting flange on the tuner as shown. Once the
tuner is positioned in place and straight - use the two 5/16"
Flat Washers, two 5/16" Split Lock Washers and two 5/16"-
18 Hex Nuts to hold the bottom of the tuner in place.
Tighten all of the tuner mounting hardware (top and
bottom).
- 4 -
