DX Engineering DXE-MBVE-5A Instruction Manual page 3

SAF-T-Tilt™ Base Assembly Upgrade Hardware Kit
DXE-MBVE-5A-UGHW for the extended base tube option
1/4"-20 x 3/4" long Hex Head Bolt, Stainless Steel
1/4"-20 x 2-3/4" long Hex Head Cap Screw, Stainless Steel
1/4"-20 x 3-1/4" long Hex Head Cap Screw, Stainless Steel
1/4" Flat Washer, Stainless Steel
1/4" Split Lock Washer, Stainless Steel
1/4" External Tooth Washer, Stainless Steel
1/4"-20 Hex Nut, Stainless Steel
1/4"-20 x 3" long Hex Head Cap Screw, Stainless Steel
1/2"-13 Hex Nut, Stainless Steel
1/2"-13 x 4-1/2" long, Hex Head Bolt, Stainless Steel
1/2" Flat Washer, Stainless Steel, Thick
1/2" External Tooth Washer, Stainless Steel
1/2" Split Lock Washer, Stainless Steel
1/2"-13 Flanged Nut, Stainless Steel
7" Wire, 14 ga PVC insulated, two 1/4" Ring Terminals
Upgrade Hardware for the
Extended Base Tube Drawing
Qty
1
1
2
11
6
3
6
2
1
2
1
2
1
1
1
- 2 -

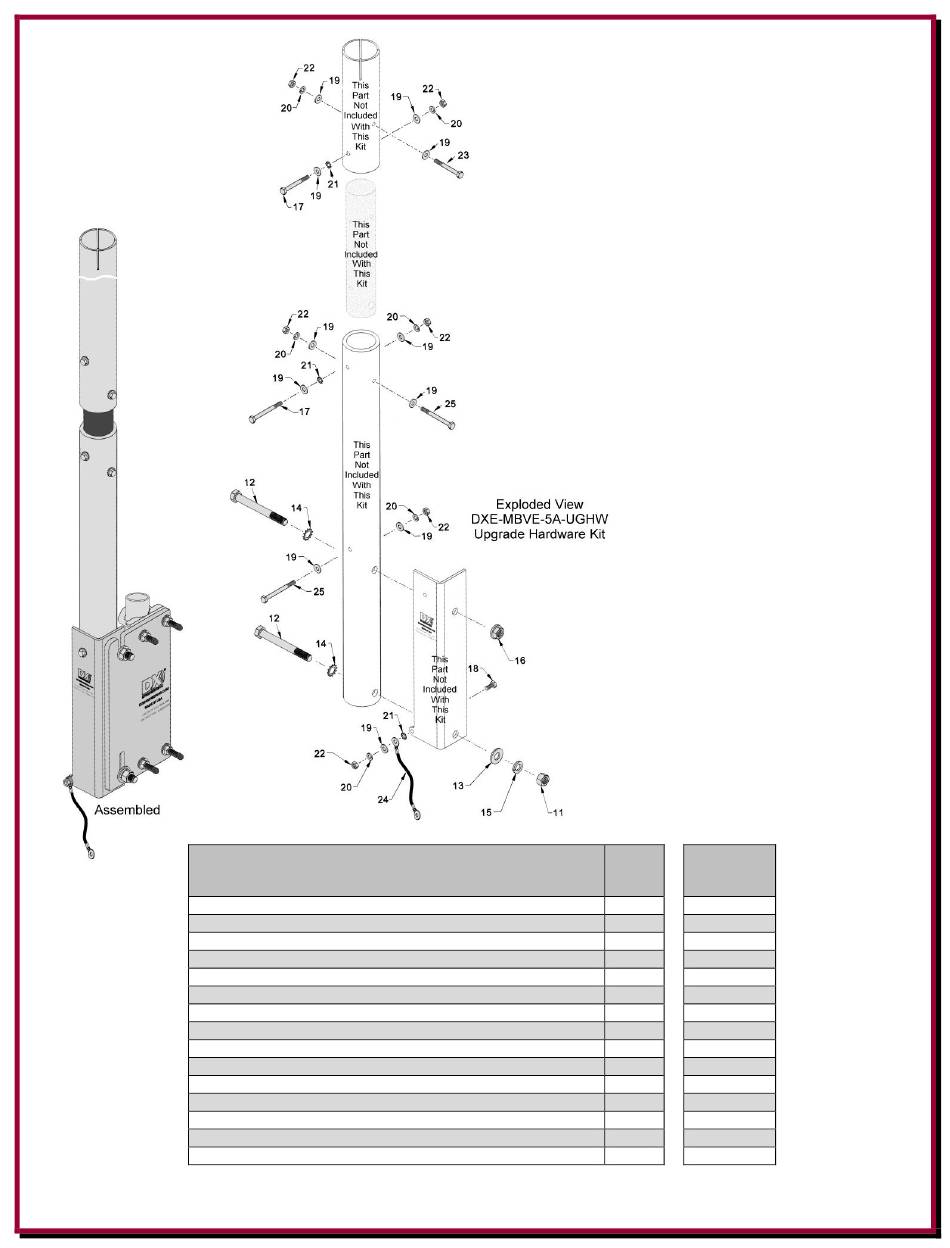

This drawing shows
the Upgrade
Hardware Kit that
includes the associated
hardware.
For existing systems,
the new hardware is
supplied with the
upgrade kits to make
installation easier.
NOTE: The Upgrade
Kits also include an
extended (36") Base
Tube and a new
Drilled Insulator
Drawing
Ref.
Number
18
23
17
19
20
21
22
25
11
12
13
14
15
16
24
