LED Display

General

To enhance safety and simplify the operator's work,
the OPTYMA Control has two programming
TM
levels; the first level (Level 1) is used to configure
the frequently-modified SETPOINT parameters. The
second programming level (Level 2) is for general
parameter programming of the various controller
work modes.

Symbols used

For practical purposes the following symbols are used:
• (▲) the UP key
• (▼) the DOWN key

Setting and displaying the setpoints

1. Press the SET key to display the current SETPOINT
(temperature)
2. Hold down the SET key and press the (▲) or (▼)
keys to modify the SETPOINT.
Release the SET key to return to cold room
temperature display: the new setting will be saved
automatically.
OPTYMA Control single-phase AK-RC 101
TM
is used to increase values and mute the alarm.
is used to decrease values and force defrosting.
RS8FD402 © Danfoss A/S 2014/11

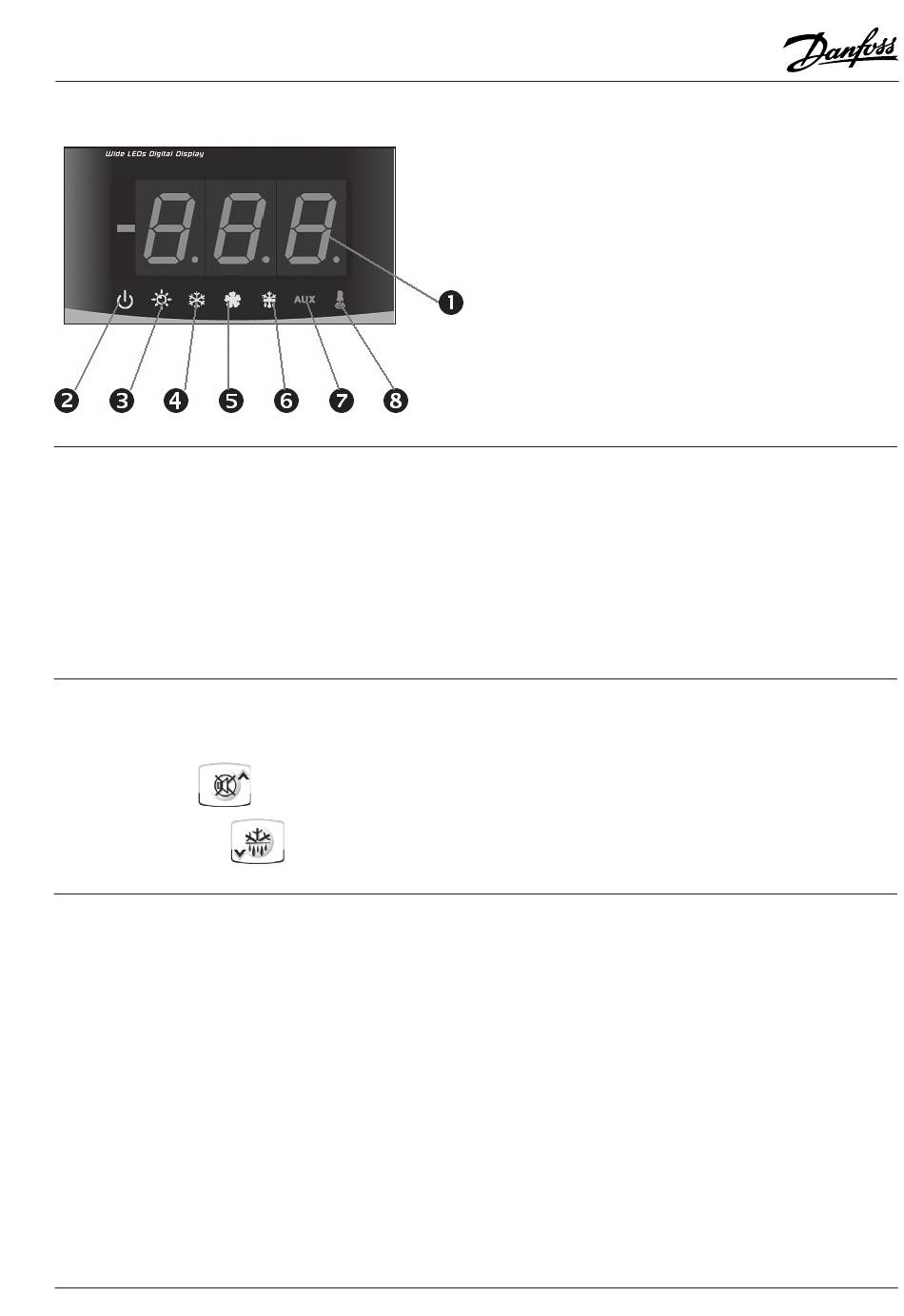

1. Cold room temperature / parameters
2. Stand-by (flashes on stand-by). Outputs are de-
activated
3. Room light (flashes if door switch activated)
4. Cold (indicates activation of compressor)
5. Fans
6. Defrosting
7. Auxiliary
8. Alarm/warning
It is not possible to access the Level 2 programming
directly from Level 1: you must exit the programming
mode first.
