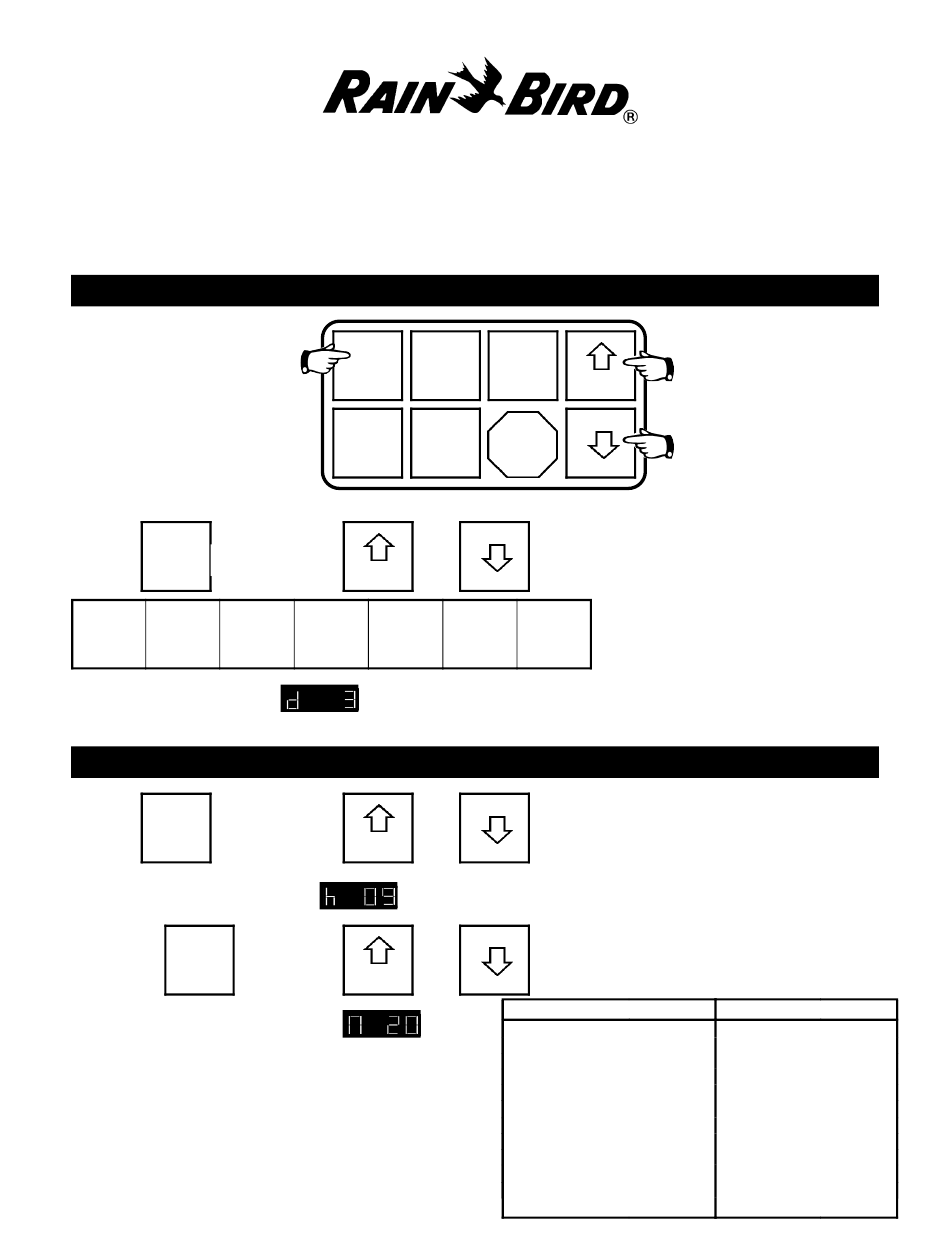

EZ1-D PROGRAMMING INSTRUCTIONS TO SET CLOCK DAY WHICH TIME OF CLOCK & DAYS TO DAY TO PROGRAM WATER WATER MANUAL STATION SYSTEM ON/STA. AUTO ADVANCE TIME until number corresponding to cur- Press CLOCK & Press rent day appears in display...
Page 2
Program VARIABLE DAY CYCLE The EZ1-D Controller comes from the factory with a preset 7-day cycle. (This means the controller will operate as programmed for 7 days, then repeat the cycle beginning with day 1.) If you want a 3-day cycle, for example, program days 1,2 and 3 only as above, and then proceed as shown below.
Page 3
This indicates that Day 4 and all succeeding days through Day 7 will not operate. For both the "A" and "C" programs the cycle will repeat after Day 3. Though both the "A" and "C” programs are in the 3-day cycle, they can be set for the same or differing wa- tering days.
Page 4
TO SET WATERING TIME FOR EACH STATION WHICH TIME OF CLOCK & DAYS TO DAY TO PROGRAM WATER WATER MANUAL STATION SYSTEM ON/STA. AUTO ADVANCE TIME STATION until the display indicates the number Press Press TIME of minutes (from 1-99) you wish for Station #1 to water. Display will indicate: Station #1, “A”...
Page 5
MANUAL WATERING FOR A PROGRAM WHICH TIME OF CLOCK & DAYS TO DAY TO PROGRAM WATER WATER MANUAL STATION SYSTEM ON/STA. AUTO ADVANCE TIME repeatedly to get the “PA” display. Then, if you only want to start CLOCK & Press PROGRAM MANUAL program “C”...
Page 6
TO PREVENT STARTS, OR CANCEL CYCLE DURING OPERATION (RAIN SHUT-OFF) Prevent Starts: Press SYSTEM AUTO WHICH TIME OF Sheduled watering cycles will not occur until sys- CLOCK & DAYS TO DAY TO PROGRAM WATER WATER tem is returned to automatic operation; last digit MANUAL STATION SYSTEM...
Page 7
Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by Rain Bird Sales, Inc. could void the user’s authority to operate the equipment. This product was FCC certified under test conditions that included the use of shielded I/O cables and connectors between system com- ponents.
