Summary of Contents for Rain Bird ESP-TM2

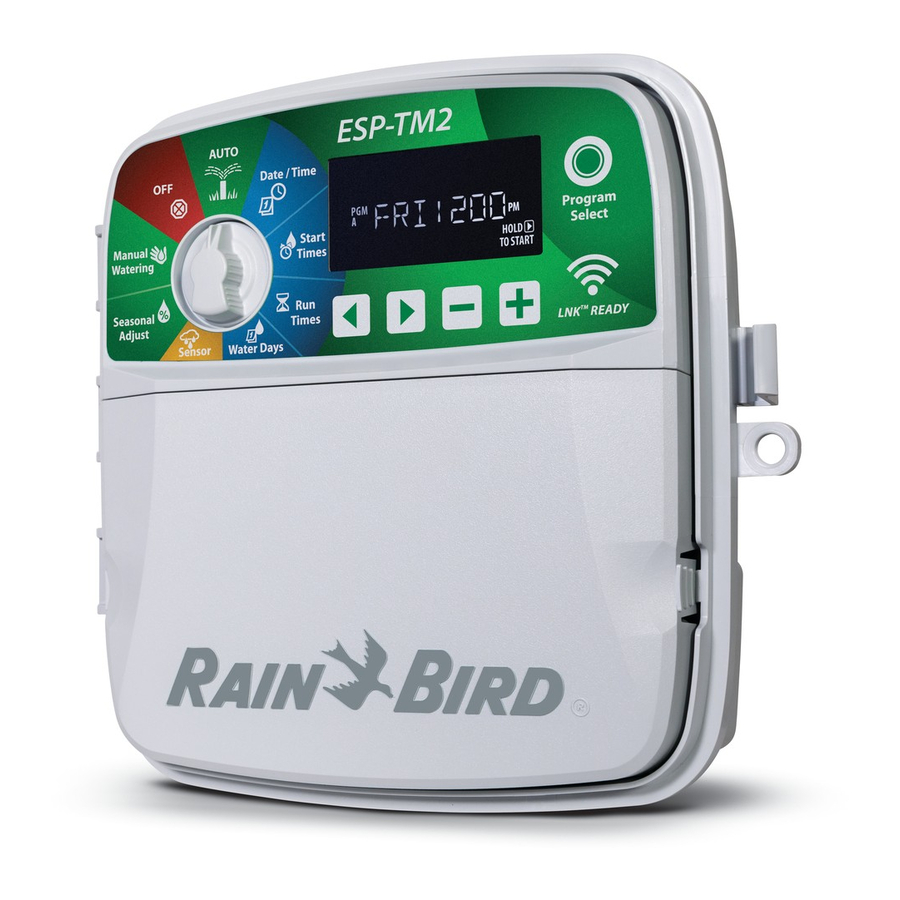

- Page 1 Rain+Birdt ESP-TM2 Controller User Manual Ready Ready * sold separately...
-
Page 2: Table Of Contents
Special Features..........10 • Programming Guide Options ............11 • Foreign Language Support Reset Button ..............11 To learn more about Rain Bird irrigation systems and Accessories ..............11 our Rain Bird Academy training programs, visit: Troubleshooting .........11 www.rainbirdservices.com/training Watering Issues ............11 To see instructional videos for the ESP-TM2, visit Electrical Issues ............ -
Page 3: Introduction
The LNK WiFi Module allows remote connection to Welcome to Rain Bird a Rain Bird ESP-TM2 Controller using an Apple iOS or Android compatible smart device. The mobile applica- Thank you for choosing Rain Bird’s ESP-TM2 controller. tion allows remote access and configuration of one or In this manual are step by step instructions for how to more irrigation controllers. -
Page 4: Installation
NOTE: The ESP-TM2 controller supports one valve solenoid per station terminal. Connect Master Valve (optional) 1/8 IN. -
Page 5: Connect Pump Start Relay (Optional)
Connect both rain sensor wires to the SENS terminals, as shown. NOTICE The ESP-TM2 controller DOES NOT provide power for a pump. The relay WARNING must be wired according to manufacturer instructions. Do not route the rain sensor wires through the same opening as the... -
Page 6: Connect Custom Wiring (Optional)
Set controller to obey or Select ignore a rain sensor. RUN DAYS RUN TIMES START TIMES programming Set watering day Set Run Times for Set up to 4 Start Times options. options for each each program. per program. program. ESP-TM2 Controller... -
Page 7: Basic Programming
Station. Press to set additional Station Run Times. NOTE: Rain Bird recommends that the maximum irrigation zone cycle time be less than the time required for runoff to begin and that there be adequate soak time before the next irrigation cycle of that same zone begins again. -
Page 8: Manual Watering Options
During Manual Watering: The display shows a blinking sprinkler symbol, the active Station Number or Program, and the Remaining Run Time. To cancel manual watering, turn the dial to OFF for three seconds until the screen shows OFF. ESP-TM2 Controller... -
Page 9: Advanced Programming
When set to ACTIVE, automatic irrigation will be sus- pended if rainfall is detected. When set to BYPASS all programs will ignore the rain sensor. Turn the dial to SENSOR. Press to select ACTIVE (obey) or BYPASS (ignore). Obey sensor Ignore sensor Rain detected (flashing) ESP-TM2 Controller... -
Page 10: Permanent Days Off
SET RAIN SENSOR BYPASS SET TO ODD, EVEN OR BY STATION CYCLIC WATERING Tells a station to obey or See Advanced Programming. ignore a rain sensor. ESP-TM2 Controller... -
Page 11: Options
Options Accessories A 5 pin accessory port is available for Rain Bird Reset Button approved external devices, including: If the controller is not working properly, you can try WiFi Module pressing RESET. LIMR Receiver Quick Connect harness Insert a small tool such as a paper clip, into the access hole and press until the controller is reset. - Page 12 Rain Bird ESP-TM2 or its service agent. registering in those countries to which Rain Bird is an importer. Rain Bird has also elected to join WEEE If the electrical cord for models ESP-TM2 AUS on the Web Compliance Schemes in some countries to help manage customer returns at end of life.
- Page 13 The Intelligent Use of Water® LEADERSHIP · EDUCATION · PARTNERSHIPS · PRODUCTS At Rain Bird, we believe it is our responsibility to develop products and technologies that use water efficiently. Our commitment also extends to education, training and services for our industry and community.
