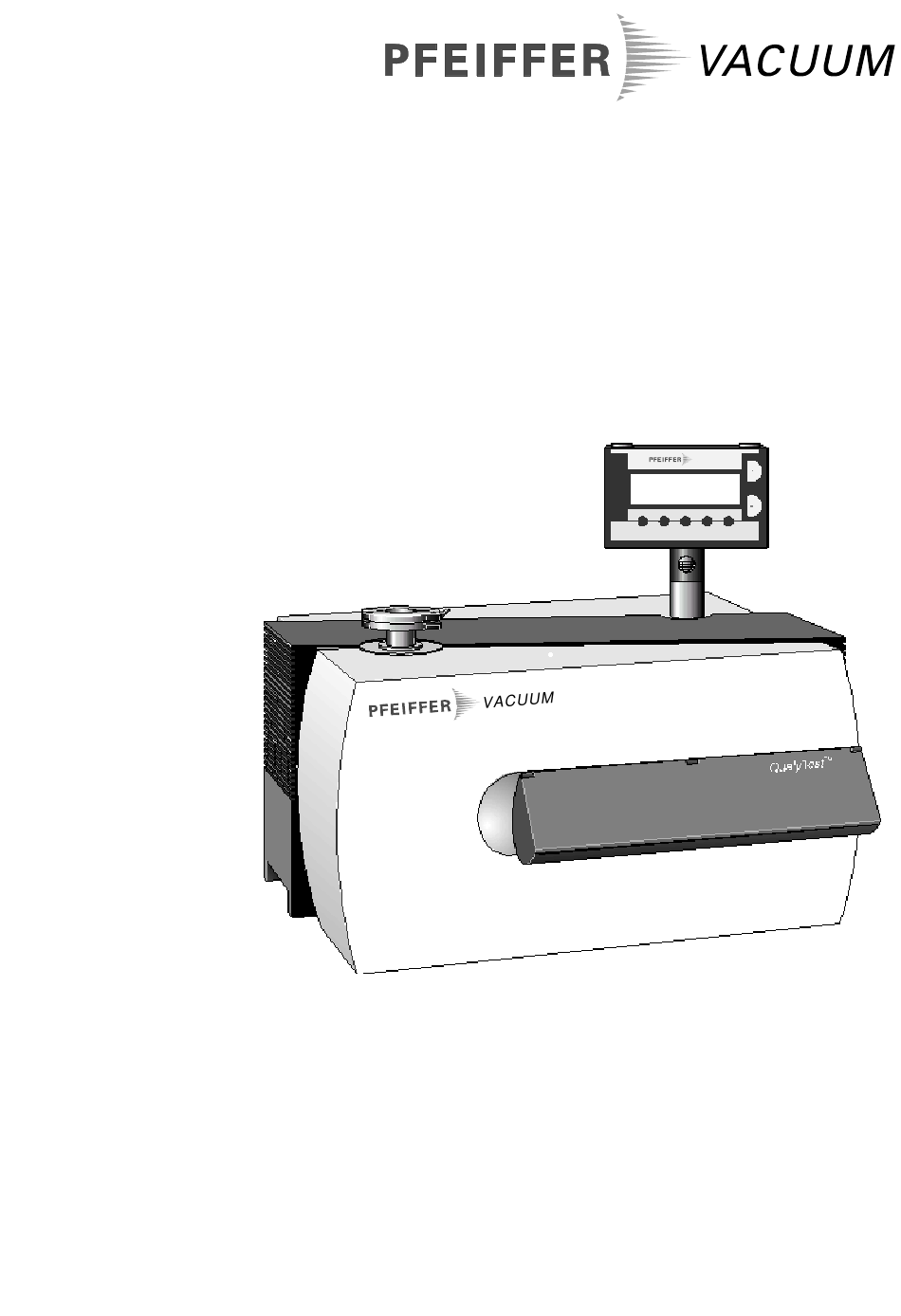

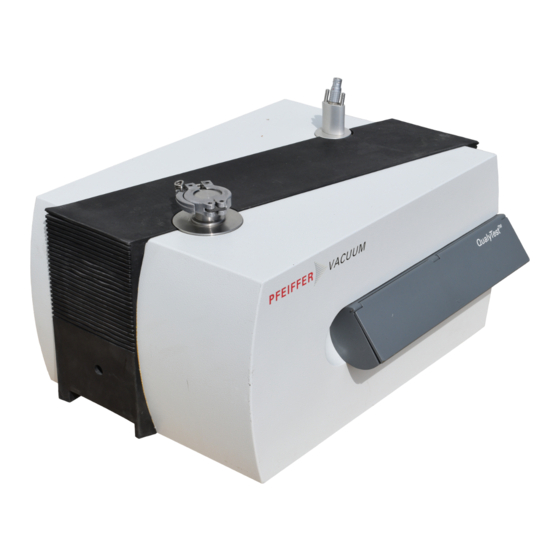

- Page 1 Maintenance Instructions QualyTest™ HLT 2xx VAC UU M BG 805 457 BE / C (0204) HLT 2xx...
-
Page 2: Table Of Contents
Table of contents Page Important information ....................4 Validity......................... 4 Content of these maintenance instructions ..............4 Safety information ....................... 4 General information ....................5 List of documents......................5 Design and functional description ................6 System overview ......................6 2.1.1 Block diagram ...................... -
Page 3: Table Of Contents
Page TMH 071 ........................34 4.6.1 Replace the lubricant reservoir ................. 34 4.6.2 TMH 071, exchange for bearing change..............35 Valve block ....................... 36 4.7.1 Clean or replace the screwed fitting with filter on the vent connection ..... 36 4.7.2 Clean the Pirani measuring elements P1 and/or P2 .......... -
Page 4: Important Information
Repair level III Customer with PFEIFFER VACUUM Service training PFEIFFER VACUUM Service Engineer → see maintenance schedule (page 22 - 23) → PFEIFFER VACUUM offers courses to rapair level II and III. Validity This document applies to products with part numbers: Type... -
Page 5: General Information
Failure to take appropriate precautions can void the warranty. • PFEIFFER VACUUM declines any liability and the warranty becomes null and void if the product is modified or operated with accessories that are not listed in the corresponding product documentation. -
Page 6: Design And Functional Description
DESIGN AND FUNCTIONAL DESCRIPTION The HLT 2xx is a microprocessor controlled leak detector that is equipped with the most advanced electronic and electromechanical components. All processes within the instrument are controlled automatically. System overview Oil mist filter (only HLT 260) Mass spectrometer RC 260 Ölnebelfilter (nur HLT 260) -
Page 7: Block Diagram
2.1.1 Block diagram Fig. 3 HLT 2xx Block diagram BG 805 457 BE / C (0204) HLT 2xx... -
Page 8: Power Inlet And Ground Connection
2.1.2 Power inlet and ground connection (on the wiring board) Fig. 4 Power inlet and ground connection BG 805 457 BE / C (0204) HLT 2xx... -
Page 9: Pump System
Pump system The pump system consists of a roughing pump, a turbo pump, a helium detector and a valve block that established most connections between the helium detector and the test port. The layout of the pump system is schematically shown in Fig. 5. Test port Testanschluss Pressure test connection... -
Page 10: Roughing Pump
2.2.1 Roughing pump HLT 260: UNO 005A (→ Fig. 6) Single-stage, oil-immersed rotary vane vacuum pump with a nominal volume flow rate of /h at 50 Hz and 5 m /h at 60 Hz. Oil filler Öleinlass Gas ballast valve Gasballastventil Oil level sight glas Ölstandsschauglas... -
Page 11: Tmh 071 Turbopump Tc 600 Drive Electronics
HLT 265: External roughing pump An external roughing pump can be connected to the HLT 265 via the KF 16 flange. If objects with a large volume need to be tested an additional roughing pump to the HLT 260 and HLT 270 can also be connected to the flange. -
Page 12: Vacuum Measurement
2.2.3 Vacuum measurement Pirani measuring elements P1 and P2 P1 measures the fore vacuum pressure in the turbomolecular pump. P2 measures the pressure on the test port. to the valve block zum Ventilblock Pirani measuring elements Pirani-Messelemente Holder Halter Fig. 9 Vacuum measurement BG 805 457 BE / C (0204) HLT 2xx... -
Page 13: Valve Block
2.2.4 Valve block Testport Testanschluss to fore vacuum pump Test leak zur Vorvakuumpumpe Testleck Srewing flange (ordering No. PM 043 687) to optionally fore vacuum pump Einschraubflansch (Bestell Nr. PM 043 687) zur optionalen Vorvakuumpumpe Fig.10 Valve block Solenoid valves V1 to V6. Depending on their function the valves have different nominal diameters and opening forces. -
Page 14: Sniffer Line Lp 5Xx
Sniffer line LP 5xx (→ User’s guide BG 805 268 BN) (3 m / 5 m / 10 m) (218) (120 / 385) Capillary filter standard: plastic option: metal Sniffer line Handle Sniffer tip Kapillarfilter Standard: Kunststoff Schnüffelsonde Handgriff Schnüffelspitze Option: Metall TP 312 Tip 120 mm stiff BG 449 215 -T... -
Page 15: Analytical System
Analytical system 2.4.1 Detection system The detection system essential comprises the ion source, the magnetic separation system, and the ion collector. The ion source ionizes neutral gas particles from which it generates an ion beam. The positively charged ions are accelerated out of the ion source and subsequently enter the magnetic field. -
Page 16: Mass Spectrometer Supply Msv
2.4.2 Mass spectrometer supply MSV This module produces all voltages and currents required for operating the mass spectrometer: – Anode heating voltage – Cathode heating voltage – Anode potential – Suppressor potential Faults in the mass spectrometer are detected and signaled to the MC 68. The mass spectrometer supply is monitored in MC 68. -
Page 17: Electrometer Pre-Amplifier Evv
2.4.3 Electrometer pre-amplifier EVV The electrometer pre-amplifier converts the current flowing from the ion collector of the mass spectrometer into a voltage signal. It has four amplification stages. The MC 68 control board selects the required amplification stage and processes the analog output signal. The detection limit in the most sensitive range is approximately 1x10 Fig. -
Page 18: Electronics
Electronics 2.5.1 MC 68 Control board DIP switch S2 DIP switch S1 DIP-Schalter S2 DIP-Schalter S1 1=PERMANENT "Burn in" 1=PROCESSOR RESET 2=GLOBAL RESET not evaluated 3=UNITS / SUPER GLOBAL RESET wird nicht ausgeführt 4=not evaluated wird nicht ausgewertet Lithium Flash PROM Jumper XJ1 Accumulator XP7_MC68... -
Page 19: I/O Board
2.5.2 I/O board F3=T0,315A XP5_IO XP2_IO XP1_IO F2=T0,8A F1=T0,8A Fig. 16 I/O board BG 805 457 BE / C (0204) HLT 2xx... -
Page 20: Wiring Board
2.5.3 Wiring board XP13 F3=T4A F2=T0,315A XS14 XP22 XS2_I/O XS1_I/O XS6_MSV XS7_MC68 XS2_MSV XP23 XS1_MSV XS31 F1=Gas fuse 350V Gasableiter 350V Fig.17 Wiring board BG 805 457 BE / C (0204) HLT 2xx... -
Page 27: Maintenance Work
Customer with PFEIFFER VACUUM Service training PFEIFFER VACUUM Service Engineer → see maintenance schedule (page 22 - 23) → PFEIFFER VACUUM offers courses to rapair level II and III. CAUTION: The safety instructions in Chapter 1.3 are to be conscientiously followed whenever maintenance work is performed. -
Page 28: Maintenance Kits
UNO 005A (valid for HLT 260) 4.2.1 Check oil level and replenish (weekly) Required material: Mineral oil, 1 l, from maintenance kit, Ordering No. PT 110 010 -T Procedure: • Turn off the power switch. • Detach the power plug. •... - Page 29 • Lightly turn in the oil filler cap. Insert the power plug and allow the pump to run 5 to 10 sec. so that the remaining oil drains. • Detach the power plug. • With a open-end wrench size 13 and a hexagon-socket-screw key size 5 reinstall the drain screw on the drain tube.
-
Page 30: Oil Mist Filter
Oil mist filter (valid for HLT 260) 4.3.1 Check the oil mist filter, drain it and clean the oil pan (weekly) Procedure: • Turn off the power switch. • Detach the power plug. • Remove operating unit RC 260. • With socket wrench unfasten the latch on the right and left-hand side. •... - Page 31 Plastic cylinder Kunststoffzylinder Filter Filter retaining screw Filterhalteschraube Fig. 20 Replacing the filter of the oil mist filter • Reinstall the plastic cylinder. • Reconnect the ground cable. • Reinstall the hood and close the latches on the left and right-hand side with the socket wrench.
-
Page 32: Mvp 035, Replace The Diaphragm
MVP 035 (valid for HLT 270) 4.4.1 MVP 035, replace the diaphragm (semiannually) Required material: Wearing parts set, from maintenance kit, Ordering No. PT 110 011 -T Procedure: • Turn off the power switch. • Detach the power plug. • Remove operating unit RC 260. •... -
Page 33: Scroll Pump
• Clean contaminated parts and sealing surfaces with alcohol. • Fit each new molded diaphragm with the same number of compensating washers as the old one. • Screw in the new molded diaphragms. • Carefully set the HLT 270 upright. •... -
Page 34: Replace The Lubricant Reservoir
TMH 071 (valid for HLT 260, HLT 265, HLT 270, HLT 275) 4.6.1 Replace the lubricant reservoir (semiannually) Required material: Replacement lubricant reservoir from maintenance kit Ordering No. PT 110 010 -T PT 110 011 -T The system for lubricating the ball bearing is factory filled with TL 011. The lubricant needs to be changed at least once per year (under extremely heavy loads or unclean processes more frequently). -
Page 35: Tmh 071, Exchange For Bearing Change
Required material: Exchange TMH 071, Ordering No. PM P02 810 #A CAUTION This work must be carried out by PFEIFFER VACUUM or a service engineer who has been trained by PFEIFFER VACUUM. BG 805 457 BE / C (0204) HLT 2xx... - Page 36 Valve block (valid for HLT 260, HLT 265, HLT 270, HLT 275) 4.7.1 Clean or replace the screwed fitting with filter on the vent connection (semiannually) Required material: Replacement lubricant reservoir from maintenance kit Ordering No. PT 110 010 -T PT 110 011 -T Procedure: •...
-
Page 37: Clean The Pirani Measuring Elements P1 And/Or P2
Clean the Pirani measuring elements P1 and/or P2 (semiannually) CAUTION This work must be carried out by PFEIFFER VACUUM or a service engineer who has been trained by PFEIFFER VACUUM. 4.7.3 Clean the valve block, replace the seals and revise the valves... -
Page 38: Checking The Maintenance Work
4.10 Checking the Maintenance Work The following sections suggest how to check that periodic maintenance work has been carried out. CAUTION: In case of neglect of the maintenance work restrictions or refusal of warranty claims might apply. 4.10.1 Weekly Maintenance Work →... -
Page 39: Annual Maintenance Work
4.10.4 Annual Maintenance Work → Section Assembly Work to be performed O.K. UNO 005A Oil change 4.2.2 Valve block Clean the valve block, replace the seals and 4.7.3 revise the valves The above work has been carried out by: ........................Date: ............. -
Page 40: Contamination Declaration
CONTAMINATION DECLARATION The service, repair, and/or disposal of vacuum equipment and components will only be carried out if a correctly completed declaration has been submitted. Non-completion will result in delay. This declaration may only be completed (in block letters) and signed by authorized and qualified staff. Description of product Reason for return Type... - Page 41 BG 805 457 BE / C (0204) HLT 2xx...
- Page 42 Pfeiffer Vacuum GmbH Berliner Strasse 43 D–35614 Asslar Deutschland +49-(0) 6441-802-0 +49-(0) 6441-802-202 info@pfeiffer-vacuum.de http://www.pfeiffer-vacuum.de...
