Components

NOTE: Fuse is located within the DC plug
connector. (15-amp fuse, twist off red top and
unscrew the 1 screw if needed to locate)

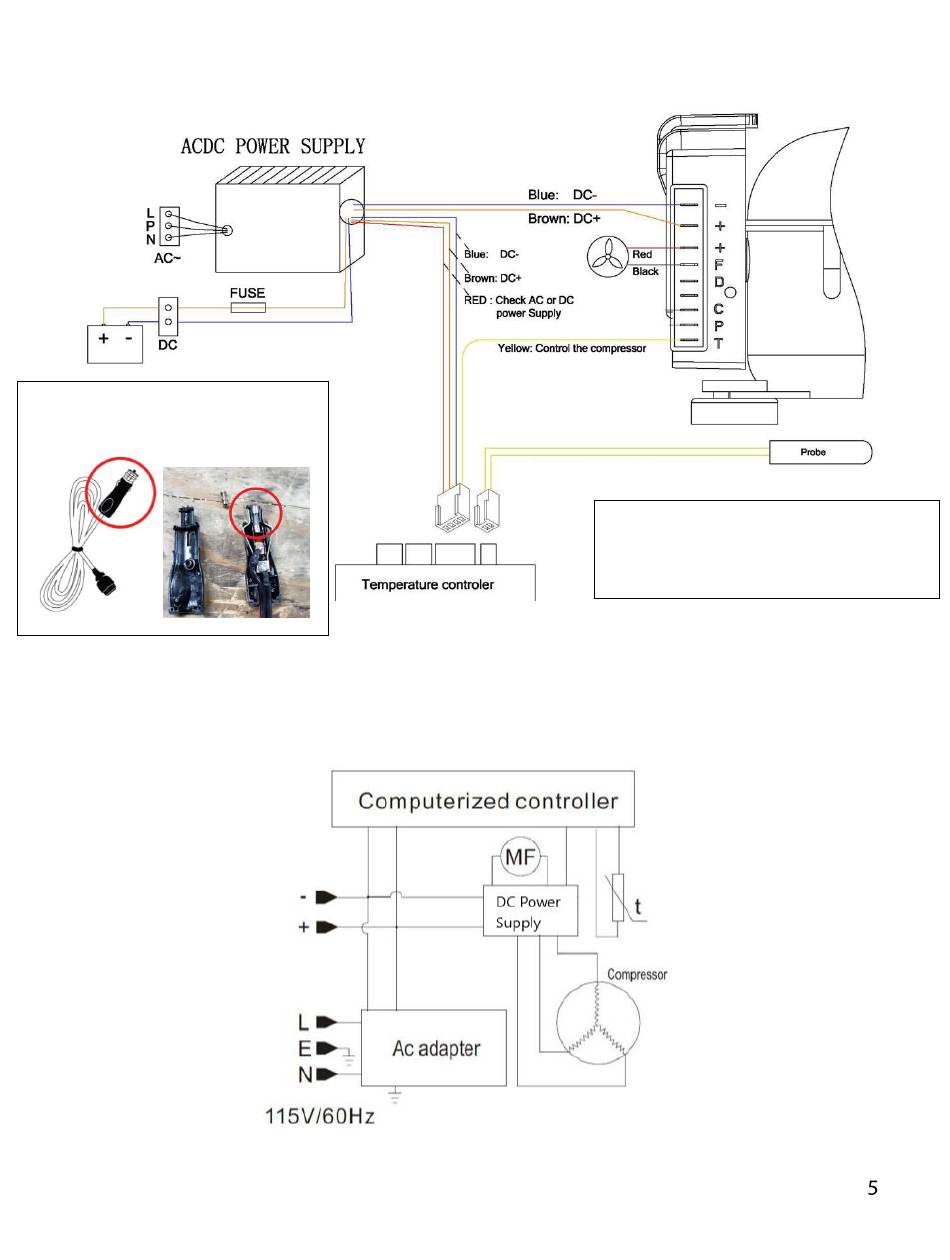

Wiring diagram

NOTE: Due to the difficulty in replacing a faulty
temperature probe this unit comes pre-installed with
two (2) probes. If a faulty temperature probe is
suspected simply connect the unused probe in place
of the faulty probe. (not shown in image)
