Disassembly For Temperature Controller Replacement - EdgeStar FP430 Service Manual

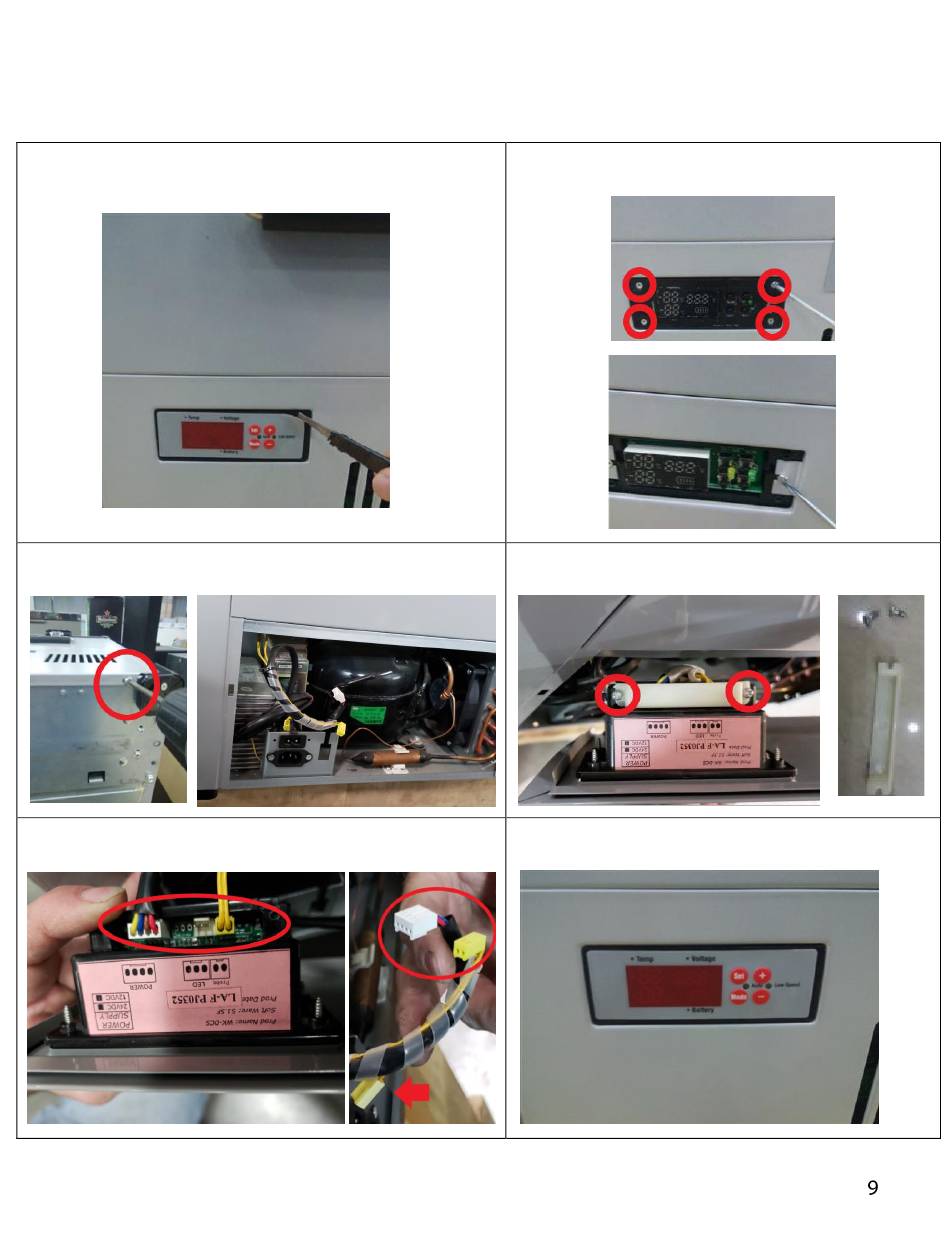

Disassembly for Temperature Controller Replacement

Remove control panel cover, this is a sticker, use a flat tip
screwdriver lift the sticker up and remove carefully.
Remove screws (2) from cabinet on the bottom of the unit.
On the older version located on the face of the cover.
Remove wire connectors as shown in picture, there is an
extra temperature probe connector if ever needed.
Remove four (4) screws from control panel using a
Philips screwdriver.
Remove screws (2) circled below.
Replace with new controller
