ADC Adtemp 415FL Instructions For Use

Specifications
5.51"L x .78"W x 0.43"H (12.7 cm L x 1.9 cm W x .95 cm H)
Size
0.63 oz (18 grams)
Weight
LCD, Liquid Crystal Display
Display:
1.55V (LR41)
Battery:
Battery Life: Estimated 4,000 measurements
Measurement Time: Oral 18-20 Seconds / Rectal 10 Seconds / Axillary 40 Seconds
90.0°F to 109.9°F / 32.0°C to 43.9°C (±0.2°F / ±0.1°C)
Measurement Range:
Below 90.0°F (32.0°C) displays fixed "- - -" with fixed °F or °C.
Above 109.9°F (43.9°C) displays flashing "H" with fixed °F or °C
and 10 times "Beep" sound.
0.2°F/0.1°C between 93.2°F to 107.6°F (34.0°C to 42.0°C)
Accuracy:
a room temperature of 64.4°F to 82.4°F (18°C to 28°C)
±0.4°F/0.2°C between 90.0°F to 93.2°F (32.0°C to 34°C) and
107.6°F to 109.9°F (42.0°C to 43.9°C)
Operating Conditions: 50.0°F to 104.0°F (10.0°C to 40.0°C)
Storage Conditions: -13°F to 131°F (-25°C to 55°C)
Relative Humidity: 15-95% Non-Condensing
Measurement Mode: Real measurement with peak-hold method
Audible Alarm: 1 beep at start-up. Continuous beep at measurement completion
In approximately 8 minutes
Auto Turn Off:
Stores last temperature reading
Memory Feature:
5 years
Expected Service Life:
Complies with EN 12470-3, ASTM E 1112-00, IEC 60601-1,
Standards:
IEC 60601-1-2, IEC 60601-1-11, ISO 80601-2-56
Electromagnetic compatibility: device fulfills the stipulations of
standard IEC 60601-1-2
The manufacturer recommends a calibration check every 2 years.
LIMITED WARRANTY
ADC warrants its products against defects in materials and workmanship under normal houshold use and service as follows:
1. Warranty service extends to the original retail purchaser only and commences with the date of delivery.
2. Your Adtemp Digital Stick Thermometer is warranted for two years from date of purchase.
What Is Covered: Replacement of parts, and labor.
What Is Not Covered: Transportation charges to ADC. Damages caused by abuse, misuse, accident, or negligence.
Incidental, special, or consequential damages. Some states do not allow the exclusion or limitation of incidental, special, or
consequential damages, so this limitation may not apply to you.
To Obtain Warranty Service: Send item(s) postage paid to ADC, Attn: Repair Dept., 55 Commerce Dr., Hauppauge, NY 11788.
Please include your name and address, phone no., proof of purchase, and a brief note explaining the problem.
Implied Warranty: Any implied warranty shall be limited in duration to the terms of this warranty and in no case beyond the original
selling price (except where prohibited by law). This warranty gives you specific legal rights and you may have other rights which vary
from state to state.
For Australian Consumers: Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonable foreseeable
loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and
the failure does not amount to a major failure.
Visit www.adctoday.com to view this instruction booklet in other languages.
Onbo Electronic (Shenzhen) Co., Ltd.
No. 497, Ta Laneg Nan Road, Ta Laneg Street
Baoan District, Shenzhen, China
Microlife AG, Espenstrasse
EC REP
139, 9443 Widnau, Switzerland
Batteries and electronic devices must be
disposed of in accordance with the locally
applicable regulations, not with domestic waste. Refer to user manual before use
IB p/n 93-415FL-00 rev 1
Dist. by: ADC ®
55 Commerce Drive, Hauppauge, NY 11788
Inspected in the USA
Made in China
tel: 631-273-9600
toll free: 1-800-232-2670
fax: 631-273-9659
www.adctoday.com
email: info@adctoday.com
0044
Type BF applied part
Printed in China

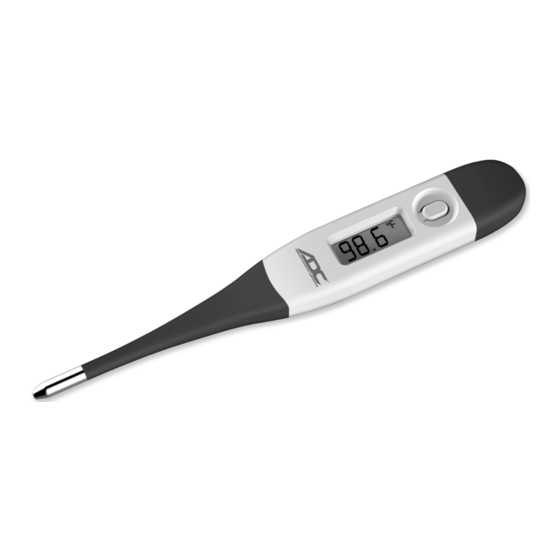

Adtemp TM 415FL
Digital Fever Thermometer
Instructions for Use
Thank you for choosing an ADC ® Adtemp
designed to provide accurate measurements. Adtemp thermometers meet or exceed all relevant
international performance standards.
Device Description and Intended Use
This device is intended to measure human body temperature in children and adults. It has a
compact size and digital display and can be used in a professional or household environment.
Parts and Assembly
Measure Value
Symbol Definitions
The following symbols are associated with your thermometer.
TM digital stick thermometer. Your new thermometer is
Measure Unit
Multifunction Button
Memory Indication
Display Window
Low-battery Indication
0044
M
