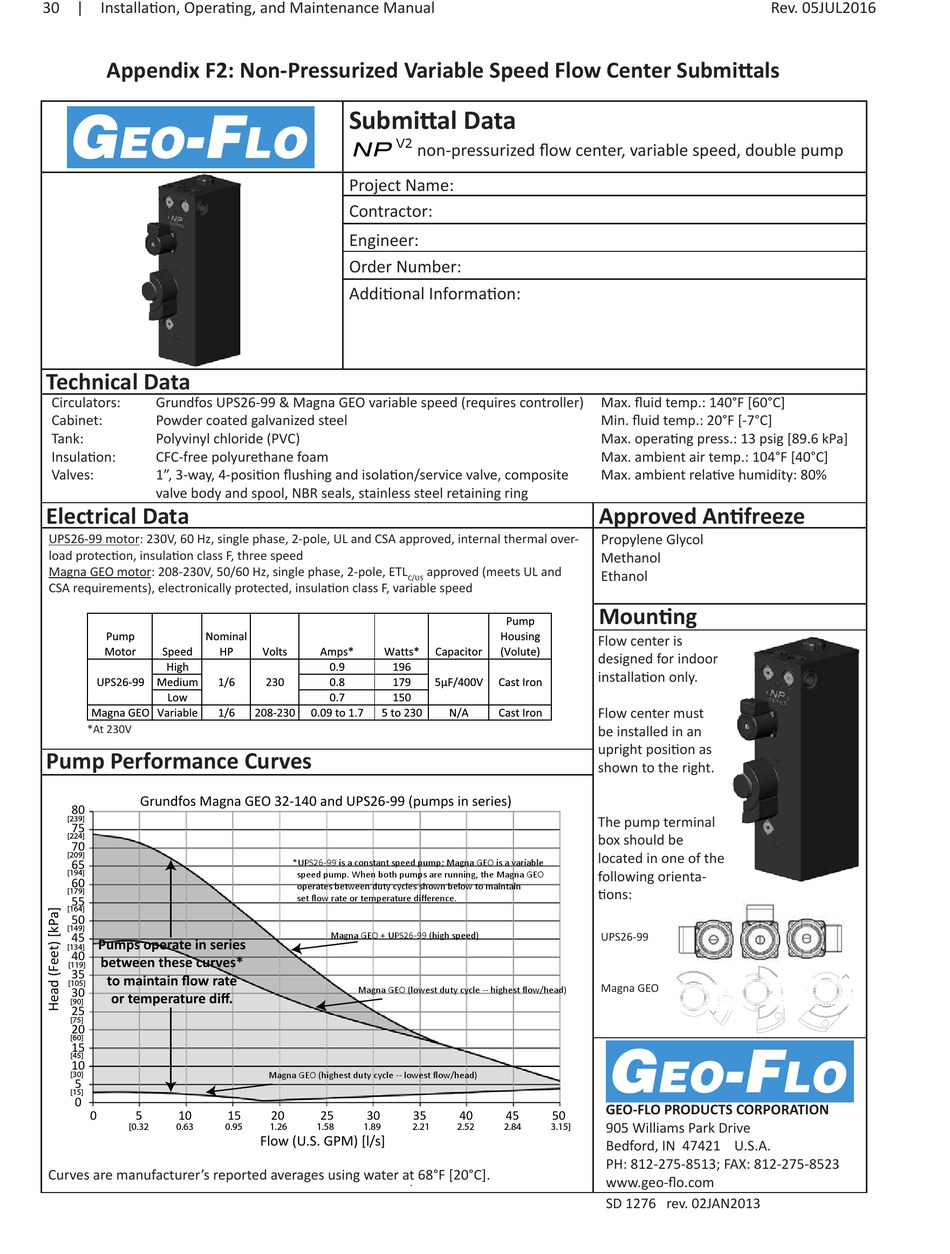

Appendix F2: Non-Pressurized Variable Speed Flow Center Submittals
Technical Data
Circulators: Grundfos UPS26-99 & Magna GEO variable speed (requires controller)
Cabinet: Powder coated galvanized steel
Tank: Polyvinyl chloride (PVC)
Insulation: CFC-free polyurethane foam
Valves: 1", 3-way, 4-position flushing and isolation/service valve, composite
valve body and spool, NBR seals, stainless steel retaining ring
Electrical Data
UPS26-99 motor: 230V, 60 Hz, single phase, 2-pole, UL and CSA approved, internal thermal over-
load protection, insulation class F, three speed
Magna GEO motor: 208-230V, 50/60 Hz, single phase, 2-pole, ETL
CSA requirements), electronically protected, insulation class F, variable speed
*At 230V
Pump Performance Curves
Grundfos Magna GEO 32-140 and UPS26-99 (pumps in series)
80
[239]
75
[224]
70
[209]
65
[194]
60
[179]
55
[164]
50
[149]
45
Pumps operate in series
[134]
40
between these curves*
[119]
35
to maintain flow rate
[105]
30
or temperature diff.
[90]
25
[75]
20
[60]
15
[45]
10
[30]
5
[15]
0
0 5 10
[0.32 0.63
Curves are manufacturer's reported averages using water at 68°F [20°C].
NP
1
NP
2
Submittal Data
NP
V
NP
V2
NP
Series
Project Name:
Contractor:
Engineer:
Order Number:
Additional Information:
*UPS26-99 is a constant speed pump; Magna GEO is a variable
speed pump. When both pumps are running, the Magna GEO
operates between duty cycles shown below to maintain
set flow rate or temperature difference.
Magna GEO + UPS26-99 (high speed)
Magna GEO (lowest duty cycle -- highest flow/head)
Magna GEO (highest duty cycle -- lowest flow/head)
15 20 25 30
0.95 1.26 1.58 1.89
Flow (U.S. GPM) [l/s]
non-pressurized flow center, variable speed, double pump
approved (meets UL and
C/US
35 40 45 50
2.21 2.52 2.84 3.15]
.
Rev. 05JUL2016
Max. fluid temp.: 140°F [60°C]
Min. fluid temp.: 20°F [-7°C]
Max. operating press.: 13 psig [89.6 kPa]
Max. ambient air temp.: 104°F [40°C]
Max. ambient relative humidity: 80%
Approved Antifreeze
Propylene Glycol
Methanol
Ethanol
Mounting
Flow center is
designed for indoor
installation only.
Flow center must
be installed in an
upright position as
shown to the right.
The pump terminal
box should be
located in one of the
following orienta-
tions:
UPS26-99
Magna GEO
