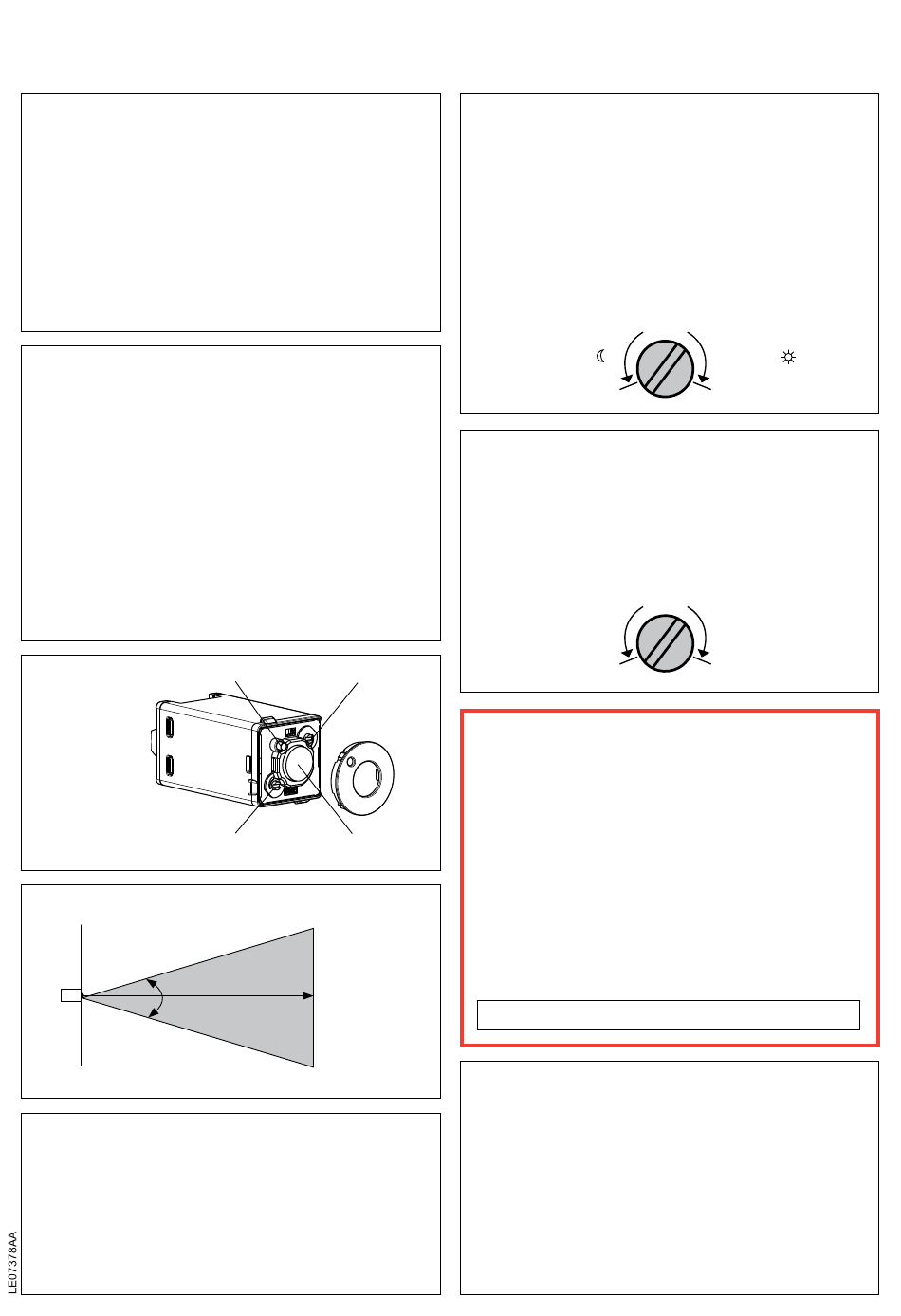

Operation

• Auto Mode – The load will turn on when movement is detected,
and will stay on for a certain period of time after the last
detected movement. The load will only turn on if the ambient
light level is below a level set by the user (see "Lux Setting").
The time-out period is also set by the user (see "Time Setting").
• Manual Override Mode (EM803PIRS only) – If the push
button is pressed while the load is off, the load will turn on.
If it is pressed while the load is on, the load will turn off.
In both cases, the movement sensor will be disabled for
5 minutes. After the 5 minute period, the EM803PIRS
will revert to Auto Mode.

LED Indicator

• When power is first applied, the LED indicator will flash red,
blue and purple for 5 seconds during the warm-up period
before normal operation commences.
• The LED indicator will turn on while the load is on, and off
while the load is off. When the load is already on, the LED
indicator will blink momentarily if additional movement is
detected. During the last 30 seconds before the timer expires,
the LED indicator will flash quickly. If the time setting is set to
less than 30 seconds, the LED indicator will start flashing as
soon as the load turns on.
• For EM803PIR, the LED indicator colour is always red.
• For EM803PIRS, the LED indicator colour is red by default,
but it can be toggled between red and blue by pressing and
holding the push button for 10 seconds.
LUX SENSOR

User Controls

TIME SETTING
Movement Sensor Range
40°
• The above diagram applies to both horizontal and vertical planes
Warranty
Legrand will honour all statutory guarantees that you as a
consumer are entitled to rely upon under the Australian and
New Zealand Consumer Law against a manufacturer including
a guarantee that any products Legrand has manufactured or
imported are of acceptable quality.
To make a claim under any statutory guarantee (or other warranty)
you should first contact the supplier, contractor or retailer from
whom you purchased the products.

LUX SETTING

MOVEMENT SENSOR
& LED INDICATOR
DETECTION
AREA
5 METRES
Lux Setting
• In Auto Mode, the movement sensor will only operate when the
ambient lux level is below the threshold level set by the user.
This is to prevent the load from coming on unnecessarily when
there is sufficient light in the room.
• To adjust the threshold level, turn the Lux Setting knob using
a small flat-head screwdriver. For a lower threshold level turn
anticlockwise, and for a higher threshold level turn clockwise.
For example, for the movement sensor to operate all the time
(in normal daylight levels), turn fully clockwise.
• The threshold level can be adjusted between 1 lux and 2000
lux (figures are approximate only).
LOW LIGHT
LEVEL
1 LUX
Time Setting
• When the load turns on in Auto Mode, it will remain on for a set
period of time after the last movement is detected.
• To change this time period, turn the Time Setting knob
using a small flat-head screwdriver. For a shorter time turn
anticlockwise, and for a longer time turn clockwise.
• The time period can be adjusted between 5 seconds and 30
minutes (figures are approximate only).
DECREASE
TIME
5 SECONDS
Important Information
• This product must be installed and used as per these
instructions.
• This product must be installed by a licensed electrician.
• This product must only be used with the loads specified.
Other load types should only be used when written
confirmation is given by Legrand.
• Severe electromagnetic interference from other products
may cause malfunction of this product.
• This product should only be cleaned with a damp cloth.
Cleaning agents and solvents should not be used.
• This product contains no serviceable parts and no attempt
should be made to repair this product. If the product is
faulty it should be discarded.
• Legrand reserves the right to modify the specifications of
this product at any time.
WARNING – DO NOT MEGGER THIS PRODUCT
Customer Service
For all Customer Service and Technical Support
please call Monday to Friday during business hours.
Legrand Australia
1300 369 777
www.legrand.com.au
Legrand New Zealand
0800 476 009
www.legrand.co.nz
ABN: 31 000 102 661
HIGH LIGHT
LEVEL
2000 LUX
INCREASE
TIME
30 MINUTES
