LEGRAND Wattstopper UT-305-1 User Manual

No: 24254 – 10/16 rev. 1
Catalog Numbers • Les Numéros de Catalogue • Números de Catálogo: UT-305-1, UT-305-2, UT-305-3
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
DESCRIPTION AND OPERATION
The Wattstopper UT-305 sensors turn lighting systems on and off
based on occupancy.
The UT-305 can be configured to turn lighting on, and hold it on as
long as it detects cccupancy. After no movement is detected for a user
specified time (5 to 30 minutes) the lights are switched off. A "walk-
through" mode can turn lights off after only 3 minutes, if no activity is
detected after 30 seconds of an occupancy detection.
The UT-305 operates on 24V supplied by Wattstopper Power Packs.
The sensors can operate on 24VDC, 24VAC, or half wave rectified AC.

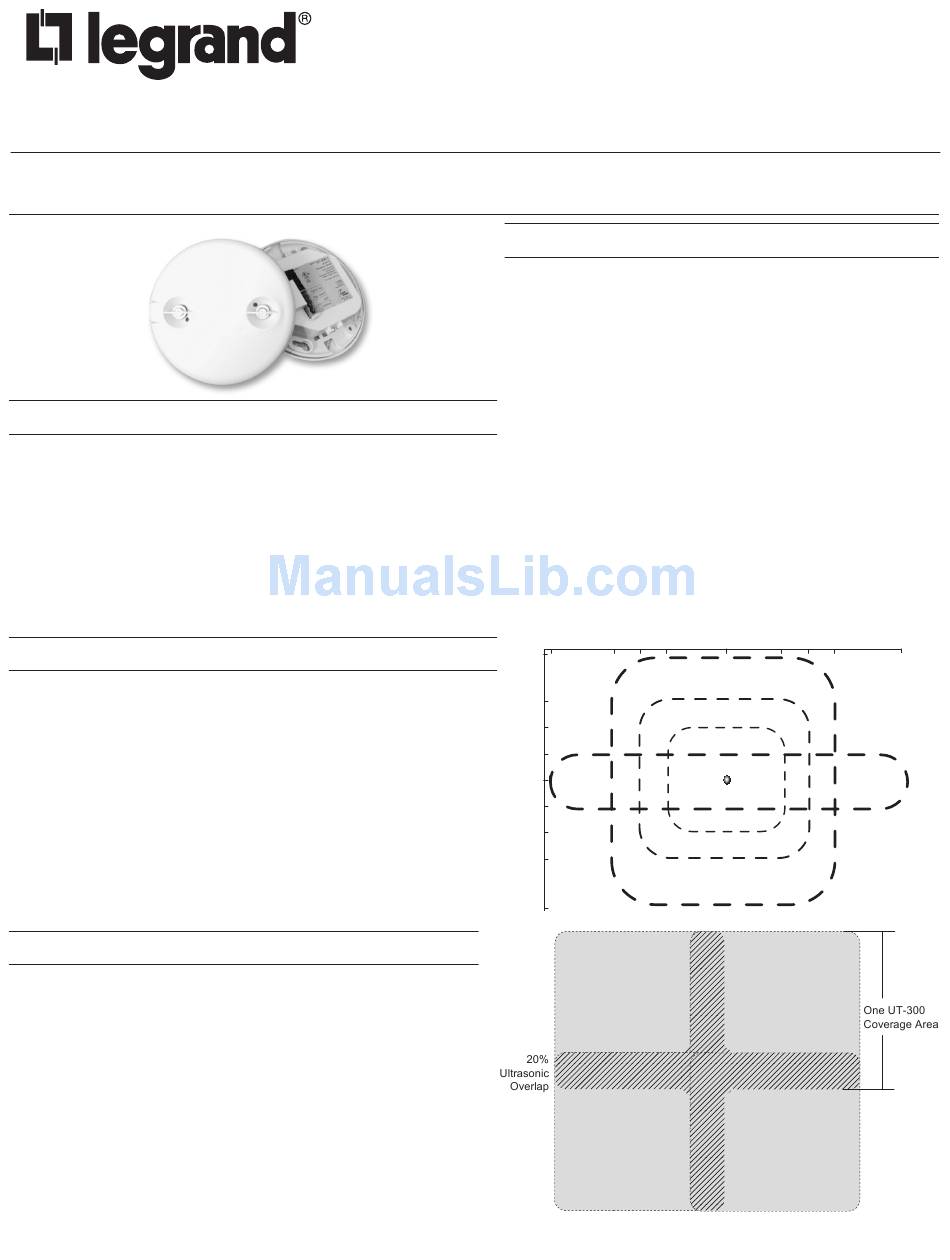

COVERAGE PATTERN
The UT-305 is available in 3 models. Each model has a different size
coverage pattern. The coverage shown represents walking motion at a
mounting height of 8 to 10 feet. For building spaces with lower levels of
activity or with obstacles and barriers, coverage size may decrease.
PLACEMENT GUIDELINES
Depending upon obstacles such as furniture or partitions, the area
of coverage may be less or more than the sensing distances shown
in the coverage pattern. This must be considered when planning the
number of sensors and their placement. It is also recommended to
place the sensor 4 to 6 feet away from air supply ducts.
Mount the sensor to the ceiling. The UT-305 is designed for a
ceiling height of about 8-10 feet. Mounting above or below this range
will significantly affect the coverage patterns. As a general rule, each
occupant should be able to clearly view the sensor.
Open Office Area Coverage: To get complete coverage in an open
office area, install multiple sensors so that there is approximately
20% overlap with each adjacent sensor's ultrasonic coverage area.
Wattstopper
Ultrasonic Low Voltage Occupancy Sensor with Manual On Feature (v3)
Détecteur de présence à ultrasons basse tension avec marche en mode manuel (v3)
Sensor de ocupación ultrasónico de bajo voltaje con función de encendido manual (v3)
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
Voltage ................................18-28VDC/VAC, half wave rectified AC
Current Consumption ...............................................................25mA
Power Supply ...........................................Wattstopper Power Packs
Operating Temperature ............................. 32° to 131°F (0° to 55°C)
Time Delay Adjustment ............................30 seconds to 30 minutes
Ultrasonic Coverage
UL & CUL Listed for use with Wattstopper Power Packs
U.S. Patents: 7,277,012
23'
16'
12'
5'
0'
Drawings not to scale.
5'
12'
16'
23'
®

SPECIFICATIONS

Walk-Through Mode ..........3 minutes if no activity after 30 sec.
Test Mode .................................... 5 sec. upon DIP switch reset
Model UT-305-1 ..................................................... up to 500 ft
Model UT-305-2 ................................................... up to 1000 ft
Model UT-305-3 ................................................... up to 2000 ft
Sensitivity Adjustment ............. Minimum to Maximum (trimpot)
Frequency .......................................................................40kHz
45' 23' 16' 12' 0'
UT-300/305-3
UT-300/305-2
UT-300/305-1
2
2
2
12' 16' 23' 45'
UT-300/305-3
HALLWAY
APPLICATION
