with Light Level, Isolated Relay and Manual On feature
Specifications
Voltage ..........................18-28VDC/VAC, half wave rectified AC
Current Consumption
Model UT-300-1, Model UT-300-2 ............................. 25 mA
Model UT-300-3 ......................................................... 25 mA
Power Supply ..................................WattStopper Power Packs
Isolated Relay Rating ...................................... 1A @30VDC/VAC
Operating Temperature ..................... 32° to 131°F (0° to 55°C)
Light Level One-Step Adjustment .......................10FC - 300FC
Time Delay Adjustment ....................30 seconds to 30 minutes
Walk-Through Mode ...3 minutes if no activity after 30 sec.
Test Mode ............................... 5 sec. upon DIP switch reset
Ultrasonic Coverage
Model UT-300-1 ................................................ up to 500 ft
Model UT-300-2 .............................................. up to 1000 ft
Model UT-300-3 .............................................. up to 2000 ft
Sensitivity Adjustment ...... Minimum to Maximum (trimpot)
Frequency ................................................................... 40kHz
UL & CUL Listed for use with WattStopper Power Packs

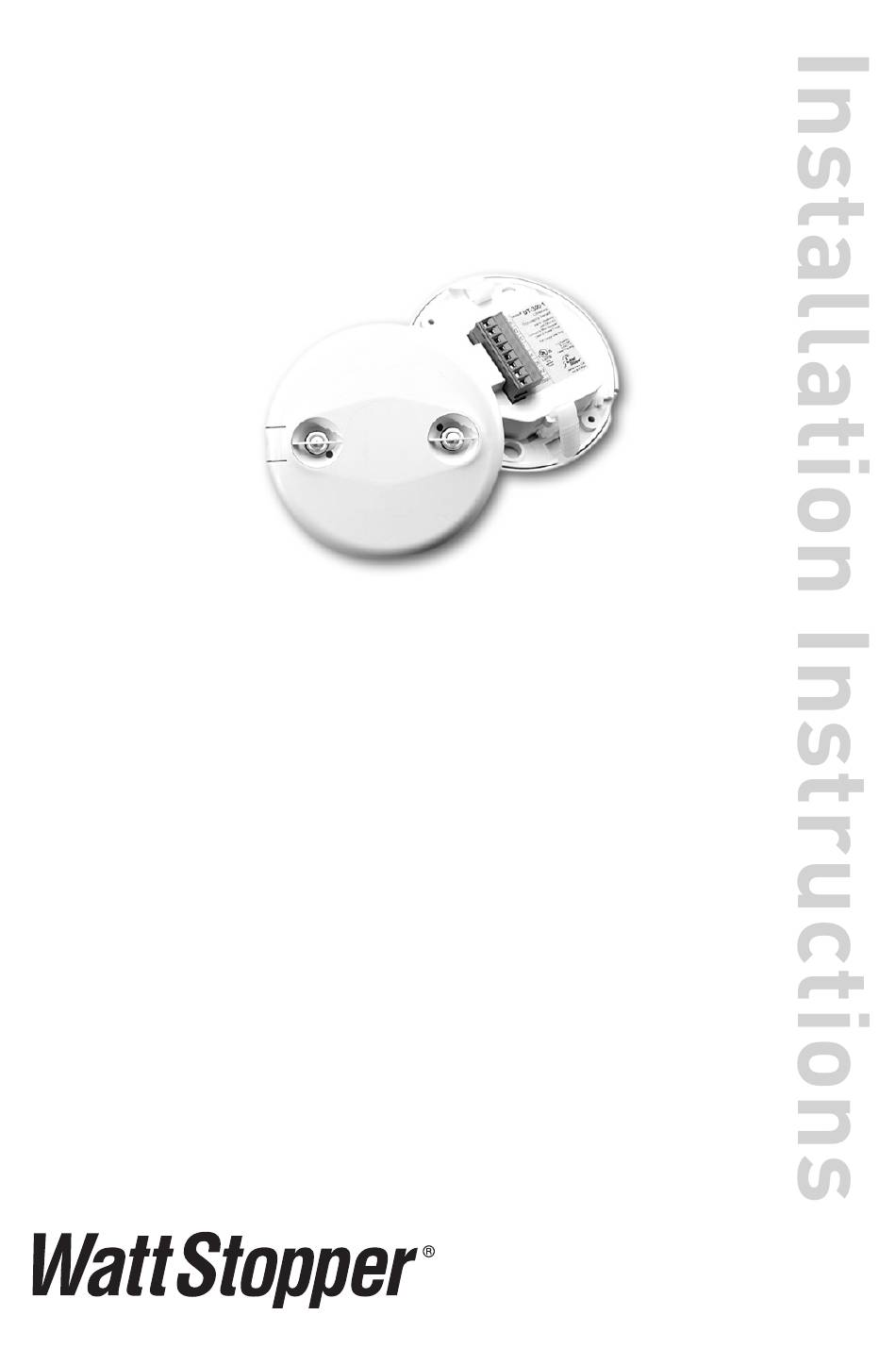

UT-300
Ultrasonic • Low Voltage
Occupancy Sensor
2
2
2
U.S. Patents: 7,277,012
Santa Clara, CA 95050
v3
Advertisement
Table of Contents
Related Manuals for LEGRAND WattStopper UT-300 Series
Summary of Contents for LEGRAND WattStopper UT-300 Series
- Page 1 UT-300 Ultrasonic • Low Voltage Occupancy Sensor with Light Level, Isolated Relay and Manual On feature Specifications Voltage ......18-28VDC/VAC, half wave rectified AC Current Consumption Model UT-300-1, Model UT-300-2 ......25 mA Model UT-300-3 ............25 mA Power Supply ........WattStopper Power Packs Isolated Relay Rating ........
-
Page 2: Unit Description
UNIT DESCRIPTION The WattStopper UT-300 sensors turn lighting systems on and off based on occupancy. The UT-300 can be configured to turn lighting on, and hold it on as long as it detects cccupancy. After no movement is detected for a user specified time (30 seconds to 30 minutes) the lights are switched off. -
Page 3: Placement Guidelines
PLACEMENT GUIDELINES Depending upon obstacles such as furniture or partitions, the area of coverage may be less or more than the sensing distances shown in the coverage pattern. This must be considered when planning the number of sensors and their placement. It is also recommended to place the sensor 4 to 6 feet away from air supply ducts. - Page 4 WIRING DIRECTIONS CAUTION TURN POWER OFF AT THE CIRCUIT BREAKER BEFORE INSTALLING POWER PACKS OR SENSORS. Each WattStopper BZ series power pack can supply power for 5 UT-300 sensors. When using more sensors than this, multiple power packs are required. Refer to the wiring diagram on the next 03620r2 UT-300...
-
Page 5: Connecting Wires
CONNECTING WIRES • Care should be taken to separate high voltage power from low voltage (Class 2) control wiring. • All connections to sensor are low voltage, Class 2. Standard wiring with local off switch Line Voltage Wire Color Legend Line Feed Through Black... - Page 6 Manual-On wiring with low voltage momentary switch Line Voltage Line Wire Color Legend Feed Through Neutral Black White Load Power Pack Low Voltage Line Voltage Class 2 Blue +24V Control Out Black +24V Man.Switch Common Jumper Man. Switch Back LVS-1 Ceiling Depluggable Terminal...
-
Page 7: Mounting The Sensor
MOUNTING THE SENSOR Directly to Ceiling 1. Attach the plastic spring clips to Ceiling the edge of the sensor in the slots provided. 2. Cut a 3.5” to 4” round hole in Depluggable terminal the acoustic ceiling tile at the mounting location. -
Page 8: Sensor Adjustment
SENSOR ADJUSTMENT This unit is pre-set for basic operation as described in this guide. Adjustment is optional. The sensors are factory preset to allow for quick installation in Keyhole slots most applications. Verification (for mounting to DIP switches 4" octagonal box) of proper wiring, coverage, Ultrasonic sensitivity trimpot... - Page 9 LIGHT LEVEL FEATURE The Light Level feature holds lights off upon initial occupancy if adequate ambient light exists. It will not turn the lights off if they are on. The default setting is for maximum, meaning that even the brightest ambient light will not hold the lights off.
- Page 10 5. When the LED stops flashing, replace the Front Cover. *Disabling Light Level Pressing the pushbutton for 5 seconds or more resets the light to default (maxi- mum). Press and hold the Light Level button for 5 seconds or until the detection LED turns ON and then OFF.
-
Page 11: Dip Switch Setting
Logic Configuration Chart DIP SWITCH SETTING The UT-300 has 6 DIP switches under the cover. Switch# 1 2 3 Time Delay Time Delay: Switches 1, 2, 3 Test Mode/20 min 30 seconds The sensor will hold the lights ON as long as 5 minutes occupancy is detected. -
Page 12: Overload Protection
again by occupancy detection or switch activation. b. Activating the manual switch while the load is ON turns the load OFF. • When the load is turned OFF manually, as long as the sensor continues to detect occupancy the load stays OFF. For the selected time delay, the lights stay off and the sensor reverts to the automatic-on mode. - Page 13 Lights do not turn off automatically 1. The sensor may be experiencing activations from outside the controlled area or from some type of interference (see “Unwanted Sensor Activations” below). 2. Check all sensor wire connections. 3. Disconnect power pack’s blue wire: If the lights do not turn off, replace power pack.
-
Page 14: Ordering Information
ORDERING INFORMATION Catalog # Description UT-300-1 Ultrasonic Occupancy Sensor, up to 500 sq ft coverage, Low Voltage w/Isolated Relay and Manual On feature UT-300-2 Ultrasonic Occupancy Sensor, up to 1000 sq ft coverage, Low Voltage w/Isolated Relay and Manual On feature UT-300-3 Ultrasonic Occupancy Sensor, up to 2000 sq ft coverage, Low Voltage w/Isolated Relay and Manual On feature... -
Page 16: Warranty Information
WARRANTY INFORMATION WattStopper warranties its products to be free of defects in materials and workmanship for a period of five (5) years. There are no obligations or liabilities on the part of WattStopper for consequential damages arising out of, or in connection with, the use or performance of this product or other indirect damages with respect to loss of property, revenue or profit, or cost of removal, installation or reinstallation.
