DW - 1 0 0 / DW - 1 0 0 - 3 4 7 / DW - 2 0 0

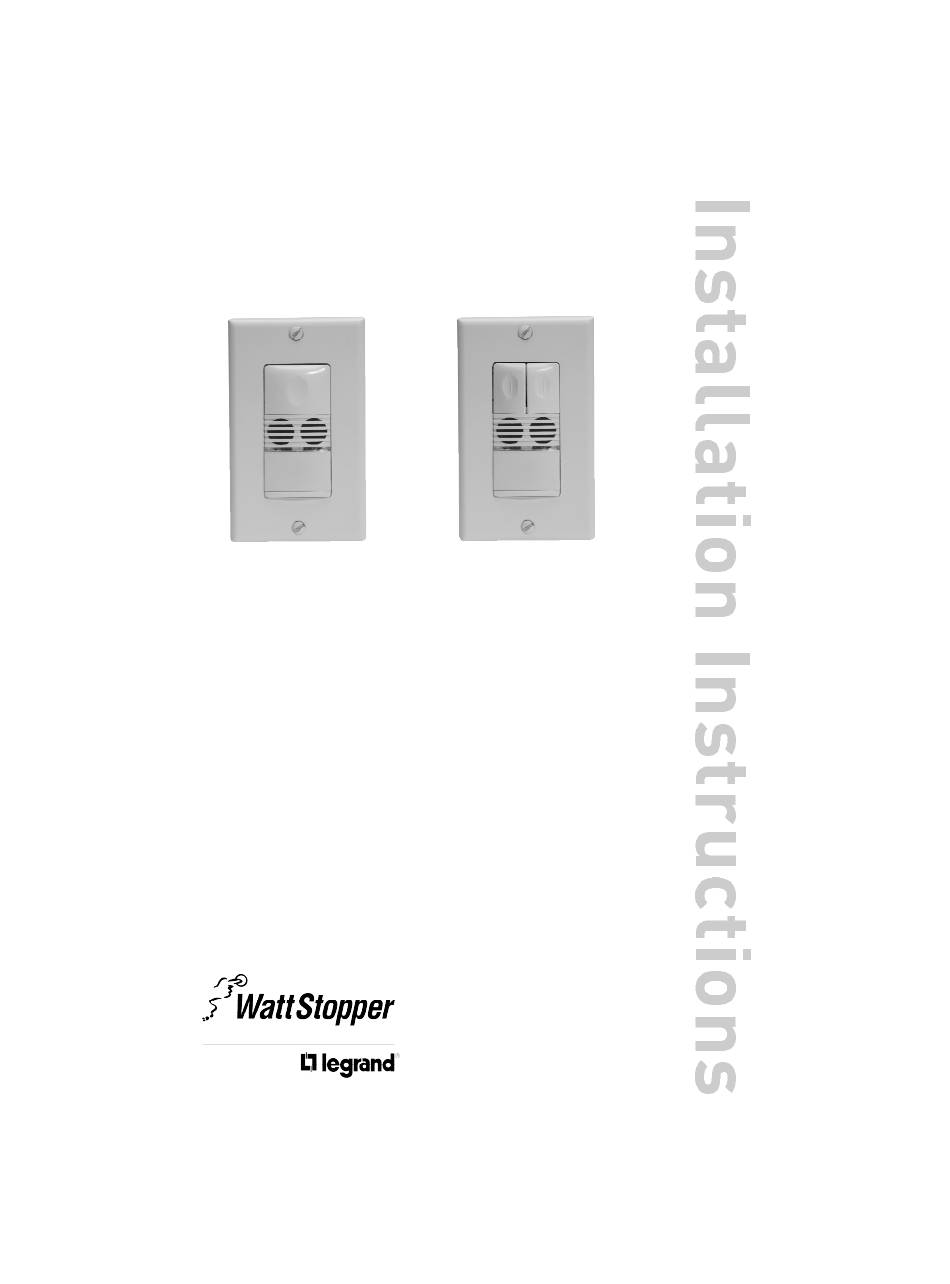

Dual Te c h n o logy Wall Switc h
D W-100 & DW- 1 0 0 - 3 4 7
Specifications
Vo l ta ges:
DW-100 & DW - 2 0 0 . . . . . . . . . . . . .1 2 0 / 2 3 0 / 2 7 7 VAC, 50/60Hz
DW - 1 0 0 - 3 4 7 . . . . . . . . . . . . . . . . . . . . . . . . . . .3 4 7 VAC, 50/60Hz
Load Limits for each re l a y :
@ 1 2 0 VAC . . . . . . . . . . . .0-800W tungsten or ballast, 1/6 HP
@230 or 277VAC . . . . . . . . . . . . . . . . . . . . . . .0-1200W ballast
@ 3 4 7 VAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0-1500W ballast
Load Type Compatibility:
I n ca n d e s cent, fluore s cent, magnetic or ele c t ronic ballast
H o rs e p ower Rating (each re l a y ) . . . . . . . . .1/6 HP @120VAC
Time Delay Adjust m e n t . . . . . . . . . . . . . . . . . . . .5 to 30 minute s
Wa l k - T h rough Mode . .3 minutes if no activity after 30 sec.
Te st Mode . . . 5 sec. at initial power up or DIP switch re s e t
PIR Adjust m e n t . . . . . . . . . . . . . . . . . . .High or Low (DIP switc h )
U l t rasonic Adjust m e n t . . .Minimum to Maximum (trimpot), Off
Fre q u e n c y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 0 k H z
Light Level Adjust m e n t . . . . . . . . . . . . . . . . . . . . . . .8 fc to 180+fc
A le r t s
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S e le c ta b le Audible
O ccupancy Sensor
D W- 2 0 0
US Pa tents: 5189393, 5640113,
6617560B2, A4787722
S a n ta Clara, CA 95050
8 0 0 . 8 7 9 . 8 5 8 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WattStopper DW-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for LEGRAND WattStopper DW-100

  • Page 1 DW - 1 0 0 / DW - 1 0 0 - 3 4 7 / DW - 2 0 0 Dual Te c h n o logy Wall Switc h O ccupancy Sensor D W-100 & DW- 1 0 0 - 3 4 7 D W- 2 0 0 Specifications Vo l ta ges:...
  • Page 2: Unit Description And Operation

    UNIT DESCRIPTION AND OPERATION The DW Dual Te c h n o logy Wall Switch sensors combine adva n ced pass i ve i n f ra red (PIR) and ultrasonic te c h n o logies into one unit. The co m b i n e d te c h n o logies help to eliminate false triggering even in difficult applications.
  • Page 3: Walk-Through

    SmartSet™ auto R e co rds typical occupancy patterns. Using this histo r y (which is co n sta n t ly updated), it chooses an optimal adjust time delay time delay from 7 minutes (if the space is usually and Test Mode va cant) up to 30 minutes (if the space gets heavy usage).
  • Page 4: Trigger Mode

    Trigger Mode The DW sensor has 4 occupancy trigger options, set with DIP switches 5 and 6. D e termine the appro p r i a te option using the Trigger matrix. In the Trigger Mode DIP switch setting ta b le , in order to deem the area occupied: •...
  • Page 5: Installation

    INSTALLATION WARNING TURN THE POWER OFF AT THE CIRCUIT BREAKER BEFORE INSTALLING THE SENSOR OR WORKING ON THE LOAD. 1 . M a ke sure that the power has been turned OFF at the circuit bre a ke r. 2 . Connect wires to the DW flying leads as shown in the wiring diagram below that is appro p r i a te to the DW model and ele c t r i cal supply.
  • Page 6: Dip Switch Settings

    DIP SWITCH SETTINGS ON/OFF Buttons Relay 1 Relay 2 Ultrasonic Sensitivity Adjustment Trimpot DIP Switches Tabs Ultrasonic Cones Detection LEDs Button Red = PIR Hinges Green = Ultrasonic D W-200 shown. D W-100 has a PIR Lens single button and the Ultrasonic s e n s i t i v i t y adjustment trimpot...
  • Page 7: Sensor Adjustment

    ADJUSTMENTS Sensor Adjustment R e m ove the wall plate. Remove the button cap by firmly squeezing together the top sides of the button ass e m b ly. Gently pull it away from the unit. When the adjustments are co m p le ted, re p l a ce the button cap by inserting its hinges into the tabs on the main unit and then squeeze the top of the button while p re ssing it into the unit.
  • Page 8: Ordering Information

    Lights do not turn OFF 1 . T h e re can be up to a 30 minute time delay after the last motion is d e te c ted. To verify proper operation, set DIP switch 1 to ON, then re s e t s w i tches 1 and 2 to OFF to start Te st Mode.
