No: 24259 – 04/18 rev. 1
Catalog Numbers • Les Numéros de Catalogue • Los Números de Catálogo: EW-200-120, EW-200-277
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
Box Contents
• One (1) EW-200-120, EW-200-277
• Accessory bag:
Cover plate for 4" round outdoor junction box, with two cover
plate attachment hole plugs, cover plate gasket, cover plate
screws & screw covers (4 ea), lens mask, wire nuts (3)
• Installation instructions
Please read all of the installation instructions before installing this
product.
THIS UNIT USES HIGH VOLTAGE. IT SHOULD ONLY BE INSTALLED BY QUALIFIED PERSONS THAT ARE THOROUGHLY FAMILIAR
WITH PROPER SAFETY PROCEDURES AND ELECTRICAL AND BUILDING CODES FOR THE INSTALLATION LOCATION.
TO AVOID FIRE, SHOCK, ELECTROCUTION, OR DEATH.TURN OFF POWER AT THE CIRCUIT

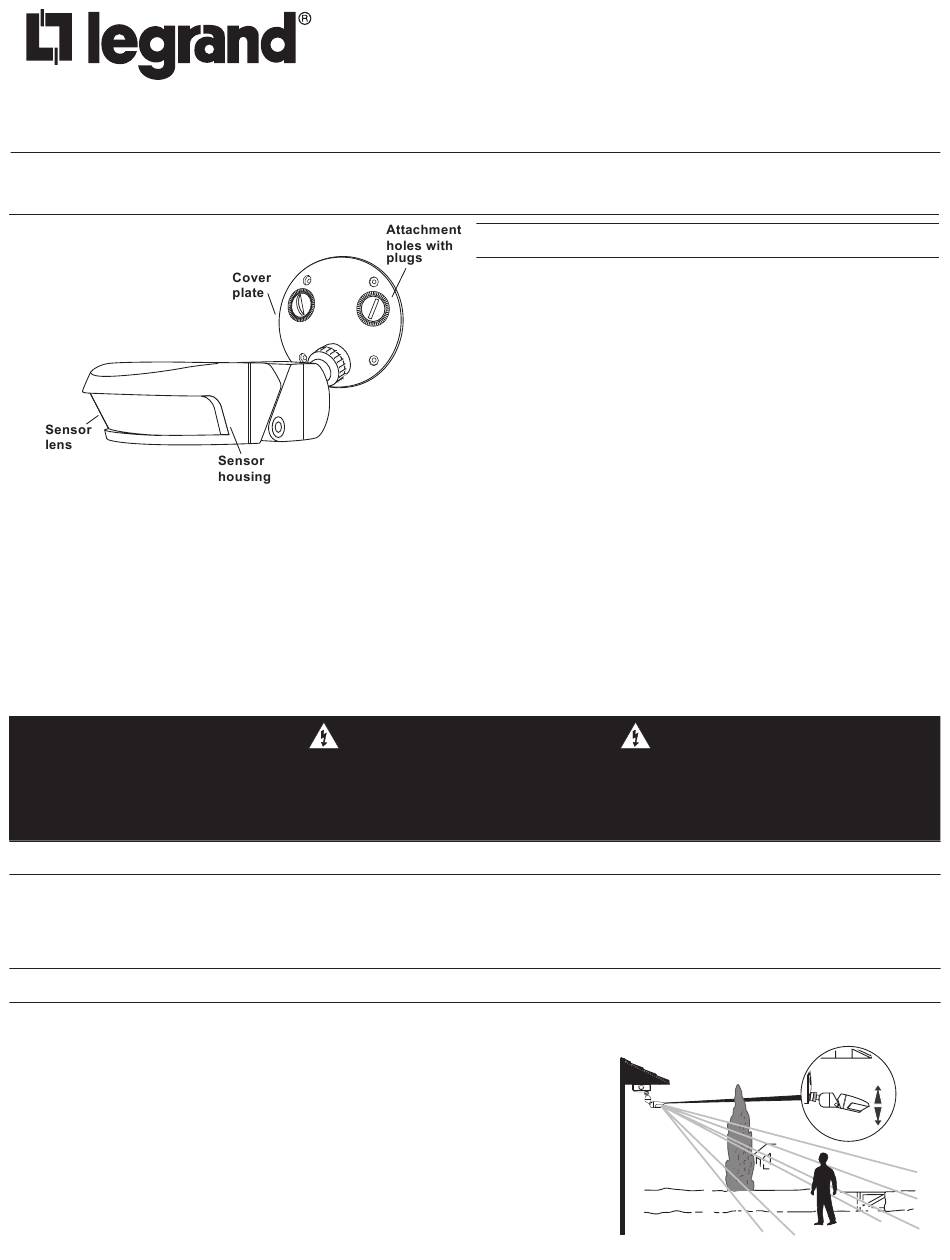

The EW sensors are outdoor passive infrared (PIR) motion sensors rated for wet conditions. They are preassembled with a junction box
cover and are ready to install to standard round outdoor junction boxes.
The EW sensors utilize advanced PIR technology and a superior lens design to detect motion. PIR sensing is passive, and detects the
difference between infrared energy in motion and the background space.
Coverage is shown as tested in a controlled setting with the unit mounted at 8
ft at a 10° tilt from the horizontal surface. The actual outside coverage pattern
may vary substantially at the specific installation site and is dependent on
several factors including weather conditions, external light sources, mounting
height and sensor tilt.
BREAKER OR FUSE BOX AND TEST TO ENSURE POWER IS OFF BEFORE WIRING.
COVERAGE PATTERN
Coverage adjustment:
The front of the sensor housing can be moved
up and down for easy coverage adjustment.
Wattstopper
Outdoor PIR Motion Sensors
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
Voltage:
EW-200-120 ......................................................120VAC, 60Hz
EW-200-277 ......................................................277VAC, 60Hz
Mountable Locations ........................... Wall, ceiling or under eaves
Operating Temperature ........................ -40° to 130°F (-40° to 55°C)
Lens Coverage: ......................................................................... 270°
Load Ratings .....................0–1000W ballast or tungsten @120VAC
.....................................................0–1000W ballast @277VAC
Motor Load: ............................................................1/6 HP @20VAC
.....................................................................1/3 HP @277VAC
Current Consumption
Without Isolated Relay .......................................... 22 mA max.
With Isolated Relay ............................................... 34 mA max.
Time Delay Adjustment ............................................. 12sec.–16min.
Light Level Adjustment ...............................................0.5FC–200FC
Isolated Relay on EW-200 (both -120 & -277 models)
Normally Open & Normally Closed contacts.
Isolated Relay Rating: ........................................... 1A @ 30VAC/DC
UL 773A Raintight Rated
IEC-IP-55 RateD
U.S.Patents: 4,787,722; 5,640,113
WARNING
UNIT DESCRIPTION
®
SPECIFICATIONS
