Excel Life
TM

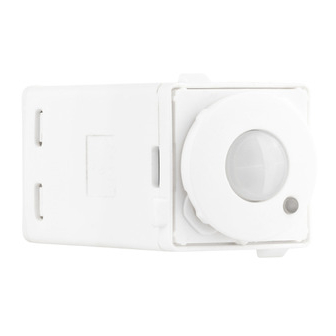

Wall Plate-Mounted Movement Sensor
EM803PIR, EM803PIRS
Technical characteristics
+ 50
C
o
+ 0
C
o
1 x 2.5 mm
2
2 x 1.5 mm
2
230 - 240V a.c.
50Hz
Max load
Wiring
EM803PIR
LOAD
ACTIVE
NEUTRAL
LOAD
ACTIVE
REMOTE
NEUTRAL
(EM803PIRS only)
Incandescent
Halogen
Fluorescent
1200W
1200W
ACTIVE
LOAD
NEUTRAL
• There are 2 models as follows (see "Operation" for more
details):
EM803PIR
EM803PIRS
• To access the additional features on the EM803PIRS model,
it should be installed together with an additional push button
EM800SLAVE or EM770X (not included) as shown in the
image below. Please see "Wiring" for the connections between
the two modules
Wirewound
Electronic
tube
transformer
transformer
500VA
500VA
500VA
EM803PIRS
LOAD
ACTIVE
NEUTRAL
REMOTE
ACTIVE
REMOTE
LOOP
EM800SLAVE
Basic model with Auto Mode only.
Advanced model with Auto and Manual
Override Modes and user-selectable LED
indicator colour.
EM803PIRS
EM800SLAVE or EM770X
ED770/2GPLWE SWITCH
PLATE SHOWN
Compact
LED
Fluorescent
500VA
500VA
LOAD
OR
Fan
motor
500VA
ACTIVE
NEUTRAL
1
C
2
EM770X
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND Excel Life EM803PIR
Summary of Contents for LEGRAND Excel Life EM803PIR
- Page 1 Excel Life Wall Plate-Mounted Movement Sensor EM803PIR, EM803PIRS • There are 2 models as follows (see “Operation” for more details): EM803PIR Basic model with Auto Mode only. EM803PIRS Advanced model with Auto and Manual Override Modes and user-selectable LED indicator colour. •...
-
Page 2: Important Information
• This product contains no serviceable parts and no attempt should be made to repair this product. If the product is faulty it should be discarded. • Legrand reserves the right to modify the specifications of DETECTION AREA this product at any time.
