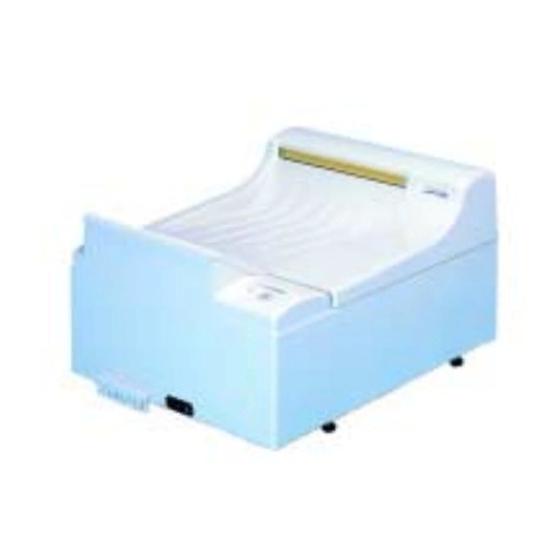

- Page 1 Part No. 1F8038 08May03 Kodak Medical X-ray Processor, Model 104 Service Manual...
- Page 2 Kodak’s negligence or other fault. Copyright © 2003 by Kodak. All rights reserved. Any reproduction, out of the limitation by the copyright law, needs written authorization by Kodak.
-
Page 3: Installation Data
Installation Data Installation Data 77 cm (30.3") 59 cm (23.2") Optional working ta- ble or closed base cabinet (accessory) 59 cm (23.2“) 75 cm (29.5“) 75 cm (29.5") 59 cm (23.2") Wall socket Darkroom 120 V, 15A (depending on machine model). Power lead should be equipped with GFI, Earth-Leakage Switch, 25 A / 50cm (20’‘) -
Page 4: Trouble Shooting
Trouble Shooting Trouble Shooting Summary Algae ....................... 5 1.1 Excessive algae growth in water tank............5 General ......................5 2.1 Machine has no power................5 Drive........................ 5 3.1 Filmfeed out of order, dryer-fan is working ..........5 3.2 Machine does not start automatically ............5 3.3 Machine doesn't stop automatically............ - Page 5 Trouble Shooting Algae 1.1 Excessive algae growth in water tank Algae growth inside the water tank can leave residue on the films. When algae growth increases, countermeasures are required or the processor wash water can overflow: • When work has been completed at the end of the day, drain water out of the machine.
- Page 6 4. 35 cm edge fed into processor Motor Gear Driveshaft Gear * The 90 second cycle is only to be used with certain films. Test for proper drying of all film types used. Kodak blue sensitive films cannot be used with the 90 second cycle.
- Page 7 Trouble Shooting Developer Bath 4.1 No circulation in bath • Circulation pump works but no circulation in bath: Air lock in heating and circu- lation system. Ventilate the circulation pump. See Page 8 in the Operator Man- ual, 1F8039. • Particles in the pump chamber.
- Page 8 Trouble Shooting 4.3 Developer temperature too low • Check circulation pump. Air lock in the circulation pump: Ventilate the pump. See Page 8 in the Operator Manual, 1F8039. If no circulation can be detected: Check wiring of circulation pump; pump possibly defective. •...
- Page 9 Trouble Shooting Replenishment 6.1 Replenishment pump does not pump sufficiently • Clean valve inside connection tube. Install valve insert correctly: Pay attention to flow-through di- rection! • Check filter in the suction pipe (replenishment container) and clean it if neces- sary.
-
Page 10: Spare Parts List
Spare Parts Spare Parts (53) (61) (30) (58) 22-23 Pos. Part No. Description 1F7953 Replenishment pump Valve replen. 1F7954 Circulation pump 110 V, 50/60 Hz Fuse, slow blow 10 A / 250 V 22 & 23 Main switch 110-120 V Angle connection (grey) 1F7955 Circuit Board 110-120 V... - Page 11 Spare Parts Pos. Part No. Description 1F7956 Main drive motor 120 V, 50/60 Hz Motor bracket Drive shaft worm-gear Worm-gear Bearing block 1F7898 Chain wheel t=12 Chain wheel t=14 Chain wheel t=16 Chain wheel t=17 Chain wheel t=18 Chain 6 mm with coupler link Splint pin 2.0x20 mm, inox * available in Spare Parts Kit - Small, Part No.
- Page 12 Spare Parts Pos. Part No. Description Air channel 1F7957 Dryer heating element 110 V, 900 W 1F7959 Dryer fan 115 V, 50/60 Hz 1F7960 Solenoid valve 115 V, 50/60 Hz Securing bracket Switch - film detection Bracket for micro-rotary-switch 1F7961 Film feed tray Film feed tray graphic arts 1F7962...
- Page 13 Spare Parts...
- Page 14 Spare Parts Pos. Part No. Description Standard Processor 1F7972 Roller rack, developer 1F7973 Roller rack, fixer 1F7974 Roller rack, wash & dryer Side plate dev. w. shafts (left) Side plate dev. (right) Side plate fix. w. shafts (left) Side plate fix. (right) 1F7967 Guide bar straight, short 1F7968...
- Page 15 Spare Parts Spare Parts Kit - Large, Part No. 1F8089 Pos. Description Qty. Comments Replenishment Valve Also included in Small Parts Kit 1F7975 Fastener Fastener, blue Fastener, red Ring clamp Worm wheel Flat spring 35 Flat spring 55 22 & 23 Main switch Regulating knob, grey Adjuster for knob, grey...
- Page 16 Spare Parts Spare Parts Kit - Small, Part No. 1F7975 Pos. Description Qty. Fastener Fastener, blue Fastener, red Ring clamp 8-sw pbt Regulating knob, grey Adjuster for knob, grey Tube clamp sgt 8-16/9 C7 W2 Tube clamp snap Wire tube clamp Drain stop cock Pt-screw WN 1411 KB 40x16 Pt-screw WN 1412...
-
Page 17: Wiring Diagrams
Wiring Diagrams Wiring Diagrams... - Page 18 Wiring Diagrams...
- Page 19 Wiring Diagrams...
- Page 20 Wiring Diagrams...
