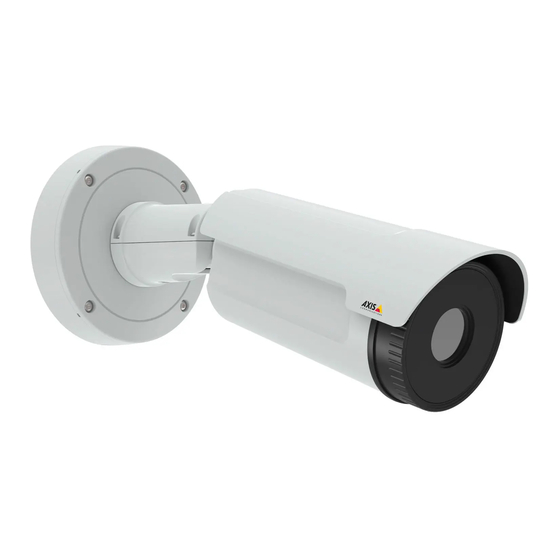

- Page 1 AXIS Q19 Series AXIS Q1941-E Thermal Network Camera AXIS Q1942-E Thermal Network Camera User Manual...
-
Page 2: Table Of Contents
AXIS Q19 Series Table of Contents Solution overview ......... . . -
Page 3: Solution Overview
To set up perimeter protection, you need to install an analytics application for perimeter surveillance and protection on your thermal camera. Axis provides the AXIS Perimeter Defender application for this purpose. You can read more about AXIS Perimeter Defender at axis.com/products/axis-perimeter-defender... -
Page 4: Product Overview
AXIS Q19 Series Solution overview • To let possible intruders know that your perimeter is protected, use a flashing beacon (3). See How to connect a flashing beacon on page 9 . • To warn and deter, connect a horn speaker (2) that plays a pre-recorded warning message. See How to connect a network horn speaker on page 10. -
Page 5: Find The Device On The Network
Find the device on the network Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support For more information about how to find and assign IP addresses, see the document How to assign an IP address and access your device on the device page at axis.com... -
Page 6: Access The Device
Bonjour as a browser bookmark, go to Safari > Preferences. If you do not know the IP address, use AXIS IP Utility or AXIS Device Manager to find the device on the network. 2. Enter the username and password. If you access the device for the first time, you must set the root password. See Set a secure password for the root account on page 6 . -
Page 7: Setup
AXIS Q19 Series Setup Setup Webpage overview Live view control bar Live view Product name User information, color themes, and help Video control bar Settings toggle... -
Page 8: Applications
Applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications To find the user manuals for Axis applications, go to axis.com... -
Page 9: How To Connect A Flashing Beacon
AXIS Q19 Series Setup Note • Several applications can run at the same time but some applications might not be compatible with each other. Certain combinations of applications might require too much processing power or memory resources when run in parallel. Verify that the applications work together before deployment. -
Page 10: How To Connect A Network Horn Speaker
Use a network horn speaker to warn and deter possible intruders. This scenario explains how to connect an Axis network horn speaker to the camera and set it up to play an audio clip whenever the thermal camera detects an intrusion. In this scenario, the horn speaker can only be activated due to alarms coming outside office hours, between 18.00 and 08.00 Monday-Friday. -
Page 11: Image Quality
AXIS Q19 Series Setup 3. In the list of conditions, select the perimeter defender application. 4. Select Use this condition as a trigger. 5. Add another condition. 6. In the list of conditions, select Scheduled event. 7. In the list of schedules, select After hours. - Page 12 AXIS Q19 Series Setup Set up network storage To store recordings on the network, you need to set up network storage: 1. Go to Settings > System > Storage. 2. Click Setup under Network storage. 3. Enter the IP address of the host server.
-
Page 13: Troubleshooting
Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track. -
Page 14: Upgrade The Firmware
Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the... -
Page 15: Performance Considerations
IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured). - Page 16 • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. • Using palettes affects the product’s CPU load which in turn affects the frame rate.
-
Page 17: Specifications
AXIS Q19 Series Specifications Specifications To find the latest version of the product’s datasheet, go to the product page at axis.com and locate Support & Documentation. LED Indicators Status LED Indication Unlit Connection and normal operation. Green Connection and normal operation. - Page 18 • Input/Output (I/O) devices • DC power supply When connecting external equipment, a separately sold Axis multicable is required in order to maintain the product’s IP rating. For more information, see Multicable connectors on page 18. Multicable connectors Multicable overview...
- Page 19 AXIS Q19 Series Specifications • Digital input — For connecting external devices that can toggle between an open and closed circuit, for example PIR detectors, door/window contacts, and glass break detectors. Function Notes Specifications 0 V DC 0 V DC (-) DC output Can be used to power auxiliary equipment.
- Page 20 User Manual Ver. M7.2 AXIS Q19 Series Date: May 2019 © Axis Communications AB, 2015 - 2019 Part No. T10063606...
