AXIS P14 and AXIS Q19 Camera Series

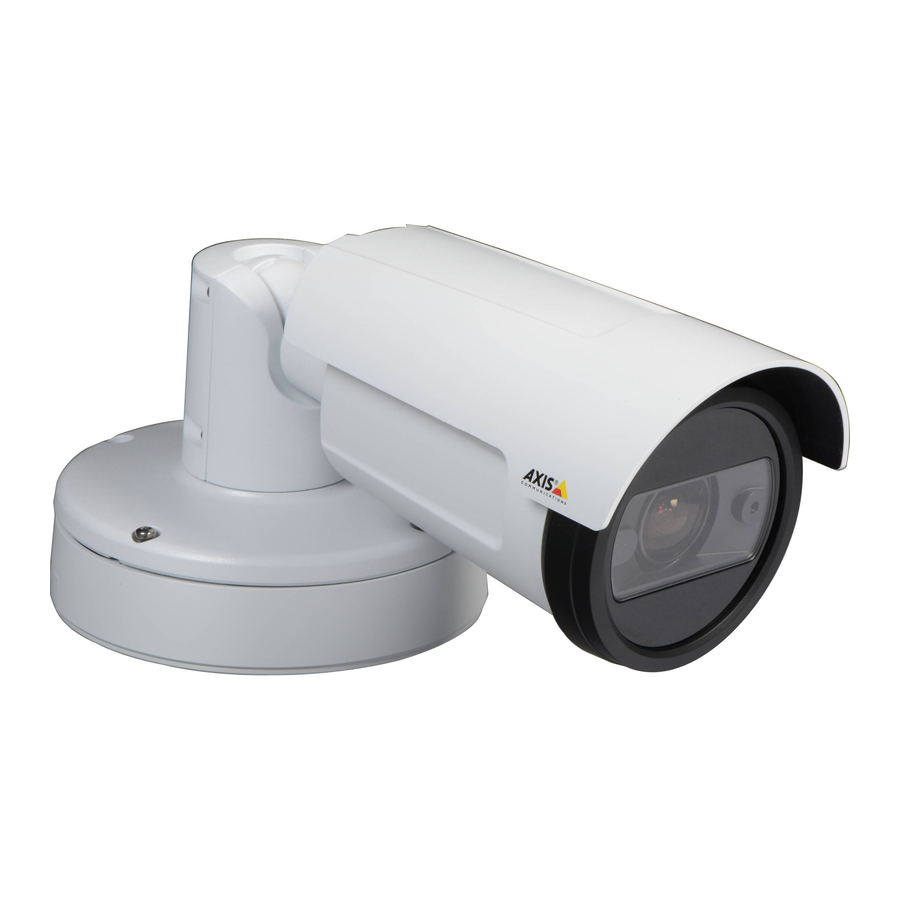

AXIS P1455-LE Network Camera
AXIS P1455-LE 29 mm Network Camera
AXIS Q1951-E Thermal Camera
AXIS Q1952-E Thermal Camera
Repainting Instructions
migliori offerte di Videosorveglianza
Axis Q1952-E
o

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P14 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Axis P14 Series

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Axis Q1952-E cerca il tuo prodotto tra le migliori offerte di Videosorveglianza AXIS P14 and AXIS Q19 Camera Series AXIS P1455-LE Network Camera AXIS P1455-LE 29 mm Network Camera AXIS Q1951-E Thermal Camera...
  • Page 2 Risks with repainting There are several risks when disassembling or assembling an Axis product. There is always a certain yield loss during assembly. Training of operators and the use of correct tools mediates some of the problems but they can never be fully avoided. Some of the risks include: ESD Damage - Always handle the product in an ESD safe environment.
  • Page 3 Clean the parts properly to remove oil, grease and dust. For more information on the materials used in the product, see its datasheet at axis.com. Powder coated parts - Use a primer. Alternatively, remove the original powder coating down to the base material, using fine sandpaper, and clean the parts before painting.
  • Page 4 AXIS P14 and AXIS Q19 Camera Series Repaint the product 1. Remove the bottom base cover. 2. Remove the lid from the bottom base cover. 3. Remove the weathershield. 4. Remove the holder from the weathershield. Lock screw Screw Arm cover 10 Pin 5.
  • Page 5 AXIS P14 and AXIS Q19 Camera Series Repaint the product Masking 1. Make sure all necessary preparations of the camera unit has been made. See Preparations on page 3 . 2. Mask all screw and screwholes. 3. Mask the entire top surface of the bottom base cover.
  • Page 6 AXIS P14 and AXIS Q19 Camera Series Repaint the product Reassembly 1. Place the pin in the recess in the arm. 2. Attach the arm cover, the four screws and the lock screw. Do not tighten the lock screw. Tighten the four screws with 1 N m (0.7 lb ft) tightening torque.
  • Page 7 Repainting Instructions Ver. M2.2 AXIS P14 and AXIS Q19 Camera Series Date: September 2021 © Axis Communications AB, 2021 Part No. T10168119...
