Maxon GPC 22 X1 Operator's Manual

Cantilever liftgate
Hide thumbs Also See for GPC 22 X1:

Advertisement

Quick Links

Download this manual

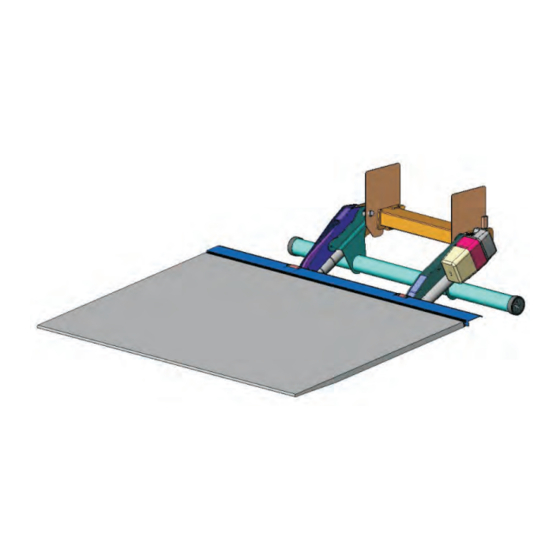

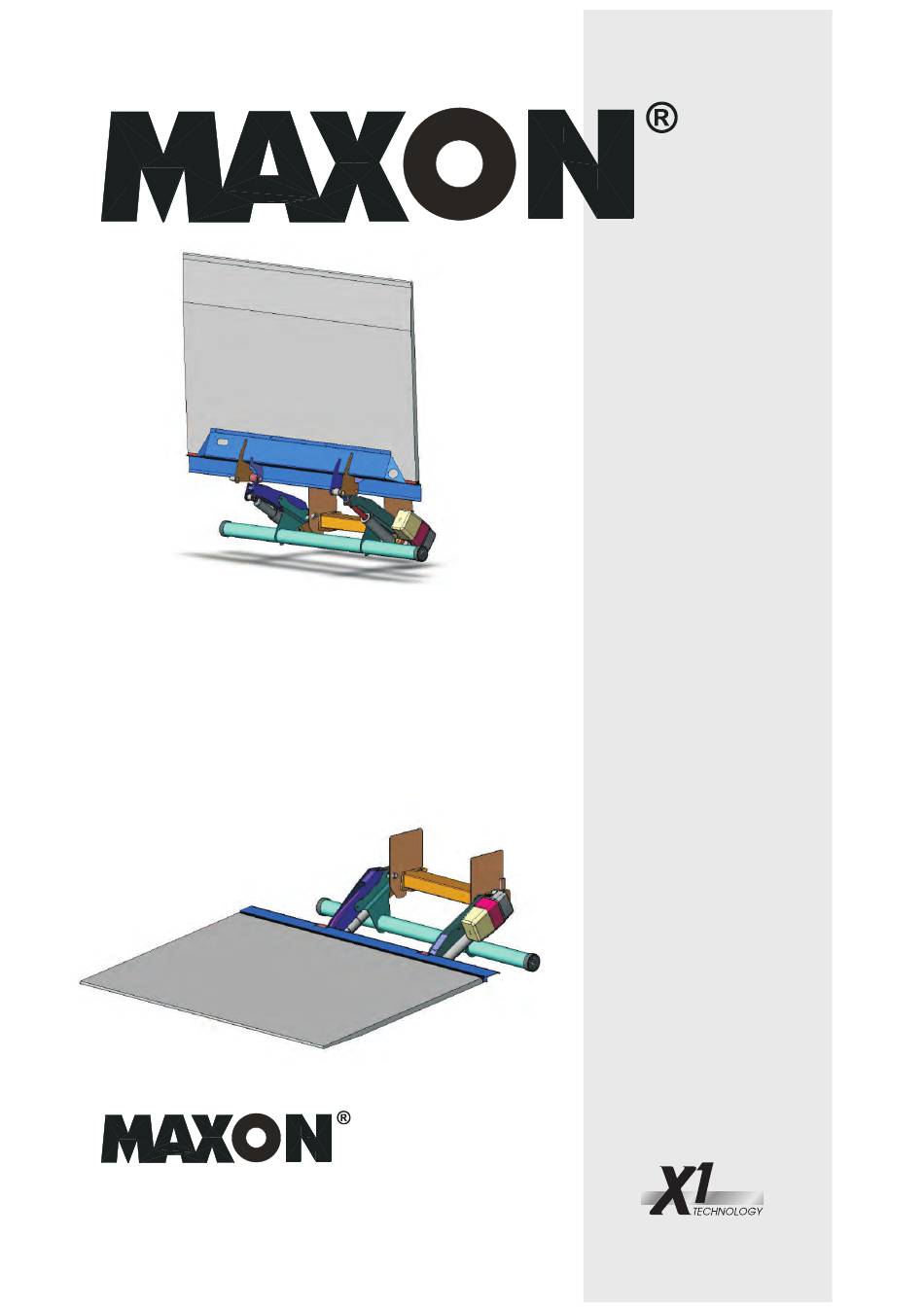

Cantilever GPC X1
Operator`s Manual
Liftgate
Series
GPC 22 X1
Lift CORP.
11921 Slauson Avenue.
Document no.: S 20 909 946
Santa Fe Springs, CA 90670
Version 2011
(800) 227 - 4116
© Sörensen Hydraulik GmbH

Advertisement

loading
Need help?

Need help?

Do you have a question about the GPC 22 X1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maxon GPC 22 X1

Summary of Contents for Maxon GPC 22 X1

  • Page 1 Cantilever GPC X1 Operator`s Manual Liftgate Series GPC 22 X1 Lift CORP. 11921 Slauson Avenue. Document no.: S 20 909 946 Santa Fe Springs, CA 90670 Version 2011 (800) 227 - 4116 © Sörensen Hydraulik GmbH...
  • Page 3 The lift gate owner is responsible for the repairs of detected damages. The operating instructions are to be carried in the vehicle at all times. Operator`s handbook Series GPC 22 X1 Document no.: S 20 909 946 Version: 2011...

  • Page 4: The Electric Motor

    If, in your opinion, the batteries are empty too fast, have the batteries and the power cables checked by a specialist.It could be possible that the cables, the mass connection or the batteries have to be repaired or changed. Operator`s handbook Series GPC 22 X1 Document no.: S 20 909 946 Version: 2011...

  • Page 5: Description Of The Controls

    All functions must be operated with two hands by switching the toggle switches located at the side of the hand control box Lift Lower Open / tilt down Close / tilt up Hand control box 2 Buttons Lower Lift Operator`s handbook Series GPC 22 X1 Document no.: S 20 909 946 Version: 2011...
  • Page 6 Step 2 - activate foot control button for lifting To lower and tilt down Step 1 - activate foot control button for lifting Step 2 - activate foot control button for lowering Operator`s handbook Series GPC 22 X1 Document no.: S 20 909 946 Version: 2011...

  • Page 7: General Information

    On this inclination, unsecure loads may start to slip and create a danger for the operator. You can purchase a warning sticker CAUTION ! Secure the load against moving or use mechanical supports Operator`s handbook Series GPC 22 X1 Document no.: S 20 909 946 Version: 2011...
  • Page 8 (Optional version) Warning Lights The lights flash as soon as the platform has opened a few degrees. Operator`s handbook Series GPC 22 X1 Document no.: S 20 909 946 Version: 2011...
  • Page 9 Rolling and sliding loads must be secured on the platform. Lift gates come optionally equipped with cart stops, securing rolling loads with the maximum efficiency (wheels with maximum diameter 4” ) Caster diameter max. 4“ Operator`s handbook Series GPC 22 X1 Document no.: S 20 909 946 Version: 2011...
  • Page 10 Lift CORP. Safety guide for the operation of the lift gate Secure the load against toppling over and sliding Operator`s handbook Series GPC 22 X1 Document no.: S 20 909 946 Version: 2011...
  • Page 11 The maximum weight indicated in the loading diagram must not be exceeded. When the platform sits on the ground, it can be overrolled only with the maximum load indicated. Operator`s handbook Series GPC 22 X1 Document no.: S 20 909 946 Version: 2011...
  • Page 12 Lift CORP. Platform, bridge and ramp Never sit the ramp on the platform, always use the platform as a ramp ! Operator`s handbook Series GPC 22 X1 Document no.: S 20 909 946 Version: 2011...
  • Page 13 Please note that the vehicle might lift while unloading, and that the platform will lift from the ground. To prevent accidents, the platform tilt must always be compensated, so that the tip sits firmly on the dock at all times. Operator`s handbook Series GPC 22 X1 Document no.: S 20 909 946 Version: 2011...
  • Page 14 The platform being used as a dock must lie firmly on the vehicle opposite, or it may lead to the lift gate becoming overloaded. Wrong Right Operator`s handbook Series GPC 22 X1 Document no.: S 20 909 946 Version: 2011...
  • Page 15 The platform must lie firmly on the floor. When performing any kind of loading or unloading operation, the vehicle must be secured against unexpected movement. Use handbrake or wedges Operator`s handbook Series GPC 22 X1 Document no.: S 20 909 946 Version: 2011...
  • Page 16 Only close the platform after the lift arms have moved firmly against the bodywork. Under no circumstances close the platform on the floor or in an intermediate position. This will destroy cylinders, cables and mechanical parts. Operator`s handbook Series GPC 22 X1 Document no.: S 20 909 946 Version: 2011...
  • Page 17 Lift gate as lifting device Do not hand any loads on the platform Lift gate as pushing device Do not use the lift gate as a pushing device Operator`s handbook Series GPC 22 X1 Document no.: S 20 909 946 Version: 2011...
  • Page 18 Hydraulic oil. For general colder climate use ISO 10, and warmer climate use ISO 32. Oil fill up or change 1. lower 2. tilt down 3. oil fill up Operator`s handbook Series GPC 22 X1 Document no.: S 20 909 946 Version: 2011...
  • Page 19 6. Lift gate does not lift Load is placed in excess of permitted loading distance rated capacity Weight of load too high Overload security valve not set properly Operator`s handbook Series GPC 22 X1 Document no.: S 20 909 946 Version: 2011...
  • Page 20 In an emergency call our Customer Service Department or the nearest authorized repair shop. On request, we shall be pleased to send you an up-to-date list of Customer Service repair shops authorised by us. Operator`s handbook Series GPC 22 X1 Document no.: S 20 909 946 Version: 2011...

  • Page 21: Warranty

    Type of Warranty: Full Parts and Labor MAXON agrees to replace any components which are found to be defective during the first 2 years of service, and will reimburse for labor based on Maxon’s Lift gate Warranty Flat Rate Labor Schedule.
  • Page 22 Lift CORP. Number” received. Major repairs would generally be considered repairs made to the structural assembly of the lift gate and/or repairs not outlined in the Maxon Slidelift Waranty Flat Rate Schedule. Major components (i.e. hydraulic pumps, cylinders, valves, or failed structural parts) must be returned, freight pre-paid, prior to the claim being processed.
  • Page 23 Free replacement are available from: MAXON Lift Corp., Parts Department. max. bed hight GPC 22 X1 - max. bed hight 46” 7/16 - Liftarm 26” 9/16 Same distance bothsides Ground level loaded Ground level unloaded Always as near max.
  • Page 24 SENSE. If load appears to be unsafe, do not lift or lower it. PART NO. MAXON LIFT CORP. 264081 Note: The main liftgate Control Station is normally mounted on right rear corner of the truck body. Operator`s handbook Series GPC 22 X1 Document no.: S 20 909 946 Version: 2011...
