Maxon GPC 22 X-1 Installation Manual
Hide thumbs Also See for GPC 22 X-1:

Advertisement

Quick Links

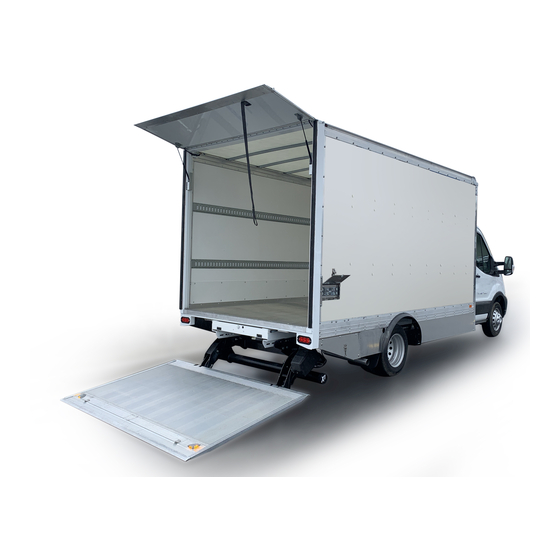

GPC 22 X-1 liftgate
Installation Manual
LIFT CORP.
11921 Slauson Avenue
Santa Fe Springs, CA 90670-2221
P 800.227.4116 / 562.464.0099
F 888.771.7713
Date 03.2021
Part-no.
S 20 912 436
