Maxon BMR Series Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

M-16-10
REV. D
MARCH 2020
To fi nd maintenance & parts information for your BMR Liftgate, go
to www.maxonlift.com. Click the PRODUCTS, COLUMNLIFT &
BMR buttons. Open the Maintenance Manual in the PRODUCT
DOCUMENTATION window. For parts, click on the PARTS PORTAL,
COLUMNLIFT & BMR buttons.

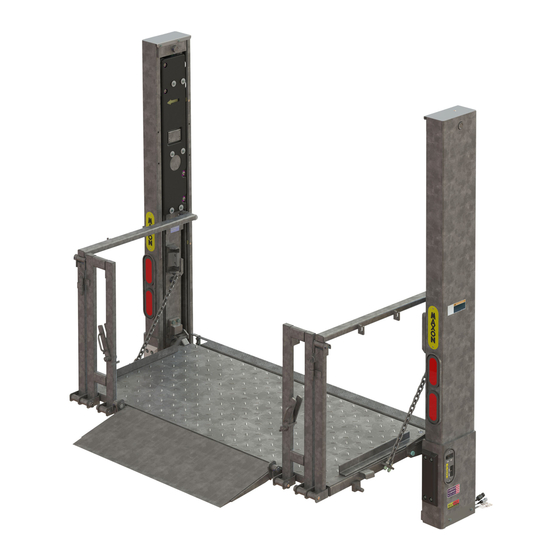

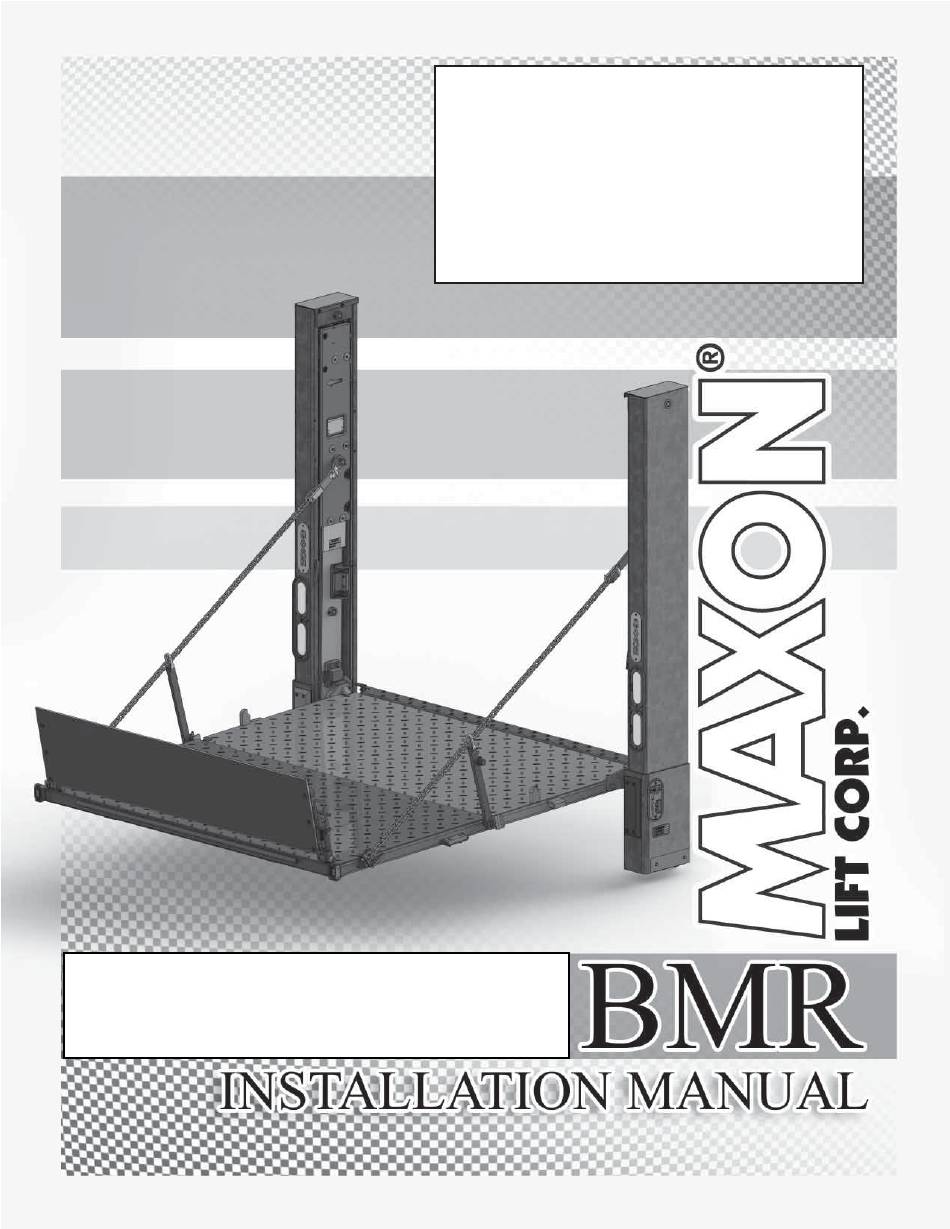

Installation Manual Contains:
• Warnings & Safety Instructions
• Requirements - Body Strength & Installed Liftgate
• Liftgate Installation Components
• Liftgate Component Installation Instructions
• Hydraulic Fluid Filling Instructions
• Decals
• Hydraulic & Electrical System Diagrams
• Pre-delivery Inspection Form
© MAXON Lift Corp. 2020
