Table of Contents

Advertisement

Quick Links

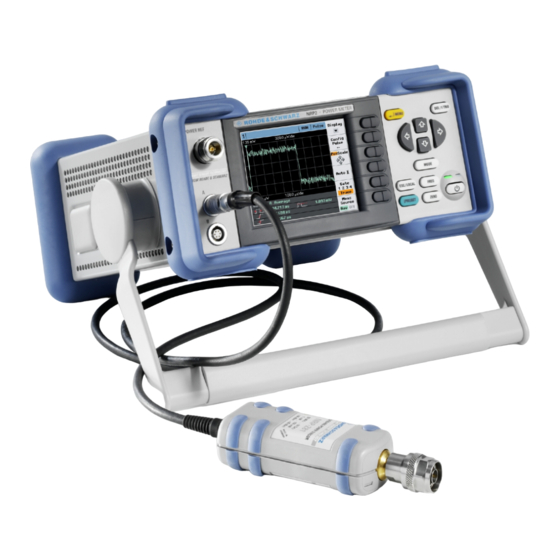

NRP2 Power
Meter
User
Manual
(;×éX2)
1173.9140.02 ─ 07
北京海洋兴业科技股份有限公司（证券代码：839145）
电话：010-62176775
网址：www.hyxyyq.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NRP2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rohde & Schwarz NRP2

Summary of Contents for Rohde & Schwarz NRP2

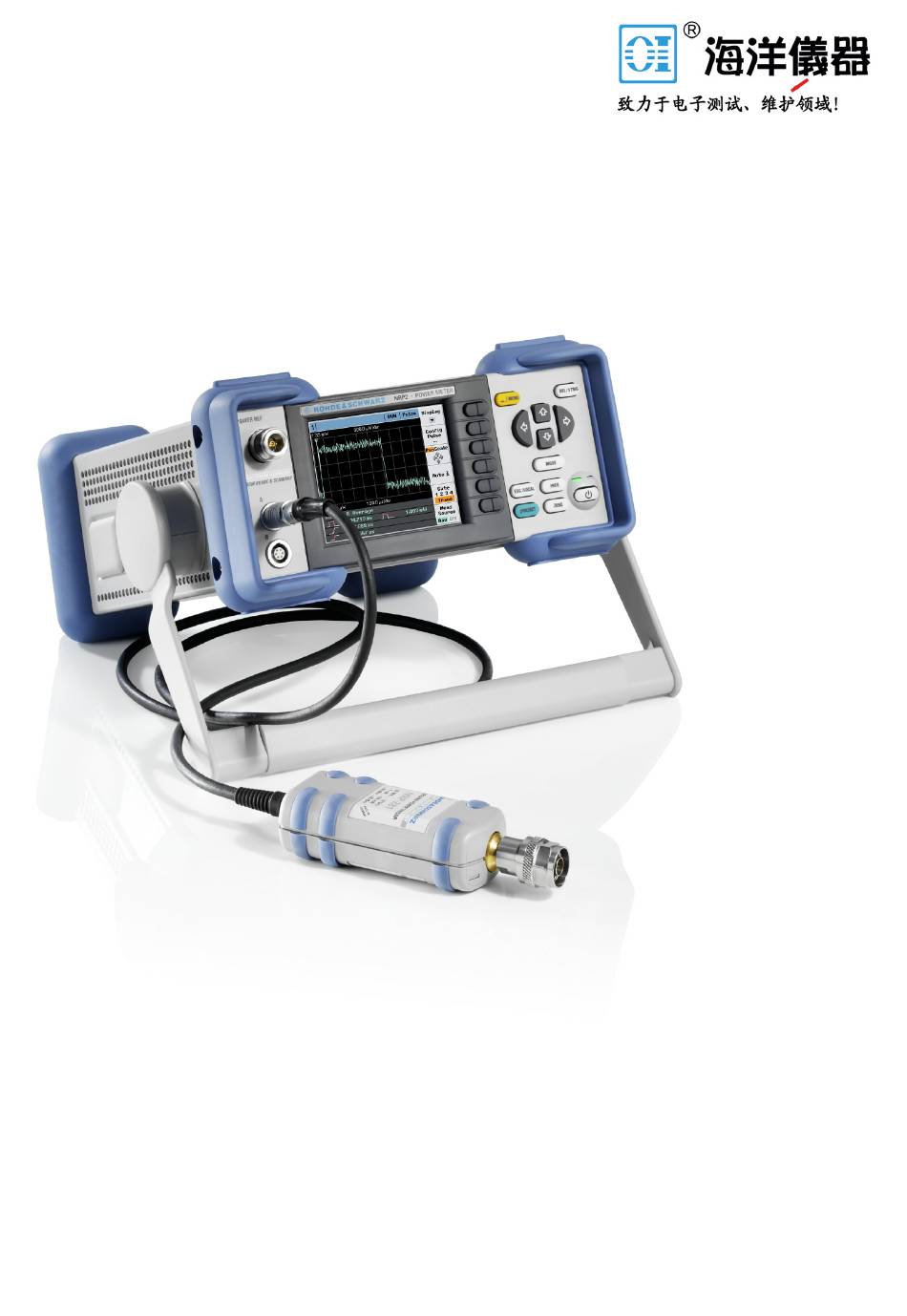

  • Page 1 NRP2 Power Meter User Manual (;×éX2) 1173.9140.02 ─ 07 北京海洋兴业科技股份有限公司（证券代码：839145） 电话：010-62176775 网址：www.hyxyyq.com...
  • Page 2 Basic Safety Instructions Always read through and comply with the following safety instructions! All plants and locations of the Rohde & Schwarz group of companies make every effort to keep the safety standards of our products up to date and to offer our customers the highest possible degree of safety. Our products and the auxiliary equipment they require are designed, built and tested in accordance with the safety standards that apply in each case.
  • Page 3 Basic Safety Instructions Symbol Meaning Symbol Meaning Caution ! Hot surface Alternating current (AC) Protective conductor terminal Direct/alternating current (DC/AC) To identify any terminal which is intended for connection to an external conductor for protection against electric shock in case of a fault, or the terminal of a protective earth Earth (Ground) Class II Equipment...
  • Page 4 Basic Safety Instructions Operating states and operating positions The product may be operated only under the operating conditions and in the positions specified by the manufacturer, without the product's ventilation being obstructed. If the manufacturer's specifications are not observed, this can result in electric shock, fire and/or serious personal injury or death. Applicable local or national safety regulations and rules for the prevention of accidents must be observed in all work performed.
  • Page 5 Basic Safety Instructions 6. The product may be operated only from TN/TT supply networks fuse-protected with max. 16 A (higher fuse only after consulting with the Rohde & Schwarz group of companies). 7. Do not insert the plug into sockets that are dusty or dirty. Insert the plug firmly and all the way into the socket provided for this purpose.
  • Page 6 Basic Safety Instructions 2. Before you move or transport the product, read and observe the section titled "Transport". 3. As with all industrially manufactured goods, the use of substances that induce an allergic reaction (allergens) such as nickel cannot be generally excluded. If you develop an allergic reaction (such as a skin rash, frequent sneezing, red eyes or respiratory difficulties) when using a Rohde &...
  • Page 7 Basic Safety Instructions 2. Adjustments, replacement of parts, maintenance and repair may be performed only by electrical experts authorized by Rohde & Schwarz. Only original parts may be used for replacing parts relevant to safety (e.g. power switches, power transformers, fuses). A safety test must always be performed after parts relevant to safety have been replaced (visual inspection, protective conductor test, insulation resistance measurement, leakage current measurement, functional test).

  • Page 8: Table Of Contents

    Unpacking the meter.....................8 Setting up the meter..................... 8 Front panel tour......................9 Rear Panel Tour......................15 Connecting the instrument to the AC supply............17 Starting the R&S NRP2....................18 2 Getting Started..................23 Requirements......................23 Brief introduction to the operation................24 Preset and zeroing...................... 27 Measuring average power (Cont Av mode)..............
  • Page 9 Contents NRP2 Displaying traces...................... 113 Management of settings................... 141 System settings......................145 Messages and alarms....................166 5 Remote Control Fundamentals............169 Differences between Remote Control and Manual Control........169 Connecting a Controller to the Base Unit............... 170 Switchover to Remote Control (REMOTE).............. 172 Return to Manual Operation (LOCAL)..............
  • Page 10 Contents NRP2 7 Maintenance..................337 Sensor test.........................337 Instrument selftest....................337 Cleaning the exterior....................337 Storage........................337 8 Error Messages and Troubleshooting..........339 Status and Error Messages in Manual Control............339 SCPI-Specific Error Messages.................340 Bootmenu........................346 A Annex....................353 Volatile Mode......................353 Remote control interfaces..................354...

  • Page 11: Putting Into Operation

    Putting into Operation NRP2 Notes on putting into operation 1 Putting into Operation This section describes the basic steps to be taken when setting up the R&S NRP2 for the first time. It contains the following topics: ● unpacking ●...

  • Page 12: Emc

    1.4.1 Carrying handle If the R&S NRP2 is not installed in a rack, it should be set up so that the viewing angle for the display is optimal. The carrying handle can be locked in a variety of positions to act as a stand.

  • Page 13: Front Panel Tour

    Front panel tour 1.4.2 Bench top operation If the R&S NRP2 is operated on a bench top, the surface should be flat. The instru- ment can be used in horizontal position, standing on its feet, or with the support feet on the bottom extended.
  • Page 14 7 = Sensor connectors 1.5.1 Display The R&S NRP2 displays results in windows. Depending on the measurement mode, values are displayed digitally, in a combined digital and analog mode, or graphically. The display mode can be selected individually for each measurement, i.e. you can per- form both graphical and numerical representations simultaneously.
  • Page 15 Putting into Operation NRP2 Front panel tour Graphical display Fig. 1-2: Trace in Pulse display in 'Trace&Statistic' mode The meter shows the results in a measurement curve, i.e. as a function of time. This presentation is obtained in "Trace & Statistics" mode, see chapter 4.5, "Displaying...
  • Page 16 Numerical measuring windows indicate the readings digitally, or provide the values in form of an analog meter. A maximum of four windows can be displayed on the screen, while their size is determined by the number of windows. The R&S NRP2 indicates either all windows simultaneously, or individually expanded.
  • Page 17 49. ● as the LOCAL key, it is used to switch the R&S NRP2 from remote control mode (all controls disabled) to manual mode. The key is automatically assigned its function according to context - in other words, there is no manual assignment by the operator.
  • Page 18 To the left of the display, the R&S NRP2 provides a power reference signal connector and two sensor connectors. If option R&S NRP-B5 is installed, the R&S NRP2 offers two sensor ports at the rear. Thus, you can perform measurements with a maximum of 4 connected sensors simul- taneously.

  • Page 19: Rear Panel Tour

    1.6 Rear Panel Tour This section gives an overview of the control elements and the connectors on the rear panel of the R&S NRP2. Each element and connector is briefly described and a refer- ence is given to the chapters containing detailed information.
  • Page 20 151. ETHERNET The Ethernet connector is an RJ45 socket for remote controlling the R&S NRP2 via a network. USB (Universal Serial Bus) interface of type B. This connector is used for remote con- trol of the instrument (see chapter 5.2, "Connecting a Controller to the Base...

  • Page 21: Connecting The Instrument To The Ac Supply

    AC supply voltage The R&S NRP2 can be operated from AC lines with a voltage range of 100 V to 240 V and a frequency range of 50 Hz to 60 Hz. Note that a restricted voltage range (100 V to 120 V) applies to 400 Hz networks.

  • Page 22: Starting The R&S Nrp2

    1.8.2 Startup ► Press the ON/STANDBY key to switch to ready state. The R&S NRP2 initiates its startup procedure, i.e. it boots the operating system, automatically performs a selftest and starts the instrument firmware. If the previous session was terminated regularly, the instrument uses the last setup with the rele- vant instrument settings.
  • Page 23 Fig. 1-8: Start screen with access to Firmware Update and Bootmenu 1.8.2.2 Function check After switch-on, the R&S NRP2 performs a function test. The contents of all non-vola- tile memories, the RAM and the addressability of the interfaces are checked. Mes- sages indicate the options the instrument is equipped with.
  • Page 24 . When finished, the instrument displays the result under the network icon, i.e. "OK" indicates that the interface can be addressed. If the R&S NRP2 is not connected to a network hub or if a connection cannot be established during booting, the message (Not Connected) is displayed instead of "OK".
  • Page 25 If an error is detected when the non-volatile memory containing instrument settings is checked, an error message is displayed when booting is completed. The non-volatile memory is then re-initialized completely and the R&S NRP2 goes into the preset state. All instrument settings that have been saved are lost as a result of this procedure.

  • Page 26: Getting Started

    Getting Started NRP2 Requirements 2 Getting Started This chapter introduces the main functions and settings of the R&S NRP2, by means of some basic power measurement examples. Included topics: ● Brief introduction to the operation, on page 24 provides a quick introduction on how to operate the instrument.

  • Page 27: Brief Introduction To The Operation

    Before you set up a new measurement, we recommend that you preset the R&S NRP2. Thus, the instrument is in a defined initial state. This prevents any previ- ous settings from causing incorrect results. In addition, a zero calibration of the sen- sors is required.
  • Page 28 Getting Started NRP2 Brief introduction to the operation Using the softkeys To quickly allocate the softkey to a menu item, all the menus open directly next to the softkey bar, i.e. on the right side of the display. The six softkeys perform the functions that are indicated in the active menu or dialog box.
  • Page 29 Getting Started NRP2 Brief introduction to the operation 2. or to select another function to the right, e.g. "Burst Av", press the right side of the softkey (in this case twice). Check boxes ► To toggle between the two states of "Global" press the right side of the softkey.

  • Page 30: Preset And Zeroing

    When the preset is completed, the "File" menu disappears and the meter is in the preset state. The preset settings provide a reproducible initial basis for all other settings. For a detailed description of the R&S NRP2’s initial state including a list of the default parameters, see chapter 4.1.1, "Preset hardkey",...
  • Page 31 ("Zero (All)") or press the appropriate softkey to select a specific sensor for zeroing. Zeroing of all connected sensors is performed. The correction measurement takes several seconds. When completed, the R&S NRP2 displays a message indicating success or failure of zeroing. User Manual 1173.9140.02 ─ 07 北京海洋兴业科技股份有限公司（证券代码：839145） 电话：010-62176775...

  • Page 32: Measuring Average Power (Cont Av Mode)

    After preset, one result window indicates the result (in dBm) obtained with sensor Fig. 2-3: Result window (dBm) Setting the frequency The R&S NRP2 must be set to the carrier frequency of the applied signal if the speci- fied measurement accuracy is to be reached. User Manual 1173.9140.02 ─ 07 北京海洋兴业科技股份有限公司（证券代码：839145）...
  • Page 33 Getting Started NRP2 Measuring average power (Cont Av mode) To set the frequency 1. Connect an unmodulated signal with a level between –10 dBm and +10 dBm to the sensor. 2. Press the FREQ hardkey. The dialog box for entering the frequency appears.
  • Page 34 The result is displayed in W. Fig. 2-6: Result window (W) Setting a fixed offset correction The R&S NRP2 provides an offset correction to the displayed measurement result. To set a fixed offset correction 1. Select the "Sensor" menu. The "Sensor" menu opens.
  • Page 35 Getting Started NRP2 Measuring average power (Cont Av mode) Fig. 2-7: Sensor menu All sensor-related settings are made in the "Sensor" menu. It determines type and details of data acquisition. 2. Press the left side of the "Offset…" softkey. The "Offset" dialog box opens. Offsets in dB for compensating external signal los- ses or gains, for example by attenuator or amplifiers, can be set in this dialog box.
  • Page 36 7. Press the ↵MENU hardkey twice to exit the dialog box and the menu. If you have connected an attenuator and entered its attenuation, the R&S NRP2 will display about the same value as before. Fig. 2-10: Result window / Offset In the note line of the result window, the Δ...
  • Page 37 Getting Started NRP2 Measuring average power (Cont Av mode) Fig. 2-11: Measurement menu 3. To activate the relative mode, press the right side of the softkey next to "Relative". As the default setup was loaded in step 1, the value relative to 0 dBm is displayed.
  • Page 38 Getting Started NRP2 Measuring average power (Cont Av mode) The "Windows" menu contains all the functions required for opening, closing and configuring windows. Fig. 2-14: Window menu / Digital 2. Check if window 1 has been selected. 3. Press the "Expand" softkey.

  • Page 39: Window Handling

    NRP2 Window handling 2.5 Window handling Up to four windows can be indicated simultaneously on the R&S NRP2‘s display. Each window can be configured for a separate measurement. The following examples show how to handle windows. Opening, expanding and closing windows.
  • Page 40 Getting Started NRP2 Window handling Fig. 2-18: Result window / Dig 5. Open the menu again. "Arrange" now replaces "Expand". This function arranges all opened windows. 6. Press the "Arrange" softkey. Window 1 returns to its previous size. The following steps show the difference between the "Open" and "Init" functions. You first have to change two settings of window 1.
  • Page 41 Getting Started NRP2 Window handling Fig. 2-19: Result window / D&A / full height 4. Now, close window 1 with the "Close" softkey. The "Window" menu shows that window "1" is still selected. The labeling next to the third softkey is now "Open | Init".
  • Page 42 Getting Started NRP2 Window handling Fig. 2-20: Result window / initialized / full height Display options 1. The "Dig" and "D&A" softkeys are used to select the display mode. The standard display mode is "Dig"ital measurement result. Fig. 2-21: Windows menu / digital display mode 2.
  • Page 43 Getting Started NRP2 Window handling Fig. 2-23: Windows menu / digital and analog display mode 3. Switch back to "Dig" display mode. Auxiliary values (Maximum, Minimum, Max, Min, …). 1. Select the "Measurement" menu. 2. Select "Function..." in this menu.

  • Page 44: Setting Measurement Functions

    "Single". Performing ratio measurements 1. Connect the two sensors to connectors A and B on the R&S NRP2 and apply an unmodulated signal with a level between –10 dBm and +10 dBm to each of the sensors.
  • Page 45 Getting Started NRP2 Setting measurement functions Fig. 2-27: Result windows / sensor A and B 3. Select the "Measurement" menu and then select "Function..." for window 1 of this menu. 4. Open the "Function & Unit" dialog box. Fig. 2-28: Function & Unit dialog box / ratio In this dialog box, you can select the function used to calculate the result in the selected window.

  • Page 46: Graphically Representing Power Versus Time

    If you wish to carry out measurements on signals with modulated power envelope (in the Burst or Timeslot mode), initially displaying the signal in the Trace mode is always recommended. Stable triggering by the R&S NRP2 can more easily be accomplished in this mode.
  • Page 47 Getting Started NRP2 Graphically representing power versus time 3. Press the (PRE)SET hardkey twice. A measurement window appears. 4. Change to the "Sensor" menu and select "Mode". Fig. 2-31: Sensor menu 5. Switch to the "Trace & Statistics" mode. Fig. 2-32: Trace & Statistics measurement mode 6.
  • Page 48 Getting Started NRP2 Graphically representing power versus time Note: If you do not see a trace, the trigger threshold probably does not match the signal. In this case, a highlighted appears in the info panel of the trace window. Continue with the next step to set the trigger threshold.
  • Page 49 Getting Started NRP2 Graphically representing power versus time 6. Open the second page of the "Trigger" dialog box. Fig. 2-36: Trigger dialog box / page 2 7. Set the trigger delay time. If you set a positive value, the trigger event will become effective only after the selected period of time.

  • Page 50: Measuring Average Burst Power (Burst Av Mode)

    10 kHz. Setting the burst mode. 1. Connect the power sensor to connector A on the R&S NRP2 and apply a pulsed signal with a level between –10 dBm and +10 dBm. 2. Press the (PRE)SET hardkey twice.
  • Page 51 Getting Started NRP2 Measuring average burst power (Burst Av mode) The parameter "Dropout" helps to reliably detect the end of modulated-signal bursts (e.g. NADC). With unmodulated pulses as in this case, it should be set to 0. Fig. 2-39: Burst av result window For a detailed description of burst av power measurement, see chapter 4.2.1.3, "Mea-...

  • Page 52: Manual Operation

    Dialog boxes and their control elements, page 53 3.2 Screen layout The R&S NRP2 screen displays the menu bar with the menu names and at least one or more measurement result window. The folded-out menu and the setting dialog boxes may overlay the result windows.
  • Page 53 NRP2 Screen layout The R&S NRP2 displays results in windows. A maximum of four windows can be dis- played simultaneously on the screen. They are numbered 1 to 4. Windows have a title bar which contains the number (fixed) and, optionally, the window name (user-defina- ble).

  • Page 54: Menu Layout

    3.3 Menu layout This section describes the menu provided by the R&S NRP2. The meter displays the menu names in the menu bar at the top of the screen. The menus are selected by the top-most rocker switch.
  • Page 55 Manual Operation NRP2 Menu layout Sensor menu Windows menu Measurement File menu System menu menu Sensor menu All sensor settings can be made using the "Sensor" menu. The type and details of data acquisition can be specified with this menu.

  • Page 56: Menu Handling

    Manual Operation NRP2 Menu handling 3.4 Menu handling The menus can contain up to eight menu items which are used to perform an action, open a dialog box or set a parameter. Perform an action If the menu contains only one or two descriptive terms, an action is performed directly.
  • Page 57 ↵MENU hardkey. Settings made in dialog boxes are immediately set on the R&S NRP2 - in other words you do not need to close the dialog box to activate the settings in the box.
  • Page 58 Manual Operation NRP2 Dialog boxes and their controls The editor is activated by pressing the appropriate rocker switch. Editing can be performed in overwrite mode, indicated by the marked character being in inverse video. Modifications can be made either with the ⇧ ⇩ cursor keys or numeric/digit softkeys which are provided in a digit or letter panel when the editor is activated.
  • Page 59 Manual Operation NRP2 Dialog boxes and their controls If you edit a value in a Filter, Range and Trigger dialog box using the cursor keys ⇧ ⇩, the new value is accepted immediately. This feature allows you to quickly assess the effect of value change and, thus, to perform interactive adjustment of settings.

  • Page 60: Display Windows

    Manual Operation NRP2 Display windows To edit the Trigger Delay, you must select the unit by means of the cursor keys (see above). 3.6 Display windows 3.6.1 Window sizes and types Results are displayed in the main section of the screen in windows. Windows come in three sizes: half height, quarter height and full height.
  • Page 61 Manual Operation NRP2 Display windows "D&A" window, full height "D&A" window, half height "Dig" window, quarter height "D&A" window, quarter height You can expand all opened windows to full height by activating the "Expand" function from the "Windows" menu. In this state, the full-height windows can be displayed con- secutively using the window "1 2 3 4"...
  • Page 62 Manual Operation NRP2 Display windows Correction functions Trigger Duty cycle correction ON Trigger Offset correction ON Free-running trigger Twoport correction ON (S- Trigger event missing parameter) Single-shot mode, trigger expec- Filter Averaging filter Single-shot mode, measurement over Filter size with auto-filter (normal...
  • Page 63 Manual Operation NRP2 Display windows Table 3-3: Symbols for time slot measurement Time slot start of measurement Time slot end of measurement Time slot length of measure- ment User Manual 1173.9140.02 ─ 07 北京海洋兴业科技股份有限公司（证券代码：839145） 电话：010-62176775 网址：www.hyxyyq.com...

  • Page 64: Instrument Functions

    Main Settings 4 Instrument Functions Chapter "Instrument functions" explains the functions of the R&S NRP2 and its options. The associated SCPI command is specified for each parameter (where applicable). The description starts with general instrument settings accessed by the SETUP hard- keys.
  • Page 65 Instrument Functions NRP2 Main Settings ● all channels in the Cont Av mode (continuous average power) ● absolute power measurement in dBm ● one window per channel opened ● offset: 0 dB ● automatic filtering (normal mode) (PRE)SET does not reset the following settings: ●...
  • Page 66 Zero A | B | C | D Zeroes the selected channel. Remote command: on page 237 CALibration<[1]..4>:ZERO:AUTO 4.1.3.2 Zeroing failure If the power measured during zeroing is too large, the R&S NRP2 reports an error. User Manual 1173.9140.02 ─ 07 北京海洋兴业科技股份有限公司（证券代码：839145） 电话：010-62176775 网址：www.hyxyyq.com...

  • Page 67: Data Acquisition And Parameters

    Depending on the options that have been installed, up to four sensors can be connec- ted to the R&S NRP2. The sensors perform the complete power measurement from the acquisition of the RF signal to every aspect of result processing. All important parameters for configuring data acquisition are therefore entered in the "Sensor"...
  • Page 68 66). "Trace&Statis- In the Trace & Statistics mode, the R&S NRP2 analyzes the power tics" envelope of the test signal and displays the power envelope either as a function of time or in its probability distribution and probability den- sity distribution function (see chapter 4.2.1.6, "Trace &...
  • Page 69 Instrument Functions NRP2 Data acquisition and parameters "Burst Av" The Burst Average mode is used to measure the average burst power of pulsed signals. The acquisition interval is automatically derived from the signal (see chapter 4.2.1.3, "Measuring the average power of burst signals",...
  • Page 70 Instrument Functions NRP2 Data acquisition and parameters It is not useful to select the aperture time longer than required, since it increases the noise component of the power sensor (chapter 4.2.1.7, "Background information on power measurement", on page 72). Remote command: on page 272 [SENSe<[1]..4>][:POWer][:AVG]:APERture...
  • Page 71 Instrument Functions NRP2 Data acquisition and parameters parameters "Excluded from Start" and "Excluded from End", the start and end of bursts can be excluded from the measurement. This means that signal overshoots can be omitted from measurements, for example. Find some background information in sections "Dropout tolerance"...
  • Page 72 Instrument Functions NRP2 Data acquisition and parameters This measurement mode can be used only if all timeslots of the TDMA signal are equal in length. A period to be excluded from the measurement can be defined at the begin- ning and end of each timeslot by using the "Excluded from Start/End" parameters. The R&S NRP-Z8x wideband power sensors can additionally define an exclusion interval in...
  • Page 73 Instrument Functions NRP2 Data acquisition and parameters Example: When measurements are performed on TDMA signals (GSM/EDGE, PDC, NADC, PHS etc), the nominal timeslot length must be entered here, i.e. the frame length divi- ded by the number of timeslots. Table 4-1: GSM signal Frame length: 4.615 ms...
  • Page 74 Instrument Functions NRP2 Data acquisition and parameters 4.2.1.5 Measuring the average power in gates The timegate mode is used to measure the average power in arbitrarily chosen time intervals (gates). The time resolution is determined by the sampling rate of the sensor.
  • Page 75 Instrument Functions NRP2 Data acquisition and parameters Config Fence … Opens the dialog box for setting the parameters "Start" and "Length". Fig. 4-10: Fence dialog box Start/Length of Fence ← Config Fence … Within the measurement period, a "fence", i.e. an exclusion interval can be set. The fence is defined by its start time and length.
  • Page 76 Instrument Functions NRP2 Data acquisition and parameters Table 4-2: Acquisition interval of the respective measurement modes Mode Acquisition interval identical to ... Cont Av aperture time (default or user-specific) T'slot Av nominal width x number of slots T'gate Av gate length...
  • Page 77 Instrument Functions NRP2 Data acquisition and parameters surement result, which are due to the acquisition time not being matched to the modu- lation (pulse) period. Although it is possible with R&S NRP-Zxx Power Sensors to set the aperture time identical to a multiple integer of the period of the power envelope of the signal, this approach fails with a varying or unknown period.
  • Page 78 Instrument Functions NRP2 Data acquisition and parameters Dropout Power Last falling edge in the burst Trigger event Trigger threshold Time Excluded from End Excluded from Start Measurement interval Fig. 4-11: Timing diagram of burst signals Timing diagram of T'Slot Av signals...
  • Page 79 Instrument Functions NRP2 Data acquisition and parameters Trigger event (internal) Trigger threshold (internal) Measurement interval # Time Excluded from End Width Fig. 4-13: Measurement on timeslot signal with internal triggering 4.2.2 Offset correction The "Offset" dialog box is for activating and entering dB offsets to effect an increase or decrease in the measurement result which is not level-dependent.
  • Page 80 Instrument Functions NRP2 Data acquisition and parameters Fig. 4-14: Offset dialog box The Offset menu shows the calculated offset values. "Table Offset" is the offset calcu- lated from the selected table and the current frequency. Its value does not depend on whether table offsets are active or not.
  • Page 81 269 [SENSe<[1]..4>]:CORRection:SPDevice:STATe 4.2.2.2 Table editor for offset tables The R&S NRP2 provides a list editor for defining the frequency / offset value pairs. Two table-editor modes are available: ● Selection mode In this mode, using the cursor keys ⇧ ⇩ ⇦ ⇨, you can select the number field you want to "Edit", "Insert"...
  • Page 82 Instrument Functions NRP2 Data acquisition and parameters Fig. 4-15: Table dialog box The table editor displays the name of the table in its title bar, a two-column list with fre- quency and offset value pairs and provides softkeys for data management.
  • Page 83 Instrument Functions NRP2 Data acquisition and parameters In manual mode, “longer measurement” does not mean that it takes longer to display a new result, but rather that it takes longer for the result to settle when the power changes. The filter settings of the "Trace & Statistics" mode and the other modes, which exclu- sively provide average power values, differ significantly.
  • Page 84 Instrument Functions NRP2 Data acquisition and parameters 4.2.3.1 Filter dialog box Fig. 4-16: Filter dialog box A | B | C | D Tabs for selecting the sensor. Note: In remote-control commands, select the sensor with the suffix in command SENSe<[1]..4>:..., i.e.
  • Page 85 Instrument Functions NRP2 Data acquisition and parameters Auto Config... Opens the "Auto Filter" dialog box. Fig. 4-17: Auto filter dialog box A | B | C | D ← Auto Config... Tabs for selecting the sensor. Note: In remote-control commands, select the sensor with the suffix in command SENSe<[1]..4>:..., i.e.
  • Page 86 Instrument Functions NRP2 Data acquisition and parameters 4.2.4 Measurement ranges The power sensors of the R&S NRP series avoid range switching. Some of them, like the thermal ones of the R&S NRP-Z5x series and the wideband power sensors of the R&S NRP-Z8x series, have only one measurement range.
  • Page 87 Instrument Functions NRP2 Data acquisition and parameters Fig. 4-18: Range dialog box A | B | C | D Tabs for selecting the sensor. Note: In remote-control commands, select the sensor with the suffix in command SENSe<[1]..4>:..., i.e. choose suffix 1 for channel A, channel 2 for B, and so on.
  • Page 88 Instrument Functions NRP2 Data acquisition and parameters Sensor Γ correction dialog box 4.2.5.1 ► Open the Γ correction dialog box in the "Sensor "menu If "Γµ correction" is activated, the measurement accuracy can be increased by specify- ing magnitude and phase of source Γ.
  • Page 89 Instrument Functions NRP2 Data acquisition and parameters ► Configure the trigger system in the "Trigger" dialog box which is opened via the "Sensor" menu, or via the control panel of the respective trace mode. Trigger dialog box, page1 The first page covers the parameters for defining a trigger mode, trigger source, and trigger level.
  • Page 90 Instrument Functions NRP2 Data acquisition and parameters Note: In addition to using an internal or external trigger source, a trigger event can be forced using the DEL/1TRIG hardkey, see chapter 4.2.7, "Trigger sequence control", on page 89. "Internal" The trigger event for the selected sensor is derived from the mea- sured signal.
  • Page 91 Instrument Functions NRP2 Data acquisition and parameters Fig. 4-21: Trigger dialog box, page 2 A | B | C | D ← Trigger dialog box (2) Tabs for selecting the sensor. Note: In remote-control commands, select the sensor with the suffix in command SENSe<[1]..4>:..., i.e.
  • Page 92 Instrument Functions NRP2 Data acquisition and parameters Fig. 4-22: Trigger dialog box, page 3 A | B | C | D ← Trigger dialog box (3) Tabs for selecting the sensor. Note: In remote-control commands, select the sensor with the suffix in command SENSe<[1]..4>:..., i.e.
  • Page 93 Instrument Functions NRP2 Data acquisition and parameters Internal and external trigger signals are used for triggering. In addition, the trigger sequence can be manually controlled using the DEL/1TRIG key. 4.2.7.1 Controlling trigger sequence in normal mode In normal (continuous) trigger mode measurements run continuously with regular trig- ger events.

  • Page 94: Displaying Measurement Results

    The R&S NRP2 provides a total of four windows for displaying results. 4.3.1 Arranging windows Windows are displayed in numerical order from the top to the bottom of the screen. The R&S NRP2 automatically selects the window size according to the number of dis- played windows. Fig. 4-23: Arranging windows 4.3.2 Labeling windows...
  • Page 95 Instrument Functions NRP2 Displaying measurement results With remote control, the window is selected with suffix <[1]..4> in the WINDow key- word. For example, command SENSe:WINDow2:STAT ON activates window 2. 4.3.3 The Windows menu The "Windows" menu is context-sensitive and displays only those menu items that are relevant to the current measurement scenario.
  • Page 96 Instrument Functions NRP2 Displaying measurement results Open Opens the selected window with its previous settings, i.e. "Open" restores a measure- ment that has been removed from the display. Remote command: on page 247 DISPlay[:WINDow]<[1]..4>[:STATe] Init Initializes the selected window, i.e. "Init" configures a completely new measurement with preset values.
  • Page 97 Instrument Functions NRP2 Displaying measurement results "Dig" The digital display mode shows the measured value numerically. Additional information on the active settings is provided, e.g. signal frequency, sensor mode, trigger mode, etc.. For a description of the used symbols see chapter 3.6.2, "Special...
  • Page 98 Instrument Functions NRP2 Displaying measurement results "Graph" In the graphical display mode, the power meter displays the enve- lope power as a function of time or in its distribution and distribution density function (CCDF, CDF, PDF). Additional information on the active settings is below the graph in the info panel.
  • Page 99 Instrument Functions NRP2 Displaying measurement results In the hybrid digital & analog mode, the resolution of the digital display ("Setting the resolution" on page 96) and the scaling for the analog meter are adjustable ("Setting the Analog Meter" on page 96).

  • Page 100: Configuring Measurements

    248 DISPlay[:WINDow]<[1]..4>:TSLot 4.4 Configuring measurements The R&S NRP2 can perform up to four measurements simultaneously. Each measure- ment is configured separately in a window. Measurement parameters are set in the "Measurement" menu. For every window opened via the "Windows" menu, a measurement in the "Measure- ment"...
  • Page 101 113 The R&S NRP2 can display the measurement result of one channel (sensor) or com- bine measured values from two channels (sensors) using a mathematical function and display the result in the selected window. The necessary settings are made in the "Function..."...
  • Page 102 Instrument Functions NRP2 Configuring measurements The first step is to select the measurement function, i.e. the mode of combination for multi-channel measurements. Possible functions are the power ratio, the sum, or the difference of two channels, an impedance matching measurement function derived from the power ratio or the power in a single measurement channel.
  • Page 103 "PDF"). In this case, it is not possible to select another measurement function. Function The list of functions itemizes all the measurement functions provided by the R&S NRP2. Any of the four channels can be assigned primary or secondary channel. The available units depend on the selected function, see tables 4-3, 4-4, 4-5, 108.
  • Page 104 "Prim. / Sec. channel " if impedance measurement func- tions such as "SWR", "RCoeff" and "RLoss" are selected. 4.4.3.2 Measuring power in gates For time-gated power measurements the R&S NRP2 power meter offers two modes: ● T'gate Av ●...
  • Page 105 Instrument Functions NRP2 Configuring measurements Fig. 4-32: Measurement within a gate (T'gate Av mode) Trace & Statistics In this mode, the peak power (Pk) or the Pk/Av ratio can be measured within a user- definable gate in addition to the average power (Av). However, the time resolution is limited to the length of one point (pixel) of the display.
  • Page 106 Instrument Functions NRP2 Configuring measurements Fig. 4-34: Measurement within a gate (Trace&Statistics mode/Dig display mode) In "Dig"/"D&A" display modes, the results can be correlated to any other measured value ("Function"). If you want to combine the measurement results of different channels by using func- tions, not all combinations are supported.
  • Page 107 DISPlay[:WINDow]<[1]..4>:AVALue Reading out values on page 225 CALCulate<[1]..8>:DATA? 4.4.3.3 Measuring power in timeslots As with time-gated power measurements, the R&S NRP2 power meter also offers two measurement modes for measurements within timeslots ● T'Slot Av ● Trace & Statistics T'Slot Av In this mode, the average power (Av) within any timeslot of a user-definable timeslot structure can be measured.
  • Page 108 Instrument Functions NRP2 Configuring measurements To configure the measurement of Av, Pk and Pk/Av ratio: 1. Select "Trace & Statistics" in the "Mode" dialog box of the "Sensor" menu 2. Select "T'slot" mode in the "Display" control panel of the Trace display 3.
  • Page 109 Instrument Functions NRP2 Configuring measurements Fig. 4-39: Function & Unit dialog box, sensors are operated in timeslot mode Timeslot Determines which timeslot is to be evaluated. Only one value for both channels can be selected. Eval. This selection is only available in the "Trace & Statistics" mode. In the T'Slot Av mode, evaluation is fixed to 'Avg' = average power in the timeslot.
  • Page 110 I.e. absolute power values are displayed in W, dBm or dBμV , and relative values in 1, dB or Δ%, respectively. The following tables show how the R&S NRP2 calculates the measurement results for the different units either in absolute notation or relative to a reference value, see chap- ter 4.4.4, "Relative...
  • Page 111 Instrument Functions NRP2 Configuring measurements Table 4-5: Formulas for sum and difference of power Unit Function dbμV Sum (A+B)   P                 μ ...
  • Page 112 58 for information concerning the displayed symbols and values. The R&S NRP2 continuously saves the data that is required for the display of extreme and statistic values. The data memory can be erased any time with "Aux Val Reset" in the "Measurement"...
  • Page 113 The reference value can be a previously stored reading or an entered value. The R&S NRP2 calculates the ratio of measurement result and reference value and the relative deviation of the measured value from the reference value and indicates the result.
  • Page 114 Instrument Functions NRP2 Configuring measurements 4.4.4.1 Relative The "Relative" settings activate or deactivate relative power measurement, or assign a measurement result as reference. Off On Reset Relates a power or a power ratio to a reference value. "Off" Absolute power measurement or measurement of the power ratio of two measurement channels using the "Ratio"...
  • Page 115 CALCulate<[1]..8>:LIMit:BEEP 4.4.6 Resetting auxiliary information For each window, the R&S NRP2 continuously saves data that is required for display- ing the extreme values and statistical values. These values can be reset any time. To reset the auxiliary values press the lowest softkey in the "Measurement" menu.

  • Page 116: Displaying Traces

    4.5.1 Basic settings for trace display The trace display can be quickly selected after a preset. 1. Connect a sensor to the R&S NRP2 (any channel). The sensor must support trace measurements (true for all sensors except for the R&S NRP-Z9x, R&S NRP-Z5x, and R&S NRP-Z27/-Z37 sensors)
  • Page 117 Instrument Functions NRP2 Displaying traces 6. Only for R&S NRP-Z8x wideband power sensors and if a time resolution beyond the sample period is required: Enable automatic activation of "Equivalent Time Sampling". 7. Close the "Mode" dialog (MENU key). The trace window displays the waveform and the measurement results.
  • Page 118 NRP2 Displaying traces In full height window, the R&S NRP2 provides additional control elements such as trig- ger, marker or scale-setting parameters in the control panel on the right of the screen. At the bottom of the screen, info panels indicate measurement results or instrument settings.
  • Page 119 Instrument Functions NRP2 Displaying traces Fig. 4-46: Trace display mode Plot = channel / meas. function; display type VBW / Avg = video bandwidth / averaging number Trigger = trigger slope and source Offset / dB = level offset to take gain/attenuation at the sensor input into account The following sections describe the functions of the control panel and diagram settings in detail.
  • Page 120 Instrument Functions NRP2 Displaying traces Trace Func ... Opens the "Trace Function" subdialog, see chapter 4.5.3.4, "Trace function settings", on page 119. One or two waveforms can be selected for display. Each waveform rep- resents either the absolute envelope power of one measurement channel over time or it represents the ratio of the envelope power of two channels over time.
  • Page 121 Instrument Functions NRP2 Displaying traces Unit Sets the result unit. 4.5.3.3 Filtering settings You can smooth the trace in the "Average" display by means of an averaging filter. For this purpose, a number of sweeps are recorded and the power of points of the same position in time is averaged ("Trace Averaging").
  • Page 122 Instrument Functions NRP2 Displaying traces Fig. 4-48: Filter dialog box in Trace display mode A | B | C | D Tabs for selecting the sensor. Note: In remote-control commands, select the sensor with the suffix in command SENSe<[1]..4>:..., i.e. choose suffix 1 for channel A, channel 2 for B, and so on.
  • Page 123 Instrument Functions NRP2 Displaying traces Trace 1 / 2 Selects the trace (waveform) to be configured. Up to two traces can be selected. This is also true if only one measurement channel (sensor) is present. In this case, one trace for example can represent the average envelope power and the other trace the peak or random power (available for the R&S...
  • Page 124 Instrument Functions NRP2 Displaying traces Fig. 4-50: Gates display mode Gate = channel; measurement function; display type Average = average power within gate Peak = peak power within gate Peak / Avg = peak power / average power (ratio) within gate...
  • Page 125 Instrument Functions NRP2 Displaying traces Define calculation of measurement result: on page 226 CALCulate<[1]..8>:FEED<[1]|2> Read result: on page 211 FETCh? 4.5.4.1 Measurement results The measured values for the selected gate and trace (waveform) are indicated in the info panel below the graph (see also "Select Trace ..."...
  • Page 126 Instrument Functions NRP2 Displaying traces "[3] [4]" Sets the fence, provided "Fence" has been activated in the "Config Gates" dialog box, see chapter 4.5.4.3, "Gate diagram settings", on page 123. This setting applies to R&S NRP-Z8x wideband power sensors only.
  • Page 127 Instrument Functions NRP2 Displaying traces Within the measurement period, a "fence", i.e. an exclusion interval, can be set. The fence is defined by its start time and its length. The start time refers to the start of the gate. In contrast to the numeric "T'gateAv" mode, the definition of fences in the "Gate" mode is not restricted to the wideband power sensors of the R&S NRP-Z8x series.
  • Page 128 Instrument Functions NRP2 Displaying traces 4.5.5.1 Controls in Marker display mode Display Selects another view, see chapter 4.5.2, "Trace window", on page 114. Config Marker... Opens the subdialog to manually define the marker positions, see chapter 4.5.5.2, "Marker diagram settings", on page 125.
  • Page 129 4.5.6 Pulse display mode The R&S NRP2 performs automatic analysis of pulsed signals (with wideband power sensor R&S NRP-Z-Z8x only). The measurement is either performed over the visible portion of the trace (entire screen width), or within the active gate of the selected trace (waveform).
  • Page 130 Instrument Functions NRP2 Displaying traces An active gate is indicated by colored lines, as shown in the graph. The info panel in the pulse trace diagram indicates up to 6 parameters. The values to be indicated can be selected in the "Pulse Measurements" dialog box, see chap- ter 4.5.6.2, "Pulse diagram...
  • Page 131 Window→Graph→"Display"→"Pulse" control panel ("Trace&Statistics" sensor mode). The R&S NRP2 indicates the total number of the activated parameters in the header of the dialog box. You can activate up to 6 items out of 15 for display. As a prerequisite of pulse analysis, the parameters selected for display must be inclu- ded in the analysis window.
  • Page 132 Instrument Functions NRP2 Displaying traces "Pulse Off Indication of the gap between two pulses. Time" Indication of the times the signal requires to change from the power "Rise / Fall Time" off to power on state. "Start / Stop Indication of the start / stop point of the first power pulse within the Time"...
  • Page 133 Instrument Functions NRP2 Displaying traces The "Config" tab contains the threshold parameters to define the high, mid and low ref- erence levels which are used to determine the pulse timing. All values are specified in percent of the pulse amplitude, either expressed in terms of power (Watt) or voltage (Volt).
  • Page 134 Instrument Functions NRP2 Displaying traces "Algorithm" Selects the analysis algorithm for detecting the pulse top and the pulse base power of a pulsed signal. From these two power levels the reference levels are derived. ● "Histogram" Computes the pulse top/base power by analyzing the histogram of the trace data.
  • Page 135 Instrument Functions NRP2 Displaying traces I← = start of measurement →I = stopt of measurement I←→I = duration of measurement Time slots are marked by dotted lines. The period of the currently selected time slot over which the signal is averaged is marked by a colored frame with a continuous lines.
  • Page 136 Instrument Functions NRP2 Displaying traces Average / Peak / Peak/Avg Average power, peak power and the ratio peak power to average power. Remote command: Configuring measurement: on page 226 CALCulate<[1]..8>:FEED<[1]|2> Retrieving results: on page 211 FETCh? 4.5.7.2 Controls in T'Slot display mode...
  • Page 137 Instrument Functions NRP2 Displaying traces 4.5.7.3 T'Slot diagram settings ► Configure timeslot measurement in the "Timeslot Config" dialog box which is opened via the Window→Graph→"Display"→"T'slot" control panel ("Trace&Statis- tics" sensor mode). Fig. 4-60: Timeslot Config dialog box No of Timeslots Defines the number of subsequent timeslots within a frame, i.e.
  • Page 138 Instrument Functions NRP2 Displaying traces Within the measurement period, a "fence", i.e. an exclusion interval, can be set. The fence is defined by its start time and its length. In contrast to the numeric "T'slotAv" mode, the definition of fences in the "T'slot" mode is not restricted to the wideband power sensors of the R&S NRP-Z8x series.
  • Page 139 Instrument Functions NRP2 Displaying traces Fig. 4-62: Statistics display mode with two traces (AWGN) From the gathered samples, four parameters for each trace are indicated in the info panel: ● the peak power ● the average power ● the measurement result at the position of the power (x) marker ●...
  • Page 140 Instrument Functions NRP2 Displaying traces the power (x) marker is positioned to a power value; the associated value of the distribution (distribution density) function is measured. the result (y) marker is positioned to a measured value of the distribu- tion (distribution density) function; the associated power value is indi- cated.
  • Page 141 Instrument Functions NRP2 Displaying traces Fig. 4-63: Statistics display with additional table The table always indicates the logarithmic values independent of the settings for the graph. Configuring the statistics display ► Select "Stat's Config..." in the control panel opened via the Window→Graph→"Dis- play"→"Stat's"...
  • Page 142 Instrument Functions NRP2 Displaying traces Note: Start and division values of the Y axis (probability) are fixed in logarithmic dis- plays and can not be modified (relating to CDF or CCDF functions). You can modify the y axis in linear displays (CDF, CCDF, PDF). Unit of the CCDF / CDF is %, while the PDF function is dimensionless.
  • Page 143 Instrument Functions NRP2 Displaying traces Statistics evaluation function Note: A linear (lin) or logarithmic (log) scale is available for "CCDF" and "CDF". The "PDF" can only be displayed linearly. "CCDF" Complementary Cumulative Distribution Function. Displays the prob- ability of the envelope power being higher than the corresponding X axis power value.

  • Page 144: Management Of Settings

    4.6.2 Storing user-defined settings The R&S NRP2 provides 19 memory spaces in which complete device settings can be stored (Setup memory). Settings can be stored by using the "Save Setup" dialog box of the "File" menu. The memory spaces can be labeled with a name for identification.
  • Page 145 Instrument Functions NRP2 Management of settings Setup Name Names or renames the selected memory space. A letter panel opens after pressing the associated softkey. Remote command: on page 252 MEMory:STATe:MAP Save Saves the current settings under the selected name. After the settings are stored suc- cessfully, the dialog box closes automatically.
  • Page 146 Instrument Functions NRP2 Management of settings windows", on page 144). The name can therefore be changed and deleted as desired, but above all it is not automatically deleted when one of the preset parameters is changed and the instrument setting no longer corresponds to the loaded standard.
  • Page 147 If the device is already in the remote state, the menu bar is replaced and the error list can be opened with the topmost softkey. ↵DEL If the "Error List" is open, the error queue of the R&S NRP2 can be deleted by pressing the DEL/1TRIG hardkey. Remote command:...

  • Page 148: System Settings

    Miscellaneous, on page 160 ● Test measurement, on page 161 4.7.1 Configuring the remote control interfaces The R&S NRP2 provides different interfaces for remote control. The settings are con- figured in the "Remote Interfaces" dialog box. User Manual 1173.9140.02 ─ 07 北京海洋兴业科技股份有限公司（证券代码：839145）...
  • Page 149 Instrument Functions NRP2 System settings In addition, the R&S NRP2 supports command sets of power meters from other manu- facturers. Thus, it is possible for example, to conveniently replace a power meter by the R&S NRP2. Overview of the remote control interfaces The following table gives a detailed overview on the supported interfaces.
  • Page 150 The available instrument types are listed. This feature allows to replace a power meter by an R&S NRP2 in existing test setups. Refer to Application Note 1G83 at the down- load area of the product site on the Internet for details and up-to-date information (http://www.rohde-schwarz.com/product/nrp2.html).
  • Page 151 147. 4.7.1.3 USB settings Remote control of the R&S NRP2 via the USB is performed according to the USBTMC standard. For this purpose, a VISA library that supports remote control via the USB is required by the remote-control computer.
  • Page 152 R&S NRP2 and the IP address for the local default gateway from your network admin- istrator. If the network consists only of the R&S NRP2 and the control computer, the two units can be connected with each other directly using a special network crossover cable.
  • Page 153 Instrument Functions NRP2 System settings Table 4-12: Example of a network configuration for a direct R&S NRP2 – PC connection using a crossover cable. R&S NRP2 "IP Address" 192.168.0.2 192.168.0.1 "Mask" 255.255.255.0 255.255.255.0 "Gateway" 192.168.0.3 192.168.0.3 DHCP ← IP Config Fig.
  • Page 154 Instrument Functions NRP2 System settings If the R&S NRP2 is to be integrated into a larger network, contact your network admin- istrator regarding the data to be set. Fig. 4-79: Remote Interface dialog box, Ethernet IEEE Mode Selects the level of standardization of the IEEE bus interface. The R&S NRP2 supports all versions of "IEEE 488.0, *.1 and *.2".
  • Page 155 Instrument Functions NRP2 System settings Fig. 4-80: I/O dialog box For background information on the analog outputs see chapter 4.7.2.3, "Voltage at the analog outputs", on page 157. 4.7.2.1 Out1 interface This section describes the functions of the analog signal output at the "OUT1 / TRIG OUT"...
  • Page 156 Instrument Functions NRP2 System settings Fig. 4-82: Out1 mode / Analog Remote command: on page 258 OUTPut:RECorder<[1]..2>[:STATe] Window 1 2 3 4 ← Analog ← Mode Selects the window the output refers to. Only windows that are operated in "Dig" or "D&A" window mode are available for selec- tion.
  • Page 157 Instrument Functions NRP2 System settings Fig. 4-83: Out1 mode / Pass/Fail Remote command: on page 260 OUTPut:TTL[:STATe] Window 1 2 3 4 ← Pass/Fail ← Mode Selects the window the output refers to. Only windows that are operated in "Dig" or "D&A" window mode are available for selec- tion.
  • Page 158 Instrument Functions NRP2 System settings Fig. 4-84: Out1 mode / TrigOut The trigger signal is either supplied by one of the connected sensors, i.e. the trigger master, or via the "TRIG IN / OUT2" socket, see chapter 4.2.6, "Trigger settings", on page 85.
  • Page 159 Instrument Functions NRP2 System settings Fig. 4-86: I/O / I/O 2 tab Mode Selects the function of the TRIG IN / OUT2 connector. "Analog Out" and "Trigger In" are available. Note: For remote control, only suffix 2 is allowed in the command header for the set- ting theTRIG IN / OUT2 connector functions.
  • Page 160 Fig. 4-88: I/O 2 mode / Trigger In Use the external trigger signal, e.g. to start the measurement in all sensors simultane- ously. Provided the R&S NRP2 is configured accordingly, it passes the signal directly through to the sensors. Refer to chapter 4.2.6, "Trigger...
  • Page 161 For applications having high requirements on the dynamic behavior of the analog out- puts, for example leveling loops, it is advisable to freeze the screen of the R&S NRP2 to avoid interruptions caused by writing to the display memory (chapter 4.7.5, "Miscel-...
  • Page 162 The sensor info dialog shows the information on the selected sensor. Remote command: on page 326 SYSTem:SENSor<[1]..4>:INFO? 4.7.4.2 Information on the R&S NRP2 ► Select "System Info..." in the "System" menu. Fig. 4-91: System info dialog (System info) The system info dialog displays information concerning hardware and firmware of your R&S NRP2.
  • Page 163 Version of the bootloader. Keybd. Ctrl. Version of the keyboard controller software. Options Short name of the installed options. Hardware Serial No Serial number of the R&S NRP2. Stock No R&S material number. MAC Address Ethernet hardware address. RAM size. Flash Flash memory size, holding the operating system, the firmware and the stored data (non-volatile).
  • Page 164 Instrument Functions NRP2 System settings Limit warnings may be configured separately for each window. Therefore, the check- box "Limit Warning" may show a grayed checkmark, if the settings differ for different windows. Beep - Overload Activates an acoustic feedback when the sensor is overloaded (overload condition, see chapter 4.8, "Messages and...
  • Page 165 Instrument Functions NRP2 System settings The "Test..." function offers tests for the internal circuitry of the sensor (selftest 1) as well as simple tests with applied RF (option R&S NRP-B1/-B7 required). 4.7.6.1 Internal sensor selftest ► Open the "Sensortest" dialog box in the "System"→"Test..." menu.
  • Page 166 Instrument Functions NRP2 System settings Fig. 4-94: Sensor Selftest Report dialog box 4.7.6.2 Sensor test with applied RF Testing the sensor with the RF reference signal requires option R&S NRP-B1/-B7, Sensor Check Source. ► Open the "Sensortest" dialog box in the "System"→"Test..." menu and select the second page.
  • Page 167 When the dialog box opens, it shows the data of the sensor last tested. The measured values are lost when the R&S NRP2 is switched off. Fig. 4-98: Sensor test report, page 1 Page 1 shows the test results for the sensor section.
  • Page 168 With multipath power sensors (R&S NRP-Z11, R&S NRP-Z21/22/23/24/28, R&S NRP- Z31 and R&S NRP-Z91/92/98), the R&S NRP2 displays the test result of each individ- ual path separately. Config…...

  • Page 169: Messages And Alarms

    Protects the settings against being changed by mistake. 4.8 Messages and alarms The R&S NRP2 displays a variety of different messages such as status messages, error messages, warnings or information on the screen, some in separate windows, or in the header.
  • Page 170 Instrument Functions NRP2 Messages and alarms Sample Error Fig. 4-103: Error message / Sample Error The message indicates that samples were lost while sampling the signal. The mea- sured value can thus be incorrect. Trunc. Meas. Fig. 4-104: Error message / Trunc. Meas.
  • Page 171 Automatic window initialization Fig. 4-106: Information / New Window If an additional sensor is connected to the R&S NRP2 during operation and if no cur- rently open window displays the values measured in the channel concerned, the R&S NRP2 automatically offers to open a window and to configure it for measurements with the additional sensor connected.

  • Page 172: Remote Control Fundamentals

    NRP2 Differences between Remote Control and Manual Control 5 Remote Control Fundamentals The Power Meter R&S NRP2 is equipped with various interfaces that can be connec- ted to a controller for remote control. ● IEC/IEEE-bus interface (standard equipment) in line with the standards IEC 60625.1 (IEEE 488.1) and IEC 60625.2 (IEEE 488.2)

  • Page 173: Connecting A Controller To The Base Unit

    5.2 Connecting a Controller to the Base Unit 5.2.1 Settings in Base Unit Before a link can be established between the controller and the R&S NRP2, the R&S NRP2 must be assigned a corresponding address. In the manual control mode, the address is set in the "System" > "Remote" dialog box, chapter 4.7.1, "Configuring the remote control...
  • Page 174 4. Enter the port address ("PortNo"). Incoming connections from a controller have to use this port number in order to establish a connection to the R&S NRP2. 5. Define the IEEE protocol mode. For example select "IEEE 488.0" mode in order to use raw socket communication.

  • Page 175: Switchover To Remote Control (Remote)

    Errors may affect the entire network. GPIB (IEC/IEEE bus) In order to remote control the R&S NRP2 via the GPIB bus, a controller with the respective bus interface and the bus cable is required. The R&S NRP2 automatically recognizes a controller connected to the USB1.1 inter- face.

  • Page 176: Automatic Settings When Switching Between Local And Remote

    TRIG:ATR OFF 5.6 Communication on Data Lines The GPIB bus is the most common remote interface for measuring instruments. It has also been implemented in the R&S NRP2. The remote controller and the R&S NRP2 User Manual 1173.9140.02 ─ 07 北京海洋兴业科技股份有限公司（证券代码：839145）...
  • Page 177 5.6.2.1 Commands Commands are messages sent by the controller to the R&S NRP2. They control the device functions and request information. The commands are classified according to the effect they have on the device: ●...

  • Page 178: Structure And Syntax Of Device-Dependent Messages

    ● Sequential commands can only be executed when the execution of all other commands is completed. In the R&S NRP2, only the remote control commands INIT:IMM and CAL:ZERO:AUTO ONCE can overlap with other commands. 5.6.2.2 Responses Responses are messages sent by the device to the controller after a query.
  • Page 179 Remote Control Fundamentals NRP2 Structure and Syntax of device-dependent Messages space). The headers may be composed of several keywords. The query is created by appending a question mark directly to the header. 5.7.2.1 Common Commands Device-independent commands consist of a header preceded by an asterisk (*). The header may be followed by one or several parameters.
  • Page 180 Remote Control Fundamentals NRP2 Structure and Syntax of device-dependent Messages Example: SENSe[1..4]:TRACe:POINts <int_value> This command is at the third level of he SENSe system and sets the number of test points for the Trace mode. Fig. 5-1: SCPI command tree Some keywords are used at several levels within a command system.
  • Page 181 Remote Control Fundamentals NRP2 Structure and Syntax of device-dependent Messages Example: SENSe2:POWer:TSLot:COUNt 6 This command sets for sensor 2 the number of timeslots in the Timeslot mode to 6. Keyword SENSe cannot be omitted. Long and short form The keywords have a long and a short form. The keyword may be entered in short or in long form;...
  • Page 182 Remote Control Fundamentals NRP2 Structure and Syntax of device-dependent Messages different command system, the semicolon is followed by a colon. The colon stands for the root node of the command tree. Example: SYSTem:TIME 20,30,00;:SENSe:FUNCtion "POWer:AVG" This program message contains two commands. The first command belongs to the SYSTem system and is used to set the time of the system clock.
  • Page 183 Remote Control Fundamentals NRP2 Structure and Syntax of device-dependent Messages Some of the SCPI rules for query responses are stricter than those of the IEEE 488.2 standard: ● The required value is sent without header. Example: SENSe:AVERage:TCONTrol? Response: MOV ●...
  • Page 184 SCPI, these units are represented by the strings O or DPCT. The unit DPCT designates the deviation of a measurand from 100%. A power ratio of 95% thus corresponds to -5Δ%. Unit used in the R&S NRP2 SCPI notation Watt DBUV dBµV...
  • Page 185 Remote Control Fundamentals NRP2 Structure and Syntax of device-dependent Messages Example: Command: SENSe:POWer:BUFFered ON Query: SENSe:POWer:BUFFered? Response: 1 Character data Character data follows the syntax rules for keywords, i.e. it also has both a short and a long form. They must be separated from the header by a white space same as any parameter.

  • Page 186: Device Model And Command Processing

    Remote Control Fundamentals NRP2 Device Model and Command Processing 5.8 Device Model and Command Processing The device model shown in figure 5-2 was prepared from the point of view of the pro- cessing of remote control commands. The individual components operate independ- ently of each other and simultaneously.

  • Page 187: Automatic Settings For Manual Selection Of A Measurement Mode

    Programming of controller *OPC Sets the Operation Complete bit in the ESR Set bit 0 in the ESE of the R&S NRP2. after all commands sent prior to *OPC have Set bit 5 in the SRE of the R&S NRP2.
  • Page 188 Remote Control Fundamentals NRP2 Automatic Settings for Manual Selection of a Measurement Mode The following table lists the respective setting capabilities and the values that are auto- matically set in manual control. Table 5-3: Automatic settings for manual selection of a measurement mode...

  • Page 189: Correspondence Between Remote Control And Manual Control

    Remote Control Fundamentals NRP2 Correspondence between Remote Control and Manual Control SCPI command Value Remark [SENSe[1..4]]:TIMing:EXCLude:STOP Unchanged, is irrelevant. INITiate[1..4]:CONTinuous Cannot be modified in manual mode. Mode Timeslot Av TRIGger[1..4]:SOURce EXTernal | User-selectable. INTernal TRIGger[1..4]:SLOPe POSitive | User-selectable. NEGative TRIGger[1..4]:COUNt Cannot be modified in manual mode.
  • Page 190 Remote Control Fundamentals NRP2 Correspondence between Remote Control and Manual Control Menu item in manual control SCPI command in short form Sensor→Mode SENS[1..4]:FUNCtion Sensor→Mode→ContAv→Aperture SENS[1..4]:APER Sensor→Mode→ContAv→Sampling Rate SENS[1..4]:SAMP SENS[1..4]:CORR:DCYC Sensor→Mode→ContAv→DutyCycle Sensor→Mode→ContAv→DutyCycle SENS[1..4]:CORR:DCYC:STAT Sensor→Mode→ContAv→Smoothing of Modu- SENS[1..4]:SMO:STAT lated Signals Sensor→Mode→Burst→Dropout SENS[1..4]:BURSt:DTOL Sensor→Mode→Burst→Exclude Start...
  • Page 191 Remote Control Fundamentals NRP2 Correspondence between Remote Control and Manual Control Menu item in manual control SCPI command in short form Sensor→Filter→Reset SENS[1..4]:AVER:RES In Trace mode: SENS[1..4]:TRAC:AVER:RES Sensor→Filter→Auto Once SENS[1..4]:AVER:COUN:AUTO ONCE In Trace mode: SENS[1..4]:TRAC:AVER:COUN:AUTO ONCE Sensor→Filter→Auto Config...→Normal SENS[1..4]:AVER:COUN:AUTO:TYPE RES In Trace mode: SENS[1..4]:TRAC:AVER:COUN:AUTO:TYPE RES...
  • Page 192 Remote Control Fundamentals NRP2 Correspondence between Remote Control and Manual Control Menu item in manual control SCPI command in short form Sensor→Trigger→Holdoff TRIG[1..4]:HOLD Sensor→Trigger→Hysteresis TRIG[1..4]:HYST Sensor→Trigger→Dropout TRIG[1..4]:DTIMe Windows→Window 1234 DISP:SEL Windows→Open/Close DISP[1..4][:STAT] Windows→Expand/Restore DISP:SIZE Windows→Dig/D&A/Graph DISP[1..4]:FORM Windows→Resolution DISP[1..4]:RES SENS[1..4]:AVER:COUN:AUTO:RES DISP[1..4]:TSLot Windows→Timeslot #...
  • Page 193 Remote Control Fundamentals NRP2 Correspondence between Remote Control and Manual Control Menu item in manual control SCPI command in short form Measurement→Limits...→Lower Limit On CALC[1..8]:LIM:LOW:STAT Measurement→Limits...→Lower Limit CALC[1..8]:LIM:LOW[:DATA] Measurement→Aux Val Reset CALC[1..8]:EXTR:RES File→Preset SYST:PRES or *RST File→Setup Recall...→Recall *RCL File→Setup Save...→Save *SAV File→Setup Save...→Edit Name...
  • Page 194 Remote Control Fundamentals NRP2 Correspondence between Remote Control and Manual Control Menu item in manual control SCPI command in short form System→I/O... →I/O 2→A3 V Equivalent (if OUTP:REC2:LIM:UPP... Analog Out is selected) System→Errorlist DISP:ERR:STAT SYST:ERR:EXT:STAT SYST:ERR? System→Test... →Sensor ABCD / Init. Test SYST:SENS[1..4]:TEST?
  • Page 195 Remote Control Fundamentals NRP2 Correspondence between Remote Control and Manual Control Menu item in manual control SCPI command in short form Sensor→Mode→Trace&Statistics Windows→Graph Stats→Config... →Mark'r/y CALC[1..4]:STAT:MARK:VERT:POS:Y Sensor→Mode→Trace&Statistics Windows→Graph SENS:TRAC:MEAS ON Display→Pulse SENS:TRAC:MEAS:AUTO ON Sensor→Mode→Trace&Statistics Windows→Graph Display→Pulse→ SENS:TRAC:MEAS:PULS:DUR? Pulse Width SENS:TRAC:MEAS:PULS:PER?

  • Page 196: Remote Control - Commands

    Remote Control - Commands NRP2 Notation 6 Remote Control - Commands 6.1 Notation In the following sections, all commands implemented in the device are listed according to the command system and then described in detail. For the most part, the notation used complies with SCPI specifications.

  • Page 197: Common Commands To Ieee 488.2

    Remote Control - Commands NRP2 Common Commands to IEEE 488.2 Example: Definition: OUTPut:AUDiobits <audiobits> Command: OUTP:AUD 24 Special characters | and { } A vertical bar in parameter definitions indicates alternative possibilities in the sense of "or". The effect of the command differs, depending on which parameter is used.
  • Page 198 Remote Control - Commands NRP2 Common Commands to IEEE 488.2 refer to the status reporting system which is described in detail in chapter 6.13, "STA- Tus", on page 296. Commands available in the R&S NRP2 ..........................195 *CLS ..........................195 *ESE ...........................196 *ESR? ..........................196...

  • Page 199: Idn

    IDeNtification queries the instrument identification. Note: The return string can be customized using SYSTem:IDN and SYSTem:IDN:AUTO commands Example: Return values Rohde&Schwarz, NRP2, 10001, 07.03 The strings have the following meanuing: Rohde&Schwarz = manufacturer NRP2 = instrument type 10001 = serial number 07.03 = firmware version...
  • Page 200 Remote Control - Commands NRP2 Common Commands to IEEE 488.2 Since *OPC? waits until all previous commands are executed, "1" is returned in all cases. *OPC? basically functions like the *WAI command, but **WAI does not return a response. *OPC? is preferred to *WAI because with *OPC?, the execution of com- mands can be queried from a controller program before new commands are sent.

  • Page 201: Rst

    Remote Control - Commands NRP2 Common Commands to IEEE 488.2 Query: *PSC? The query form *PSC? reads out the contents of the power-on-status-clear flag. The response can be 0 or 1. Parameters: <Function> 0 | 1 Causes the contents of the status registers to be preserved.
  • Page 202 Remote Control - Commands NRP2 Common Commands to IEEE 488.2 Table 6-2: Preset values Command Preset and *RST value Remark CALC<[1]..8>:FEED[1..2] "POW:AVER" The calculate block processes average power values ("Aver- age"). CALC<[1]..8>:LIM:BEEP No audible signal in case of limit violations.
  • Page 203 Remote Control - Commands NRP2 Common Commands to IEEE 488.2 Command Preset and *RST value Remark DISP<[1]..4>:MET:LOW -90 DBM Lower limit value for analog result display. -120 DB DISP<[1]..4>:MET:UPP 70 DBM Upper limit value for analog result display. 60 DB DISP<[1]..4>:NAME...
  • Page 204 Remote Control - Commands NRP2 Common Commands to IEEE 488.2 Command Preset and *RST value Remark OUTP:TTL:ACT OUTPut:TTL:LVOLtage is applied to the TTL output if a limit is violated. OUTP:TTL:FAIL HIGH OUTPut:TTL:HVOLtage is applied to the TTL output if a limit is violated.
  • Page 205 Remote Control - Commands NRP2 Common Commands to IEEE 488.2 Command Preset and *RST value Remark SENS<[1]..4>:CORR:DCYC:STAT ON |OFF Depending on sensor. SENS<[1]..4>:CORR:FDOT No change. SENS<[1]..4>:CORR:FDOT:STAT SENS<[1]..4>:CORR:OFFS <NRf> Depending on sensor. SENS<[1]..4>:CORR:OFFS:STAT ON | OFF Depending on sensor. SENS<[1]..4>:CORR:SPD:SEL <NR1>...
  • Page 206 Remote Control - Commands NRP2 Common Commands to IEEE 488.2 Command Preset and *RST value Remark SENS<[1]..4>:SGAM:PHAS <NRf> Depending on sensor. SENS<[1]..4>:SMO:STAT ON | OFF Depending on sensor. SENS<[1]..4>:STAT:OFFS <NRf> Depending on sensor. SENS<[1]..4>:STAT:SAMP <NR1> Depending on sensor. SENS<[1]..4>:STAT:SCAL:X:POIN <NR1>...
  • Page 207 Remote Control - Commands NRP2 Common Commands to IEEE 488.2 Command Preset and *RST value Remark SYST:STAN:TRIG:SOUR Internal triggering. TRIG:ALL:SYNC TRIG[1..4|:ALL]:ATR ON | OFF Depending on sensor. TRIG[1..4|:ALL]:COUN <NR1> Depending on sensor. TRIG[1..4|:ALL]:DELay <NRf> Depending on sensor. TRIG[1..4|:ALL]:DEL:AUTO ON | OFF Depending on sensor.

  • Page 208: Stb

    Remote Control - Commands NRP2 Common Commands to IEEE 488.2 *STB? STatus Byte query reads out the contents of the status byte in decimal form. Usage: Query only *TRG TRiGger generates a BUS-trigger event. If the sensor is in the WAIT_FOR_TRG state and the source for the trigger is set to BUS (TRIG:SOUR BUS), the sensor enters the MEASURING state.

  • Page 209: Overview Of Scpi Command Systems

    Information flow Fig. 6-1: Overview of SCPI command systems and their mutual interaction The figure above gives an overview of the SCPI command systems of the R&S NRP2. The measured values are forwarded to the SENSe block where they are processed and handed to the CALCulate blocks.
  • Page 210 Configures and queries the chapter 5.8.4, "Status Reporting System", on page 184. SYSTem Performs different system settings that affect the operation of the R&S NRP2. TRIGger Configures timing conditions for start of measurement UNIT Sets output unit of the measured values.

  • Page 211: High-Level Measurement Commands (Configure, Measure, Read And Fetch)

    FETCh combine several low level setting commands and thus simplify programming of the R&S NRP2. The most convenient command is MEASure. This command configures sensors and calculate blocks, initiates a measurement and provides measurement results. The other commands perform only portions of these functions and thus allow the user to make specific modifications between the individual steps.
  • Page 212 Remote Control - Commands NRP2 High-Level Measurement Commands (CONFigure, MEASure, READ and FETCh) CONFigure CONFigure INIT MEASure? READ? FETCh? Fig. 6-4: Relationship between the commands CONFigure, READ?, FETCh? and MEASure? Strictly speaking, the CONFigure command is not a measurement command because it does not yield data and only configures a measurement.
  • Page 213 Remote Control - Commands NRP2 High-Level Measurement Commands (CONFigure, MEASure, READ and FETCh) With the FETCh and READ commands, the parameter list is used to crosscheck the set- tings of the instrument with the settings given in the list. If the settings do not agree, command execution is aborted.
  • Page 214 Remote Control - Commands NRP2 High-Level Measurement Commands (CONFigure, MEASure, READ and FETCh) In compliance with SCPI 1999.0, different results can be queried with FETCh without having to restart a measurement. This is the case if only the keywords for the calcula- tion function (e.g.
  • Page 215 Remote Control - Commands NRP2 High-Level Measurement Commands (CONFigure, MEASure, READ and FETCh) Usage: Query only 6.4.3 Syntactical Structure of High-Level Measurement Commands The high-level measurement commands can be generally represented as follows: <head><meas_mode>[<calc_function>][?] <parameter_list> Table 6-5: Syntactical Structure of High-Level Measurement Commands <head>...
  • Page 216 Remote Control - Commands NRP2 High-Level Measurement Commands (CONFigure, MEASure, READ and FETCh) Parameter lists for the different measurement modes ● measurement mode ContAV: [<expected_value> [,<resolution>]] [,<source_list>] ● measurement mode T'slot: <tslot_width>, <no_slots>, <start_exclude>, <end_exclude>, [<expected_value> [,<resolution>]] [,<source_list>] ● measurement mode Burst: <dtolerance>, <start_exclude>, <end_exclude>, [<expected_value>...
  • Page 217 Specifies the limit up to which the measurement result should be free of noise. The R&S NRP2 tries to set an adequate window for the averaging filter. This does not affect the accuracy of the measured data. The window can only be set if automatic setting of the filter window has not been disabled by the user (SENSe:AVERage:COUNt:AUTO OFF).
  • Page 218 Remote Control - Commands NRP2 High-Level Measurement Commands (CONFigure, MEASure, READ and FETCh) <source_list> Value range: (@n) | (@n),(@m) Default value: (@1) or (@1),(@2) n and m may assume the values 1, 2, 3 or 4. With this list, sensors are assigned to the primary and possibly to the secondary channel of a calculate block.
  • Page 219 Remote Control - Commands NRP2 High-Level Measurement Commands (CONFigure, MEASure, READ and FETCh) Table 6-7: One-channel functions (<source_list> = (@n); n = 1,2,3,4 ). Yields the measured average power of the sensor assigned to the PC. :RELative reference_ value The value measured in the PC is divided by the reference value.
  • Page 220 Remote Control - Commands NRP2 High-Level Measurement Commands (CONFigure, MEASure, READ and FETCh) :REFLection SC / If the forward power of a wave is measured in the PC and the reflected/transmitted power in the SC, the calculate block yields the reflection coefficient/transmission factor of the DUT.
  • Page 221 Remote Control - Commands NRP2 High-Level Measurement Commands (CONFigure, MEASure, READ and FETCh) CONFigure<[1]..8>[:SCALar][:POWer]:TSLot:REFLection CONFigure<[1]..8>[:SCALar][:POWer]:TSLot:RLOSs <tslot_width>, <no_slots>, <start_exclude>, <end_exclude>, [<expected_value> [,<resolution>]] [,<source_list>] CONFigure commands for measurement mode T'Slot. CONFigure<[1]..8>[:SCALar][:POWer]:BURSt CONFigure<[1]..8>[:SCALar][:POWer]:BURSt:RELative CONFigure<[1]..8>[:SCALar][:POWer]:BURSt:DIFFerence CONFigure<[1]..8>[:SCALar][:POWer]:BURSt:DIFFerence:RELative CONFigure<[1]..8>[:SCALar][:POWer]:BURSt:SUM CONFigure<[1]..8>[:SCALar][:POWer]:BURSt:SUM:RELative CONFigure<[1]..8>[:SCALar][:POWer]:BURSt:RATio CONFigure<[1]..8>[:SCALar][:POWer]:BURSt:RATio:RELative CONFigure<[1]..8>[:SCALar][:POWer]:BURSt:SWR CONFigure<[1]..8>[:SCALar][:POWer]:BURSt:REFLection CONFigure<[1]..8>[:SCALar][:POWer]:BURSt:RLOSs <dtolerance>, <start_exclude>, <end_exclude>, [<expected_value>...
  • Page 222 Remote Control - Commands NRP2 High-Level Measurement Commands (CONFigure, MEASure, READ and FETCh) Deactivates trace 2. In contrast to trace 1 which is always active, trace 2 can be deacti- vated. Trace 2 is associated with CALCulate5..8 and therefore, also with CONFig- ure5...8 (see also...
  • Page 223 Remote Control - Commands NRP2 High-Level Measurement Commands (CONFigure, MEASure, READ and FETCh) FETCh<[1]..8>[:SCALar][:POWer]:TSLot:REFLection FETCh<[1]..8>[:SCALar][:POWer]:TSLot:RLOSs <tslot_width>, <no_slots>, <start_exclude>, <end_exclude>, [<expected_value> [,<resolution>]] [,<source_list>] FETCh commands for measurement mode T'Slot. FETCh<[1]..8>[:SCALar][:POWer]:BURSt FETCh<[1]..8>[:SCALar][:POWer]:BURSt:RELative FETCh<[1]..8>[:SCALar][:POWer]:BURSt:DIFFerence FETCh<[1]..8>[:SCALar][:POWer]:BURSt:DIFFerence:RELative FETCh<[1]..8>[:SCALar][:POWer]:BURSt:SUM FETCh<[1]..8>[:SCALar][:POWer]:BURSt:SUM:RELative FETCh<[1]..8>[:SCALar][:POWer]:BURSt:RATio FETCh<[1]..8>[:SCALar][:POWer]:BURSt:RATio:RELative FETCh<[1]..8>[:SCALar][:POWer]:BURSt:SWR FETCh<[1]..8>[:SCALar][:POWer]:BURSt:REFLection FETCh<[1]..8>[:SCALar][:POWer]:BURSt:RLOSs <dtolerance>, <start_exclude>, <end_exclude>, [<expected_value>...
  • Page 224 Remote Control - Commands NRP2 High-Level Measurement Commands (CONFigure, MEASure, READ and FETCh) 6.4.8 READ commands This chapter lists all READ commands. For a description of the command syntax, the calculation functions and the parameter list see chapter 6.4.3, "Syntactical Structure of High-Level Measurement Commands ",...
  • Page 225 Remote Control - Commands NRP2 High-Level Measurement Commands (CONFigure, MEASure, READ and FETCh) READ<[1]..8>[:SCALar][:POWer]:BURSt:REFLection READ<[1]..8>[:SCALar][:POWer]:BURSt:RLOSs <dtolerance>, <start_exclude>, <end_exclude>, [<expected_value> [,<resolution>]] [,<source_list>] READ commands for measurement mode Burst. READ<[1]..8>:ARRay[:POWer][:AVG] READ<[1]..8>:ARRay[:POWer][:AVG]:RELative READ<[1]..8>:ARRay[:POWer][:AVG]:DIFFerence READ<[1]..8>:ARRay[:POWer][:AVG]:DIFFerence:RELative READ<[1]..8>:ARRay[:POWer][:AVG]:SUM READ<[1]..8>:ARRay[:POWer][:AVG]:SUM:RELative READ<[1]..8>:ARRay[:POWer][:AVG]:RATio READ<[1]..8>:ARRay[:POWer][:AVG]:RATio:RELative READ<[1]..8>:ARRay[:POWer][:AVG]:SWR READ<[1]..8>:ARRay[:POWer][:AVG]:REFLection READ<[1]..8>:ARRay[:POWer][:AVG]:RLOSs (<buffered_size>), [<expected_value>[,<resolution>]] [,<source_list>] READ commands for measurement mode ContAv with buffering.
  • Page 226 Remote Control - Commands NRP2 High-Level Measurement Commands (CONFigure, MEASure, READ and FETCh) MEASurement<[1]..8>[:SCALar][:POWer][:AVG]:SWR MEASurement<[1]..8>[:SCALar][:POWer][:AVG]:REFLection MEASurement<[1]..8>[:SCALar][:POWer][:AVG]:RLOSs [<expected_value>[,<resolution>]][,<source_list>] MEASurement commands for measurement mode ContAv. MEASurement<[1]..8>[:SCALar][:POWer]:TSLot MEASurement<[1]..8>[:SCALar][:POWer]:TSLot:RELative MEASurement<[1]..8>[:SCALar][:POWer]:TSLot:DIFFerence MEASurement<[1]..8>[:SCALar][:POWer]:TSLot:DIFFerence:RELative MEASurement<[1]..8>[:SCALar][:POWer]:TSLot:SUM MEASurement<[1]..8>[:SCALar][:POWer]:TSLot:SUM:RELative MEASurement<[1]..8>[:SCALar][:POWer]:TSLot:RATio MEASurement<[1]..8>[:SCALar][:POWer]:TSLot:RATio:RELative MEASurement<[1]..8>[:SCALar][:POWer]:TSLot:SWR MEASurement<[1]..8>[:SCALar][:POWer]:TSLot:REFLection MEASurement<[1]..8>[:SCALar][:POWer]:TSLot:RLOSs <tslot_width>, <no_slots>, <start_exclude>, <end_exclude>, [<expected_value> [,<resolution>]] [,<source_list>]...

  • Page 227: Calculate (Configuration Of Calculate Blocks)

    Suffix <1..8>behind the CALCulate key word denotes the CALCulate block. Each CALCulate block is assigned a measurement window. The R&S R&S NRP2 can dis- play up to four windows with measurement results. In the digital "Dig" and digital/analog "D&A" mode CALCulate blocks 1 to 4 are asso- ciated with the windows 1 to 4.
  • Page 228 Remote Control - Commands NRP2 CALCulate (Configuration of Calculate Blocks) ................227 CALCulate<[1]..8>:LIMit:CLEar:AUTO ..................228 CALCulate<[1]..8>:LIMit:FAIL? ..................228 CALCulate<[1]..8>:LIMit:FCOunt? ................228 CALCulate<[1]..8>:LIMit:LOWer[:DATA] ..............229 CALCulate<[1]..8>:LIMit:LOWer[:DATA]:POWer ..............229 CALCulate<[1]..8>:LIMit:LOWer[:DATA]:RATio ................229 CALCulate<[1]..8>:LIMit:LOWer:STATe ..................229 CALCulate<[1]..8>:LIMit:STATe ................230 CALCulate<[1]..8>:LIMit:UPPer[:DATA] ..............230 CALCulate<[1]..8>:LIMit:UPPer[:DATA]:POWer ..............230 CALCulate<[1]..8>:LIMit:UPPer[:DATA]:RATio ................230 CALCulate<[1]..8>:LIMit:UPPer:STATe ................231...
  • Page 229 CALCulate (Configuration of Calculate Blocks) CALCulate<[1]..8>:EXTRemes:RESet The R&S NRP2 stores the maximum and minimum values for each calculate block. The current measured value is stored with CALC[1..8]:EXTR:RES as the new mini- mum and maximum value. The extreme values can be queried with CALC[1..8]:MIN:DATA? and CALC[1..8]:MAX:DATA?.
  • Page 230 CALCulate (Configuration of Calculate Blocks) Note: Every measured value displayed in the R&S NRP2 (also every point of a trace) is aver- aged in the sensor via a series of samples. If a RANDom feed is selected, a random value is taken from these samples and forwarded to the base unit as a measured value.
  • Page 231 ● The CALCulat<[1]..8>:LIMit:CLEar command is sent. Usage: Query only CALCulate<[1]..8>:LIMit:LOWer[:DATA] <lower_limit> Sets a lower limit for the measured values. The R&S NRP2 can respond when the val- ues drop below this limit (see other CALCulate<[1]..8>:LIMit commands). Parameters: <lower_limit> float_value The value range depends on the current output unit of the calcu- late block's measured value, see table below.
  • Page 232 9.99999E5 196.897 999.99 1E20 CALCulate<[1]..8>:LIMit:LOWer[:DATA]:POWer <lower_limit> Sets a lower limit for the measured power. The R&S NRP2 can respond when the val- ues drop below this limit (see other CALCulate<[1]..8>:LIMit commands). Parameters: <lower_limit> float_value; units: W | DBM | DBUV...
  • Page 233 *RST: 0 DBM or 0 DB Default unit: see table referred to above. CALCulate<[1]..8>:LIMit:UPPer[:DATA]:POWer <power> Sets a upper limit for the measured power. The R&S NRP2 can respond when this limit is exceeded (see other CALCulate[1]..8>:LIMit commands). Parameters: <power> float_value; units: DBM | W | DBUV...
  • Page 234 Remote Control - Commands NRP2 CALCulate (Configuration of Calculate Blocks) CALCulate<[1]..8>:MATH[:EXPRession] <string> Selects a measurement function that processes one sensor or two together. The result of this calculation is made available as a measured value and can be queried with FETch<[1]..8>? or CALCulate<[1]..8>:DATA?.
  • Page 235 Remote Control - Commands NRP2 CALCulate (Configuration of Calculate Blocks) Parameters: <string> string The *RST values depend on the selected channel: CALC1:MATH: "(SENS1)", CALC2:MATH: "(SENS2)", CALC3:MATH: "(SENS3)", CALC4:MATH: "(SENS4)", CALC5:MATH: "(SENS1)", CALC8:MATH: "(SENS1)". CALCulate<[1]..8>:MATH[:EXPRession]:CATalog? Lists all supported calculation functions. All functions are sent in the form of strings which are allowed as parameters for the CALCulate<[1]..8>:MATH:EXPRession...
  • Page 236 Remote Control - Commands NRP2 CALCulate (Configuration of Calculate Blocks) Usage: Query only CALCulate<[1]..8>:PTPeak:DATA? Queries the peak-to-peak distance (maximum to minimum) of the measured values of the calculate block. The unit is the current unit of the measured result. Possible Units: W | DBM | DBUV | DPCT | DB | O...
  • Page 237 Remote Control - Commands NRP2 CALCulate (Configuration of Calculate Blocks) Parameters: <auto> OFF | ONCE *RST: CALCulate<[1]..8>:RELative:POWer[:MAGNitude] <value> Has the same direct effect as CALC:REL on the reference value for measured values that share the unit of a power. Parameters: <value>...
  • Page 238 Remote Control - Commands NRP2 CALCulate (Configuration of Calculate Blocks)               σ of all measured values Fig. 6-6: Standard deviation The unit is the current unit of the measured result.
  • Page 239 Remote Control - Commands NRP2 CALCulate (Configuration of Calculate Blocks) Density/Distribution CALC:STAT:MARK:VERT:POS:Y CALC:STAT:MARK:HOR:DATA? Power CALC:STAT:MARK:VERT:DATA:POW? CALC:STAT:MARK:HOR:POS:X:POW Fig. 6-7: Meaning of the marker commands for the Statistics mode Usage: Query only CALCulate<[1]..4>:STATistics:POWer:AVG:DATA? Returns the average value of the power in the time window of a statistics measure- ment.

  • Page 240: Calibration

    Remote Control - Commands NRP2 CALibration Unit: s RST: 0 s CALCulate<[1]..8>:TRACe:MARKer<[1]..2>:YPOSition? Is available with trace measurements. It returns the position of a curve marker on the power axis if the value is valid. The unit depends on the trace function.

  • Page 241: Display

    The DISPlay command system is mainly used to configure the display of windows on the R&S NRP2. The WINDow commands are assigned to the calculate blocks 1 to 4. The values calculated from the sensor values by the respective calculate block with the aid of the measurement function are displayed.
  • Page 242 Remote Control - Commands NRP2 DISPlay ......................239 DISPlay:ERRorlist ..................... 239 DISPlay:ILLumination .................... 240 DISPlay:MESSage[:STATe] ..................240 DISPlay:MESSage:TEXT:CLEar ..................240 DISPlay:MESSage:TEXT[:DATA] ....................240 DISPlay:MESSage:TYPE ......................241 DISPlay:PIXMap? ......................241 DISPlay:UPDate ................. 241 DISPlay[:WINDow]<[1]..4>:AVALue ................. 242 DISPlay[:WINDow]<[1]..4>:FORMat ................243 DISPlay[:WINDow]<[1]..4>:METer:AUTO ............... 243 DISPlay[:WINDow]<[1]..4>:ANALog:AUTO ................ 243 DISPlay[:WINDow]<[1]..4>:METer:LOWer...
  • Page 243 Remote Control - Commands NRP2 DISPlay Parameters: <state> ON | OFF *RST: DISPlay:MESSage[:STATe] <state> Displays a window containing a user-defined message. The message text is defined via DISP:MESS:TEXT. In addition, DISP:MESS:TYPE can select between two types of message windows. Calling the command with the OFF parameter is ignored if DISP:MESS:TYPE QUERy is set, because in this case a window must be closed by pressing the MENU key.
  • Page 244 Remote Control - Commands NRP2 DISPlay DISPlay:PIXMap? Supplies the display content as binary block data. The block data consists of a block data header (#577110) and the display content in Microsoft Windows (R) BMP format (version 3). A color depth of 8 bit per pixel is used.
  • Page 245 Remote Control - Commands NRP2 DISPlay Parameters: <avalue> NONE | NORMal | EXTRemes | STATistics NONE No additional information about the measured values is dis- played. NORMal The display is a function of the SENS:FUNCtion of the mea- surement mode of the primary channel and the CALC:FEED set- ting.
  • Page 246 Remote Control - Commands NRP2 DISPlay Parameters: <display_mode> DIGital | ANALog | GRAPhical DIGital Measured values are displayed in numeric format. If the primary channel is operated in Trace mode, the (scalar) measured val- ues of the currently selected timegate are displayed here.
  • Page 247 Remote Control - Commands NRP2 DISPlay DISPlay[:WINDow]<[1]..4>:METer:LOWer:POWer <lower_power> DISPlay[:WINDow]<[1]..4>:ANALog:LOWer:POWer <lower_power> Sets the lower limit value of the analog scale. This value is used if the unit of the mea- surement result is Watt, dBm or dBµV, i.e. the measurement result is a power.
  • Page 248 Specifies the number of significant places of the mantissa when the measurement result is displayed on a linear scale. The R&S NRP2 tries to adjust the averaging filter range so that the display noise decreases with increasing resolution. The values of the...
  • Page 249 Remote Control - Commands NRP2 DISPlay This command corresponds to the <resolution> option of the high-level measurement commands CONFigure, FETCH, READ and MEASure. Note: Automatic filter ranging must be switched on (SENSe<[1]..4>:AVERage:COUNt:AUTO ON). DISP<[1]..8>:RES has an effect on the setting SENS<[1]..4>:AVER:COUN:AUTO:RES of the sensors used in the measurement function (CALC<[1]..8>:MATH).
  • Page 250 Remote Control - Commands NRP2 DISPlay Parameters: <window_size> NORMal | ZOOMed NORMal The window size is determined automatically and depends on the total number of open windows. ZOOMed The selected window (DISP:WIND:SEL[?]) is set to maximum size, regardless of the the number of visible windows. All other open windows are covered.

  • Page 251: Format

    *RST: 6.8 FORMat The FORMat command system sets the format of numeric data (measured values) that is exchanged beween the remote control computer and the R&S NRP2 if high-level measurement commands are used..................248 FORMat[:READings]:BORDer ................... 248 FORMat[:READings][:DATA] ......................249...

  • Page 252: Memory

    Remote Control - Commands NRP2 MEMory Parameters: <type> ASCii | REAL *RST: ASCii FORMat:SREGister <format> Specifies wich format s used for the return value of *STB?. Parameters: <format> ASCii | BINary | HEXadecimal | OCTal *RST: ASCii 6.9 MEMory The MEMory system is used for storing device states (:STATe) and correction tables (:TABLe).
  • Page 253 Remote Control - Commands NRP2 MEMory ....................252 MEMory:TABLe:DATA? ..................253 MEMory:TABLe:DATA:POINts? ...................253 MEMory:TABLe:FREQuency ................253 MEMory:TABLe:FREQuency:POINts? ................. 253 MEMory:TABLe:GAIN[:MAGNitude] ..................254 MEMory:TABLe:GAIN:POINts? ..................... 254 MEMory:TABLe:MAP ....................254 MEMory:TABLe:MOVE ....................254 MEMory:TABLe:RESet ....................254 MEMory:TABLe:SELect MEMory:CATalog[:ALL]? Lists the names of all stored device states and correction tables. The length of the response depends on how many device states and tables are stored.
  • Page 254 Remote Control - Commands NRP2 MEMory Notice: Possible data loss This command cannot be cancelled. Cleared values are irretrievably lost. Parameters: <name> string Usage: Event MEMory:CLEar:TABLe This command may be used as an alternative to MEMory:CLEar[:NAME] <string>. The content of the table currently selected with MEMory:TABLe:SELect <string>...
  • Page 255 Remote Control - Commands NRP2 MEMory Return values: <names> Usage: Query only MEMory:STATe:DEFine <string>, 1...19 MEMory:STATe:MAP <string> The value 0 to 19 are assigned to the memory locations of the device states, where the memory location with the number 0 is the factory-set state and cannot be changed.
  • Page 256 Remote Control - Commands NRP2 MEMory MEMory:TABLe:DATA:POINts? The command returns the number of stored entries in the currently selected offset table. Usage: Query only MEMory:TABLe:FREQuency <NRf> {, <NRf>} This command enters frequencies in the first column of the table selected with MEM:TABL:SEL.
  • Page 257 Remote Control - Commands NRP2 MEMory Parameters: <NRf> {, <NRf>} Enters offset values in the second column of the table selected with MEM:TABL:SEL. *RST: Tables are not changed in case of a *RST. Default unit: DB MEMory:TABLe:GAIN:POINts? Returns the number of entries (lines) in the table selected with MEM:TABL:SEL <string>.

  • Page 258: Output

    "File name not found": A table named <select> is not known . 6.10 OUTPut The OUTPut system serves for generator configuration. The R&S NRP2 can be equip- ped with an optional RF test generator which produces a reference power of 1 mW at 50 MHz.

  • Page 259: Output:recorder<[1]..2>:Limit:lower

    Remote Control - Commands NRP2 OUTPut OUTPut:RECorder<[1]..2>:LIMit:LOWer <lower_limit> Voltage 3.3 V 3.0 V Power 0.0 V OUTP:REC:LIM:LOW OUTP:REC:LIM:UPP Fig. 6-8: Characteristic of analog outputs Specifies the lower power limit of the characteristic for one of the two analog outputs .

  • Page 260: Output:recorder<[1]..2>:Limit:upper

    Remote Control - Commands NRP2 OUTPut Parameters: <lower_limit> float_value Range: -200 DB .. 200 DB *RST: 0 DB Default unit: DB OUTPut:RECorder<[1]..2>:LIMit:UPPer <upper_limit> Specifies the upper power limit of the characteristic for one of the two analog outputs (see figure 6-8 Characteristic of analog outputs).

  • Page 261: Output:recorder<[1]..2>[:State]

    Remote Control - Commands NRP2 OUTPut OUTPut:RECorder<[1]..2>[:STATe] <state> Switches the analog outputs (OUT1 and OUT2/TRIG on rear panel) ON or OFF. The magnitude of the output voltage (0 V to 3.3 V) depends on the measured power of the assigned calculate block (OUTP:REC:FEED) and the configuration of the characteristic (OUTP:REC:LIM).
  • Page 262 Remote Control - Commands NRP2 OUTPut Parameters: <mode> HIGH The value set via OUTP:TTL:LVOL is applied if the measured value causes a limit violation at the TTL output. The value set via OUTP:TTL:HVOL is applied if the measured value causes a limit violation at the TTL output.

  • Page 263: Sense (Sensor Commands)

    Remote Control - Commands NRP2 SENSe (Sensor Commands) OUTPut:TTL[:STATe] <state> Activates/deactivates the TTL operating mode of the OUT1 connector (rear panel). The magnitude of the two possible output voltages can range from 0 V to 3.3 V (OUTP:TTL:HVOL and OUTP:TTL:LVOL). Refer to...
  • Page 264 NRP2 SENSe (Sensor Commands) When the sensors are connected to the R&S NRP2, they inform the device about the SENSe and TRIGger commands supported and about the value ranges for parame- ters. This applies to both numeric and text parameters. For this reason, no fixed ranges are specified with these commands;...
  • Page 265 Remote Control - Commands NRP2 SENSe (Sensor Commands) ..........277 [SENSe<[1]..4>][:POWer]:TSLot[:EXCLude]:MID[:STATe] ............277 [SENSe<[1]..4>][:POWer]:TSLot[:EXCLude]:MID:TIME ..............278 [SENSe<[1]..4>][:POWer]:TSLot:[AVG]:WIDTh ................278 [SENSe<[1]..4>]:RGAMma[:MAGNitude] .................. 279 [SENSe<[1]..4>]:RGAMma:PHASe ....................279 [SENSe<[1]..4>]:SAMPling ................279 [SENSe<[1]..4>]:SGAMma[:MAGNitude] .................. 279 [SENSe<[1]..4>]:SGAMma:PHASe ..............280 [SENSe<[1]..4>]:SGAMma:CORRection:STATe ................280 [SENSe<[1]..4>]:STATistics:AVERage? ..........280 [SENSe<[1]..4>]:STATistics[:EXCLude]:MID:OFFSet[:TIME] ............280 [SENSe<[1]..4>]:STATistics[:EXCLude]:MID:TIME .................
  • Page 266 By averaging the measured values in the sensors, extreme val- ues are lost. Using [SENSe<[1]..4>]:AUXiliary MINMax , a sensor can be assigned to transmit to the R&S NRP2 the min- ima and maxima that occurred in the Trace mode together with the measured value.
  • Page 267 *RST: depending on sensor [SENSe<[1]..4>]:AVERage:COUNt:AUTO:MTIMe <mtime> If the R&S NRP2 has to determine the filter length automatically, the filter length can become large and thus also the measurement time. An upper time limit can be set via SENS<[1]..4>:AVER:COUN:AUTO:MTIME (maxi- mum time). It should never be exceeded. Undesired long measurement times can thus be prevented (in the SENS:AVER:COUN:AUTO:TYPE NSR mode) if the automatic filter length switchover is on.
  • Page 268 Remote Control - Commands NRP2 SENSe (Sensor Commands) However, SENS<[1]..4>:AVER:COUN:AUTO:RES does not affect the DISPlay command. The parameters of the two commands are different but have the same meaning. SENS<[1]..4>:AVER:COUN:AUTO:RES DISP<[1]..4>:RES 0.01 0.001 Parameters: <<resolution>> 1 | 2 | 3 | 4...
  • Page 269 Remote Control - Commands NRP2 SENSe (Sensor Commands) Parameters: <mode> RESolution takes setting SENS<[1]..4>:AVER:COUN:AUTO:RES into account. takes setting SENS<[1]..4>:AVER:COUN:AUTO:NSR into account. *RST: depending on sensor [SENSe<[1]..4>]:AVERage:RESet Initializes the digital filter by deleting the stored measured values. Usage: Event [SENSe<[1]..4>]:AVERage[:STATe] <state>...
  • Page 270 [SENSe<[1]..4>]:CORRection:DCYCle[:INPut][:MAGNitude] <magnitude> Informs the R&S NRP2 about the duty cycle of the power to be measured. The duty cycle correction is only applied in the ContAv mode where measurements are per- formed continuously without taking the timing of the signal into account.
  • Page 271 R&S NRP2 can manage up to ten tables (MEMory commands). The frequency- dependent offset tables consist of two columns; the first containing the frequencies, the second the associated correction values. When the R&S NRP2 is informed about the signal frequency with command [SENSe<[1]..4>]:FREQuency[:CW|:FIXed] <float_value>, an appropriate correction factor is determined by means of the...
  • Page 272 [SENSe<[1]..4>]:FREQuency[:CW] <frequency> [SENSe<[1]..4>]:FREQuency[:FIXed] <frequency> Informs the R&S NRP2 about the frequency of the power to be measured since this frequency is not automatically determined. The frequency is used to determine a fre- quency-dependent correction factor for the measurement results.
  • Page 273 Remote Control - Commands NRP2 SENSe (Sensor Commands) To increase measurement accuracy, the sensors measure each signal twice in the Burst, Timeslot and Trace measurement modes (exception: in the Trace mode, with SENS:TRAC:REAL ON). As long as the trigger system is set to internal or external trig- gering, this is usually of no importance to the user.
  • Page 274 (CCDF). The mea- surement time is set using the SENS:STAT commands. The R&S NRP2 returns in response to READ? or FETCh? an array of density values which are spread over the power axis. The value range of the power axis is also set using the SENS:STAT:SCAL:X commands.
  • Page 275 Remote Control - Commands NRP2 SENSe (Sensor Commands) Like "XPOWer:CCDF", except that a PDF is calculated instead of a CCDF. "XTIMe:POWer" A sequence of measurements is performed. The individual mea- sured values are determined as in the ContAv mode. The length...
  • Page 276 Remote Control - Commands NRP2 SENSe (Sensor Commands) [SENSe<[1]..4>][:POWer][:AVG]:RANGe <range> Selects a measurement range in which the corresponding sensor is to perform a mea- surement. This setting will only become effective if SENS<[1]..4>:RANG:AUTO OFF is set. Parameters: <range> 0 | 1 | 2...
  • Page 277 Remote Control - Commands NRP2 SENSe (Sensor Commands) [SENSe<[1]..4>][:POWer]:BURSt:DTOLerance <tolerance> The end of a burst (power pulse) is recognized when the signal level drops below the trigger level. Especially with modulated signals, this may also happen for a short time within a burst.
  • Page 278 Remote Control - Commands NRP2 SENSe (Sensor Commands) [SENSe<[1]..4>][:POWer]:TGATe[:EXCLude]:MID[:STATe] <state> Activates/deactivates the blanking out of time intervals in the timegates, affects all gates. Parameters: <state> ON | OFF *RST: [SENSe<[1]..4>][:POWer]:TGATe<[1]..4>[:EXCLude]:MID:TIME <time_interval> Together with SENS:TGAT:MID:OFFS, allows a time interval in a timegate to be blanked out.
  • Page 279 Remote Control - Commands NRP2 SENSe (Sensor Commands) Power Trigger event Trigger level Delayed trigger point Time Trigger Gate 1 Gate 2 Gate 3 Gate 4 delay SENS:TGAT1:OFFS:TIME SENS:TGAT1:TIME SENS:TGAT2:TIME SENS:TGAT2:OFFS:TIME Fig. 6-12: Timing parameters for the Timegate mode Parameters: <time>...
  • Page 280 Remote Control - Commands NRP2 SENSe (Sensor Commands) [SENSe<[1]..4>][:POWer]:TSLot:COUNt <number> Sets the number of simultaneously measured timeslots in the Timeslot mode (see fig- ure 6-13 Timeslot parameters). Parameters: <number> int_value Range: depending on sensor *RST: depending on sensor [SENSe<[1]..4>][:POWer]:TSLot[:EXCLude]:MID:OFFSet[:TIME] <time_interval>...
  • Page 281 Remote Control - Commands NRP2 SENSe (Sensor Commands) [SENSe<[1]..4>][:POWer]:TSLot:[AVG]:WIDTh <time> Sets the length of the timeslot in the Timeslot mode (see figure below). SENS:TSLOT:COUNT 3 T'Slot 1 T'Slot 2 T'Slot 3 Power Trigger event Trigger level Time SENS:TSLOT:MID:OFFS:TIME SENS:TSLOT:MID:TIME SENS:TSLOT:WIDTH Fig.
  • Page 282 *RST: depending on sensor [SENSe<[1]..4>]:SGAMma[:MAGNitude] <magnitude> The R&S NRP2 can perform a measured-value correction taking the complex reflection coefficient (source gamma) of the signal source into account. SENS<[1]..4>:SGAM:CORR:STAT ON must be set. The magnitude of the reflection coefficient is set with SENS<[1]..4>:SGAM[:MAGN].
  • Page 283 Remote Control - Commands NRP2 SENSe (Sensor Commands) [SENSe<[1]..4>]:SGAMma:CORRection:STATe <state> Activates/deactivates the measured-value correction of the reflection coefficient effect of the source gamma. Parameters: <state> ON | OFF *RST: depending on sensor Usage: Setting only [SENSe<[1]..4>]:STATistics:AVERage? <power_value> Returns the average power value calculated during a statistics measurement (CCDF/ PDF).
  • Page 284 Remote Control - Commands NRP2 SENSe (Sensor Commands) [SENSe<[1]..4>]:STATistics:PEAK? Returns the peak power value calculated during a statistics measurement (CCDF/ PDF). Usage: Query only [SENSe<[1]..4>]:STATistics:OFFSet[:TIME] <time_interval> Determines, together with the SENS:STAT:TIME command, the time interval in which the power for the statistical evaluation is measured. SENS:STAT:OFFS determines the start of the interval relative to the (possibly delayed) trigger time (see also on page 275).
  • Page 285 SENSe (Sensor Commands) [SENSe<[1]..4>]:STATistics:SCALe:X:POINts <number> Determines the number of samples on the power axis for the Statistics modes or returns the current setting. Due to the limited storage capacity of the R&S NRP2, the number is limited to 1024. Parameters: <number>...
  • Page 286 Remote Control - Commands NRP2 SENSe (Sensor Commands) Parameters: <rlevel> float_value Range: depending on sensor *RST: depending on sensor Default unit: DBM [SENSe<[1]..4>]:STATistics:TIME < time_interval> Determines, together with the SENS:STAT:OFFS command, the time interval in which the power for the statistical evaluation is measured. SENS:STAT:TIME determines the length of the interval (see also [SENSe<[1]..4>][:POWer]:TGATe<[1]..4>:...
  • Page 287 Remote Control - Commands NRP2 SENSe (Sensor Commands) Parameters: <exclude_stop> float_value Range: depending on sensor *RST: depending on sensor [SENSe<[1]..4>]:TRACe:AVERage[:STATe] <state> Switches the filter function of a sensor on or off for the Trace mode. When the filter is switched on, the number of measured values set with [SENSe<[1]..4>]:AVERage:COUNt is averaged.
  • Page 288 [SENSe<[1]..4>]:TRACe:AVERage:COUNt:AUTO:MTIMe <mtime> If the R&S NRP2 has to determine the filter length automatically in the Trace mode, the filter length can become large and thus also the time to fill the filter. An upper time limit (maximum time) can be set via SENS<[1]..4>:AVER:COUN:AUTO:MTIME. It should never be exceeded.
  • Page 289 Remote Control - Commands NRP2 SENSe (Sensor Commands) Parameters: <resolution> 1 | 2 | 3 | 4 Range: depending on sensor *RST: depending on sensor [SENSe<[1]..4>]:TRACe:AVERage:COUNt:AUTO:POINt <value> Specifies the measured value in the Trace mode used for the automatic determination of the filter length.
  • Page 290 Remote Control - Commands NRP2 SENSe (Sensor Commands) [SENSe<[1]..4>]:TRACe:AVERage:TCONtrol <terminal_control> As soon as a new single value is determined, the filter window is advanced by one value so that the new value is taken into account by the filter and the oldest value is forgotten.
  • Page 291 Remote Control - Commands NRP2 SENSe (Sensor Commands) [SENSe<[1]..4>]:TRACe:MEASurement:DEFine:DURation:REFerence <ref_level> Sets the medial reference level in terms of percentage of the pulse power amplitude. This level is used to define the pulse width, pulse start time and pulse stop time.
  • Page 292 Remote Control - Commands NRP2 SENSe (Sensor Commands) [SENSe<[1]..4>]:TRACe:MEASurement:POWer:MAX? Returns the measured maximum power in the current trace. Unit: WATT Usage: Query only [SENSe<[1]..4>]:TRACe:MEASurement:POWer:MIN? Returns the measured minimum power in the current trace. Unit: WATT Usage: Query only [SENSe<[1]..4>]:TRACe:MEASurement:POWer:PULSe:BASE? Returns the base power, computed in the pulse level analysis histogram of the current trace data.
  • Page 293 Remote Control - Commands NRP2 SENSe (Sensor Commands) Unit: S Usage: Query only [SENSe<[1]..4>]:TRACe:MEASurement:PULSe:SEParation? Returns the time from "Stop Time" to "Start Time" of the first detected pulse. Unit: S Usage: Query only [SENSe<[1]..4>]:TRACe:MEASurement:TRANSition:ESAMpling:AUTO[:STATe]? Activates ON or deactivates OFF the equivalent sampling mode, which allows for high resolution measurements.
  • Page 294 Remote Control - Commands NRP2 SENSe (Sensor Commands) [SENSe<[1]..4>]:TRACe:MEASurement:TRANSition:POSitive:DURation? Returns the rise time of the first detected pulse. The rise time is the time the signal requires to change from low to high level. High and low levels can be adjusted using the commands SENS:TRAC:MEAS:DEF:TRAN:HREF and SENS:TRAC:MEAS:DEF:TRAN:LREF.
  • Page 295 Remote Control - Commands NRP2 SENSe (Sensor Commands) [SENSe<[1]..4>]:TRACe:MID:OFFSet:TIME Defines an offset for pulse analysis on the time axis measured from the trigger event. In conjunction with SENS:TRAC:MEAS:TIME this command can be used to define a gate on a trace measurement, in which the pulse analysis shall be performed. If the gate spans the same time interval as the trace measurement, the first detected pulse will be analyzed.

  • Page 296: Service

    Remote Control - Commands NRP2 SERVice Parameters: int_value Range: depending on sensor *RST: depending on sensor [SENSe<[1]..4>]:TRACe:REALtime <state> In the default state (OFF), each measurement from the sensor is averaged. With [SENSe<[1]..4>]:TRACe::REALtime ON , this behaviour can be switched off, which may increase the measurement speed.
  • Page 297 Remote Control - Commands NRP2 SERVice SERVice<[1]..4>:CALibration:TEST? <NR1> Tests the consistency of the calibration data set according to three criteria: If the following bit is set in the following action is executed. <nr1>, The serial number of the calibration data set is tested.
  • Page 298 W, 3 W, 4W, ..) from now on. SERVice<[1]..4>:SERRors <state> The sensors signal an error to the R&S NRP2 if samples are lost while a signal is sam- pled (sampling), as may be the case with high sampling rates. In such a case, the measurement is less accurate.

  • Page 299: Status

    Remote Control - Commands NRP2 STATus 6.13 STATus The status registers of the R&S NRP2 can be read and configured with commands of the STATus system. The R&S NRP2 uses the following status registers: ● Standard Event Status Register (specified in IEEE 488.2. Reading and configuring with *ESR? and *ESE.
  • Page 300 Remote Control - Commands NRP2 STATus 6.13.1 Queries Table 6-15: Queries for status registers Command Status register STATus:DEVice? Device Status STATus:OPERation? Operation Status STATus:OPERation:CALibrating[:SUMMary]? Operation Calibrating STATus:OPERation:LLFail[:SUMMary]? Operation Lower Limit Fail STATus:OPERation:ULFail[:SUMMary]? Operation Upper Limit Fail STATus:OPERation:MEASuring[:SUMMary]? Operation Measuring STATus:OPERation:SENSe[:SUMMary]?
  • Page 301 Remote Control - Commands NRP2 STATus Command Parameter Remark <srsc>:CONDition? Query only <srsc>:ENABle[?] 0..32767 |<non-decimal numeric> <srsc>:NTRansition[?] 0..32767 | <non-decimal numeric> <srsc>:PTRansition[?] 0..32767 |<non-decimal numeric> STATus:PRESet table 6-32 The status reporting system stores all information about the current operating status of the device and errors that occur.
  • Page 302 Remote Control - Commands NRP2 STATus States, events or summary bits of other registers CONDition register PTRansition register NTRansition register Logic OR Logic AND of Simplified of all bits EVENT and ENABle bits diagram EVENt register Summary bit of SCPI register, &...
  • Page 303 Remote Control - Commands NRP2 STATus NTRansition register The Negative TRansition register also acts as a transition filter. Upon transi- tion of a bit of the CONDition register from 1 to 0, the associated NTR bit determines whether the EVENt bit is set to 1.
  • Page 304 Remote Control - Commands NRP2 STATus Output Queue Device Status (output buffer) Register Sensor A connected Sensor B connected Sensor A error Sensor B error Sensor A Front/Rear Sensor B Front/Rear Sensor C connected Sensor D connected Sensor C error...
  • Page 305 Remote Control - Commands NRP2 STATus Operation Calibrating Status Register Sensor A calibrating Summary Sensor B calibrating Sensor C calibrating Sensor D calibrating STAT:OPER:CAL Operation Measuring Sensor A measuring Status Register Summary Sensor B measuring Sensor C measuring Sensor D measuring...
  • Page 306 Remote Control - Commands NRP2 STATus Questionable Power Status Register Sensor A Power Sensor B Power Sensor C Power Sensor D Power Sensor A please zero Sensor B please zero Sensor C please zero Questionable Status Sensor D please zero...
  • Page 307 Remote Control - Commands NRP2 STATus 6.13.5 Status Byte (STB) and Service Request Enable Register (SRE) The STB is already defined in IEEE 488.2. It gives a rough overview of the device sta- tus, collecting information from the lower-level registers. It is comparable with the CONDition register of a SCPI defined register and is at the highest level of the SCPI hierarchy.
  • Page 308 Remote Control - Commands NRP2 STATus Bit No. Meaning MSS: Master-Status summary bit This bit is set if the device triggers a service request. This is the case if one of the other bits of this register is set together with its enable bit in the Service Request Enable register SRE.
  • Page 309 Remote Control - Commands NRP2 STATus Bit No. Meaning Sensor B Front/Rear Indicates whether sensor B is connected at the front (bit is not set) or rear (bit is set) of the device. Sensor C connected Sensor D connected Sensor C error Sensor C is erroneous.
  • Page 310 Remote Control - Commands NRP2 STATus Bit No. Meaning POST Failure The built-in test of the R&S NRP2 carried out automatically upon power-up has gener- ated an error. 10 to 13 Not used Warning Bit 15 will never be used.
  • Page 311 Remote Control - Commands NRP2 STATus 6.13.10 Operation Status Register The CONDition register contains information on the operations currently being per- formed by the device, while the EVENt register contains information on the operations performed by the device since the last readout of the register.
  • Page 312 Remote Control - Commands NRP2 STATus Table 6-23: Meaning of bits used in the Operation Calibrating Status Register Bit No. Meaning Not used Sensor A is being calibrated Sensor B is being calibrated Sensor C is being calibrated Sensor D is being calibrated...
  • Page 313 Remote Control - Commands NRP2 STATus WAIT_FOR_TRG state was entered or quit by a sensor since the last readout of the register. The Operation Trigger Status Register can be read by the following commands: STATus:OPERation:TRIGger[:SUMMary]:CONDition? STATus:OPERation:TRIGger[:SUMMary][:EVENt]? . Table 6-25: Meaning of bits used in the Operation Status Register Bit No.
  • Page 314 Remote Control - Commands NRP2 STATus Table 6-26: Meaning of bits used in the Operation Sense Status Register Bit No. Meaning Not used Sensor A initializing Sensor A is being initialized. Sensor B initializing Sensor B is being initialized. Sensor C initializing Sensor C is being initialized.
  • Page 315 Remote Control - Commands NRP2 STATus Bit No. Meaning Window 4 Lower Limit Fail The measured value returned by the fourth Calculate block drops below the lower limit value. Window 5 Lower Limit Fail The measured value returned by the fifth Calculate block drops below the lower limit value.
  • Page 316 Remote Control - Commands NRP2 STATus Bit No. Meaning Window 4 Upper Limit Fail The measured value returned by the fourth Calculate block exceeds the upper limit value. Window 5 Upper Limit Fail The measured value returned by the fifth Calculate block exceeds the upper limit value.
  • Page 317 Remote Control - Commands NRP2 STATus Bit No. Meaning Sensor D please zero The zero correction for sensor D is no longer correct and should be repeated. 9 to 14 Not used Bit 15 will never be used. The sensor power bit is set when error -230, "Data corrupt or stale", or -231, "Data questionable", occurs in the respective sensor.
  • Page 318 Remote Control - Commands NRP2 STATus A bit is set if the error -231, "Data questionable", occurs in the respective calculate block. 6.13.19 Questionable Calibration Status Register The EVENt register and the CONDition register contain information as to whether the zero offset of a sensor is still valid.
  • Page 319 Remote Control - Commands NRP2 STATus possibilities of the service request, all bits in the enable registers SRE and ESE should be set to "1". Examples See also figure 6-17 Overview on structure of Status Reporting System. Use the *OPC command to generate an SRQ: 1.
  • Page 320 Remote Control - Commands NRP2 STATus The parallel poll mode is mainly used to quickly find out which of the many devices connected to the IEC/IEEE bus caused an SRQ. For this purpose, SRE and PPE must be set to the same value.

  • Page 321: System

    With the aid of the SYSTem command system, administrative device settings can be made and queried. This includes: ● list of error messages ● IEC/IEEE-bus address ● resetting the R&S NRP2 ● setting the date and time ● audible signals ● version numbers of hardware and software ●...
  • Page 322 SYS:BEEP:STAT OFF. Usage: Event SYSTem:BEEPer:NOTify:OVERload <state> Determines if the R&S NRP2 shall emit an acoustic signal when the power at a sensor exceeds the power limit. Parameters: <state> ON | OFF *RST: User Manual 1173.9140.02 ─...
  • Page 323 This setting is not changed by *RST. Default unit: S SYSTem:COMMunicate:GPIB[:SELF]:ADDRess <nr1> Sets the address with which the R&S NRP2 can be addressed via the IEC/IEEE bus. The address is factory-set to 20 and is not changed by a reset. Parameters: <nr1>...
  • Page 324 This setting is not changed by *RST. SYSTem:COMMunicate:INET[:SELF]:ADDRess <ip1>,<ip2>,<ip3>,<ip4> Sets the IP address of the R&S NRP2. Note: This command cannot be used, while VXI11 or Ethernet is in use. Note: Choosing an invalid IP-Address may disturb the traffic on your LAN. If you are not sure how to configure these settings, please ask your network administrator.
  • Page 325 Event SYSTem:DATE <year>,<month>,<day> Sets the date. Since the R&S NRP2 has no battery-backed clock, the date has to be reset if the clock was not set after the last power-on of the R&S NRP2. The date is set in the format yyyy,(m)m,(d)d. This setting is not changed by *RST.
  • Page 326 This query returns error numbers and text from the error/event queue of the R&S NRP2. A specific error number with text is entered in the error/event queue for each error that occurs in the R&S NRP2. The queue functions according to the FIFO principle.
  • Page 327 DEL / 1 TRIG ↵MENU ENTer ESC / LOCAL ESCape ⇧ ⇩ DOWN ⇦ LEFT ⇨ RIGHt Note: The R&S NRP2 can be switched off via remote control by means of the SYSTem:KEY POWER command. User Manual 1173.9140.02 ─ 07 北京海洋兴业科技股份有限公司（证券代码：839145） 电话：010-62176775 网址：www.hyxyyq.com...
  • Page 328 Event SYSTem:LANGuage <emulation> Selects an emulation of a different command set. The R&S NRP2 is able to emulate different power meters by changing the remote command set. As the list of supported instruments is extended continuously, the emulations are documented in separate application notes.
  • Page 329 Usage: Event SYSTem:SENSor<[1]..4>:RESet From the point of view of the R&S NRP2 base unit, the sensors are stand-alone mea- suring devices. They communicate with the R&S NRP2 via a command set complying with SCPI. SYST:SENS<[1].48>:RES prompts the base unit to send an *RST to the sensor in question.
  • Page 330 *RST: SYSTem:TIME <hour>,<minute>,<second> Sets the time. Since the R&S NRP2 has no battery-backed clock, the time has to be reset if the clock was not set after the last power-on of the R&S NRP2. (see also on page 322). SYSTem:DATE The time is set in the format (h)h,(m)m,(s)s.

  • Page 331: Trigger

    The trigger commands are used to configure the timing conditions for the start of a measurement. When the sensors are connected to the R&S NRP2, they inform the device about the SENSe and TRIGger commands supported and about the value ranges for parame- ters.
  • Page 332 Remote Control - Commands NRP2 TRIGger ................... 333 TRIGger<[1]..4>[:IMMediate] ....................333 TRIGger:ALL[:IMMediate] ....................333 TRIGger<[1]..4>:LEVel ......................333 TRIGger:ALL:LEVel ................... 334 TRIGger<[1]..4>:MASTer[:STATe] ....................334 TRIGger<[1]..4>:SLOPe ......................334 TRIGger:ALL:SLOPe ....................334 TRIGger<[1]..4>:SOURce ....................334 TRIGger:ALL:SOURce ................335 TRIGger<[1]..4>:SYNChronize[:STATe] ABORt<[1]..4> ABORt:ALL Immediately sets the respective sensors to the IDLE state. Measurements in progress are interrupted.
  • Page 333 As the initiation of measurements in the sensors is serialized in the R&S NRP2 it is possible that a sensor is triggered before another sensor is initi- ated (if synchronization is off). Sensors to be synchronized are required to have the same TRIG:SLOP setting, otherwise a SCPI error -221, "Settings conflict"...
  • Page 334 Remote Control - Commands NRP2 TRIGger Example: (synchronized measurement with 2 heads): *RST TRIG:ALL:SLOP POS TRIG:ALL:SOUR EXT TRIG:ALL:SYNC ON INIT:ALL FETCh1?; FETCh2? TRIGger<[1]..4>:ATRigger[:STATe] <state> TRIGger:ALL:ATRigger[:STATe] <state> When TRIG:ATR is set to ON, the WAIT_FOR_TRG state is automatically exited when no trigger event occurs within a period that corresponds to the reciprocal of the display update rate.
  • Page 335 Remote Control - Commands NRP2 TRIGger TRIGger<[1]..4>:DELay:AUTO <state> TRIGger:ALL:DELay:AUTO <state> TRIG:DEL:AUTO ON makes certain that a measurement is not started until the sensor has settled. To this end, the delay value is automatically determined. This is especially important when thermal sensors are used. The automatically determined delay is ignored if a longer period is set with TRIG<[1]..4>]:DEL.
  • Page 336 Remote Control - Commands NRP2 TRIGger TRIGger<[1]..4>:HOLDoff <holdoff> TRIGger:ALL:HOLDoff <holdoff> Defines a period after a trigger event within which all further trigger events are ignored. Parameters: <holdoff> float_value Range: depending on sensor *RST: depending on sensor Default unit: S TRIGger<[1]..4>:HYSTeresis <value>...
  • Page 337 (TRIG:SOUR EXT). The trigger signal generated by the trigger master is routed via the connecting cable to the R&S NRP2 and from there distributed to the other sensors and the trigger output. Only one sensor can be trigger master at a time.

  • Page 338: Unit

    Remote Control - Commands NRP2 UNIT Parameters: <state> BUS | EXTernal | HOLD | IMMediate | INTernal The trigger event is initiated by TRIG:IMM or *TRG. In this case, the other trigger setting are meaningless. EXTernal Triggering is performed with an external signal applied to the trigger connector.
  • Page 339 Remote Control - Commands NRP2 UNIT UNIT<[1]..8>:POWer <output_unit> Selects the output unit for the measured power values. This setting also determines the unit for the parameters of the following commands: ● CALC:REL ● CALC:LIM:UPP ● CALC:LIM:LOW ● DISP:MET:UPP ● DISP:MET:LOW ●...

  • Page 340: Maintenance

    The sensor selftest is described in chapter 4.7.6.1, "Internal sensor selftest", on page 162. 7.2 Instrument selftest The R&S NRP2 carries out a selftest during booting. This selftest is described in chap- ter 1.8.2, "Startup", on page 18. 7.3 Cleaning the exterior To clean the exterior, use a soft, lintfree cloth and an alcohol-free solvent, e.g.

  • Page 341: Error Messages And Troubleshooting

    Error Messages and Troubleshooting NRP2 Status and Error Messages in Manual Control 8 Error Messages and Troubleshooting 8.1 Status and Error Messages in Manual Control Special characters and symbols indicated on the display inform about the status of the power meter, see chapter 3.6.2, "Special...

  • Page 342: Scpi-Specific Error Messages

    Error Messages and Troubleshooting NRP2 SCPI-Specific Error Messages 8.2 SCPI-Specific Error Messages The list below contains error messages that may occur in the instrument. Negative error numbers are defined in the SCPI standard, positive error numbers identify device- specific errors.
  • Page 343 Error Messages and Troubleshooting NRP2 SCPI-Specific Error Messages Error code Error text returned upon queue query Explanations -113 "Undefined header" The header is not defined for the device. -114 "Header suffix out of range" The header contains an illegal numeric suffix.
  • Page 344 Error Messages and Troubleshooting NRP2 SCPI-Specific Error Messages Error code Error text returned upon queue query Explanations -168 "Block data not allowed" The command contains a legal block data element at a point where it is not allowed. -171 "Invalid expression"...
  • Page 345 Error Messages and Troubleshooting NRP2 SCPI-Specific Error Messages Error code Error text returned upon queue query Explanations -223 "Too much data" A valid parameter is received but it contains more data than the device can handle. -224 "Illegal parameter value"...
  • Page 346 Error Messages and Troubleshooting NRP2 SCPI-Specific Error Messages Error code Error text returned upon queue query Explanations -350 "Queue overflow" This code is entered into the queue in lieu of the code that caused the error. It indicates that an error occurred but was not recorded. Five entries are accepted in the queue.
  • Page 347 Attempt was made to send a command to a sensor that does not support this command. This may depend on the current sensor status. The sensors can inform the R&S NRP2 at any point which commands they support or do not support. This mainly concerns commands of the Sense and Trigger systems.

  • Page 348: Bootmenu

    57 "Standard settings incomplete" is generated. 8.3 Bootmenu The boot menu of the R&S NRP2 offers service and troubleshooting functions. It is password protected. The start display indicates the "Bootmenu" button for a few seconds after power-on.
  • Page 349 The login window opens. Fig. 8-3: Login 2. Enter the password. The password is 7396 and cannot be changed. After entering the last digit the R&S NRP2 automatically opens the boot menu. User Manual 1173.9140.02 ─ 07 北京海洋兴业科技股份有限公司（证券代码：839145） 电话：010-62176775 网址：www.hyxyyq.com...
  • Page 350 Opens the system info menu. This menu provides soft- and hardware information to the instrument, e.g. serial numbers, firmware version or ethernet address. Fig. 8-5: Boot menu / System Info Service Opens the R&S NRP2 service menu, see chapter 8.3.2, "Service Menu", on page 349.
  • Page 351 Activates that an error message is displayed if a sample error occurs. 8.3.2 Service Menu The R&S NRP2 offer various service functions to perform system tests that are not part of the selftest, to install / deinstall options or to configure the reference signal.
  • Page 352 Press some of the numbers shown on the right to check the correct display. To exit press the "Exit" softkey, or the ESC key. Key Test Tests all hardkeys of the R&S NRP2 located at its front panel. User Manual 1173.9140.02 ─ 07 北京海洋兴业科技股份有限公司（证券代码：839145）...
  • Page 353 Fig. 8-10: Service menu / Keyboard test Press each key once, in any order. Each time a key is pressed, the R&S NRP2 responds acoustically and marks the iden- tified key. If you press a key more than once the instrument displays a warning mes- sage.

  • Page 354: A Annex

    Thus, you can use this mode to configure the R&S NRP2 for a measurement setup, that is always restored at boot time. In addition, the R&S NRP2 can be reset to the factory default by erasing the nonvola- tile memory.

  • Page 355: Remote Control Interfaces

    3. Enable the "Volatile Mode" setting. The Volatile Mode is activated. The current setting is used after each power on. You can also reset the R&S NRP2 to factory default by erasing the nonvolatile mem- ory. A.1.2 Changing the Password ►...
  • Page 356 Annex NRP2 Remote control interfaces For specifications refer to the data sheet. A.2.1 GPIB Bus Interface A.2.1.1 Characteristics of the interface ● 8-bit parallel data transmission ● Bidirectional data transmission ● Three-wire handshake ● Data transmission rate up to 350 Kbyte/s ●...
  • Page 357 A.2.1.4 GPIB bus interface Instruments which can be controlled via GPIB bus can be equipped with different inter- face functions. The interface function for the R&S NRP2 are listed in the following table. Table 1-1: GPIB bus interface functions Control...
  • Page 358 . In the LLO state, it is possible to return to the "LOCAL" mode only by remote control (GTL command) or switching the R&S NRP2 off and on again. SPE (Serial Poll Enable) Ready for serial poll.
  • Page 359 The VXI11 protocol uses ONC RPC (open network computing remote procedure calls), making it possible to call R&S NRP2 functions at the source code level as if they were running locally on the controller. The table below shows the relationships of the rele- vant protocol layers in the OSI reference model.
  • Page 360 111. The portmapper subsequently activates the channel in the R&S NRP2 and tells the client at which ports channel services can be addressed. For this reason, it is important that any firewalls or routers between the cli- ent and the R&S NRP2 enable free access from the controller to the R&S NRP2 (core...
  • Page 361 Initiates a device clear (DCL) in network instrument device. In the R&S NRP2, DCL and abort cause the same actions. Since device_abort(), unlike device_clear(), runs via the abort channel, it is not serialized together with other commands, but directly accesses the device and is therefore preferable.
  • Page 362 Remote control interfaces A.2.3 Ethernet interface The R&S NRP2 has a 10/100BaseT Ethernet female connector for remote control via a LAN, based on TCP/IP. The female connector is located on the instrument rear. The interface enables a controller to operate the R&S NRP2 by remote control using the SCPI commands of the R&S NRP2.
  • Page 363 Annex NRP2 Remote control interfaces The IEC/IEEE 1174.1 mode To allow emulation of the IEC/IEEE 488.1 standard, special control characters that begin with an & character (0x26) are defined (table 1-6). The link (link 1 or link 2) via which the control sequences are to be transmitted and that (controller or measuring instrument) is allowed to transmit the control sequences are predefined.
  • Page 364 Annex NRP2 Remote control interfaces behavior: In the 1174.2 mode, they are not filtered out by the driver, but are recog- nized by the parser like normal SCPI commands. In this mode, the control sequences are to be terminated by <CR><LF> like SCPI com- mands.
  • Page 365 A.2.3.2 Architecture of the Ethernet interface The R&S NRP2 offers a listener socket for connection queries. If the listener socket accepts a connection query, two related peer sockets will be created (link 1 and link 2) via which communications take place. The R&S NRP2 accepts the role of the server, and the remote control program is the client.
  • Page 366 /* INCLUDE FILES *******************************************************/ #include <stdio.h> #include <winsock2.h> /* LOCAL DEFINES *******************************************************/ #define IP_ADDR "192.168.1.2" // IP address of NRP2 #define PORT_NO 3000 // Port number of NRP2 #define MAX_RECV 200 // Max response len /* MAIN FUNCTION *******************************************************/ int main(int argc, char* argv[]) nRet;...
  • Page 367 = socket(AF_INET, SOCK_STREAM, IPPROTO_TCP); soLink2 = socket(AF_INET, SOCK_STREAM, IPPROTO_TCP); if ((soLink1 == INVALID_SOCKET) || (soLink2 == INVALID_SOCKET)) printf("Creation of Sockets failed.\n"); return(1); //--------------------------- // IP Address and Port of NRP2 //--------------------------- saDevice.sin_addr.s_addr = inet_addr(IP_ADDR); saDevice.sin_port = htons((u_short) PORT_NO); saDevice.sin_family = AF_INET;...
  • Page 368 = recv(soLink1, ResponseMessage, MAX_RECV, 0); if (nRet == 0) closesocket(soLink2); closesocket(soLink1); printf("Receive *IDN? response message failed.\n"); else //------------- // Show Answer: //------------- ResponseMessage[nRet] = 0; printf("Response from NRP2: %s", ResponseMessage); //-------------- // Disconnecting //-------------- closesocket(soLink2); closesocket(soLink1); //---------------- User Manual 1173.9140.02 ─ 07 北京海洋兴业科技股份有限公司（证券代码：839145） 电话：010-62176775...

  • Page 369: Standard Configurations

    } // Ende main() A.2.4 USB interface If the R&S NRP2 is connected to a controller via a USB 1.1 interface, it logs on as a USB test and measurement class (USBTMC) device, provided that USB is selected as a remote interface in the System(Remote USB menu. The USBTMC standard describes how IEEE 488.2-compatible communications can be implemented via USB.
  • Page 370 Annex NRP2 Standard Configurations ● Bluetooth DH5 ● CDMA2000 The tables list only the sensor parameters. If SYSTem:STANdard:PWSettings OFF is set, the calculate blocks (CALCulate:...), the window system (DISPlay:...) and the output unit (UNIT:...) are also configured. Table 1-8: GSM/EDGE...
  • Page 371 Annex NRP2 Standard Configurations Table 1-9: NADC/DOWNLINK Sensor parameter Remote control command in Value short form Sensor Mode SENS:FUNC POW:AVG Aperture Time SENS:APER 40 ms Duty Cycle Correction SENS:DCYC:STAT Smoothing SENS:SMO Trigger Source TRIG:SOUR Table 1-10: NADC/UPLINK Sensor parameter Remote control command in...
  • Page 372 Annex NRP2 Standard Configurations Sensor parameter Remote control command in Value short form Trigger Dropout Time TRIG:DTIM Trigger Hysteresis TRIG:HYST 3 dB Table 1-11: PDC/DOWNLINK Sensor parameter Remote control command in Value short form SENS:FUNC POW:AVG Sensor Mode Aperture Time...
  • Page 373 Annex NRP2 Standard Configurations Sensor parameter Remote control command in Value short form Trigger Delay TRIG:DEL Trigger Level TRIG:LEV -30 dBm Trigger Source TRIG:SOUR Trigger Slope TRIG:SLOP Trigger Holdoff TRIG:HOLD 79 ms Trigger Dropout Time TRIG:DTIM Trigger Hysteresis TRIG:HYST 3 dB...
  • Page 374 Annex NRP2 Standard Configurations Sensor parameter Remote control command in Value short form Trigger Slope TRIG:SLOP Trigger Holdoff TRIG:HOLD 39.9 ms Trigger Dropout Time TRIG:DTIM Trigger Hysteresis TRIG:HYST 3 dB Table 1-14: WCDMA/3GPP FDD Sensor parameter Remote control command in...
  • Page 375 Annex NRP2 Standard Configurations Sensor parameter Remote control command in Value short form Trace Offset Time SENS:TRAC:OFFS:TIME -200 µs Trace Capture Time SENS:TRAC:TIME 10.250 ms Trace Number Of Points SENS:TRAC:POIN Trace Realtime SENS:TRAC:REAL Trigger Delay TRIG:DEL Trigger Level TRIG:LEV -30 dBm...
  • Page 376 Annex NRP2 Standard Configurations Sensor parameter Remote control command in Value short form Trace Realtime SENS:TRAC:REAL Trigger Delay TRIG:DEL Trigger Level TRIG:LEV -30 dBm Trigger Source TRIG:SOUR Trigger Slope TRIG:SLOP Trigger Holdoff TRIG:HOLD 19.9 ms Trigger Dropout Time TRIG:DTIM Trigger Hysteresis...
  • Page 377 Annex NRP2 Standard Configurations Sensor parameter Remote control command in Value short form Trigger Dropout Time TRIG:DTIM Trigger Hysteresis TRIG:HYST 3 dB Table 1-18: Bluetooth DH1 Sensor parameter Remote control command in Value short form SENS:FUNC POW:XTIM Sensor Mode Aperture Time SENS:APER 1.25 ms...
  • Page 378 Annex NRP2 Standard Configurations Table 1-19: Bluetooth DH3 Sensor parameter Remote control command in Value short form Sensor Mode SENS:FUNC POW:XTIM Aperture Time SENS:APER 2.50 ms Duty Cycle SENS:DCYC 64.88 % Duty Cycle Correction SENS:DCYC:STAT Smoothing SENS:SMO Dropout Tolerance SENS:BURST:DTOL 1.622 ms...
  • Page 379 Annex NRP2 Standard Configurations Sensor parameter Remote control command in Value short form Exclude Time Start SENS:TIM:EXCL:STAR 10 µs Exclude Time End SENS:TIM:EXCL:STOP 15 µs Timegate Offset SENS:TGAT:OFFS:TIME 1: 10 µs 2: 3.135 ms Timegate Length SENS:TGAT:TIME 1: 2.845 ms 2: 351 µs...

  • Page 380: Programming Measurements

    The short form is normally used. However, commands are sometimes indi- cated in their long form so that their meaning is easier to understand. The R&S NRP2 makes no distinction between upper case and lower case letters; they are only used to distinguish between the short and long form.
  • Page 381 The reference value also must have a power unit and be set with CALC:REL:RAT. The R&S NRP2 stores the reference values for power values and power ratios independently of each other and automatically uses the correct reference value depending on the unit of the measure- ment result.
  • Page 382 Annex NRP2 Programming Measurements The measurement commands are obtained by adding one of the following keywords: :DIFF (difference) :DIFF:REL (difference with reference value) :RAT (ratio) :RAT:REL (ratio with reference value) :SWR (standing wave ratio) :RLOS (return loss) :REFL (reflection coefficient) The list of parameters is modified for these commands since two sensors have to be entered in the <source_list>.
  • Page 383 1 (default). The instrument is triggered by an external signal, which must be routed to the R&S NRP2 rear panel via the trigger input. The measurement result is a list of 8 measured values separated by a comma for the timeslots.
  • Page 384 Annex NRP2 Programming Measurements Example: MEAS:ARRay? (1000) 1000 measured values are recorded in the ContAv mode. After termination of the last measurement, the results are stored in the output queue. There is no triggering as in the ContAv mode. The measurement result is a list of 1000 measured values separa- ted by a comma.
  • Page 385 Annex NRP2 Programming Measurements Measurement function Output unit :SWR :RLOS :REFL The UNIT commands affect the parameters of the following commands: CALC:LIMit:UPPer, CALC:LIMit:LOWer, CALC:RELative, DISP:METer:UPPer and DISP:METer:LOWer. A.4.1.6 Division of MEAS? MEAS? can be divided into other high-level measurement commands.
  • Page 386 R&S NRP2 waits for such a value and then answers the query. During this time, no other command should be sent to the R&S NRP2, since the query has to be answered first. If a command is sent to the R&S NRP2, the SCPI error -410, "Query interrupted", is output.
  • Page 387 The R&S NRP2 is in the idle state and performs no measurement. On power-up of the R&S NRP2, it is in the LOCAL mode and in the IDLE state. All connected sensors are set to INIT:CONT ON to allow measurements to be continuously displayed.
  • Page 388 Commands", on page 193. To perform measurements with the R&S NRP2, the user should have a good under- standing of the trigger system and be familiar with the result processing. The measured values delivered by the sensors cannot be directly queried. As shown in figure below, the raw data is first determined in the sensors taking into account the SENSe settings.
  • Page 389 Each measurement configuration should begin with the *RST command, which sets the R&S NRP2 to a defined output state. The accurate settings are described in the documentation of remote control command SYSTem:PRESet. The most important settings are listed below: ●...
  • Page 390 This includes the generation of an answer, the measurement result. In the R&S NRP2, *TRG does not have this meaning: *TRG only executes a trigger event and thus only causes the status transitions from WAIT_FOR_TRG to MEASURING.
  • Page 391 Annex NRP2 Programming Measurements Example *RST TRIG:SOUR INT 'triggering in response to a signal edge TRIG:DEL 50 US 'starts measurement 50 µs after the trigger event TRIG:HOLD 800 US 'starts next trigger event 800 µs 'after the trigger event at the earliest...
  • Page 392 Annex NRP2 Programming Measurements Power Time EXCLude:STARt EXCLude:STOP Integration interval Fig. 1-8: Exclude parameter Moreover, in Timeslot and Timegate it is possible to exclude time domains also during measurement. (...[:EXCL]:MID:OFFS and ...:[:EXCL]:MID:TIME). Example: GSM measurement: The average power in the fifth GSM slot is to be measured. The burst power fails by 50 µs and this range is to be excluded from the measurement..
  • Page 393 Annex NRP2 Programming Measurements Gate 5 Power Trigger event Trigger level Time SENS:TRAC2:MID:TIME SENS:TRAC2:MID:OFFS:TIME SENS:TRAC2:OFFS:TIME SENS:TRAC2:TIME Fig. 1-9: Measurement of a GSM slot with Fence(Mid)-Exclude domain Level, hysteresis and dropout time With internal and external triggering (TRIG:SOUR INT | EXT), a trigger event is rec- ognized when the level of a trigger signal exceeds a specific value.
  • Page 394 Annex NRP2 Programming Measurements *RST SENS:FUNC "POW:AVG" SENS:APER 10 MS INIT FETCh? Timeslot mode: SENS:FUNC "POW:TSL:AVG" After the trigger event, the power is measured in timeslots, the number of which is defined with SENS:TSL:COUN. The length of the timeslots is set with SENS:TSL:WIDT.
  • Page 395 Annex NRP2 Programming Measurements Averaging/filters The power values to be measured are sampled by the sensors. The sampling values then undergo two-stage filtering before they are made available as measured values. The first filter stage is a time integration. The integration time is either set explicitly (ContAv mode: SENS:APER, Timeslot mode: SENS:TSL:WIDT and Trace mode: SENS:SWE:POIN and -:TIME) or determined automatically ("BurstAv mode").
  • Page 396 Measured-value corrections The R&S NRP2 offers different options for correcting measured values in the instru- ment. These options all require an existing knowledge of the test setup or the time structure of the signal. Offsets in the result can be corrected globally and depending on the frequency, and it is possible to consider the duty cycle of a signal and the influence of the complex reflection coefficient (Γ) of the power source.
  • Page 397 FETCh? This example assumes that a table called "Table 1" is available. Duty cycle If the duty cycle of a pulsed signal (SENS:DCYC) is reported to the R&S NRP2, the R&S NRP2 delivers the average power in the pulse. Example...
  • Page 398 Annex NRP2 Programming Measurements Keyword for selecting a calculation Corresponding low-level commands (n,m=1,2,3,4) function with high-level commands :RAT:REL (Ratio with reference CALC:MATH "(SENSn/SENSm)"; REL:STAT ON value) :SWR (Standing wave ratio) CALC:MATH "SWR(SENSn)"; REL:STAT OFF :RLOS (Return loss) CALC:MATH "RLOS(SENSn)"; REL:STAT OFF...
  • Page 399 Annex NRP2 Programming Measurements TRIG:SLOP POS 'trigger to rising signal edge SENS:FUNC "XPOW:CCDF" 'set CCDF statistics function SENS:STAT:OFFS 300 US 'measurement starts 300 µs after trigger time SENS:STAT:TIME 500 US 'measurement duration 500 µs SENS:STAT:SCAL:X:POIN 1024 'number of measurement points on the power axis...
  • Page 400 Annex NRP2 Programming Measurements The following example is intended for analysing a GSM/EDGE signal with the first slot used. *rst *cls sens:trac:meas on 'activate pulse measurements sens:trac:meas:auto on 'for sensor A. sense:trace:meas:tran:esam:auto:state on 'enhanced accuracy for stable 'periodic signals sens:trac:meas:alg HIST...
  • Page 401 Annex NRP2 Programming Measurements In the following example, sensor B is configured for a trace measurement as trigger master. Sensor A acts as trigger slave and performs a ContAv measurement. Sensor A will be started first and immediately enter WAIT_FOR_TRIGGER state. It will remain in this state, until an external trigger occurs.

  • Page 402: Compatibility Information

    CALC8:MATH "(SENS2)" A.5 Compatibility Information This section contains information regarding the compatibility of the R&S NRP2 remote control commands with those of the "E4418B" and "E4419B" power meters from Agi- lent. The R&S NRP2 is largely downward-compatible to the above-mentioned instru- ments but offers additional capabilities.
  • Page 403 :RWLock TRACe:STATe Is not implemented in the R&S NRP2. TRACe:DATA? Is not implemented in the R&S NRP2 in this form. Data of the trace mode can only be queried via the high-level commands (FETCh?, READ?, MEAS?) and CALC:DATA?. TRACe:UNIT? The UNIT node is only globally available in the R&S NRP2 and...
  • Page 404 E4418B/E4419B command Compatibility information TRIGger[:SEQUence[1]|2] The R&S NRP2 does not recognize the :SEQUence header and uses no TRIGger command globally but only on a sensor-by-sensor basis. If TRIGger or SENSe commands are to have a global effect, the :ALL header must be used instead of the numeric suffix.

  • Page 405: List Of Commands

    List of Commands NRP2 List of Commands [SENSe<[1]..4>]:AUXiliary..........................263 [SENSe<[1]..4>]:AVERage:COUNt........................263 [SENSe<[1]..4>]:AVERage:COUNt:AUTO.....................264 [SENSe<[1]..4>]:AVERage:COUNt:AUTO:MTIMe..................264 [SENSe<[1]..4>]:AVERage:COUNt:AUTO:NSRatio..................265 [SENSe<[1]..4>]:AVERage:COUNt:AUTO:RESolution..................264 [SENSe<[1]..4>]:AVERage:COUNt:AUTO:SLOT..................265 [SENSe<[1]..4>]:AVERage:COUNt:AUTO:TYPE..................265 [SENSe<[1]..4>]:AVERage:RESet.........................266 [SENSe<[1]..4>]:AVERage:TCONtrol......................266 [SENSe<[1]..4>]:AVERage[:STATe]......................266 [SENSe<[1]..4>]:BANDwidth:VIDeo.......................266 [SENSe<[1]..4>]:BANDwidth:VIDeo:LIST?....................267 [SENSe<[1]..4>]:BWIDth:VIDeo........................266 [SENSe<[1]..4>]:BWIDth:VIDeo:LIST?......................267 [SENSe<[1]..4>]:CORRection:DCYCle:STATe....................268 [SENSe<[1]..4>]:CORRection:DCYCle[:INPut][:MAGNitude]................ 267 [SENSe<[1]..4>]:CORRection:FDOFfset[:INPut][:MAGNitude]?..............268 [SENSe<[1]..4>]:CORRection:FDOTable:STATe..................268 [SENSe<[1]..4>]:CORRection:FDOTable[:SELect]..................268 [SENSe<[1]..4>]:CORRection:OFFSet......................267 [SENSe<[1]..4>]:CORRection:OFFSet:STATe....................
  • Page 406 List of Commands NRP2 [SENSe<[1]..4>]:TRACe:AVERage:COUNt:AUTO..................284 [SENSe<[1]..4>]:TRACe:AVERage:COUNt:AUTO:MTIMe................285 [SENSe<[1]..4>]:TRACe:AVERage:COUNt:AUTO:NSRatio................. 286 [SENSe<[1]..4>]:TRACe:AVERage:COUNt:AUTO:POINt................286 [SENSe<[1]..4>]:TRACe:AVERage:COUNt:AUTO:RESolution..............285 [SENSe<[1]..4>]:TRACe:AVERage:COUNt:AUTO:TYPE................286 [SENSe<[1]..4>]:TRACe:AVERage:TCONtrol....................287 [SENSe<[1]..4>]:TRACe:AVERage[:STATe]....................284 [SENSe<[1]..4>]:TRACe:MEASurement:ALGorithm..................287 [SENSe<[1]..4>]:TRACe:MEASurement:AUTO[:STATe]................287 [SENSe<[1]..4>]:TRACe:MEASurement:DEFine:DURation:REFerence............288 [SENSe<[1]..4>]:TRACe:MEASurement:DEFine:TRANsition:HREFerence..........288 [SENSe<[1]..4>]:TRACe:MEASurement:DEFine:TRANsition:LREFerence..........288 [SENSe<[1]..4>]:TRACe:MEASurement:POWer:AVG?................288 [SENSe<[1]..4>]:TRACe:MEASurement:POWer:MAX?................289 [SENSe<[1]..4>]:TRACe:MEASurement:POWer:MIN?................. 289 [SENSe<[1]..4>]:TRACe:MEASurement:POWer:PULSe:BASE?..............289 [SENSe<[1]..4>]:TRACe:MEASurement:POWer:PULSe:TOP?..............289 [SENSe<[1]..4>]:TRACe:MEASurement:PULSe:DCYCle?................289 [SENSe<[1]..4>]:TRACe:MEASurement:PULSe:DURation?.................289 [SENSe<[1]..4>]:TRACe:MEASurement:PULSe:PERiod?................289 [SENSe<[1]..4>]:TRACe:MEASurement:PULSe:SEParation?..............290 [SENSe<[1]..4>]:TRACe:MEASurement:TRANSition:ESAMpling:AUTO[:STATe]?........
  • Page 407 List of Commands NRP2 [SENSe<[1]..4>][:POWer][:AVG]:BUFFer:SIZE..................... 272 [SENSe<[1]..4>][:POWer][:AVG]:BUFFer:STATe..................272 [SENSe<[1]..4>][:POWer][:AVG]:RANGe...................... 273 [SENSe<[1]..4>][:POWer][:AVG]:RANGe:AUTO................... 273 [SENSe<[1]..4>][:POWer][:AVG]:RANGe:CLEVel..................273 [SENSe<[1]..4>][:POWer][:AVG]:SMOothing:STATe..................273 *CLS................................195 *ESE................................195 *ESR?................................196 *IDN?................................196 *IST?................................196 *OPC................................196 *OPT?................................197 *PRE................................197 *PSC................................197 *RCL................................198 *RST................................198 *SAV ................................204 *SRE................................204 *STB?................................205 *TRG................................205...
  • Page 408 List of Commands NRP2 CALCulate<[1]..8>:MAXimum:DATA?......................232 CALCulate<[1]..8>:MEAN:DATA?......................... 232 CALCulate<[1]..8>:MINimum:DATA?......................232 CALCulate<[1]..8>:PTPeak:DATA?.......................233 CALCulate<[1]..8>:RELative:POWer[:MAGNitude]..................234 CALCulate<[1]..8>:RELative:RATio[:MAGNitude]..................234 CALCulate<[1]..8>:RELative:STATe......................234 CALCulate<[1]..8>:RELative[:MAGNitude]....................233 CALCulate<[1]..8>:RELative[:MAGNitude]:AUTO..................233 CALCulate<[1]..8>:SDEViation:DATA?......................234 CALCulate<[1]..8>:TRACe:MARKer:XDELta?....................236 CALCulate<[1]..8>:TRACe:MARKer:YDELta?....................236 CALCulate<[1]..8>:TRACe:MARKer<[1]..2>:XPOSition................236 CALCulate<[1]..8>:TRACe:MARKer<[1]..2>:YPOSition?................237 CALibration:ALL:ZERO:AUTO........................237 CALibration:ALL:ZERO:FAST:AUTO......................238 CALibration<[1]..4>:DATA..........................237 CALibration<[1]..4>:ZERO:AUTO........................237 CALibration<[1]..4>:ZERO:FAST:AUTO......................238 CONFigure<[1]..8>:ARRay[:POWer][:AVG]....................218 CONFigure<[1]..8>:ARRay[:POWer][:AVG]:DIFFerence................218 CONFigure<[1]..8>:ARRay[:POWer][:AVG]:DIFFerence:RELative............... 218 CONFigure<[1]..8>:ARRay[:POWer][:AVG]:RATio..................218 CONFigure<[1]..8>:ARRay[:POWer][:AVG]:RATio:RELative................
  • Page 409 List of Commands NRP2 CONFigure<[1]..8>[:SCALar][:POWer]:TSLot:REFLection................218 CONFigure<[1]..8>[:SCALar][:POWer]:TSLot:RELative................217 CONFigure<[1]..8>[:SCALar][:POWer]:TSLot:RLOSs................... 218 CONFigure<[1]..8>[:SCALar][:POWer]:TSLot:SUM..................217 CONFigure<[1]..8>[:SCALar][:POWer]:TSLot:SUM:RELative............... 217 CONFigure<[1]..8>[:SCALar][:POWer]:TSLot:SWR..................217 CONFigure<[1]..8>[:SCALar][:POWer][:AVG]....................217 CONFigure<[1]..8>[:SCALar][:POWer][:AVG]:DIFFerence................217 CONFigure<[1]..8>[:SCALar][:POWer][:AVG]:DIFFerence:RELative............217 CONFigure<[1]..8>[:SCALar][:POWer][:AVG]:RATio..................217 CONFigure<[1]..8>[:SCALar][:POWer][:AVG]:RATio:RELative..............217 CONFigure<[1]..8>[:SCALar][:POWer][:AVG]:REFLection................217 CONFigure<[1]..8>[:SCALar][:POWer][:AVG]:RELative................217 CONFigure<[1]..8>[:SCALar][:POWer][:AVG]:RLOSs................... 217 CONFigure<[1]..8>[:SCALar][:POWer][:AVG]:SUM..................217 CONFigure<[1]..8>[:SCALar][:POWer][:AVG]:SUM:RELative............... 217 CONFigure<[1]..8>[:SCALar][:POWer][:AVG]:SWR..................217 CONFigure<5..8>:XTIMe[:POWer]:NONE.....................218 DISPlay:ERRorlist............................239 DISPlay:ILLumination............................ 239 DISPlay:MESSage:TEXT:CLEar........................240 DISPlay:MESSage:TEXT[:DATA]........................240 DISPlay:MESSage:TYPE..........................240 DISPlay:MESSage[:STATe]...........................240...
  • Page 410 List of Commands NRP2 FETCh?................................211 FETCh<[1]..8>:ARRay[:POWer][:AVG]......................220 FETCh<[1]..8>:ARRay[:POWer][:AVG]:DIFFerence..................220 FETCh<[1]..8>:ARRay[:POWer][:AVG]:DIFFerence:RELative..............220 FETCh<[1]..8>:ARRay[:POWer][:AVG]:RATio....................220 FETCh<[1]..8>:ARRay[:POWer][:AVG]:RATio:RELative................220 FETCh<[1]..8>:ARRay[:POWer][:AVG]:REFLection..................220 FETCh<[1]..8>:ARRay[:POWer][:AVG]:RELative..................220 FETCh<[1]..8>:ARRay[:POWer][:AVG]:RLOSs..................... 220 FETCh<[1]..8>:ARRay[:POWer][:AVG]:SUM....................220 FETCh<[1]..8>:ARRay[:POWer][:AVG]:SUM:RELative................. 220 FETCh<[1]..8>:ARRay[:POWer][:AVG]:SWR....................220 FETCh<[1]..8>:STATistics:CCDF........................220 FETCh<[1]..8>:STATistics:PDF........................220 FETCh<[1]..8>:XTIMe[:POWer]........................220 FETCh<[1]..8>:XTIMe[:POWer]:RATio......................220 FETCh<[1]..8>[:SCALar][:POWer]:BURSt..................... 220 FETCh<[1]..8>[:SCALar][:POWer]:BURSt:DIFFerence................. 220 FETCh<[1]..8>[:SCALar][:POWer]:BURSt:DIFFerence:RELative..............220 FETCh<[1]..8>[:SCALar][:POWer]:BURSt:RATio..................220 FETCh<[1]..8>[:SCALar][:POWer]:BURSt:RATio:RELative................220 FETCh<[1]..8>[:SCALar][:POWer]:BURSt:REFLection.................
  • Page 411 List of Commands NRP2 FORMat[:READings]:BORDer........................248 FORMat[:READings][:DATA]......................... 248 INITiate:ALL:CONTinuous..........................329 INITiate:ALL:DISable............................. 330 INITiate:ALL[:IMMediate]..........................330 INITiate<[1]..4>:CONTinuous........................329 INITiate<[1]..4>:DISable..........................330 INITiate<[1]..4>[:IMMediate].......................... 330 MEASurement<[1]..8>:ARRay[:POWer][:AVG]....................223 MEASurement<[1]..8>:ARRay[:POWer][:AVG]:DIFFerence................223 MEASurement<[1]..8>:ARRay[:POWer][:AVG]:DIFFerence:RELative............223 MEASurement<[1]..8>:ARRay[:POWer][:AVG]:RATio...................223 MEASurement<[1]..8>:ARRay[:POWer][:AVG]:RATio:RELative..............223 MEASurement<[1]..8>:ARRay[:POWer][:AVG]:REFLection................224 MEASurement<[1]..8>:ARRay[:POWer][:AVG]:RELative................223 MEASurement<[1]..8>:ARRay[:POWer][:AVG]:RLOSs................. 224 MEASurement<[1]..8>:ARRay[:POWer][:AVG]:SUM..................223 MEASurement<[1]..8>:ARRay[:POWer][:AVG]:SUM:RELative..............223 MEASurement<[1]..8>:ARRay[:POWer][:AVG]:SWR..................223 MEASurement<[1]..8>:STATistics:CCDF...................... 224 MEASurement<[1]..8>:STATistics:PDF......................224 MEASurement<[1]..8>:XTIMe[:POWer]......................
  • Page 412 List of Commands NRP2 MEASurement<[1]..8>[:SCALar][:POWer][:AVG]:REFLection...............223 MEASurement<[1]..8>[:SCALar][:POWer][:AVG]:RELative................222 MEASurement<[1]..8>[:SCALar][:POWer][:AVG]:RLOSs................223 MEASurement<[1]..8>[:SCALar][:POWer][:AVG]:SUM................. 222 MEASurement<[1]..8>[:SCALar][:POWer][:AVG]:SUM:RELative..............222 MEASurement<[1]..8>[:SCALar][:POWer][:AVG]:SWR................. 223 MEMory:CATalog:STATe?..........................250 MEMory:CATalog:TABLe?..........................250 MEMory:CATalog[:ALL]?..........................250 MEMory:CLEar:TABLe..........................251 MEMory:CLEar[:NAME]..........................250 MEMory:FREE:STATe?..........................251 MEMory:FREE:TABLe?..........................251 MEMory:FREE[:ALL]?............................251 MEMory:NSTates?............................251 MEMory:STATe:CATalog?..........................251 MEMory:STATe:DEFine..........................252 MEMory:STATe:MAP.............................252 MEMory:STATe:RESet?..........................252 MEMory:TABLe:DATA:POINts?........................253 MEMory:TABLe:DATA?..........................252 MEMory:TABLe:FREQuency......................... 253 MEMory:TABLe:FREQuency:POINts?......................253 MEMory:TABLe:GAIN:POINts?........................
  • Page 413 List of Commands NRP2 READ<[1]..8>:ARRay[:POWer][:AVG]:RATio:RELative................222 READ<[1]..8>:ARRay[:POWer][:AVG]:REFLection..................222 READ<[1]..8>:ARRay[:POWer][:AVG]:RELative................... 222 READ<[1]..8>:ARRay[:POWer][:AVG]:RLOSs....................222 READ<[1]..8>:ARRay[:POWer][:AVG]:SUM....................222 READ<[1]..8>:ARRay[:POWer][:AVG]:SUM:RELative.................. 222 READ<[1]..8>:ARRay[:POWer][:AVG]:SWR....................222 READ<[1]..8>:STATistics:CCDF........................222 READ<[1]..8>:STATistics:PDF........................222 READ<[1]..8>:XTIMe[:POWer]........................222 READ<[1]..8>:XTIMe[:POWer]:RATio......................222 READ<[1]..8>[:SCALar][:POWer]:BURSt...................... 221 READ<[1]..8>[:SCALar][:POWer]:BURSt:DIFFerence.................. 221 READ<[1]..8>[:SCALar][:POWer]:BURSt:DIFFerence:RELative..............221 READ<[1]..8>[:SCALar][:POWer]:BURSt:RATio................... 221 READ<[1]..8>[:SCALar][:POWer]:BURSt:RATio:RELative................221 READ<[1]..8>[:SCALar][:POWer]:BURSt:REFLection...................222 READ<[1]..8>[:SCALar][:POWer]:BURSt:RELative..................221 READ<[1]..8>[:SCALar][:POWer]:BURSt:RLOSs..................222 READ<[1]..8>[:SCALar][:POWer]:BURSt:SUM..................... 221 READ<[1]..8>[:SCALar][:POWer]:BURSt:SUM:RELative................221 READ<[1]..8>[:SCALar][:POWer]:BURSt:SWR..................... 221 READ<[1]..8>[:SCALar][:POWer]:TSLot......................221...
  • Page 414 List of Commands NRP2 SERVice<[1]..4>:SERRors..........................295 SERVice<[1]..4>:UNLock..........................295 SYSTem:BEEPer:NOTify:KEY........................320 SYSTem:BEEPer:NOTify:OVERload......................319 SYSTem:BEEPer:STOP..........................320 SYSTem:BEEPer:TIME..........................320 SYSTem:BEEPer[:IMMediate]........................319 SYSTem:COMMunicate:GPIB[:SELF]:ADDRess..................320 SYSTem:COMMunicate:INET:MODE......................320 SYSTem:COMMunicate:INET[:SELF]:ADDRess...................321 SYSTem:COMMunicate:INET[:SELF]:GATEway:ADDRess................. 321 SYSTem:COMMunicate:INET[:SELF]:SUBNetmask:ADDRess..............321 SYSTem:DATE..............................322 SYSTem:ERRor:EXTended[:STATe]......................323 SYSTem:ERRor?............................323 SYSTem:IDN..............................322 SYSTem:IDN:AUTO............................322 SYSTem:INFO?.............................322 SYSTem:KEY..............................324 SYSTem:LANGuage............................325 SYSTem:OPT..............................325 SYSTem:OPT:AUTO............................. 325 SYSTem:PRESet............................325 SYSTem:REBoot............................325 SYSTem:SENSor<[1]..4>:INFO?........................326...
  • Page 415 List of Commands NRP2 TRIGger<[1]..4>:DELay:AUTO........................332 TRIGger<[1]..4>:DTIMe..........................332 TRIGger<[1]..4>:HOLDoff..........................333 TRIGger<[1]..4>:HYSTeresis.........................333 TRIGger<[1]..4>:LEVel..........................333 TRIGger<[1]..4>:MASTer[:STATe].........................334 TRIGger<[1]..4>:SLOPe..........................334 TRIGger<[1]..4>:SOURce..........................334 TRIGger<[1]..4>:SYNChronize[:STATe]......................335 TRIGger<[1]..4>[:IMMediate]......................... 333 UNIT<[1]..8>:POWer............................336 UNIT<[1]..8>:POWer:RATio...........................336 User Manual 1173.9140.02 ─ 07 北京海洋兴业科技股份有限公司（证券代码：839145） 电话：010-62176775 网址：www.hyxyyq.com...

  • Page 416: Index

    Index NRP2 Index Symbols Config Gates ..............122 Config Grid..............116 -151, "Invalid string data" ..........269 Config Pulse..............127 -211, "Trigger ignored" ............ 333 Config… ................165 -230, "Data corrupt or stale" ..........313 Cont Av mode ..............29 -231, "Data questionable"...
  • Page 417 Index NRP2 Front panel ................9 Level Function ................120 Sensor Trigger ............87 Function test ..............18 Limit Fail ................339 LIMIT FAIL ................ 58 Limit warning ..............161 Low reference power (pulse) ........... 129 Gamma correction) ............84 Gate ................
  • Page 418 Index NRP2 Path 1 2 3 RUN .................. 58 Sensor Range ............. 84 PDF ................. 140 Peak (gate) ..............122 S Parameter Device ............78 Peak (time slot) ............... 133 S/N ..................58 Peak power (gate) ............103 Sample Error ..............167 Peak/Avg (gate) ..............
  • Page 419 Index NRP2 Start / Length of Fence (Gate) ........124 USBTMC standard ............148 Start / Length of Fence (T'slot) ........135 User def'd transition Start / Length of Gate ............123 Sensor Range ............. 84 Start display booting ................ 18 function test ..............

Table of Contents
