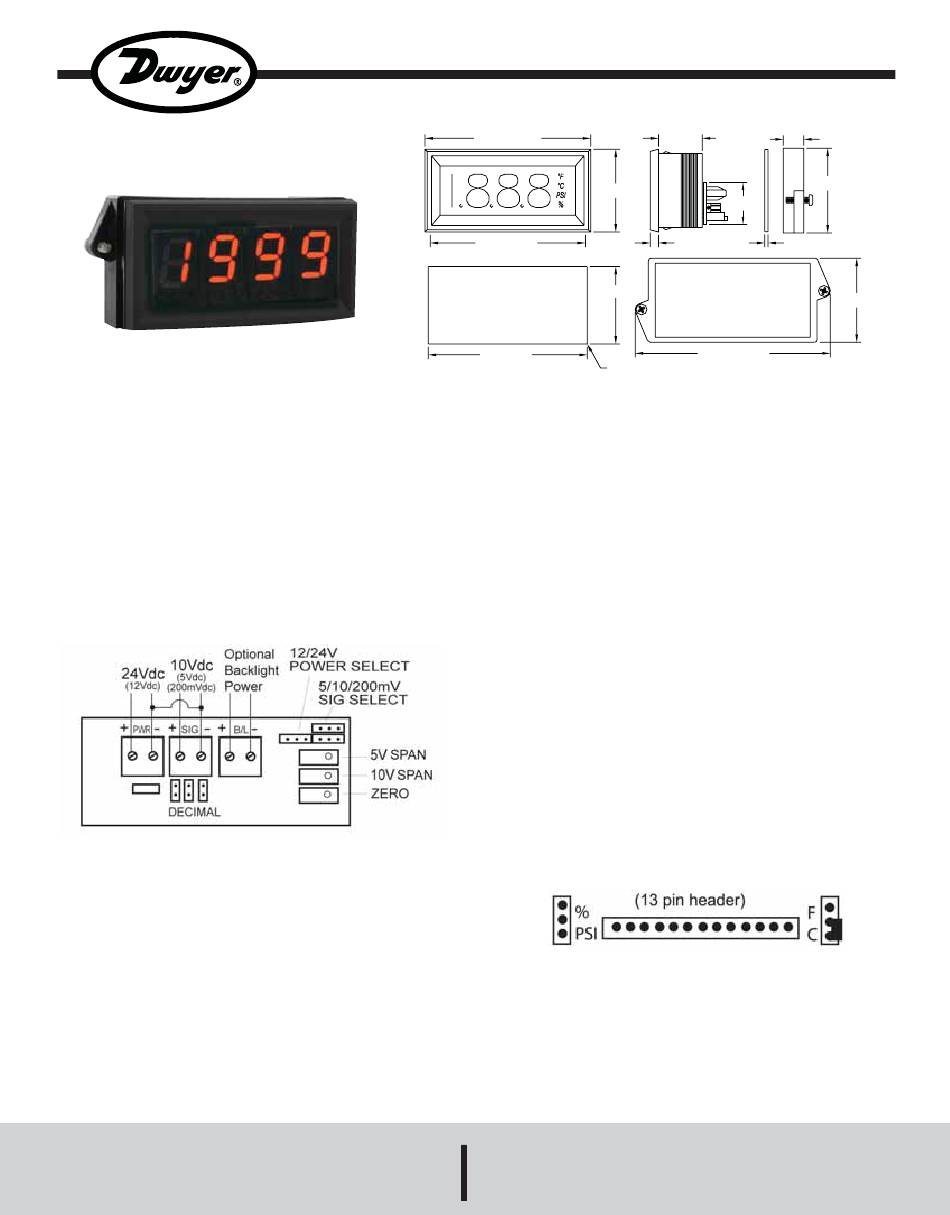

Dwyer Instruments DPMA-5 Series Installation And Operating Instructions

Series DPMA-5 Adjustable Panel Meter offers a large 1˝, 3-1/2
digit display for easy viewing in a standard 1/8 DIN package. Unit
accepts voltage inputs with a wide bipolar zero and span
adjustment. Standard features include field selectable engineering
units and decimal point positions. Choose from red, amber, or
green segments for easy viewing at a distance. A separate 24 VDC
power supply is required for the operation of the backlight.
INSTALLATION
The Series DPMA-5 is designed to snap into a 3.62˝ (92 mm) W x
1.77˝ (45 mm) H panel cutout. No additional hardware is required.
WIRING
Three sets of jumper pins are located on the back of the meter.
Move the jumper to fit over the appropriate pins which correspond
to the desired signal input voltage, supply voltage and decimal
point position. An external 12 or 24 VDC power supply is required
to power the meter and should be connected to the screw
terminal marked with "+pwr-". Wire the input signal to terminal
"+sig-" and put a jumper between "-sig" and "-pwr". The
backlighting requires a separate 24 VDC power supply and should
be connected to terminals identified with "+B/L-".
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46361, U.S.A.
Series DPMA-5 Adjustable LCD Digital Panel Meters
Specifications - Installation and Operating Instructions
3-25/32 [96.0]
3-35/64 {89.9]
PANEL CUTOUT
FOR SNAP IN MOUNTING
3-5/8 [92.1]
Phone: 219/879-8000
Fax: 219/872-9057
1 [25.4]
1-57/64 [48.0]
3/16 [4.76]
1-49/64 [45.0]
MOUNTING BRACKET OUTLINE
4X 1/64 [.25]
SPECIFICATIONS
Input: 0-5 VDC; 0-10 VDC.
Accuracy: ±(0.05% FS + 1 count).
Power Supply: 12 or 24 VDC (field selectable).
Current Consumption: 10 mA DC. Backlight: 35 mA.
Span and Zero: Adjustable. (±1999 counts).
Display: 3-1/2 digits, 7 segments, 1˝ (25.4 mm) H.
Decimal Points: 3-position, user selectable.
Annunciator: °F, °C, %, PSI.
Polarity: Automatic, "-" displayed.
Operating Temperature: 14 to 122°F (-10 to 50°C).
Storage Temperature: -40 to 167°F (-40 to 75°C).
Mounting: Snap-in panel mount or clamp (gasket included).
Connection: Screw terminals.
Weight: 4 oz (113.4 g).
Conversion Rating: 3 per second.
Warm-up: 10 minutes typical.
OPERATION
Selecting Engineering Units
Four sets of jumper pins are located in the back of the meter,
between the meter and the adder board. Move the jumper to fit
over the appropriate pins which correspond to the desired
engineering units. See Figure 1 Example shows °C turned on.
Figure 1
www.dwyer-inst.com
e-mail: info@dwyer-inst.com
Bulletin G-64
15/32 [11.9]
63/64 [24.9]
1-15/16 [49.2]
5/64 [1.9]
1-59/64 [48.8]
REAR VIEW
4-29/64 [113.0]
