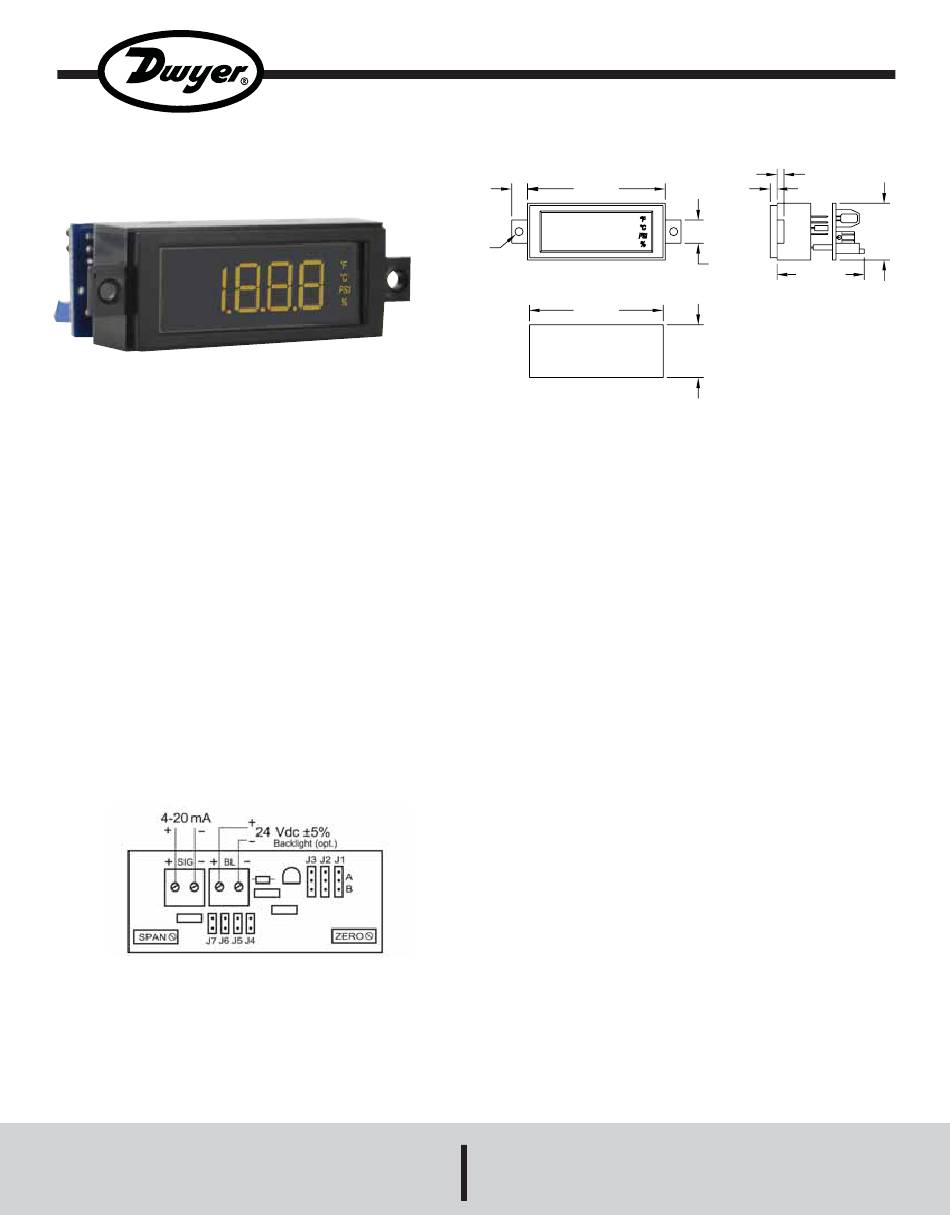

Dwyer Instruments DPMW Series Installation And Operating Instructions

The Series DPMW LCD Digital Panel Meter is designed with a
3-1/2 digit, high contrast LCD display. The colored segments are
available in red, amber, or green - ideal for viewing at a distance.
The Series DPMW features user selectable engineering units,
selectable decimal point position and adjustable zero and span.
The meter accepts a 4 to 20 mA input signal for pressure, level,
flow, and temperature transmitter. A 24 VDC power supply is
required to illuminate the colored segments. The series DPMW can
be quickly installed in a window cutout.
INSTALLATION
The Series DPMW is designed for window mounting in a 2.31˝
(58.4 mm) W x .91˝ (22.9 mm) H panel cutout.
WIRING
The unit is powered by a 4-20 mA loop and the screw terminals
for wiring are located on the back of the adder board marked with
+ SIG -. The backlighting requires a 24 VDC power supply and
should be connected to terminals identified with + B/L -.
Note: If backlight supply is not loop supply, ground should be
referenced together.
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46361, U.S.A.
Series DPMW LCD Digital Panel Meters
Specifications - Installation and Operating Instructions
REAR VIEW
.270
2.380
[6.85]
[60.5]
1888
Ø.140
[Ø3.6]
2 PLCS
2.310
[58.4]
PANEL CUTOUT FOR
WINDOW MOUNTING
SPECIFICATIONS
Inputs: 4-20 mA DC.
Input Impedance: 300Ω nominal.
Accuracy: ±(0.1% FS + 2 count).
Backlight Power Supply: 24 VDC @ 35 mA typical.
Span and Zero: Adjustable. (± 1999).
Display: 3-1/2 digits, 7 segments, 0.45˝ (11.4 mm) H.
Decimal Points: 3-position, user selectable.
Annunciator: °F, °C, %, PSI.
Polarity: Automatic, "-" displayed.
Operating Temperature: 32 to 122°F (0 to 50°C).
Storage Temperature: -4 to 158°F (-20 to 70°C)
Mounting: Window mount.
Connection: Screw terminals.
Weight: 2 oz (56.7 g).
Conversion Rate: 3 per second.
Warm-Up: 10 minutes typical.
Phone: 219/879-8000
Fax: 219/872-9057
Bulletin E-90-DPMW
.120
[3.05]
.120
[3.05]
.400
[10.2]
1.562
[39.67]
.910
[22.9]
www.dwyer-inst.com
e-mail: info@dwyer-inst.com
.988
[25.1]
