Dwyer Instruments DPMA-4 Series Installation And Operating Instructions

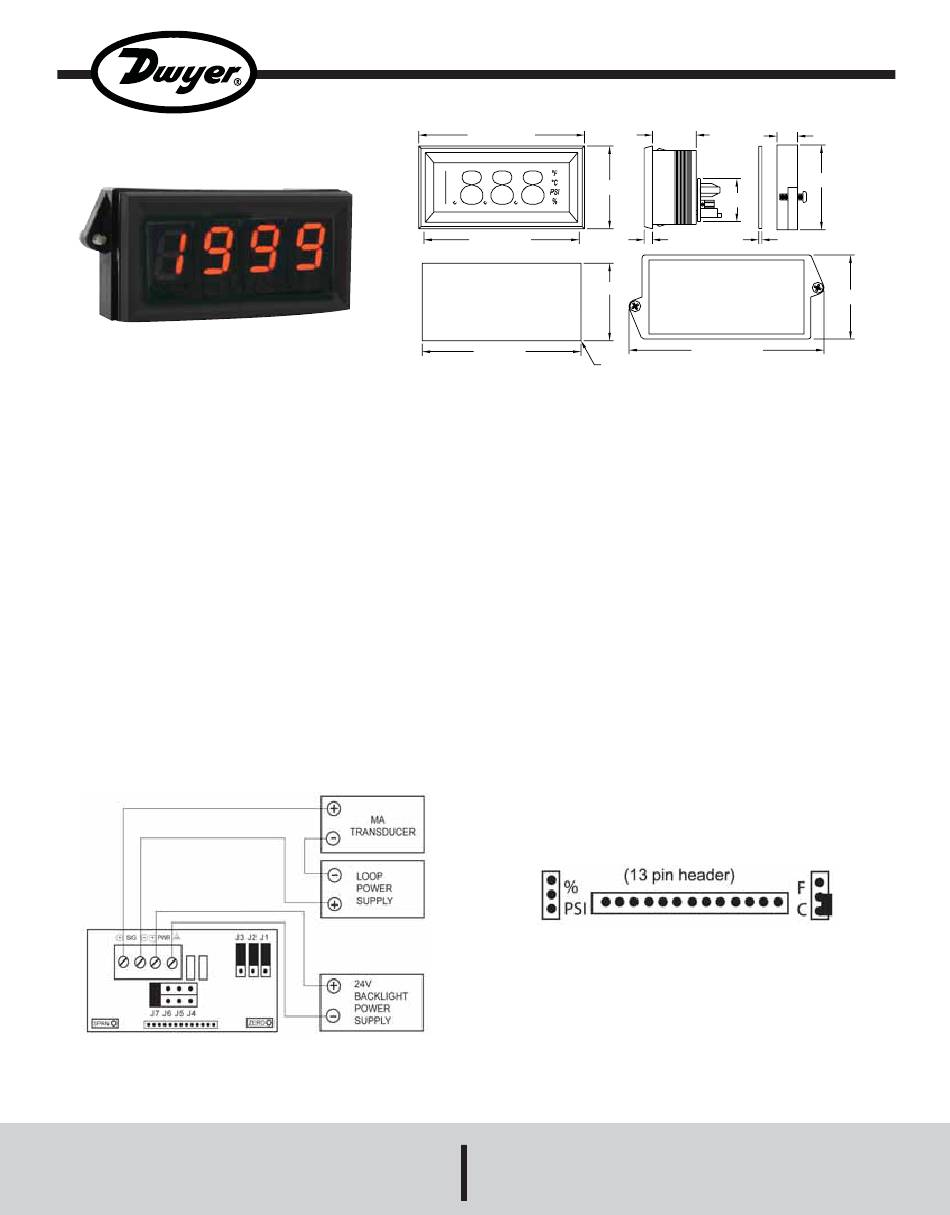

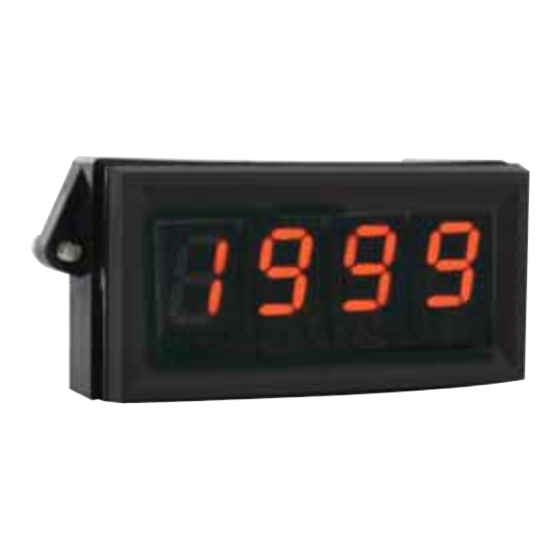

Series DPMA-4 Adjustable LCD Digital Panel Meter offers a
3-1/2 digit display for easy viewing in a standard 1/8 DIN package.
Unit accepts 4-20 mA DC inputs with a wide bipolar zero and span
adjustment. Standard features include field selectable engineering
units and decimal point positions. Choose from red, amber, or
green segments for easy viewing at a distance. A 24 VDC power
supply is required for the operation of the backlight.
INSTALLATION
The Series DPMA-4 is designed to snap into a 3.62˝ (92 mm) W x
1.77˝ (45 mm) H panel cutout. No additional hardware is required.
WIRING
The unit is powered by a 4-20 mA loop and the screw terminal for
wiring is located on the back of the adder board marked with +
SIG -. The backlighting requires a 24 VDC power supply and
should be connected to terminals identified with +pwr-.
TYPICAL LOOP CONNECTION
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46361, U.S.A.
Series DPMA-4 Adjustable LCD Digital Panel Meters
Specifications - Installation and Operating Instructions
3-25/32 [96.0]
3-35/64 {89.9]
PANEL CUTOUT
FOR SNAP IN MOUNTING
3-5/8 [92.1]
Phone: 219/879-8000
Fax: 219/872-9057
1 [25.4]
1-57/64 [48.0]
3/16 [4.76]
1-49/64 [45.0]
MOUNTING BRACKET OUTLINE
4X 1/64 [.25]
SPECIFICATIONS
Input: 4-20 mA.
Input Impedance: 300Ω nominal.
Accuracy: ±(0.05% FS + 1 count).
Backlight Power Supply: 24 VDC @ 35 mA typical.
Span and Zero: Adjustable (±1999).
Display: 3-1/2 digits, 7 segments, 1˝ (25.4 mm) H.
Decimal Points: 3-position, user selectable.
Engineering Units: °F, °C, %, PSI.
Polarity: Automatic, "-" displayed.
Operating Temperature: 14 to 122°F (-10 to 50°C).
Storage Temperature: -40 to 167°F (-40 to 75°C).
Mounting: Snap-in panel mount or clamp (gasket included).
Connection: Screw terminals.
Weight: 4 oz (113.4 g).
Conversion Rate: 3 per second.
Warm-up: 10 minutes typical.
OPERATION
Selecting Engineering Units
Four sets of jumper pins are located in the back of the meter,
between the meter and the adder board. Move the jumper to fit
over the appropriate pins which correspond to the desired
engineering units. See Figure 1 Example shows °C turned on.
Figure 1
Note: If backlight supply is not loop supply, ground should be
referenced together.
