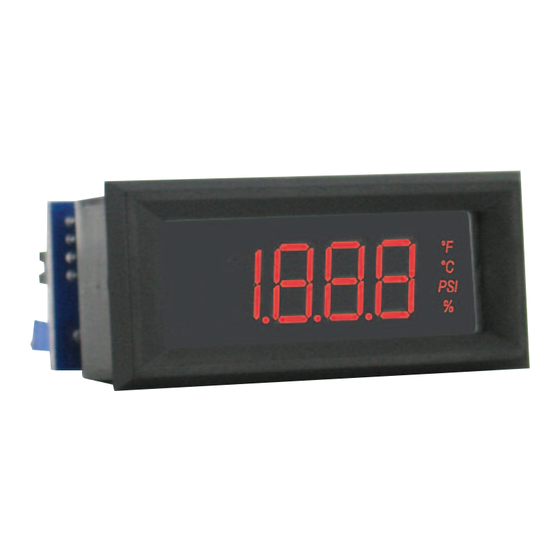

The DPMP-5 LCD Digital Panel Meter provides easy viewing on the 3-
1/2 digit display. The display segments are available in a choice of
amber, green or red. The meter features user selectable engineering
units, adjustable zero and span, and field selectable decimal point
position. The snap-in bezel mount eliminates mounting hardware.
INSTALLATION
The Series DPMP-5 is designed for panel mounting in a 2.4" x 1" (61 mm
x 25.1 mm) H panel cutout.
WIRING
The unit is powered by 12 or 24 VDC and the screw terminals for wiring
are located on the back of the adder board marked with "+ PWR -". Move
the power select jumper for the appropriate power supply value (see
Figure 2). The backlighting requires a 24 VDC power supply and should
be connected to terminals identified with "+ B/L -".
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
Series DPMP-5 LCD Digital Panel Meters
Specifications - Installation and Operating Instructions
Figure 1
Figure 2
P Models
V
A
KW
2-35/64
PF
[64.5]
°F
1-9/64
°C
PSI
[29]
%
2.390 REAR HOUSING
[60.6]
2-13/32
[61]
PANEL CUTOUT FOR
1
WINDOW MOUNTING
[25.4]
SPECIFICATIONS
Inputs: 0 to 200 mVDC, 0 to 5 VDC, or 0 to 10 VDC.
Input Impedance: 390KΩ nominal.
Accuracy: ±(0.1% FS +2 count).
Power Supply: 12 VDC or 24 VDC.
Backlight Power Supply: 24 VDC @ 35 mA typical.
Span and Zero: Adjustable (±1999 counts).
Display: 3-1/2 digits, 7 segments, 0.45˝ (11.4 mm) H.
Decimal Points: 3-position, user selectable.
Engineering Units: DPMP-XXX: ºF, ºC, PSI; DPMP-XXXP: V, A, KW,
PF.
Polarity: Automatic, "-" displayed.
Operating Temperature: 32 to 122ºF (0 to 50ºC).
Storage Temperature: -4 to 158ºF (-20 to 70ºC).
Mounting: Snap-in bezel mounts.
Connection: Screw terminal.
Conversion Rate: 3 per second.
Warm-Up: 10 minutes typical.
Weight: 2 oz (56.7 g).
Agency Approvals: RoHS.
The unit accepts 200 mVDC, 5 VDC or 10 VDC. Wire input according to
the figure below. Set the signal select jumper for the appropriate input.
Phone: 219/879-8000
Fax: 219/872-9057
Bulletin G-61-P5
1/8
[3]
63/64
[25.1]
1-5/8
[41.1]
Figure 3
www.dwyer-inst.com
e-mail: info@dwyermail.com
