Dwyer Instruments DigiMag DM-1112 Installation And Operating Instructions Manual

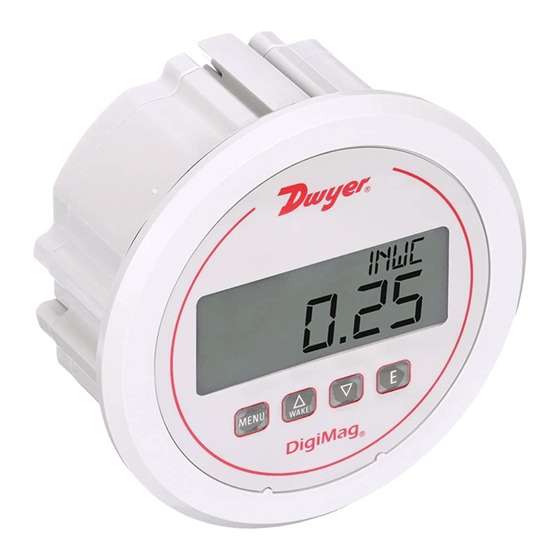

The Series DM-1000 DigiMag
digital instrument to take the place of analog mechanical pressure gages. The
DigiMag ® Digital Gages are more versatile than analog gages with their ability to be
field-programmed to display many commonly used engineering units as well as
percent of full scale. The Series DM-1000 can be programmed in 8 commonly
used engineering units plus percent of full scale. This capability allows quick units
selection on site, eliminating the need to calculate various unit conversions. The
DigiMag Digital Differential Pressure Gages have an added feature for filter
®
applications where a set point can be input where the display will blink when the
filter is dirty, alerting the user that a maintenance action needs to occur.
Programming the Series DM-1000 is easy using the menu key to access 4
simplified menus which provide access to: Security level; engineering units; filter
set point; view peak and valley process readings; digital damping for smoothing
erratic process applications; display update to conserve battery life; zero and span
field calibration.
The Series DM-1000 DigiMag
scale accuracy of 1% on ranges down to 2˝ w.c. and 2% accuracy down to the very
low ranges of 1" to 0.25" w.c. Models are also available with bi-directional ranges.
DigiMag Digital Differential Pressure Gages offer power versatility by working with
®
9-24 VDC line power or simply 9V battery power. If using line power and
connecting the 9V battery, the battery will act as a back-up if line power is lost or
interrupted.
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
1.800.561.8187

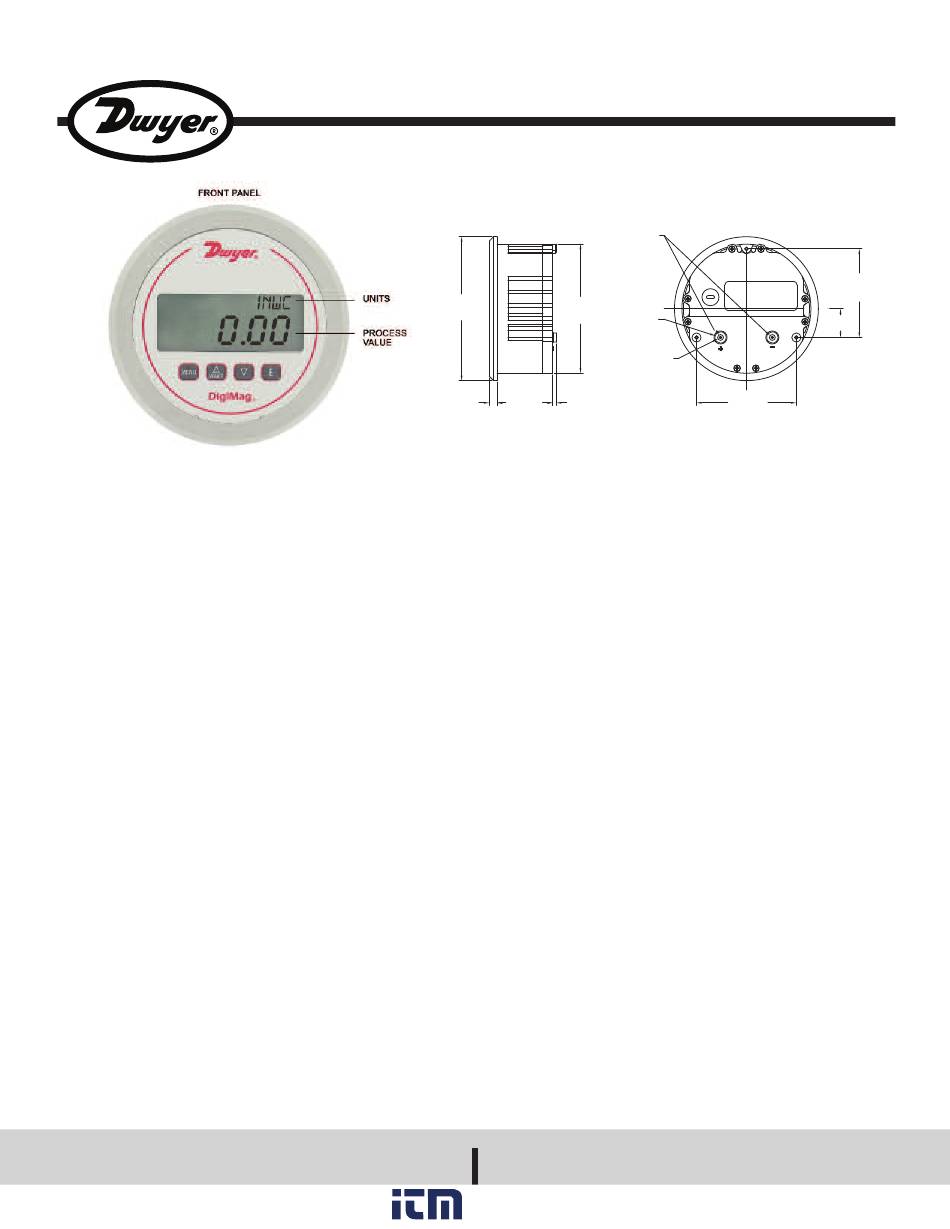

Series DM-1000 DigiMag
Specifications - Installation and Operating Instructions
Digital Differential Pressure Gage is the ideal
®
Digital Differential Pressure Gage possesses a full
®
www.
Digital Differential Pressure Gage
®
PRESSURE
CONNECTIONS
21/64 [8.59] LONG
Ø5
4-31/64
[127.00]
[113.89]
3X1/8
17/64
1-59/64
[3.30]
[6.91]
[48.89]
SPECIFICATIONS
Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult factory.
Housing Materials: Glass filled plastic.
Accuracy: ±1% F.S. including linearity, hysteresis and repeatability; ±2% F.S. for
ranges 1˝ w.c. and below.
Temperature Limits: 0 to 140°F (-18 to 60°C).
Compensated Temperature Limits: 32 to 122°F (0 to 50°C).
Long Term Stability: ±1% F.S. per year.
Thermal Effect: ±0.05% F.S./°F typ.; ±0.10% F.S./°F for ranges 1˝ w.c. and
below.
Display: 4-digit LCD (Digits: 0.60˝H x 0.33˝W).
Display Update: Selectable for 1 second to 10 minutes or update only from
button push.
Pressure Limits: Normal and bi-directional ranges 5˝ w.c. and lower = 2 psi
(13.7 kPa); Normal and bi-directional ranges 10˝ w.c. and higher = 11 psi (75
kPa).
Selectable Engineering Units: in w.c., psi, kPa, Pa, mm w.c., mBar, in Hg, mm
Hg, FS (0-100%).
Power Requirements: 9V battery or external power supply 9-24 VDC. Battery
included but not connected.
Type of Battery: 9V alkaline battery (Duracell
Battery Service Life: Battery life depending on the Display Update setting: 150
hours (typical) if Display Update = 1 second; 9 month (typical) if Display Update =
10 minutes; 1.5 years (typical) if Display Update is disabled. Battery may last up
to four times longer when using lithium-based battery ULTRALIFE U9VL-J.
Current Consumption: 5 mA maximum.
Electrical Connections: Removable terminal block for 16 to 26 AWG.
Electrical Entry: Cable gland for 0.114 to 0.250˝ (2.9 to 6.4 mm) diameter cable.
Process Connections: 3/16˝ I.D. tubing (5 mm I.D.), maximum O.D. 3/8˝ tubing.
Enclosure Rating: NEMA 4X (IP66).
Weight: 1.18 lb (535 g).
Size: 5˝ (127 mm) O.D. front face.
Agency Approvals: CE, EN 61326-1 [Immunity Test Requirement for Industrial
Environments] with the following SPEC:
IEC 61000-3-2
IEC 61000-3-3
IEC61000-4-2
IEC61000-4-3
IEC61000-4-4
IEC61000-4-5
IEC61000-4-6
IEC61000-4-11
Duracell is a registered trademark of The Gillette Company.
®
Phone: 219/879-8000
Fax: 219/872-9057
information@itm.com
.com
Bulletin P-DM-1100
Ø25/64
[10.03]
Ø13/64
[5.18]
3-15/32
[88.12]
PC 1604 or equivalent).
®
www.dwyer-inst.com
e-mail: info@dwyer-inst.com
3-5/64
[78.27]
1
[25.44]
