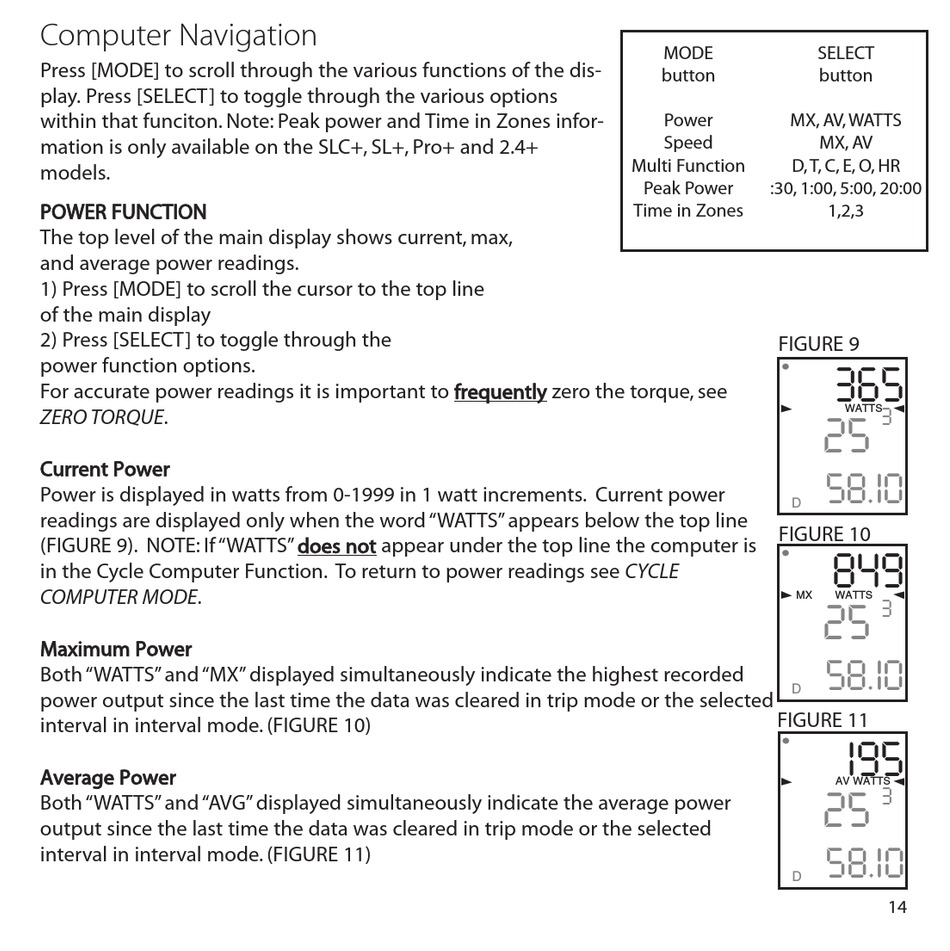

Computer Navigation; Power Function - CycleOps PowerTap SLC+ User Manual

Computer Navigation

Press [MODE] to scroll through the various functions of the dis-
play. Press [SELECT] to toggle through the various options
within that funciton. Note: Peak power and Time in Zones infor-
mation is only available on the SLC+, SL+, Pro+ and 2.4+
models.

POWER FUNCTION

The top level of the main display shows current, max,
and average power readings.
1) Press [MODE] to scroll the cursor to the top line
of the main display
2) Press [SELECT] to toggle through the
power function options.
For accurate power readings it is important to frequently zero the torque, see
ZERO TORQUE.
Current Power
Power is displayed in watts from 0-1999 in 1 watt increments. Current power
readings are displayed only when the word "WATTS" appears below the top line
(FIGURE 9). NOTE: If "WATTS" does not appear under the top line the computer is
in the Cycle Computer Function. To return to power readings see CYCLE
COMPUTER MODE.
Maximum Power
Both "WATTS" and "MX" displayed simultaneously indicate the highest recorded
power output since the last time the data was cleared in trip mode or the selected
interval in interval mode. (FIGURE 10)
Average Power
Both "WATTS" and "AVG" displayed simultaneously indicate the average power
output since the last time the data was cleared in trip mode or the selected
interval in interval mode. (FIGURE 11)
MODE
button
Power MX, AV, WATTS
Speed
Multi Function D, T, C, E, O, HR
Peak Power :30, 1:00, 5:00, 20:00
Time in Zones
FIGURE 9
D
FIGURE 10
MX
D
FIGURE 11
D
SELECT
button
MX, AV
1,2,3
365
WATTS
3
25
58.I0
849
WATTS
3
25
58.I0
I95
AV WATTS
3
25
58.I0
14
