QUICK START GUIDE

PowerTap SLC+

PowerTap SL+

PowerTap Pro+

PowerTap Elite+

PowerTap 2.4+

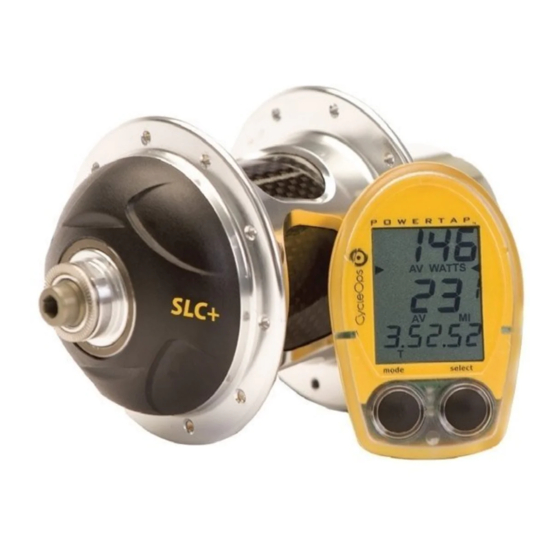

PowerTap SLC+ Featured

Need help?

Do you have a question about the PowerTap SLC+ and is the answer not in the manual?

Questions and answers

Summary of Contents for CycleOps PowerTap SLC+

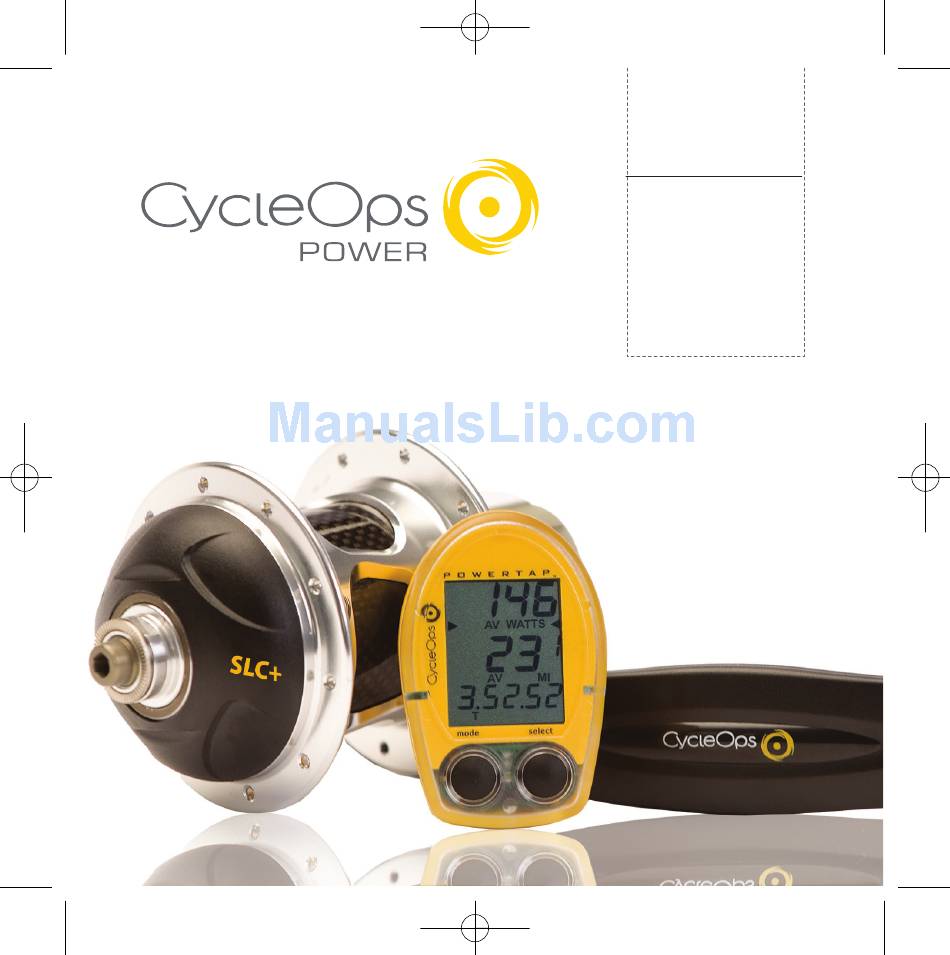

Page 1 18561:Layout 1 10/30/2008 11:51 AM Page 1 QUICK START GUIDE PowerTap SLC+ PowerTap SL+ PowerTap Pro+ PowerTap Elite+ PowerTap 2.4+ PowerTap SLC+ Featured...
Page 2 18561:Layout 1 10/30/2008 11:51 AM Page 2 General Computer Operation DISPLAY LEVELS The computer has three (3) main display levels: TRANS. POWER ICON DISPLAY Power WATTS Middle Speed SPEED INTERVAL DISPLAY DISPLAY Bottom Multi-Function 58.I0 MULTI - FUNCTION NOTE: These locations only apply to trip and DISPLAY interval modes and do not apply to Cycle Computer...
Page 3 18561:Layout 1 10/30/2008 11:51 AM Page 3 2) Hold [MODE] or [SELECT] - a single button press and hold of either [MODE] or [SE- LECT] for 2 sec. Used for initiating a new mode or function. 3) Press [MODE] and [SELECT] - simultaneously press and release of both [MODE] and [SELECT].
Page 4 18561:Layout 1 10/30/2008 11:51 AM Page 4 FINDING SENSORS The PowerTap hub, sensors and computer are "paired" or "learned" at the factory so that the sys- tem is ready to ride once installed on the bicycle. Learning involves viewing and storing each de- vice ID into the PowerTap computer.
Page 5 18561:Layout 1 10/30/2008 11:51 AM Page 5 ANT+ The PowerTap + Series uses ANT+Sport wireless technology that allows you to use the PowerTap with other ANT+Sport Power devices. The Garmin Edge 705 is one such device. In order to pair your PowerTap + Series hub with a Garmin Edge 705, follow these instructions or contact Garmin.
Page 6 1) Press either [MODE] or [SELECT] to activate the computer. mark 6.0 version of NOTE: The version of firmware is displayed upon startup. The firmware. most updated firmware version is available at www.cycleops.com. (FIGURE 28) 2) Extended hold of [MODE] and [SELECT] simultaneously enters FIGURE 29 computer setup function.
Page 7 18561:Layout 1 10/30/2008 11:51 AM Page 7 COMPUTER SETUP 5 This setup allows the CPU to learn a new device or sensor such as the hub, heart rate strap and optional cadence sensor. NOTE: This process only needs to be used if a new sensor or hub is being used in conjunction with your CPU or vice versa.
Page 8 18561:Layout 1 10/30/2008 11:51 AM Page 8 5) Follow the above steps for any additional sensors you may be using, such as the heart rate strap, speed and cadence sensors. The sensor name is shown on the top line of the display. SPd = speed sensor Cd = cadence sensor HS = heart rate sensor...
Page 9 18561:Layout 1 10/30/2008 11:51 AM Page 9 TORQUE FUNCTION FIGURE 12 Shows the torque placed on the hub in inch-pounds. To display torque while in trip mode: 1) Press [MODE] to scroll the cursor to the top line of the main display. 58.I0 2) Press [SELECT] until the current power function is displayed.
Page 10 Your PowerTap is now ready to ride. Install PowerAgent Software PowerAgent software allows you to download and analyze your PowerTap information. Simply in- sert the included CD and follow the on-screen instructions or visit www.cycleops.com for more in- formation. Instrucciones españolas www.cycleops.com/userguide Instructions françaises www.cycleops.com/userguide...
