Aventics R434001003 Service Information

Installation
Before installing this cylinder, all air lines in the system
should be blown clean to remove any moisture
or loose material. Also, the area in which the cylinder is
to be mounted should be free of any foreign
objects which may damage the cylinder barrel. To
further ensure a long trouble-free service, an
efficient air filter (40 micron or better) should be
installed in the system's supply line.
Remove the thread protectors from each pipe port in the
head and cap and connect the air lines from
the directional control valve. Use the pipe thread sealant
SM-1000.60

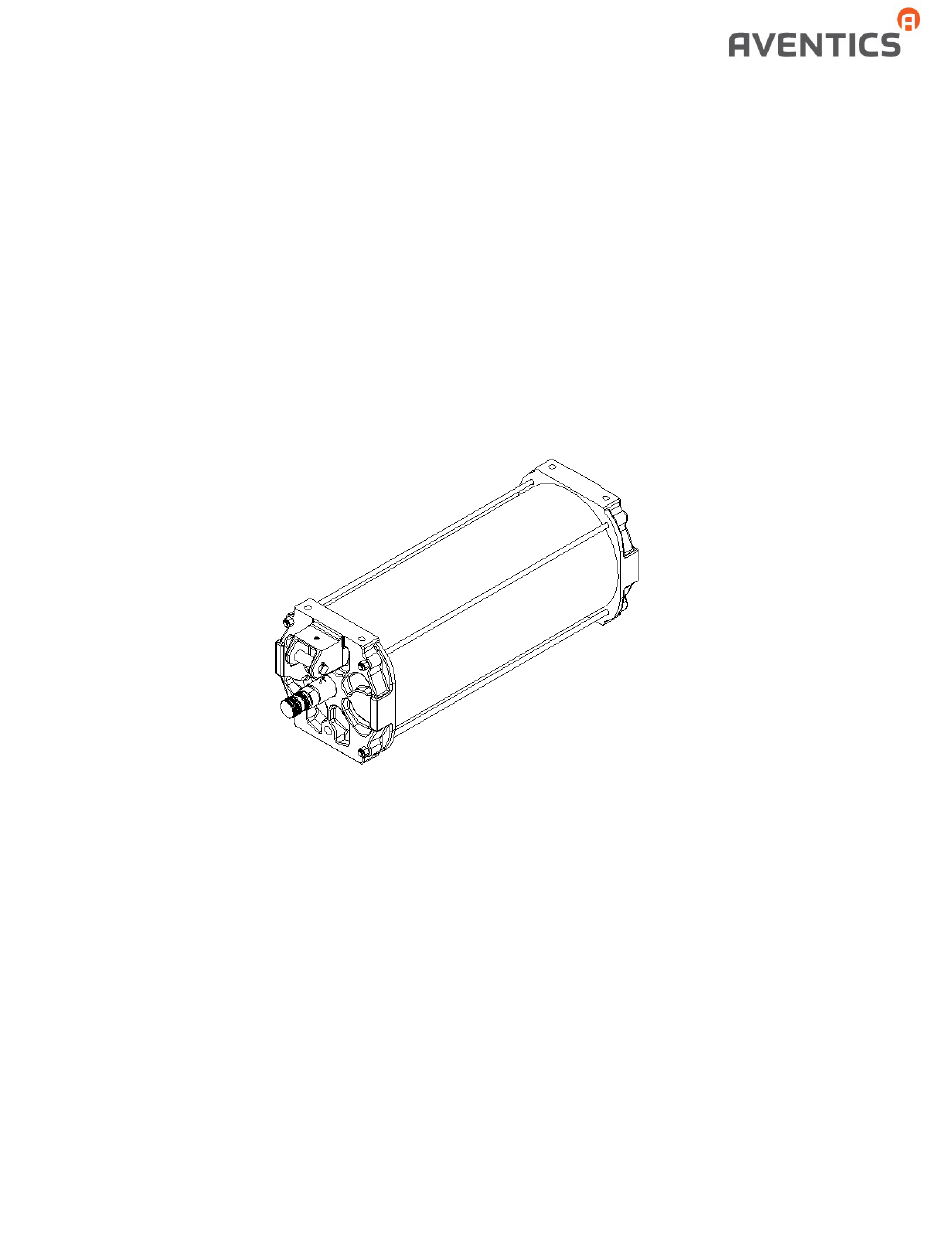

Pneumatic Cylinder
12" Bore X 26" Stroke
Part No. R434001003 (formerly P -320271-00000)
Service Information
on the airline fittings, not any kind of tape.
Be sure no foreign matter enters the cylinder ports or air
lines during the time they are open.
If the cylinder is to be painted, be sure the piston rod is
covered, the ports are closed, and the clevis
pin is covered where it rides in the clevis.
The supply air and atmospheric (ambient) condition
must be maintained within a temperature range of
-20°F to +160°F.
