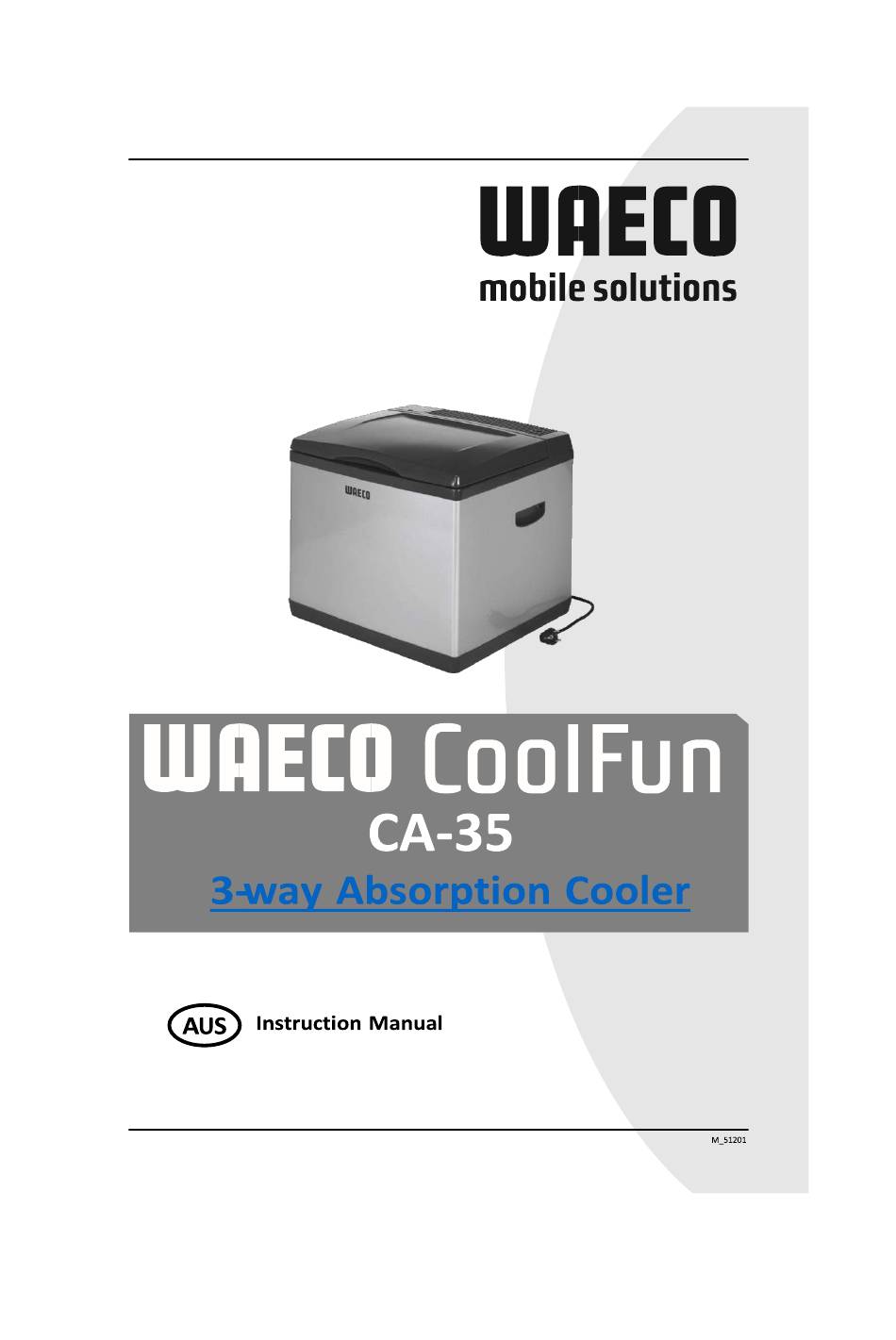

Waeco CoolFun CA-35 Instruction Manual

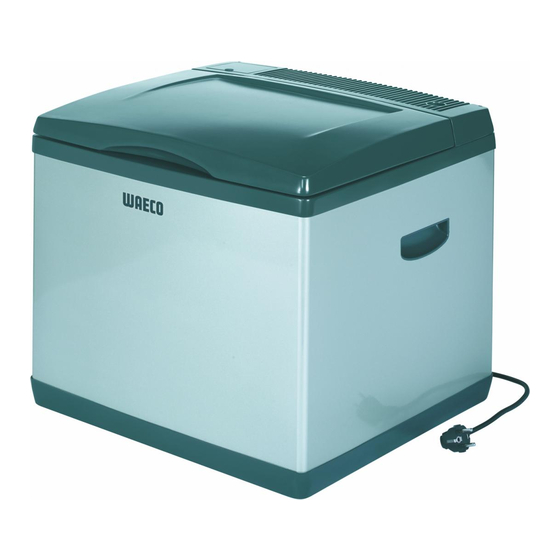

3-way absorption cooler
Hide thumbs Also See for CoolFun CA-35:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CoolFun CA-35 and is the answer not in the manual?

Questions and answers

Related Manuals for Waeco CoolFun CA-35

Summary of Contents for Waeco CoolFun CA-35

  • Page 2 CoolFun CA-35 Please read this manual carefully before starting the machine. Keep it in a safe place for future reference. If the device is resold, this operating manual must be handed over to the purchaser along with the device. Contents...
  • Page 3 CoolFun CA-35...
  • Page 4 CoolFun CA-35 Thread RH 1/4” BSP Notes on using the instruction manual The following symbols are used in this instruction manual: Caution! Safety instruction: failure to observe this instruction can cause injury or damage the device. Caution! Safety instruction: relating to a danger from an electrical current or voltage.

  • Page 5: Safety Instructions

    CoolFun CA-35 ✔ This symbol indicates the result of an action. 5, page 3: this refers to an element in an illustration. In this case, item 5 in figure on page 3. Please observe the following safety instructions. Safety instructions General safety •...
  • Page 6 CoolFun CA-35 Operating the device safely with 12 V DC • The cable between the battery and the cooler must be protected by a fuse of max. 15 A. • Only use cables with the corresponding cable cross section (see the table on page 9).

  • Page 7: Intended Use

    CoolFun CA-35 Intended use The cooler is suitable for cooling foodstuffs and making ice cubes in the tray provided. The device is also suitable for camping. Caution – When cooling perishable medicines! If you wish to cool medicines, please check if the cooling capacity of the device is suitable for the medicine in question.
  • Page 8 CoolFun CA-35 lid is opened. ➤ Place the cooler on a firm and level base. Check the horizontal position (±2˚) with a spirit level if necessary. ➤ Open the lid of the control panel ( 1, page 4) by pressing down on it. Press down on the lid again to close it.
  • Page 9 CoolFun CA-35 Connecting to a gas source Only use LPG gas bottles with an approved pressure regulator fitted. Compare the pressure information on the type plate with the pressure information on the gas cylinder. The device is fitted with a pilot light. The gas supply is interrupted when the flame goes out.

  • Page 10: Replacing The Gas Bottle

    CoolFun CA-35 Replacing the gas bottle Only change the gas bottle in well ventilated areas. Make sure that there are no sources of ignition in the vicinity. Only change the gas bottle when the cooler is switched off. ➤ Switch off the cooler by completely shutting the rotary switch ( 3, page 4) by turning it clockwise.

  • Page 11: Disposing Of Packaging Material

    CoolFun CA-35 Disposal Disposing of packaging material Do not simply throw the packaging materials away. Please observe the following instructions: ➤ Place cardboard and plastic packaging in the appropriate recycling waste bins. ➤ Ask your local authority for the location of the recycling centre closest to you.

  • Page 12: Troubleshooting

    CoolFun CA-35 Troubleshooting In the event of malfunction, please check the following: Fault Possible cause Suggested remedy Check if all electrical contacts are in full The cooler does not The cooler is not working order. Check if the voltage work.
  • Page 13 CoolFun CA-35 Gas consumption: 12 g/h Connection pressure: 2.75kPa Connection to 220 V – 240 V Power consumption: 72 W Current consumption: 0.3 A Connection to 12 V Power consumption: 72 W Current consumption: 6.1 A Cooling temperature range: Up to 25 ˚C below ambient temperature Weight: approx.
  • Page 14 CoolFun CA-35 Asia and Pacific E-08340 Vilassar de Mar WAECO Benelux B.V. (Barcelona) Ecustraat 3 4879 NP Waeco Pacific Pty Ltd Etten-Leur phone: +31- Torrent de Ca L’Amat, 85 New Zealand Branch 76/50 29000 fax: +31- phone: +34-93/7502277 76/50 29090 e-mail:...
  • Page 15 1305/854288 e-mail: 1/30282020 fax: +33- sales@waeco.co.uk HONG KONG phone: 1/30282010 e-mail: +852-2463 2750 info@waeco.fr WAECO Middle East FZCO fax: +852-2463 9067WAECO Finland OY Jebel Ali, Dubai · R/A 8, SD 6 e-mail: info@waeco.com.hk FIN-00880 Helsinki phone: +971-4/8833858 fax: Pulttitie 17 +971-4/8833868 e-mail: WAECO Impex Ltd.
  • Page 16 (07)5507 6001 WAECO Victoria 1/97 Lewis Road Wantirna VIC 3152 phone: 1800 21 21 21 fax: (03)9800 1533 WAECO Western Australia 9 Hod Way Malaga WA 6090 phone 1800 21 21 21 fax (08)9209 3577 WAECO Pacific Pty. Ltd. e-mail: sales@waeco.com.au Internet http://www.waeco.com.au...
