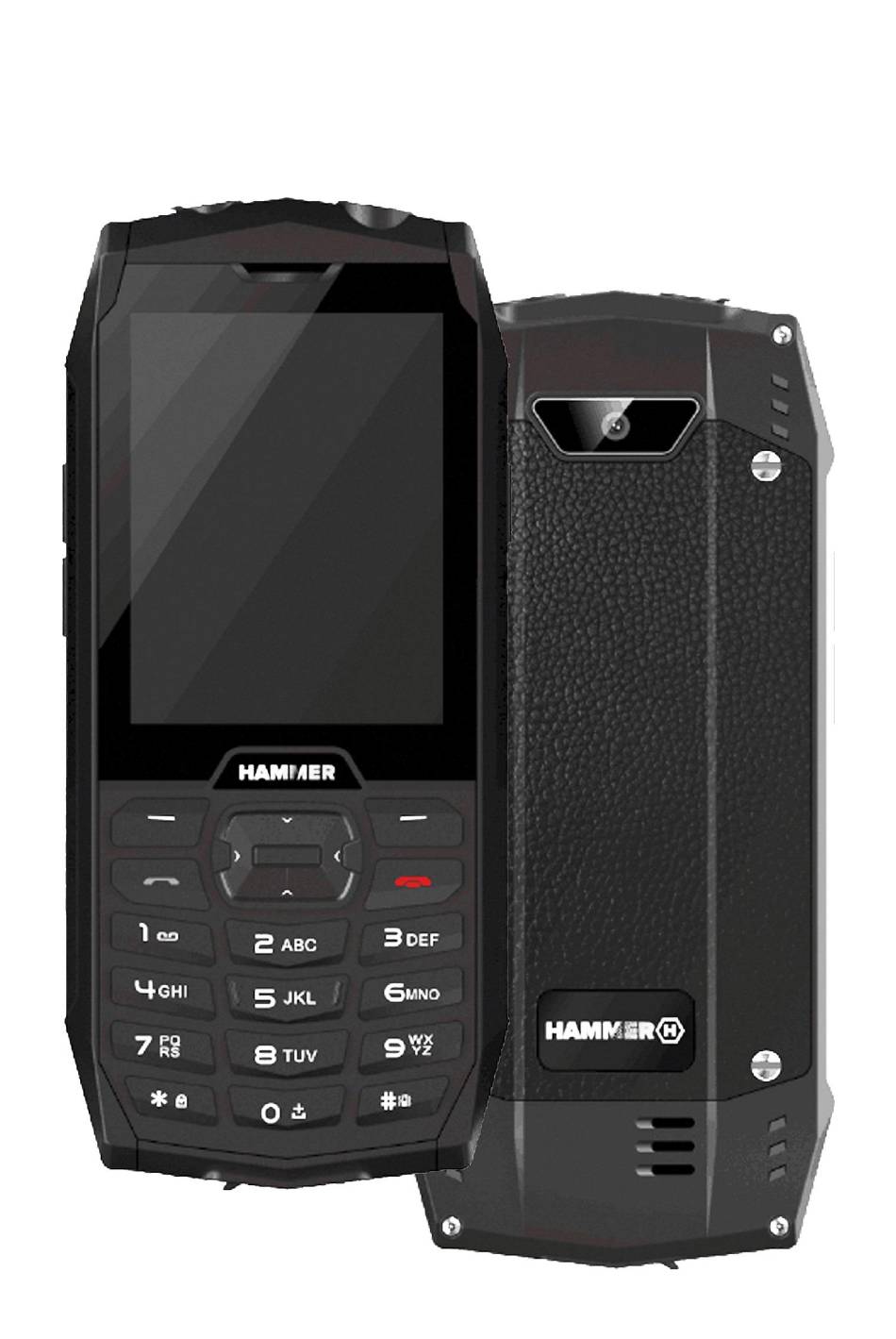

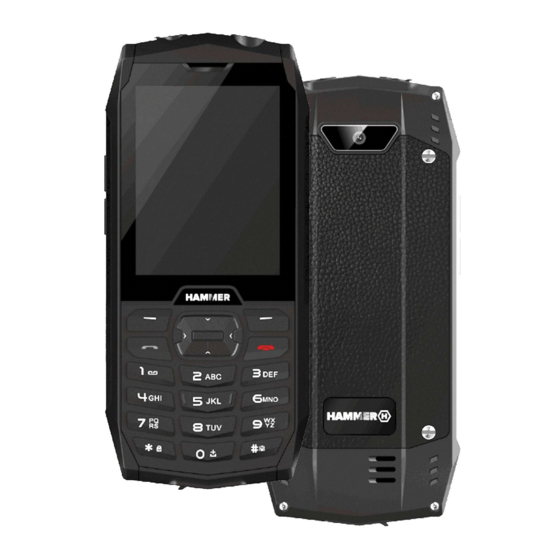

- Page 1 PHONE MANUAL HAMMER 4 Lot number: 201904...
-
Page 2: Mptech. All Rights Reserved. Hammer
© 2019 mPTech. All rights reserved. HAMMER 4 Thank you for choosing HAMMER 4 device. Please read the manual carefully. It has a durable, waterproof and dustproof casing, a contrasting, colour display, torch, Bluetooth and support for dual SIM. Without prior written consent of the manufacturer, no part of this manual may... - Page 3 © 2019 mPTech. All rights reserved. HAMMER 4 membranes are intact (not contaminated with i.e. metal dust). We also advice not to expose the phone to water or other fluids for no good reason. Water and other fluids do not have a positive effect on phone electronic components. If wet, wipe and dry the device as soon as possible.
-
Page 4: Table Of Contents
© 2019 mPTech. All rights reserved. HAMMER 4 Table of Contents Table of Contents ..................4 Technical Specifications ................5 1. Appearance of the phone, its functions and buttons ...... 7 2. Introduction ....................9 Turning the phone on/off ................9 Installation of the SIM card, memory card and battery ...... -
Page 5: Technical Specifications
© 2019 mPTech. All rights reserved. HAMMER 4 Factory settings ....................15 Torch ......................... 15 Call log ......................15 Audio Player ....................15 Radio ......................... 16 Calendar ......................17 Bluetooth ......................17 Pairing bluetooth devices ................... 17 Sending files via Bluetooth................. 18 Taking pictures ..................... - Page 6 © 2019 mPTech. All rights reserved. HAMMER 4 • Battery: 2000 mAh • 2 MPix Camera • Dual SIM, FM Radio, Torch • USB: microUSB • Memory cards support up to 32 GB • Water- and dustproof standard – IP68 •...
-
Page 7: Appearance Of The Phone, Its Functions And Buttons
© 2019 mPTech. All rights reserved. HAMMER 4 1. Appearance of the phone, its functions and buttons SIM1 SIM2 microSD Battery connector Speaker A speaker used in phone conversations. Camera Camera lens... - Page 8 © 2019 mPTech. All rights reserved. HAMMER 4 It allows you to connect headphones to your phone, Headphone port so you can listen to the radio (improve the quality of minijack 3.5 mm reception - act as an additional antenna), music, and...
-
Page 9: Introduction
© 2019 mPTech. All rights reserved. HAMMER 4 Use this option to decrease the volume in <*> button multimedia applications. When writing an SMS, it displays symbols for insertion into the content. Use this option to increase the volume in multimedia applications. -
Page 10: Battery Discharge Indicator
Press <OK> button to confirm your choice (and enter the menu item) or <Back> to return to previous menu/desktop. Customize your phone HAMMER 4 phone can be customized to your needs. This makes its use more enjoyable and easier. Quick switching of sound profiles To turn off sounds use <#>... -
Page 11: Call Handling Functions
© 2019 mPTech. All rights reserved. HAMMER 4 • [Ringtone volume] -select [Options] > [Change] > <Select> and adjust the volume using the buttons and confirm with <OK>. • [Message] - change the sound of an incoming message. Select [Options] >... -
Page 12: Phonebook
© 2019 mPTech. All rights reserved. HAMMER 4 Phonebook Adding a new contact Enter [Menu] > [Phonebook] > [Add new contact]. Select the storage location for the contact: on the SIM card or in the phone memory Enter the contact details: name, phone number. -
Page 13: Speakerphone Mode
SIM card you want to use to send a message or make a call. Connecting your phone to the computer Hammer 4 can be plugged to the PC computer using USB cable. This allows you to view and exchange data between your computer and your phone. To do this, connect the microUSB plug to the phone connector (located on the bottom of the phone), then connect the USB plug to the USB connector of the computer. -
Page 14: International Calls
© 2019 mPTech. All rights reserved. HAMMER 4 displayed. The system will automatically install the necessary drivers. After correct installation, the contents of the phone memory and/or memory card installed in the phone can be viewed using Windows Explorer. International calls From the main screen press and hold <0>... -
Page 15: Configuration Of The Alarm / Alarms
© 2019 mPTech. All rights reserved. HAMMER 4 duration reminder, the settings of the method of answering calls (any key or automatic dialling) are available. Configuration of the alarm / alarms Select [Menu] > [Organizer] > [Alarm] > <OK> or select <Right> while on the main desktop. -
Page 16: Radio
© 2019 mPTech. All rights reserved. HAMMER 4 In order to play music files, they should be stored on a microSD memory card and they will be automatically added to the player's playlist. If not added select: [List] > [Options] > [Refresh list]. -
Page 17: Calendar
© 2019 mPTech. All rights reserved. HAMMER 4 Calendar To enter the calendar, select [Menu] > [Organizer] > [Calendar] or press <left> while in the main screen. You can add reminders and events. Use the <down>, <up>, <left>, <right> buttons to navigate between calendar dates. Select the date and press <Options>... -
Page 18: Sending Files Via Bluetooth
© 2019 mPTech. All rights reserved. HAMMER 4 list and confirm pairing with [Pair]. You will be prompted to enter the same combination of digits on both devices and confirm pairing. Sending files via Bluetooth To send a file from the memory card to a paired (connected) device, select [Menu] >... -
Page 19: Troubleshooting
© 2019 mPTech. All rights reserved. HAMMER 4 Troubleshooting Problem / message Possible solution In areas where signal or reception is weak, calls may not Network fail be possible. Also receiving calls may not be possible. Move to another location and try again. -
Page 20: Device Maintenance
© 2019 mPTech. All rights reserved. HAMMER 4 Device maintenance To extend the life of your phone, follow the guidelines. Keep the phone and its accessories out of reach of children. Avoid exposing the phone to the high and low temperatures; it can shorten the life of phone electronic components, melt the plastic parts and destroy the battery. -
Page 21: Technological Criteria
SAR (eng. Specific Absorption Rate). The SAR limit recommended by the Council of the European Union is 2 W/kg and refers to the averaged value for 10 grams of tissue. The highest SAR value for the phone HAMMER 4 equals 1.653 W/kg. -
Page 22: Correct Disposal Of Electrical And Electronic Equipment
Declaration of conformity with European Union Directives mPTech ltd. hereby declares that HAMMER 4 cellular phone is compliant with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following Internet address: https://www.myphone.pl/qr/hammer-4...
